مميزات خاصة

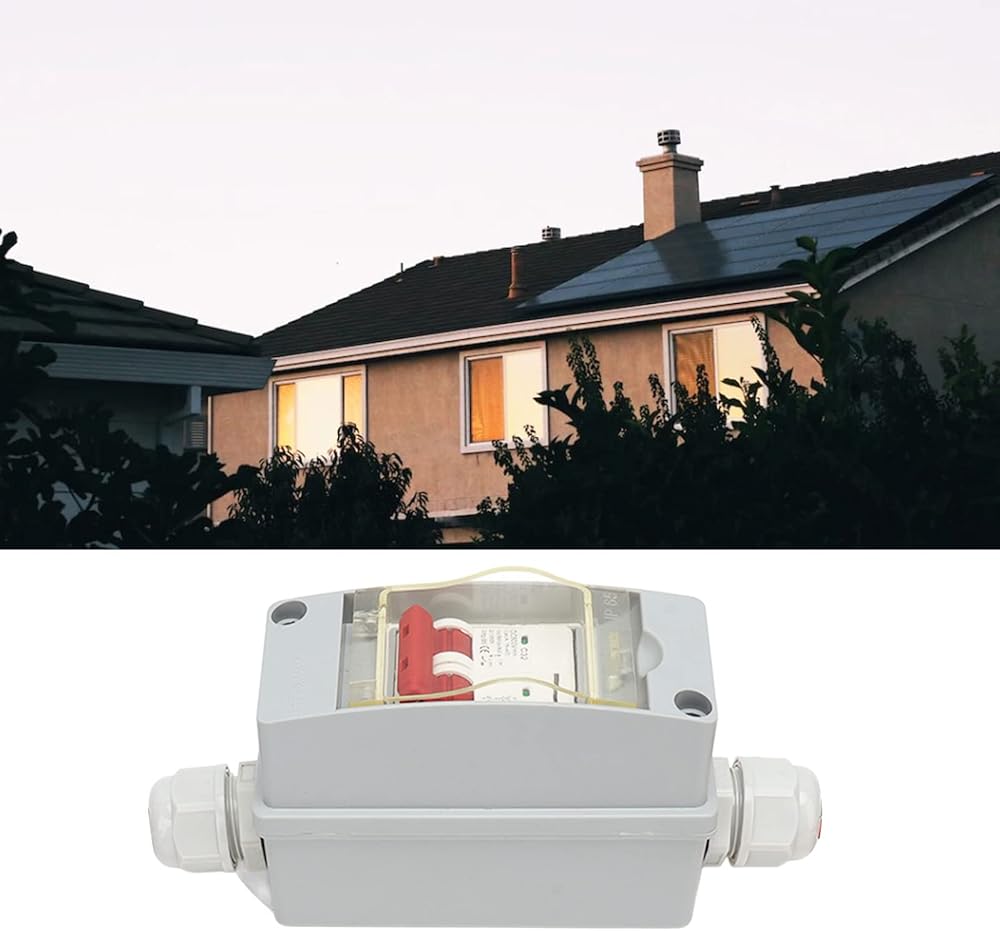

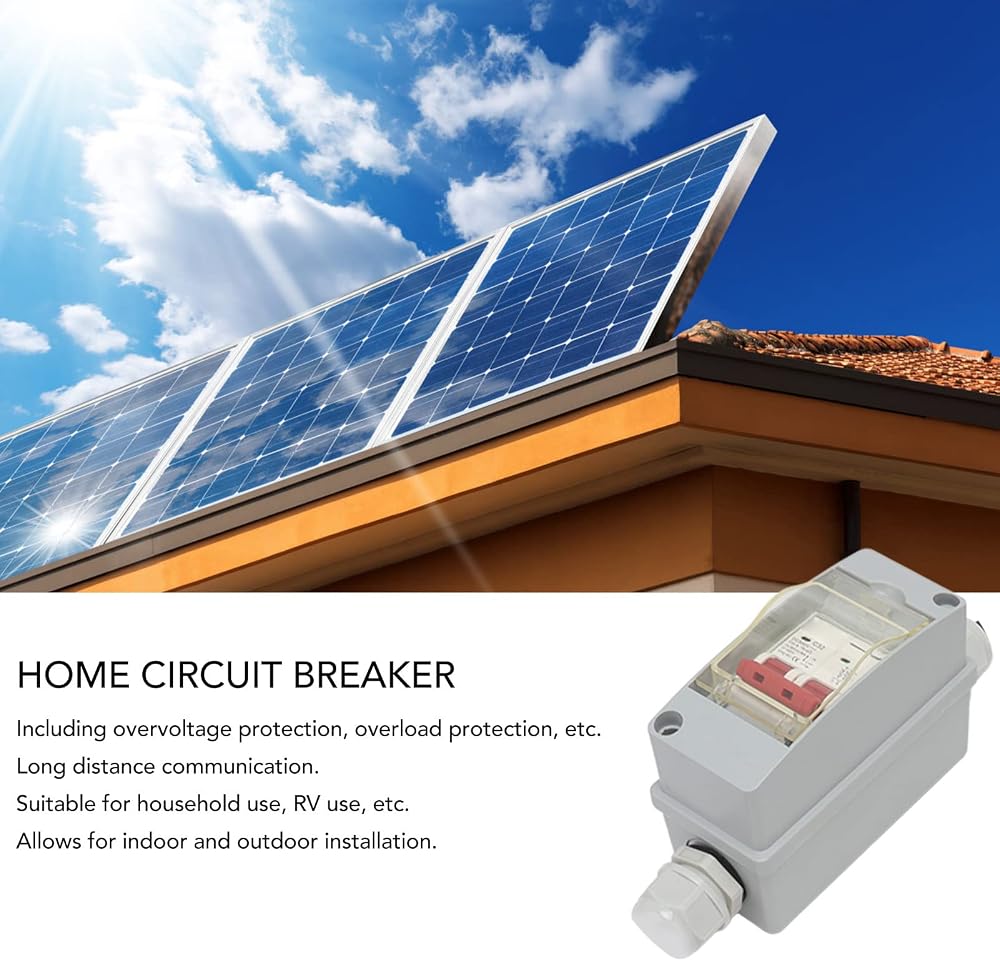

SCOPE OF APPLICATION: This circuit breaker is applicable to photovoltaic solar panel grid connected system and solar off grid system solar power generation system. It's also for household, RV, etc.

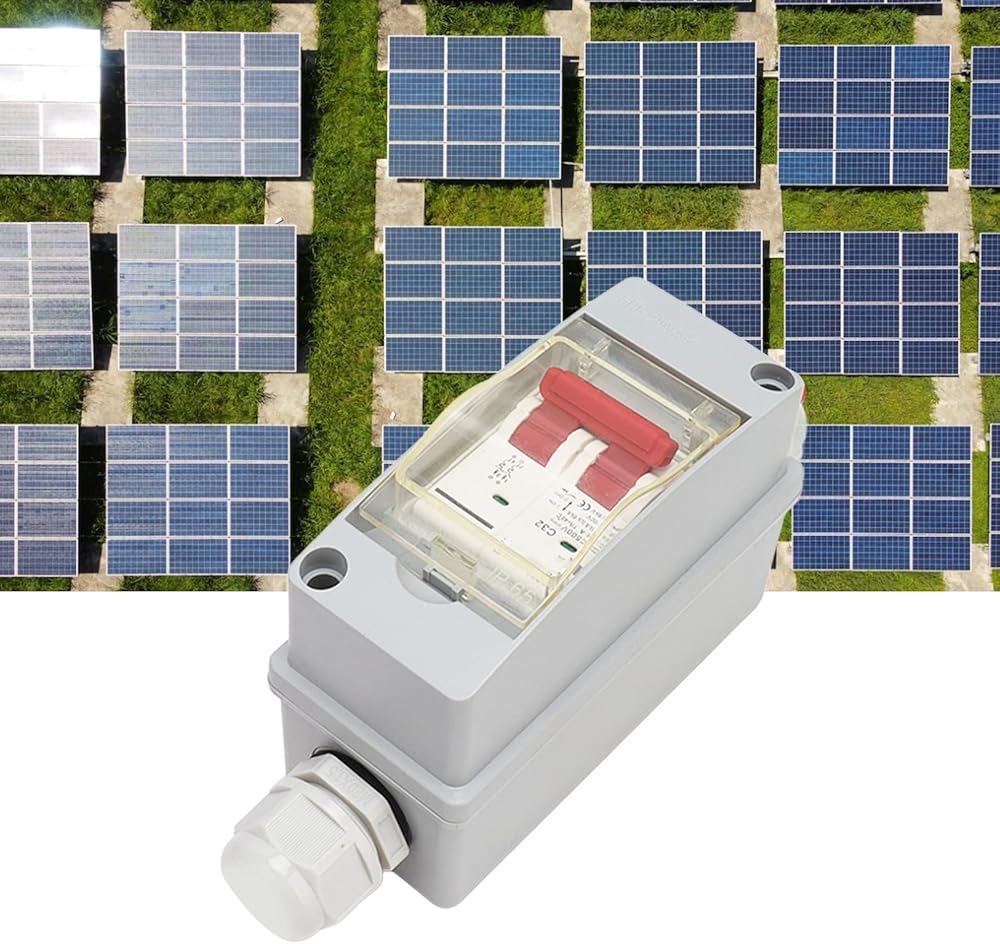

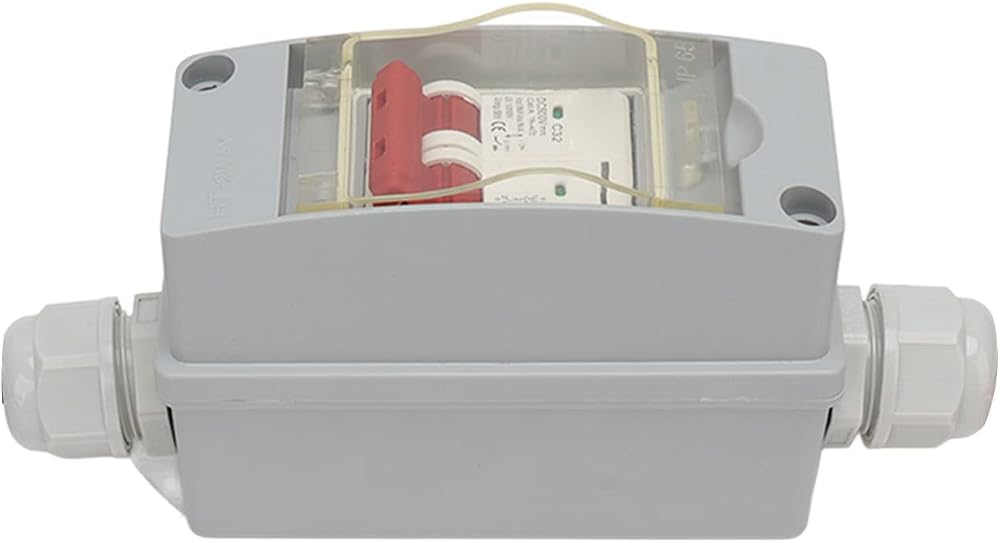

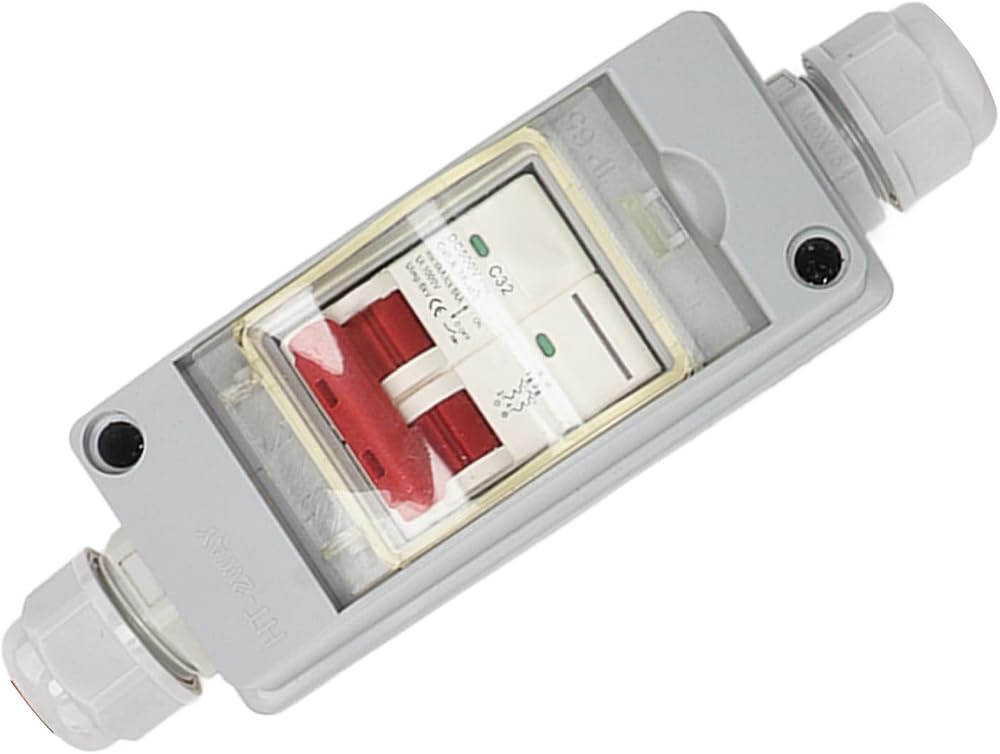

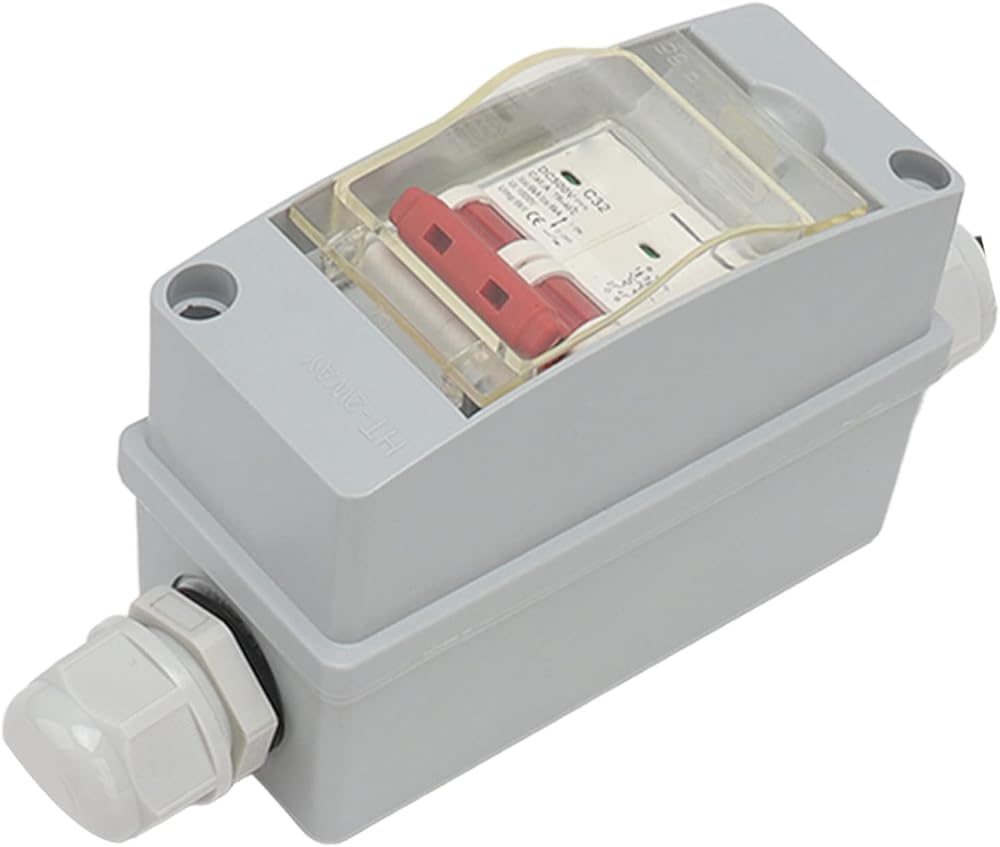

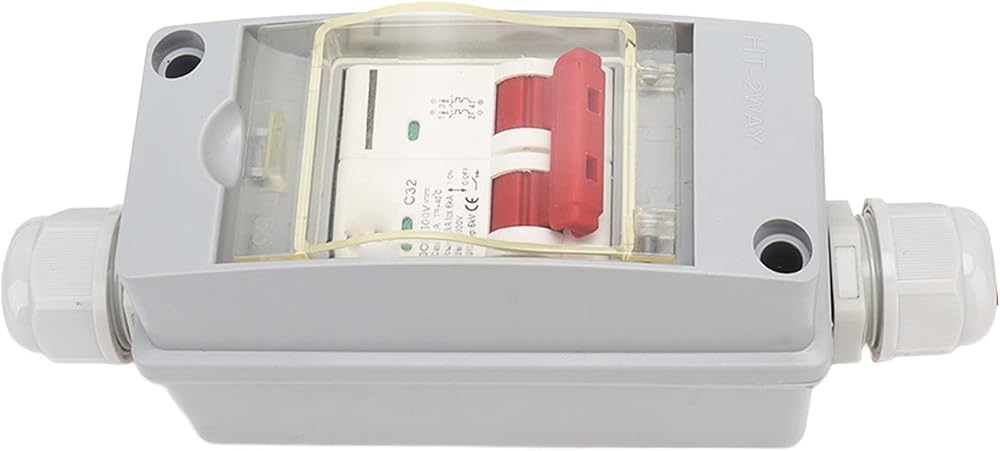

INSTALLATION FOR: 500V solar photovoltaic DC combiner box, installed between the solar panel and the solar inverter, can achieve faster and safer installation, plug and play. The circuit breaker equipped with the reliable DC module to maximize the protection of photovoltaic DC disconnector, and the transparent cover is also convenient for checking the status of the circuit breaker.
CONVENIENCE TO USE: The disconnector is allowed to be installed indoors and outdoors, with built in DC switchgear, which can be effectively protected in severe weather and environment.
PROTECTION FUNCTION:: This circuit breaker has overvoltage protection, overload and protection functions, which can provide distance communication and extend the working life of the solar system.

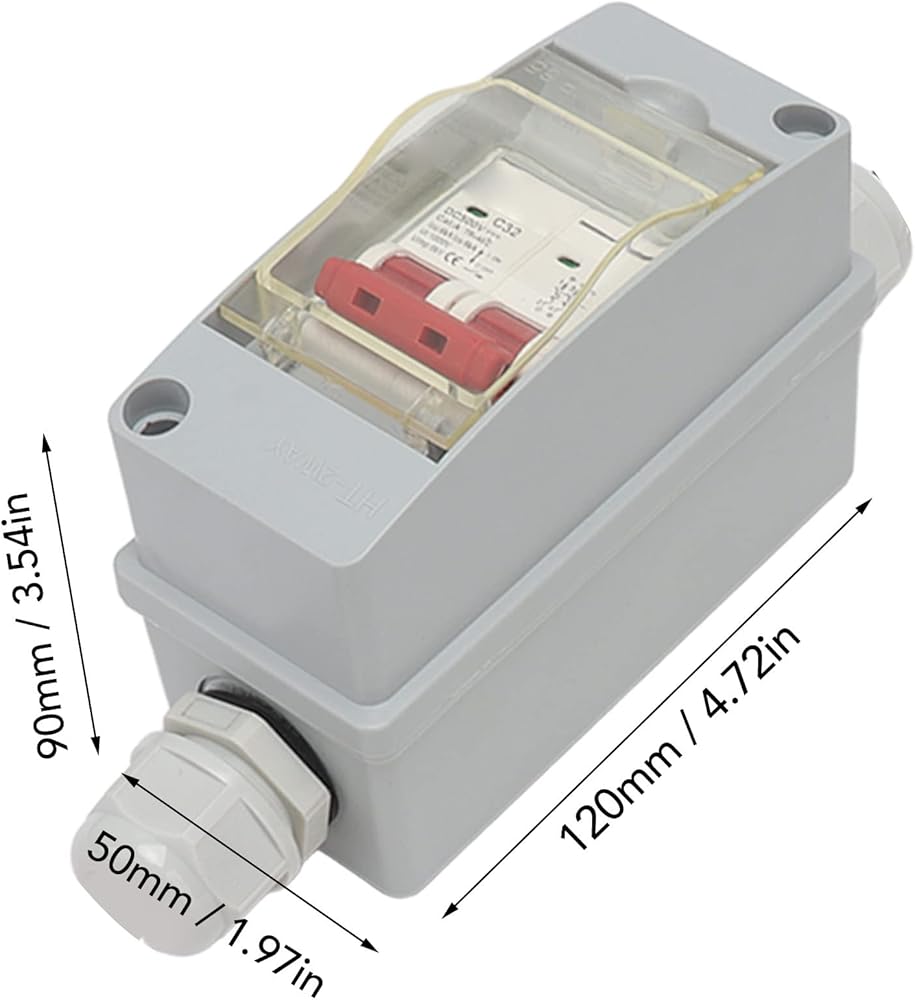

INFORMATION OF PRODUCT: The size of this circuit breaker is approx. 120 x 55 x 90mm / 4.72 x 2.17 x 3.54in. The protection grade is IP65.

وصف

Specification:
Item Type: Circuit Breaker
Model: LQX C32.2
Material: Polycarbonate, ABS
Input: 1 String
Output: 1 String
Maximum Voltage: 500V
Maximum DC Short Circuit Input Current Isc: 32A, replaceable.
Protection Grade: IP65
Product Size: Approx. 120 x 55 x 90mm / 4.72 x 2.17 x 3.54in
Cable Inlet: PG20 4²
Output Cable Gland: PG20 4²
Rated Insulation Voltage Ui: 400V
Rated Current Le: 32A
Maximum Working Voltage Ucpv: 500V
Rated Working Voltage: 500V

Package List:
1 xCircuit Breaker
1 x User Manual
or
1 x Circuit Breaker
4 x Connector (2pcs male connector, 2pcs female connector)
4 x Core
4 x Screw
4 x Wall Plug
1 x PV Wrench
1 x User Manual

مرحبًا،

بحث

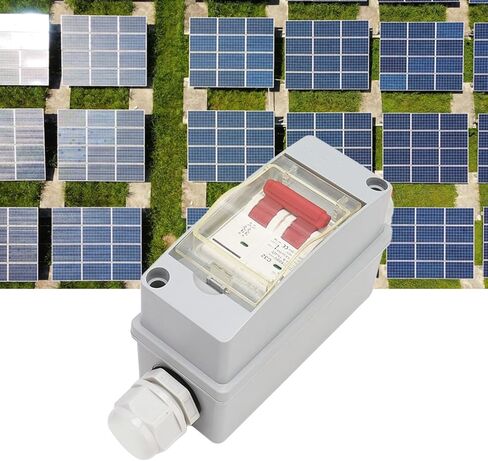

قاطع دائرة 2P MCB DC 500V 32A مفتاح فصل قاطع الدائرة المنزلية مع صندوق توزيع مقاوم للماء IP65 ودليل المستخدم (بدون كابل)
