Description:

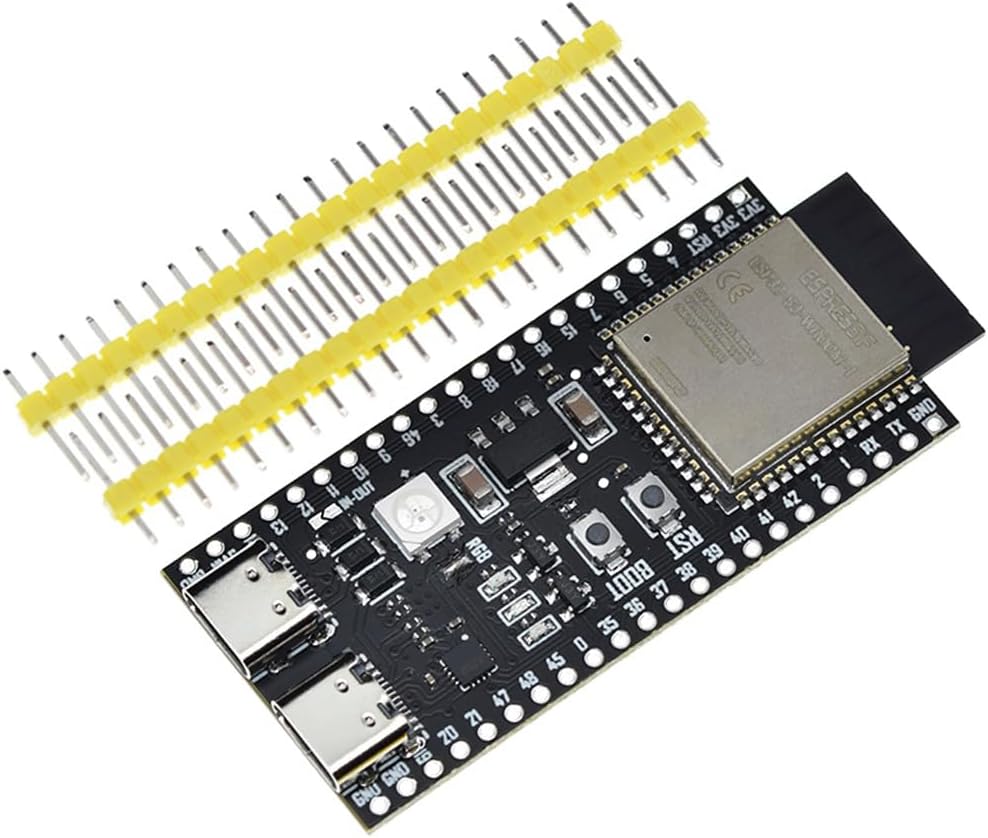

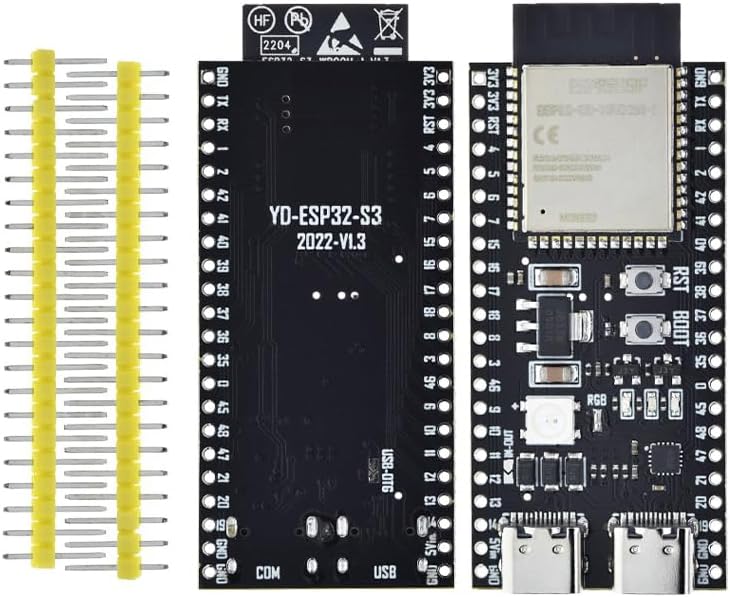

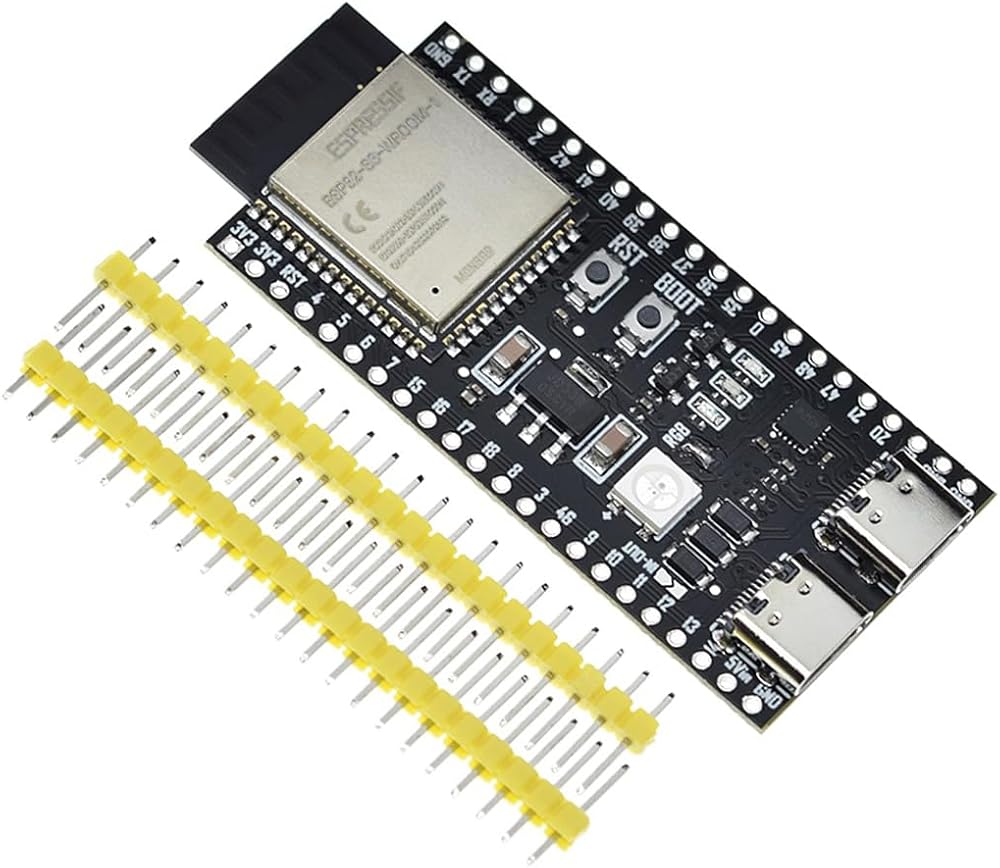

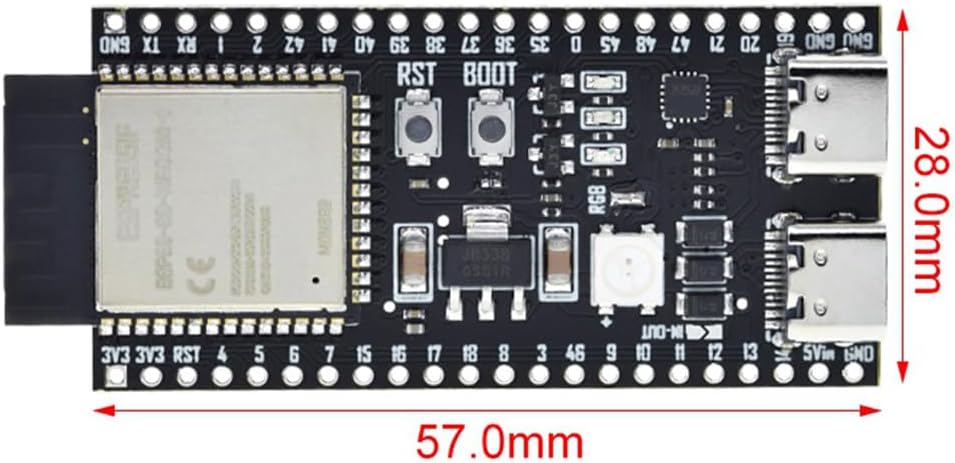

This ESP32-S3 N16R8 core board uses the original ESP32-S3-WROOM-1-N16R8, which ensures a stable and excellent user experience with ESP32-S3. ESP32-S3 is a low-power MCU system-on-chip (SoC) that integrates 2.4 GHz Wi-Fi and Bluetooth Low Energy (Bluetooth LE) dual-mode wireless communication.
The ESP32-S3 has a complete Wi-Fi subsystem and Bluetooth low energy subsystem with industry-leading low power performance and RF performance. It supports a variety of low-power working states and can meet the power consumption requirements of various application scenarios. The ESP32-S3 chip provides a wealth of peripheral interfaces and has a variety of unique hardware security mechanisms. Sophisticated security mechanisms enable the chip to meet stringent security requirements.
Features:
Xtensa dual-core 32-bit LX7 CPU
frequency up to 240MHz
Memories:
384 KB of ROM
512 KB of SRAM
16 KB of RTCSRAM
8 MB of PSRAM
Working voltage: 3V to 3.6V
Up to 45 GPIOs
2*12-bit ADC (up to 20 channels)
Extended temperature range: -40℃ to +65℃
Security 4096 bit OTP, AES, SHA, RSA, ECC, RNG
Secure Boot, Flash Encryption, Digital signature, HMAC module
Interfaces:
2 I2C interfaces
2 I2s interface
4 SPI interfaces
3 UART interfaces
1 USB OTG interface
Package included:
1 * ESP32-S3 N16R8 Dual USB-C Wifi Bluetooth 5.0 Core Board
2 * Pin Headers (Unsoldered)
