Special Features

✹✹ Input supply voltage: DC 10V-55V; Maximum current: 60A; Continuous current: 40A; Speed range: 0-100% ; Control frequency: 15KHZ
✹✹Using imported high-voltage MOS tube, three pressure 100V high-frequency low-resistance capacitors, automotive fuses
✹✹UMLIFE DC motor driver can be used to brush motor speed regulation, light dimming regulation in the DC circuit
✹✹Size: 5.03 x 3.85 x 0.74 inch/ 128 x 98 x 19mm
✹✹Note: 1:The digital display is the percentage of motor full speed 0-100 actual speed of non-motor 2: The input voltage must be divided into positive and negative 3: The input voltage should be equal to the rated voltage of the motor within DC 10-55V

Description

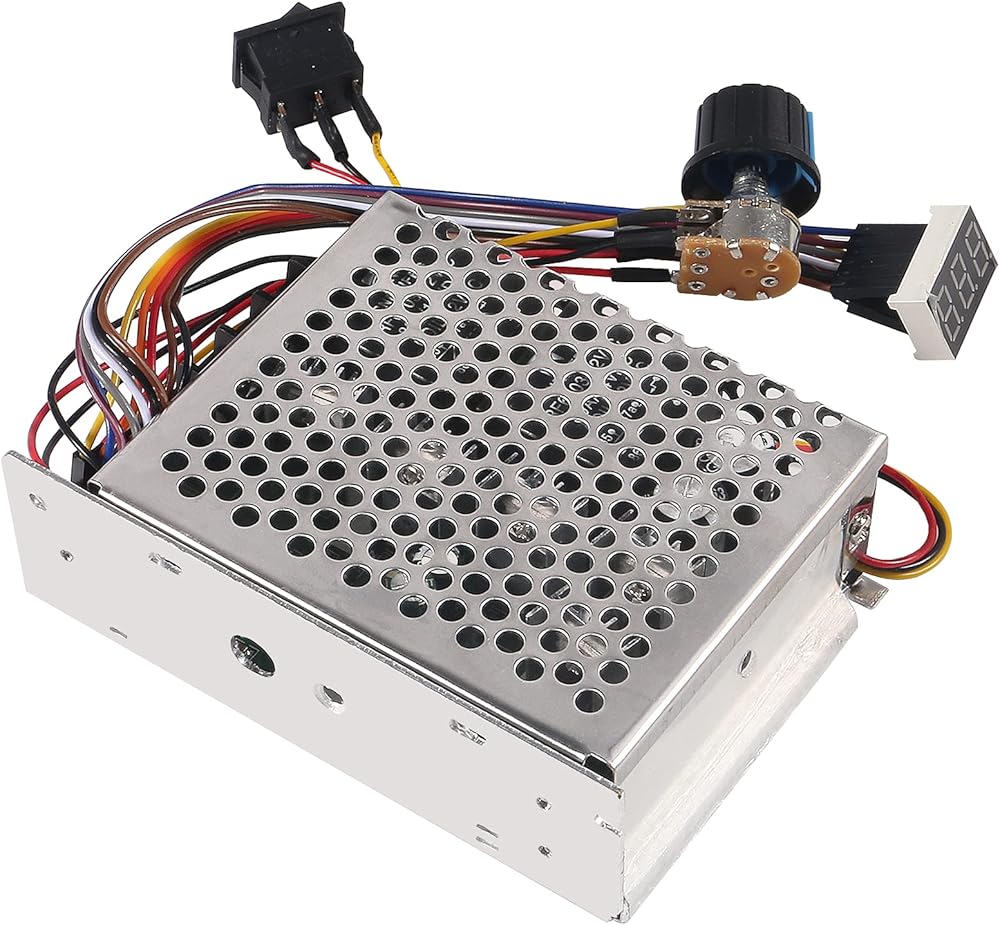

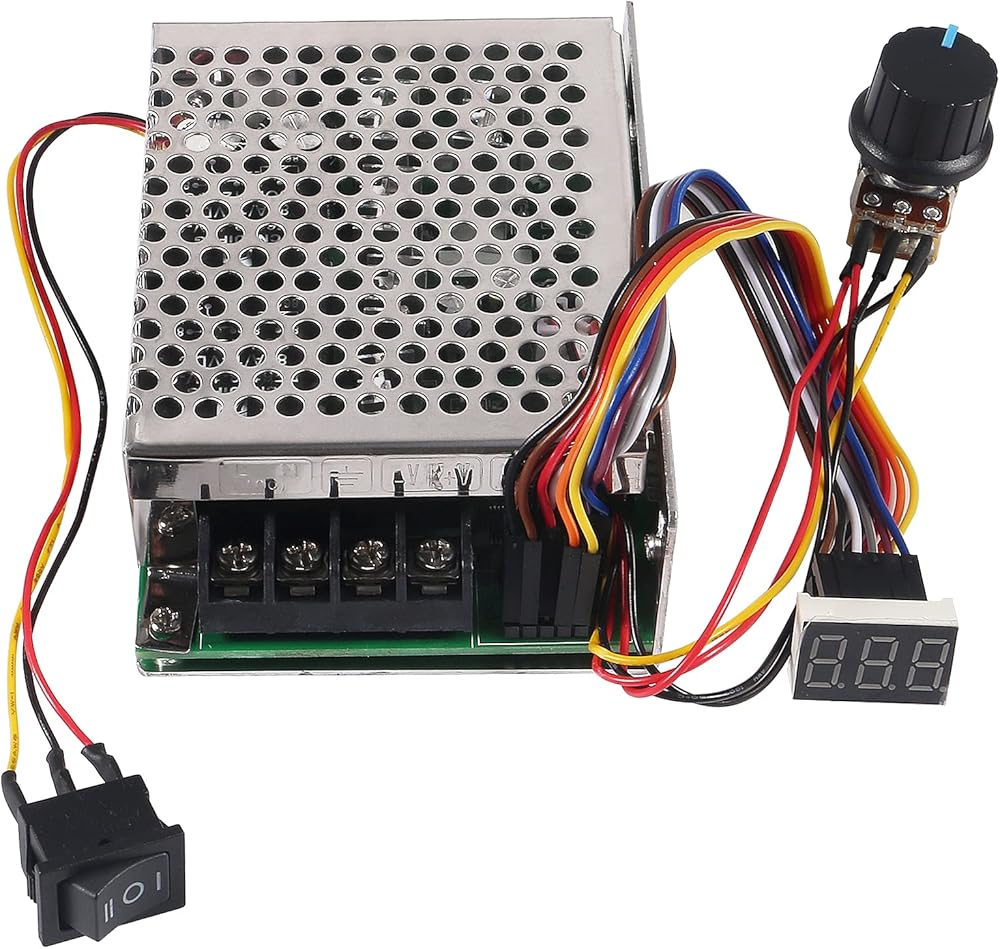

12V 24V 36V 40A DC Motor Speed Controller Forward Reverse Digital Display Adjustable Knob Switch Plus Control Driver

Specifications

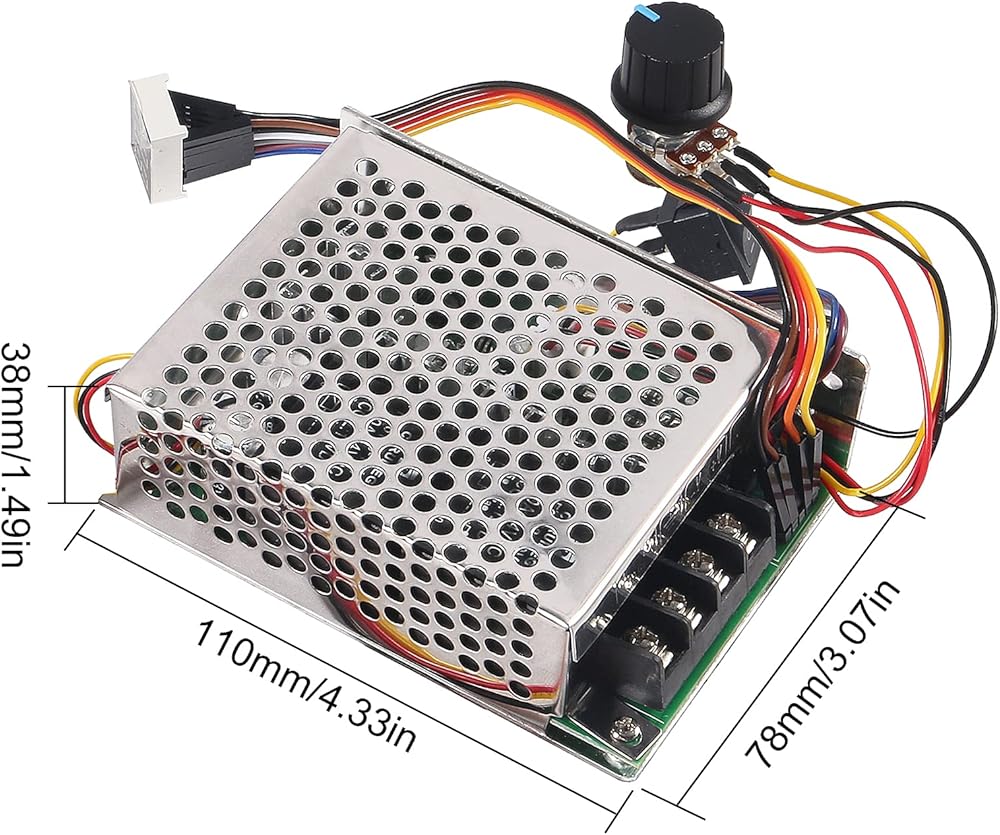

Size: 5.03 x 3.85 x 0.74 inch/ 128 x 98 x 19mm
Forward & Reverse: Support
Supply/load voltage: DC 10-55V
Maximum current: 60A
Continuous Current: 40A
PWM frequency: 15KHZ
Speed Modulation Range: 0 ~ 100%

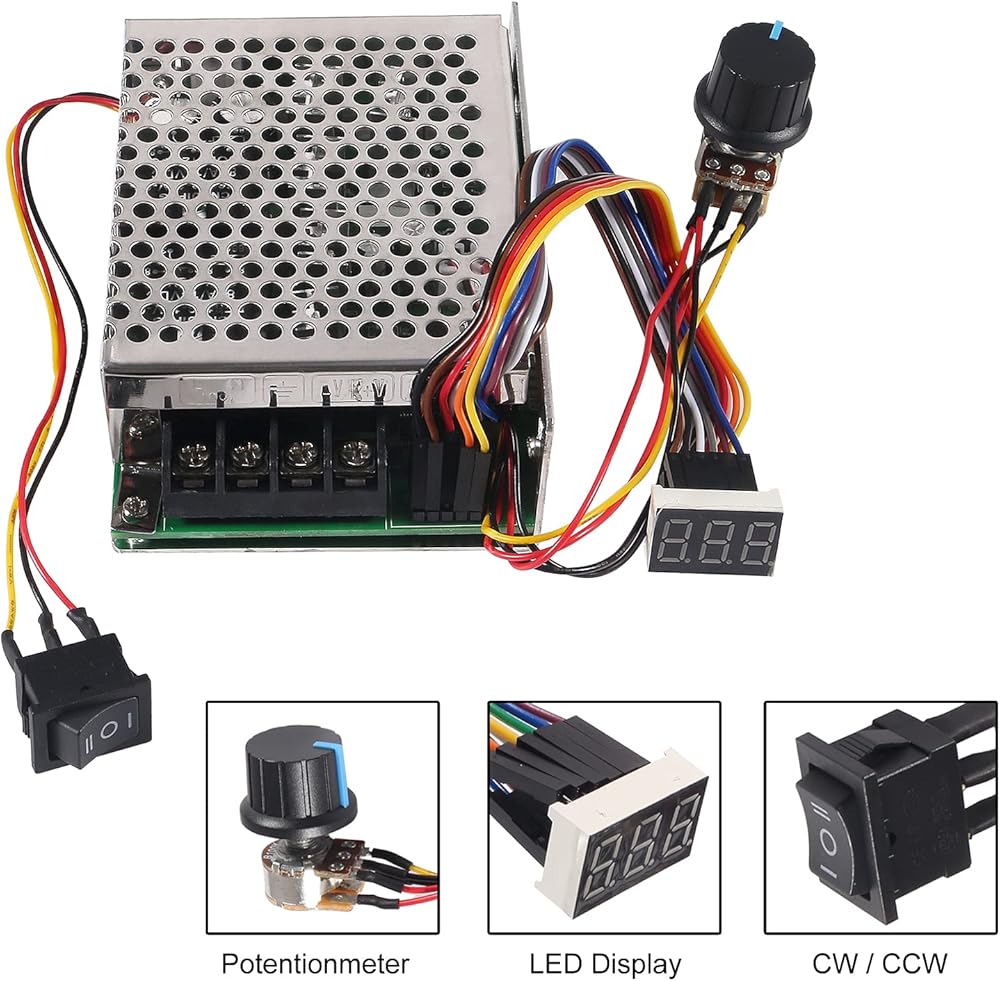

Speed Control Type: Current modulation by potentiometer (with switch)
Support Forward Reverse Rotation Control: Yes, by Forward-Brake-Reverse Switch

Note :

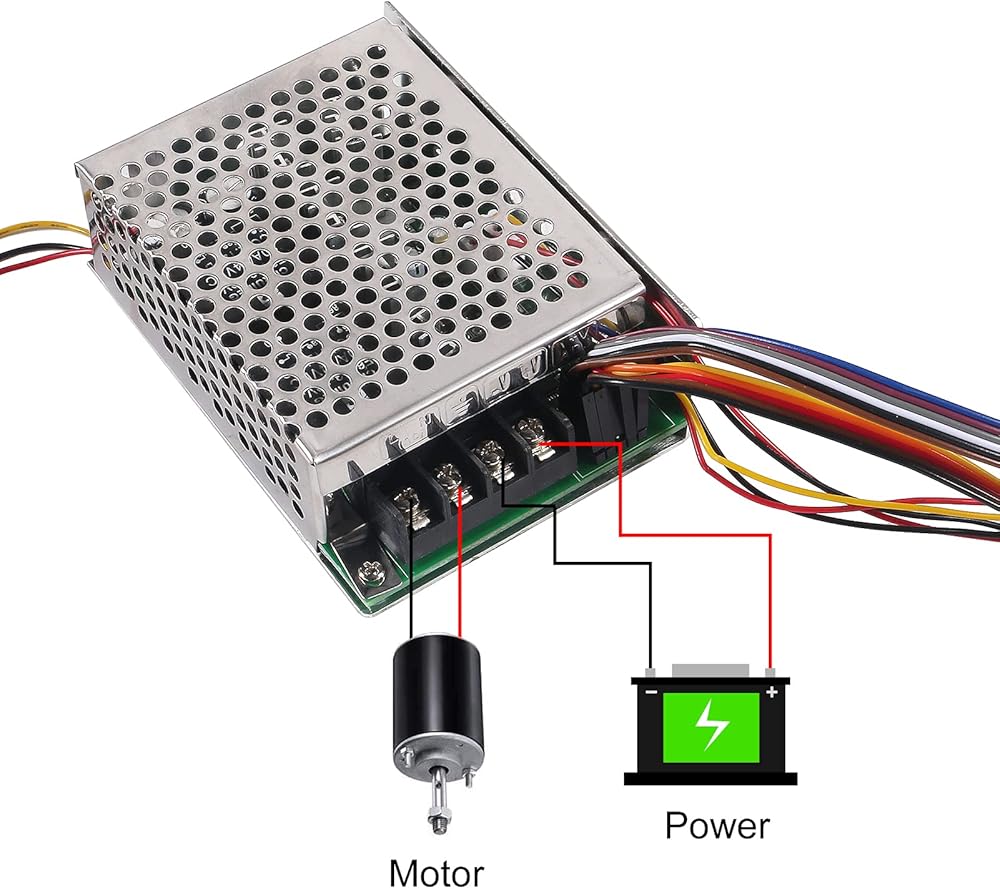

1. The input voltage must distinguish between positive and negative poles.

2. Cannot input 110V Household Voltage.

3.The input voltage must be equal to the rated voltage of the motor within the range of 10-55V.

4. The digital display shows the percentage of full speed of the motor, not the actual speed of the motor.

Package Includes :

1Pcs x DC Motor Speed Controller with LED Digital Display
