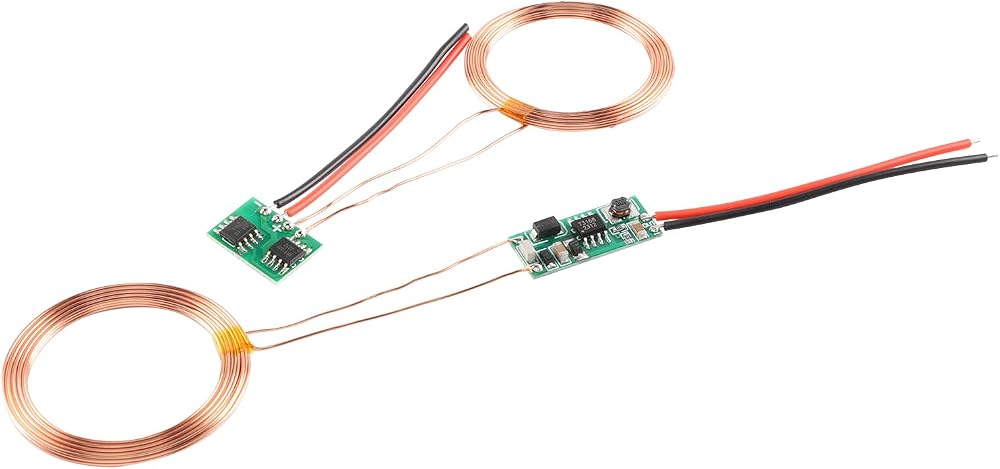

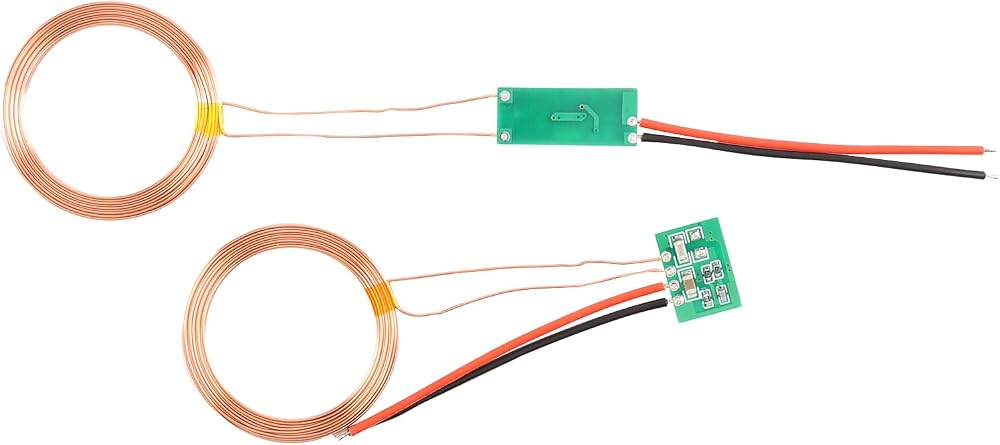

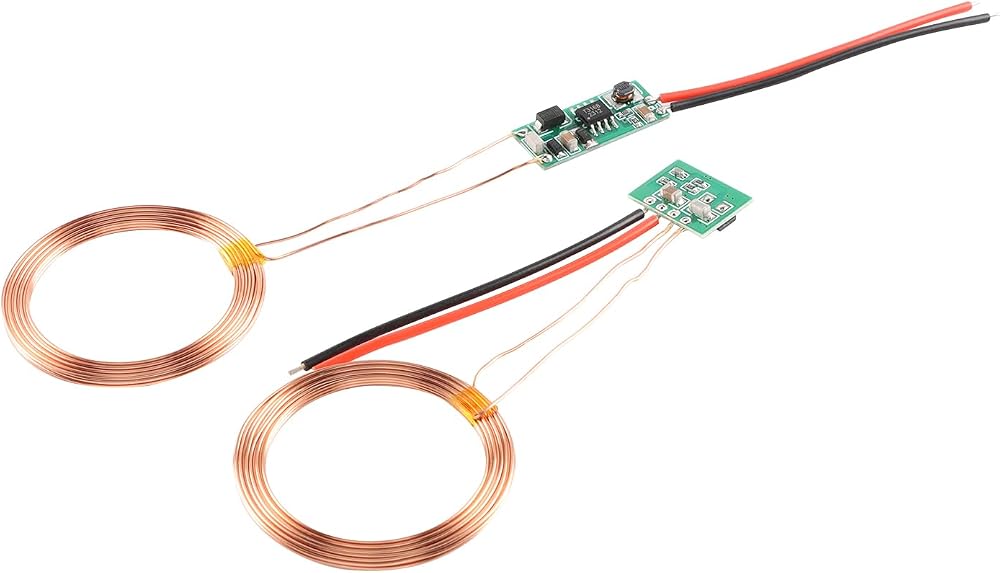

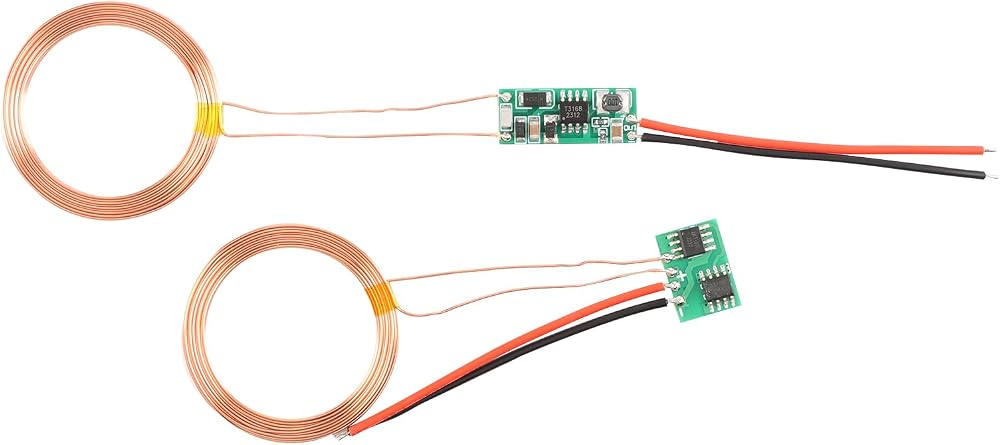

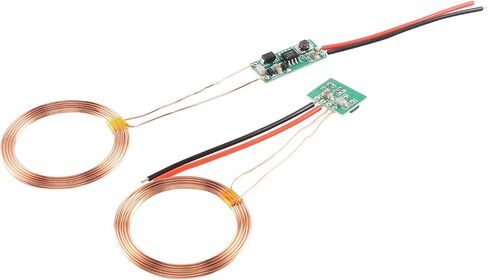

XKT412-01 Wireless Power Supply Module Wireless Charging Module Wireless Power Transmission Module Wireless Inductive Coil Circuit Board Module

SAR 52
Brand
JESSINIE
Weight
3 g
– 1 +

Special Features

  • XKT-412 is a high-frequency high-power integrated circuit with a small size and powerful output power, which can operate in a higher frequency range
  • Due to the small requirement for coil inductance, PCB can also be directly used as the emitter, making production applications more convenient
  • The XKT-412 circuit is extremely simple and has characteristics such as high accuracy and stability. It is specifically used in wireless induction intelligent charging and power management systems with high reliability and performance
  • XK T-412 is responsible for handling the radio energy transmission function in the system, adopting the principle of electromagnetic energy conversion and cooperating with the receiving part for energy conversion and real-time monitoring of the circuit
  • XKT-412 can be made into a highly reliable wireless fast charger and wireless power supply with minimal external components

Description

Specifications
Working frequency: 0~2MHZ
Transmission module size: 17mm*12mm*4mm/0.67*0.47*0.16inch
Transmission and reception coil size: outer diameter 40mm/1.57inch, thickness 1.8mm/0.07inch
Operating voltage of transmitting module: 5V~12V
The working current of the transmission module: automatically increases or decreases with the size of the received load current
Output current of receiving module: 5V/500mA
Effective distance of receiving and sending: 1~20mm
Application scope: battery charging and wireless direct power supply for robots Wireless power transfer, waterproof products, toy products, digital products, mobile phones, handheld household appliances, etc

Features
Automatic adaptive power supply voltage regulation function enables it to operate over a wide range of voltages
Automatic frequency locking
Automatic negative detection load
Automatic power control
High-speed energy transmission and transmission
Efficient electromagnetic energy conversion
Intelligent detection system, debugging free
Highly integrated, requiring only a few ordinary peripheral components
