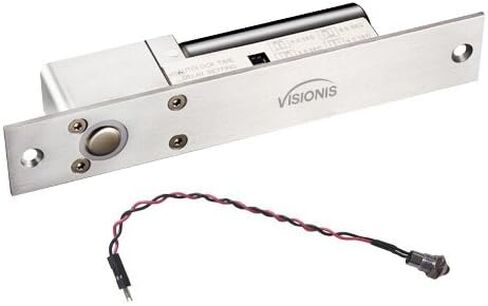

Visionis VIS-DP100-FSA-LED Electric Drop Bolt Lock 1700lbs with LED and Time Delay Fail Safe Normally Closed Access Control

SAR 240
Brand
Visionis
Weight
0.7 kg
StyleLock
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

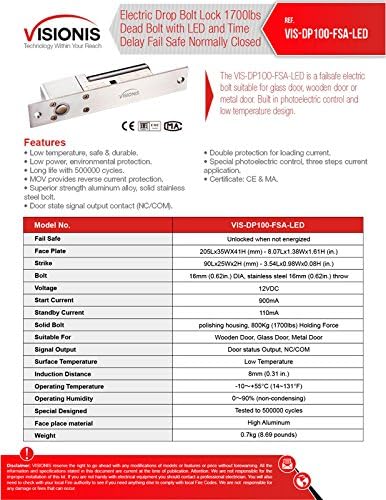

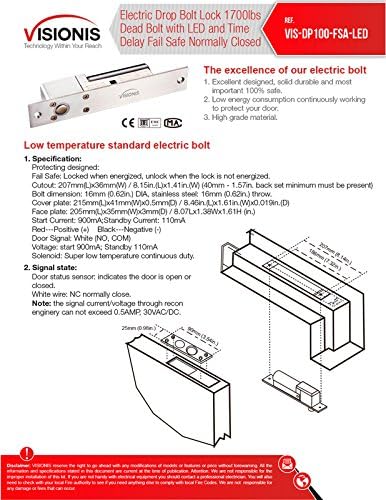

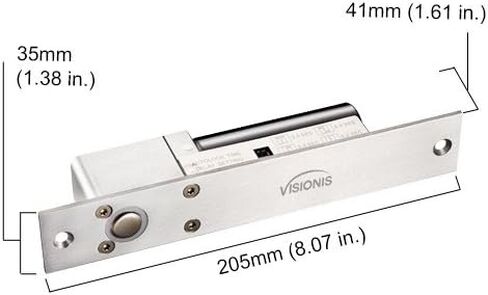

  • Fail Safe: Unlocked when not energized, Face Plate: 205Lx35WX41H (mm) - 8.07Lx1.38Wx1.61H (in.), Special Designed: Tested to 500000 cycles
  • Strike: 90Lx25Wx2H (mm) - 3.54Lx0.98Wx0.08H (in.), Bolt: 16mm (0.62in.) DIA, stainless steel 16mm (0.62in.) throw
  • Voltage: 12VDC, Start Current: 900mA, Standby Current: 110mA, Solid Bolt: polishing housing, 800Kg (1700lbs) Holding Force
  • Signal Output: Door status Output, NC/COM, Surface Temp.: Low Temperature, Operating temp.: -10～+55°C (14~131°F)
  • Induction Distance: 8mm (0.31 in.), Operating Humidity: 0～90% (non-condensing), Face place material: High Aluminum, Weight: 0.7kg (8.69 pounds)
