مميزات خاصة

【EASY TO USE】: Voltage, frequency, duty cycle are adjustable under PWM mode.
【ADJUSTABLE MODULE SINE WAVE】 Multifunctional adjustable signal generator.
【SUPPORT MULTIPLE MODES】 Support multiple modes such as PWM Mode, Pulse Mode, Signal Source Mode, Sine Wave Mode.
【STRONG SIGNAL LOAD CAPACITY】: Strong signal load capacity, output current up to 30mA.
【CONCISE CONTROL】: Clear display screen, concise control panel layout.

وصف

Specification:

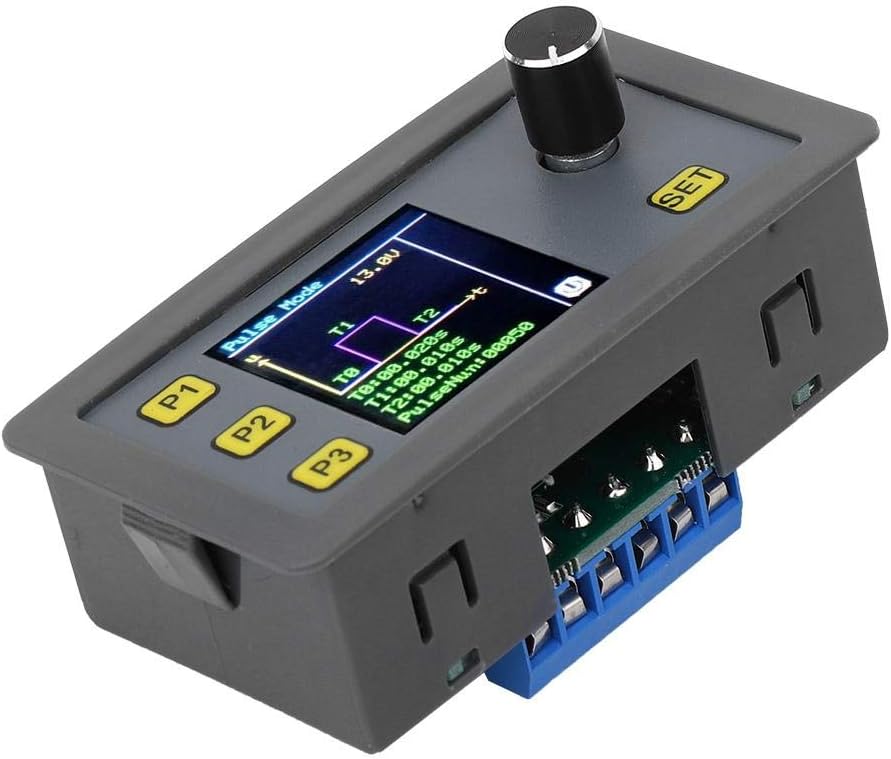

Item Type: Signal Generator Module
Model: WSFG-06

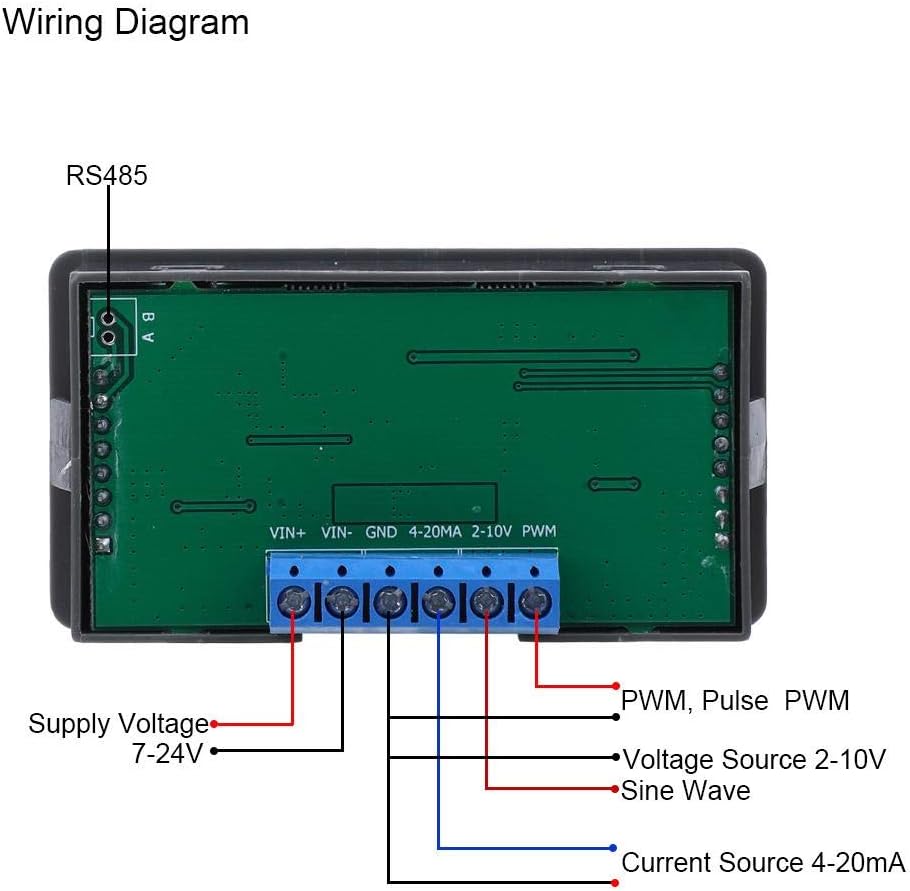

Supply Voltage: 7-24V
Product Function: PWM Mode, Pulse Mode, Source Mode, Sine Wave Mode
PWM Mode: Voltage, frequency, duty cycle are adjustable, accuracy up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100%

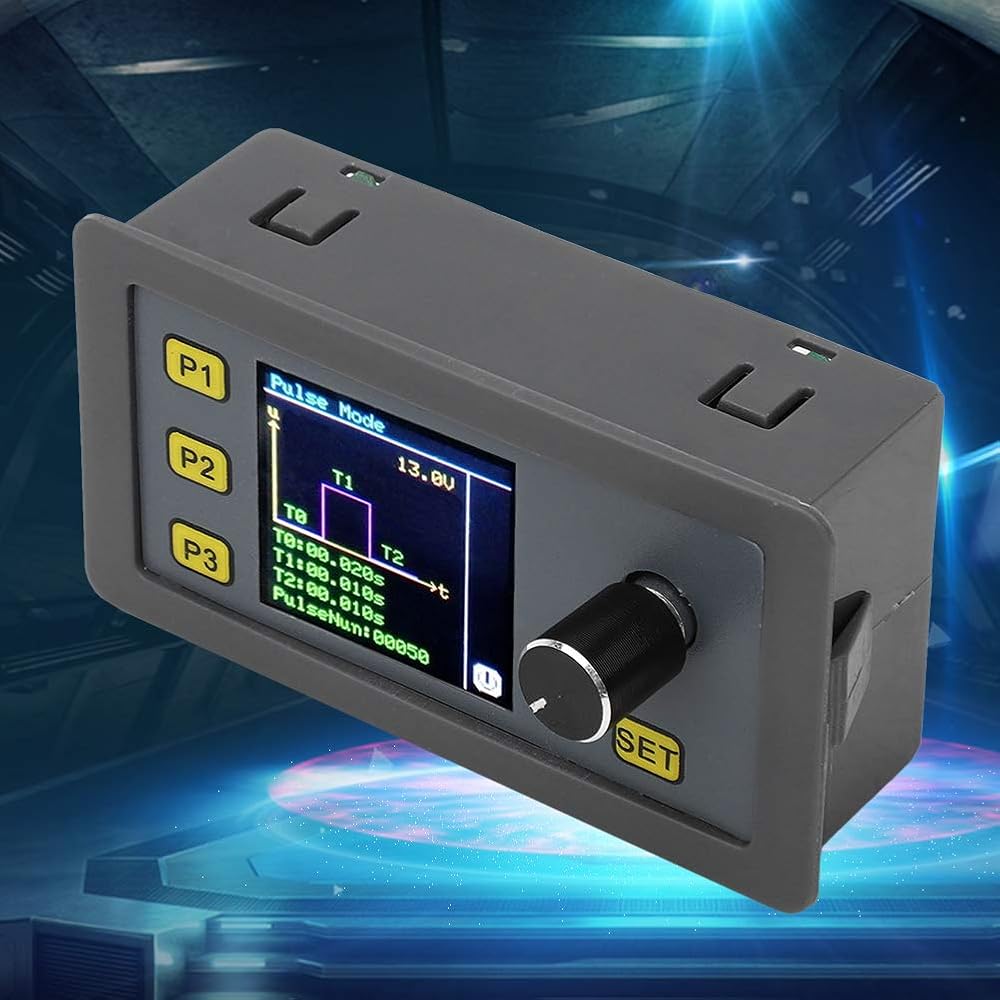

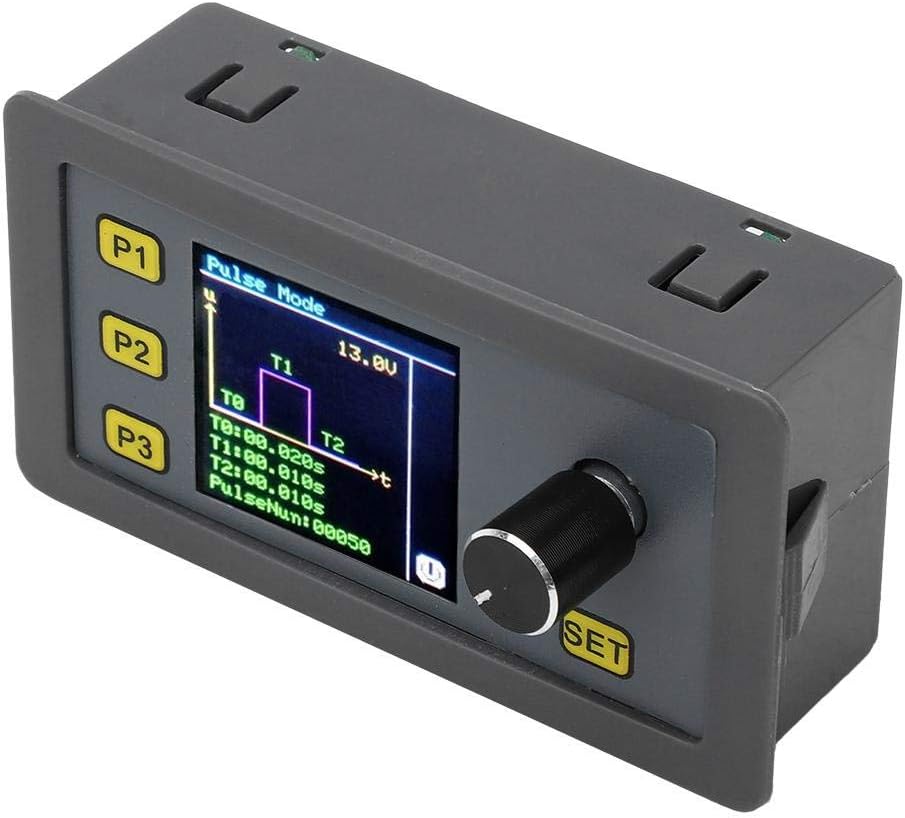

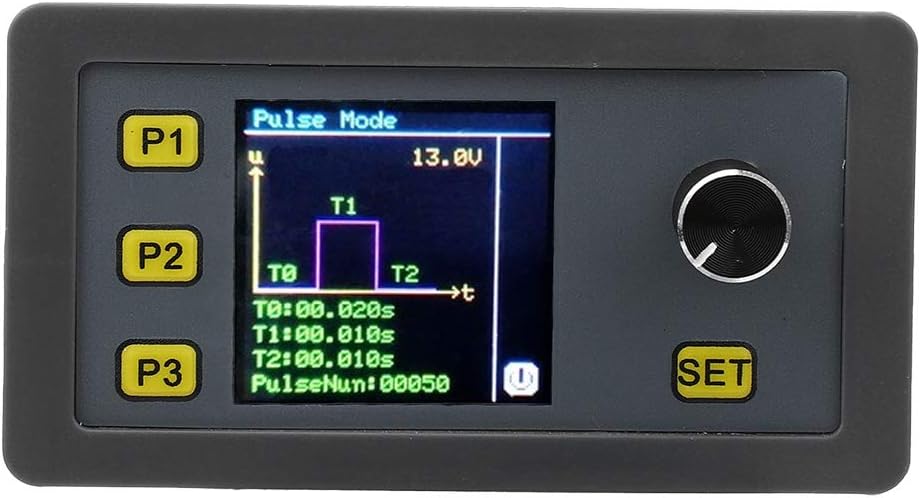

Pulse Mode: Initial delay time T0: 0-60S, high level time T1: 0-60S, low level time T2: 0-60S, pulse number PulseNun: 1-60000
Signal Source Mode: Voltage source 2-10V, current source 4-20mA
Sine Wave Mode: 1-1000Hz
Signal Load Capacity: Output current up to 30mA (Note: This product outputs signal source, can not directly drive the high power load)
Ambient Temperature: -10-+70°C

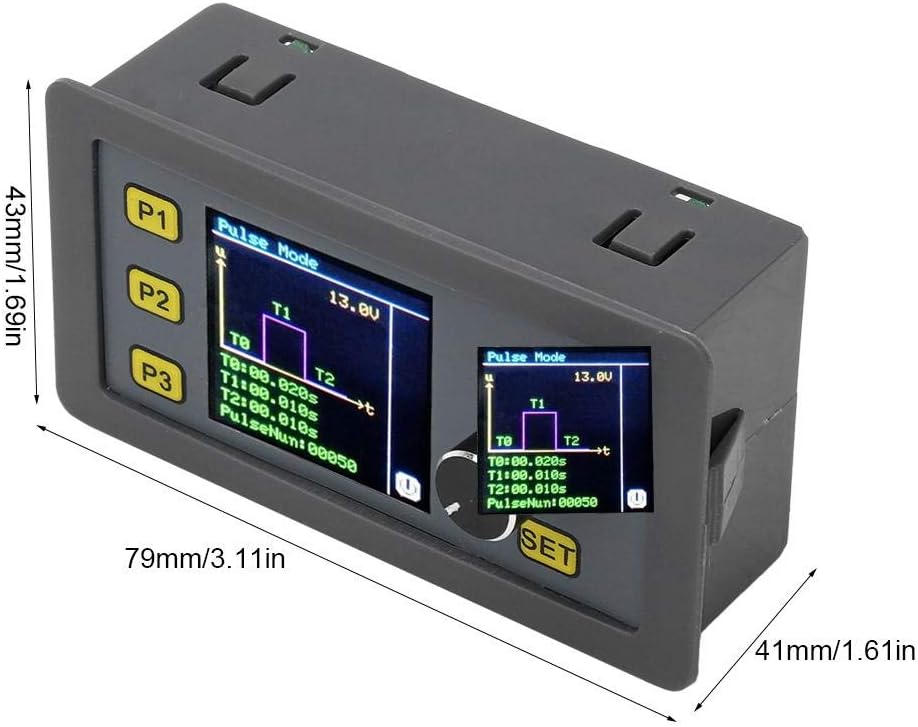

Module Size: 79x43x41mm / 3.11x1.69x1.61in
Opening Size: 76x39mm / 2.99x1.54in

Package List:
1 x Signal Generator Module
