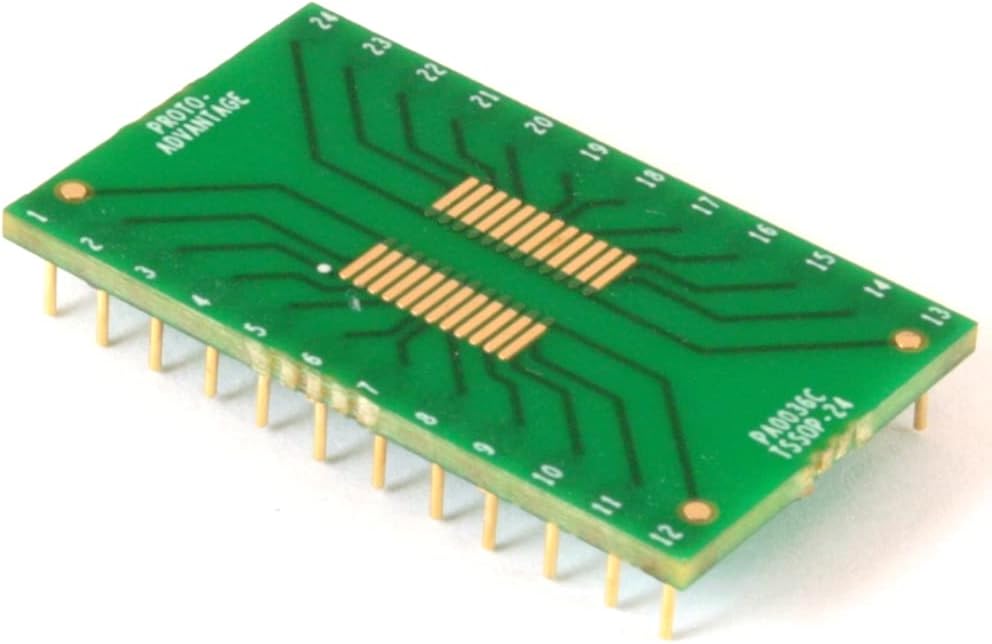

Lead-Free / RoHS 3 Compliant / REACH Compliant Description TSSOP-24 (0.65 mm pin pitch) to DIP-24 (600 mil body width, 0.1" pin pitch) surface mount adapter Compact Series. PCB dimensions: 700 mils x 1200 mils x 62.5 mils (17.78 mm x 30.48 mm x 1.6 mm). PCB construction: FR-4 UL94V-0. PCB operating temperature range: -40C to +130C. PCB reflow maximum temperature: +260C. PCB Assembly standard: IPC-A-610 Class II. Compact Adapter Series Continuous Current Rating: 0.6A at 10C Temperature Rise, 1.1A at 40C Temperature Rise. Bottom side machine pins come pre-installed. They are gold plated (1um gold over 50um nickel) 0.46mm diameter, 3mm long. Pins are installed using surface mount with partial through hole technology for excellent strength and positional accuracy.
