Specifications:

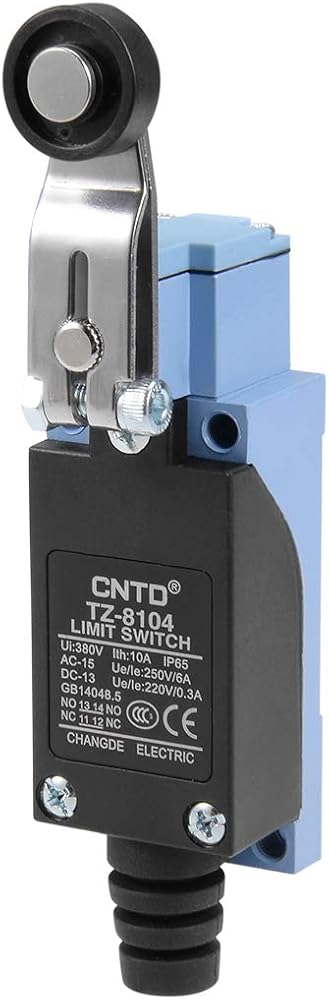

Product Name: Limit Switch
Model: TZ-8104
Actuator Type: Plastic Wheel Roller Lever Type
Rated Voltage:
AC-15: (Ue/Ie) 250V/6A
DC-13: (Ue/Ie) 220V/0.3A

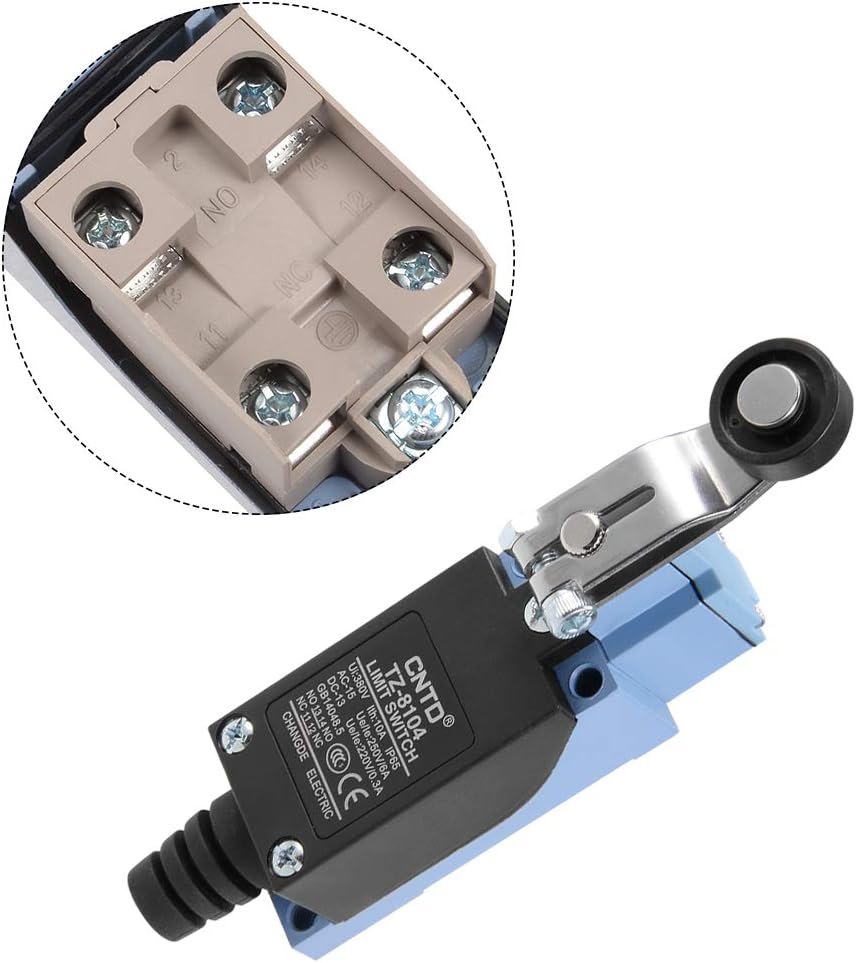

Contact Configuration: 1NC+1NO

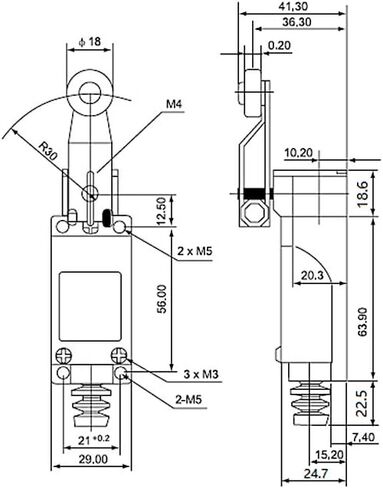

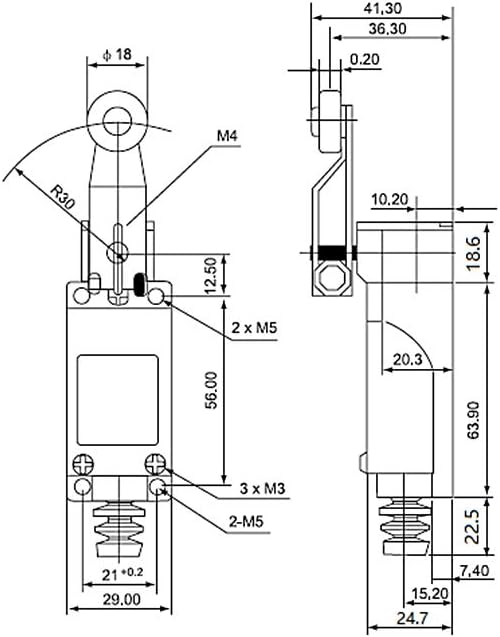

Mounting Hole Size: M5

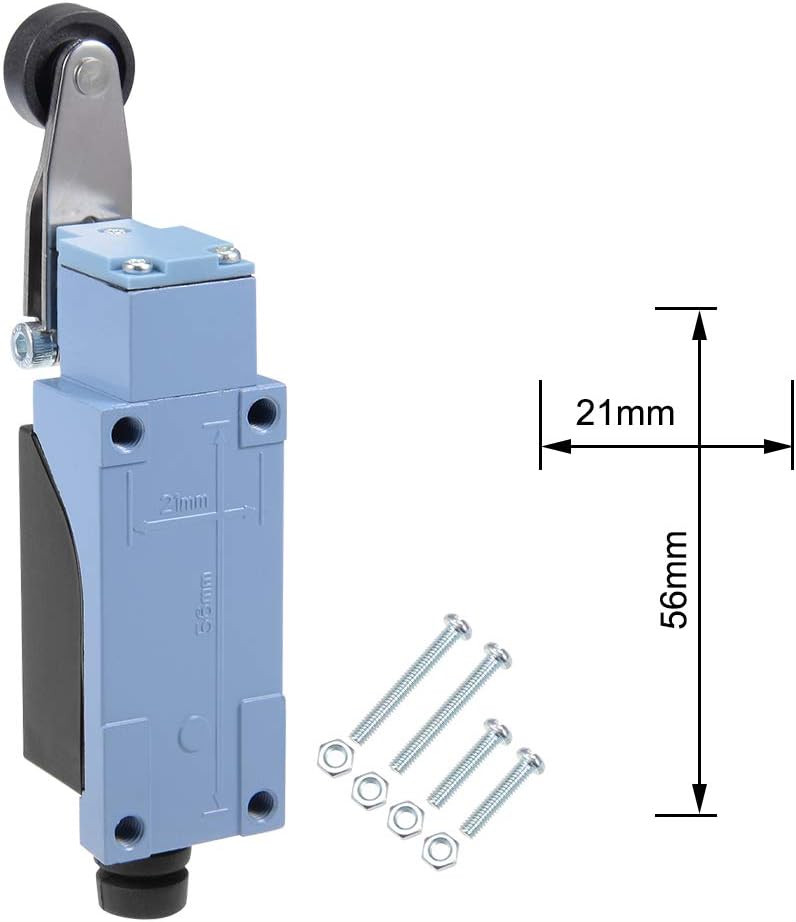

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)
Note:
The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.
These roller lever limit switches are applied to a wide range of applications including object positioning and detection.

Operating Characteristics:
OF max.: 750g
RF min.: 100g
PT max.: 20°
OT min.: 50°
MD max.: 12°

Features:

Double circuit limit switch with build-in double reed mechanism.
Zine alloy and intensive plastic shell, strong and highly rigid construction. (Head and cover snugly fit in box)
Constructed in small size. Water-proof and oil-proof.
Built-in basic switch with double spring mechanism, longer mechanical life.
Smooth operation with greater OT.
Easy-to-wire circuit opening design.
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.

Product Contents:
1 x Limit Switch with mounting screws
