50pcs IPEX IPX SMD Antenna Seat RF Coaxial Antenna Connector 50ohm AC60V Antenna Block in Saudi Arabia 50pcs IPEX IPX SMD Antenna Seat RF Coaxial Antenna Connector 50ohm AC60V Antenna Block in Saudi Arabia 50pcs IPEX IPX SMD Antenna Seat RF Coaxial Antenna Connector 50ohm AC60V Antenna Block in Saudi Arabia 50pcs IPEX IPX SMD Antenna Seat RF Coaxial Antenna Connector 50ohm AC60V Antenna Block in Saudi Arabia 50pcs IPEX IPX SMD Antenna Seat RF Coaxial Antenna Connector 50ohm AC60V Antenna Block in Saudi Arabia

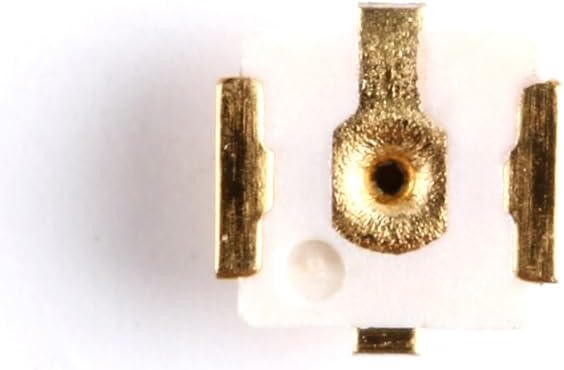

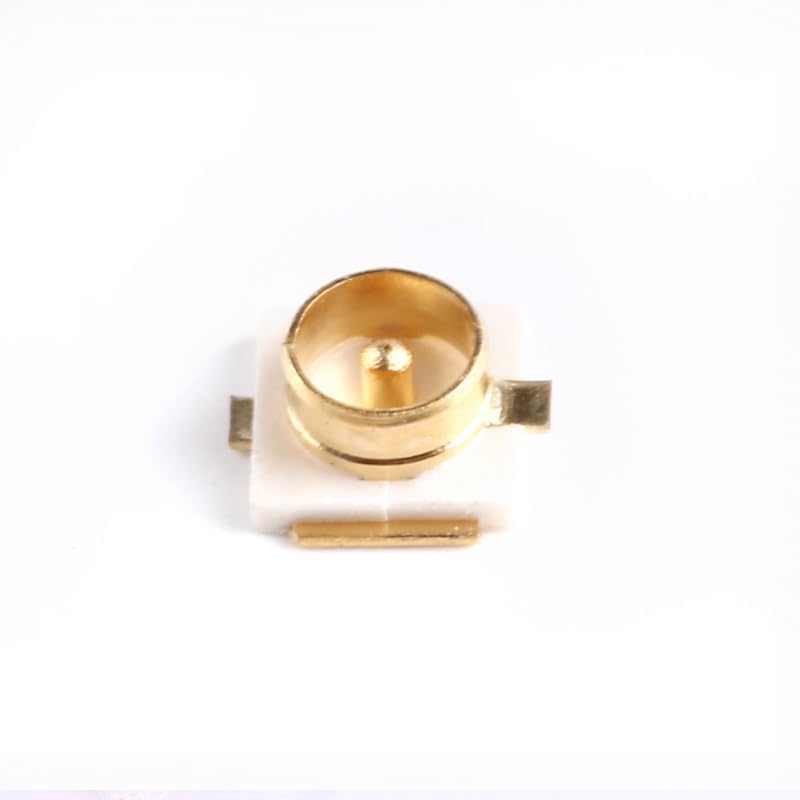

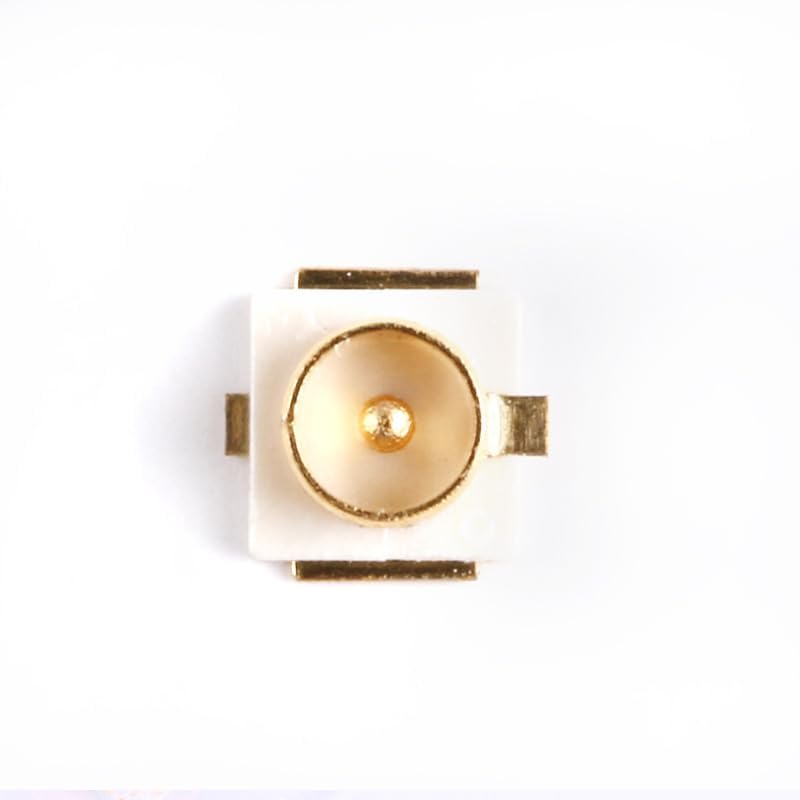

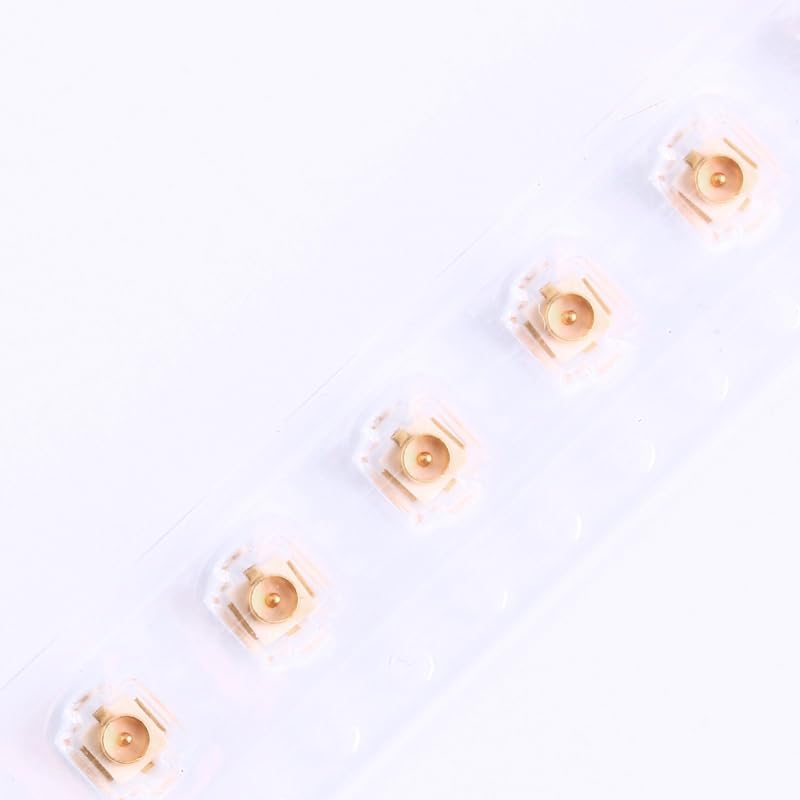

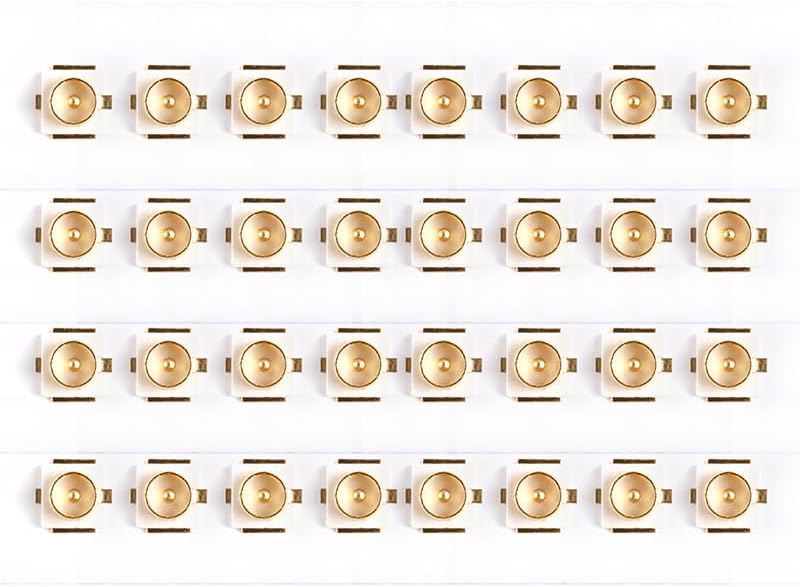

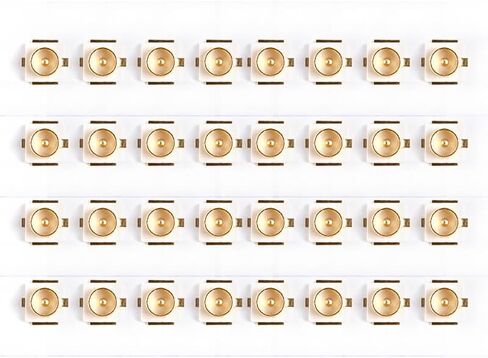

50pcs IPEX IPX SMD Antenna Seat RF Coaxial Antenna Connector 50ohm AC60V Antenna Block

SAR 32
SAR 40
Brand
EC Buying
Weight
10 g
– 1 +

Special Features

  • Rated Voltage：AC60V
  • V.S.W.R：1.3MAX（DC～3GHz）1.5MAX（ ～6GHz）
  • Contact Resistance：20mm-ohmMAX
  • Withstand Voltage：AC200V/minute
  • Insulation resistance：500M-ohmMIN./DC100V

Description

Product parameter
Temperature：-40℃~+90℃
Characteristic Impedance：50ohm
Frequency：DC~6GHz
V.S.W.R：1.3MAX（DC～3GHz）1.5MAX（ ～6GHz）
Rated Voltage：AC60V
Contact Resistance：20mm-ohmMAX
Withstand Voltage：AC200V/minute
Insulation resistance：500M-ohmMIN./DC100V
Center contact: brass plated with gold
Insulation: LCP, UL94V-0, white
Grounding contact: Phosphor bronze plated with gold and nicke
