22mm 7/8" Self-Locking Latching Waterproof Stainless Steel Push Button Switch w/Green Led lamp and Jumper Terminal 12-24V DC 10A SPST for Yacht RV Car and Truck Etc PBS-MSS22G in Saudi Arabia 22mm 7/8" Self-Locking Latching Waterproof Stainless Steel Push Button Switch w/Green Led lamp and Jumper Terminal 12-24V DC 10A SPST for Yacht RV Car and Truck Etc PBS-MSS22G in Saudi Arabia 22mm 7/8" Self-Locking Latching Waterproof Stainless Steel Push Button Switch w/Green Led lamp and Jumper Terminal 12-24V DC 10A SPST for Yacht RV Car and Truck Etc PBS-MSS22G in Saudi Arabia 22mm 7/8" Self-Locking Latching Waterproof Stainless Steel Push Button Switch w/Green Led lamp and Jumper Terminal 12-24V DC 10A SPST for Yacht RV Car and Truck Etc PBS-MSS22G in Saudi Arabia 22mm 7/8" Self-Locking Latching Waterproof Stainless Steel Push Button Switch w/Green Led lamp and Jumper Terminal 12-24V DC 10A SPST for Yacht RV Car and Truck Etc PBS-MSS22G in Saudi Arabia 22mm 7/8" Self-Locking Latching Waterproof Stainless Steel Push Button Switch w/Green Led lamp and Jumper Terminal 12-24V DC 10A SPST for Yacht RV Car and Truck Etc PBS-MSS22G in Saudi Arabia

22mm 7/8" Self-Locking Latching Waterproof Stainless Steel Push Button Switch w/Green Led lamp and Jumper Terminal 12-24V DC 10A SPST for Yacht RV Car and Truck Etc PBS-MSS22G

SAR 51
Brand
HandaElec
Weight
1 g
– 1 +

Special Features

  • Type: 22mm 7/8" Silver shell Green light Self-Locking Push Button Switch ON/OFF; Connector type: SPDT,2 position 6 pin ; Rated Voltage & Current : 10A 12-24V DC.
  • Material:Enclosure Stainless Steel; The base adopts flame retardant PA66; Protection level IP65 can be used in wet or dusty enviroment, With jumper terminals for easy installation and modification.
  • Wide application:Suitable for boats, trucks, cars, electric motorcycles, RVs, Also very suitable for DIY tasks etc.
  • Packing and size : 1 pcs Silver shell Green light Self-Locking Push Button Switch and 1 pcs Jumper terminal connector; 1.57" x 0.98" (L*D)/40 x 25mm Mounting hole size: 7/8"(22mm)；Terminal wire size: 5.9"(15cm).
  • NOTE: The warranty period is 24 months from the date of receipt of the product. If you have any questions about products or technology, please contact us, We will reply you within 24 hours.

Description

Description:

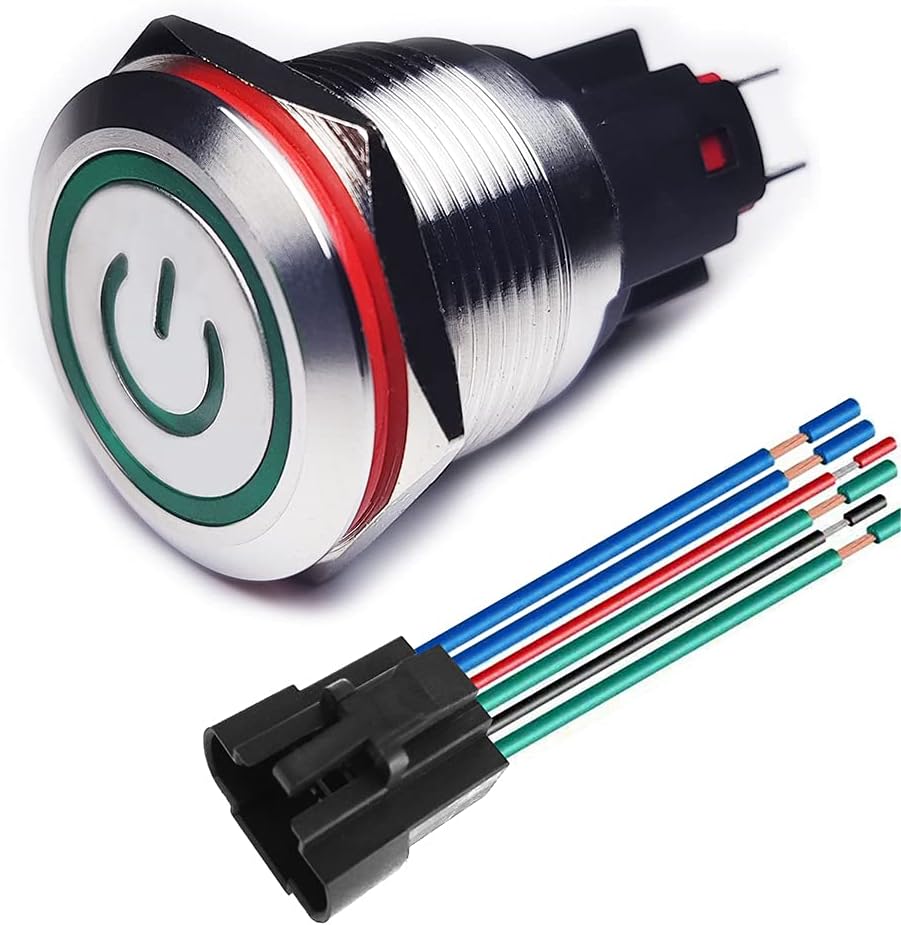

* Product Name: 22mm 7/8" Silver shell Green light Self-Locking Push Button Switch
* Color: Silver shell+Green light

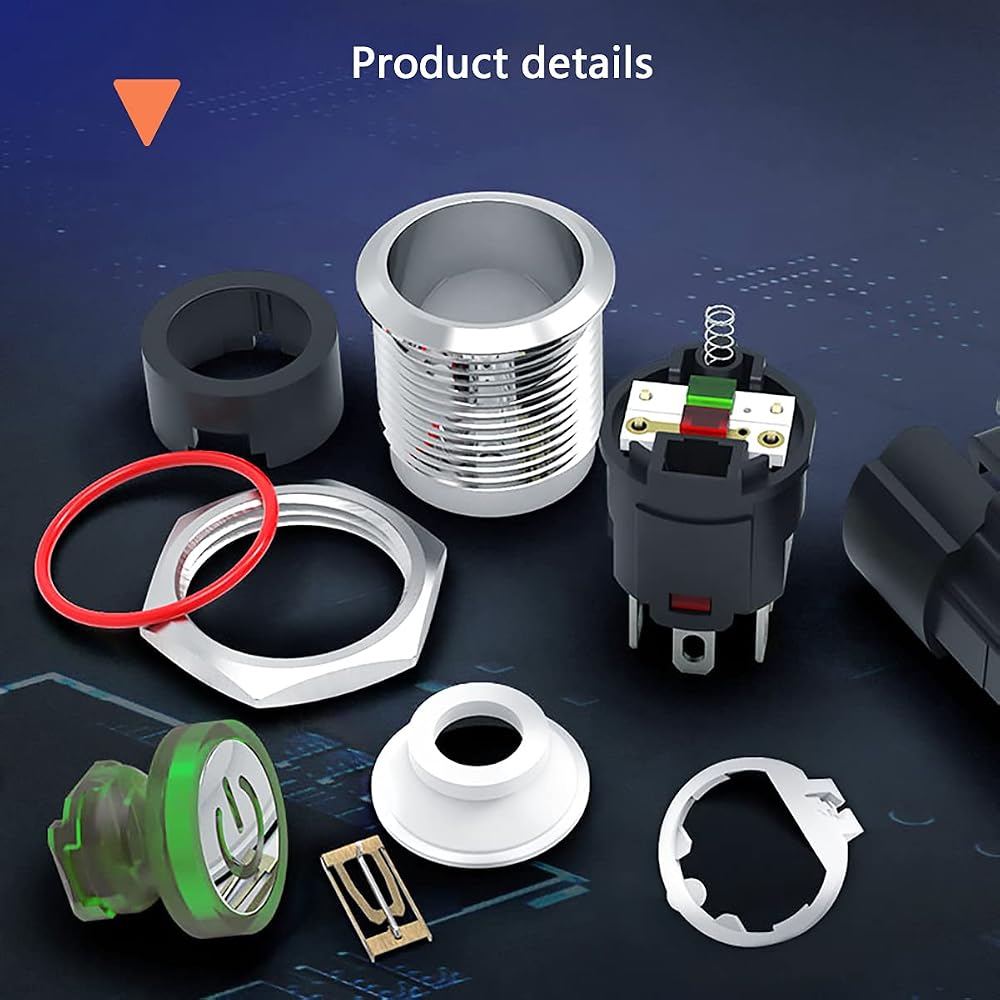

* Material: Stainless steel + Silver contacts + Nylon 66

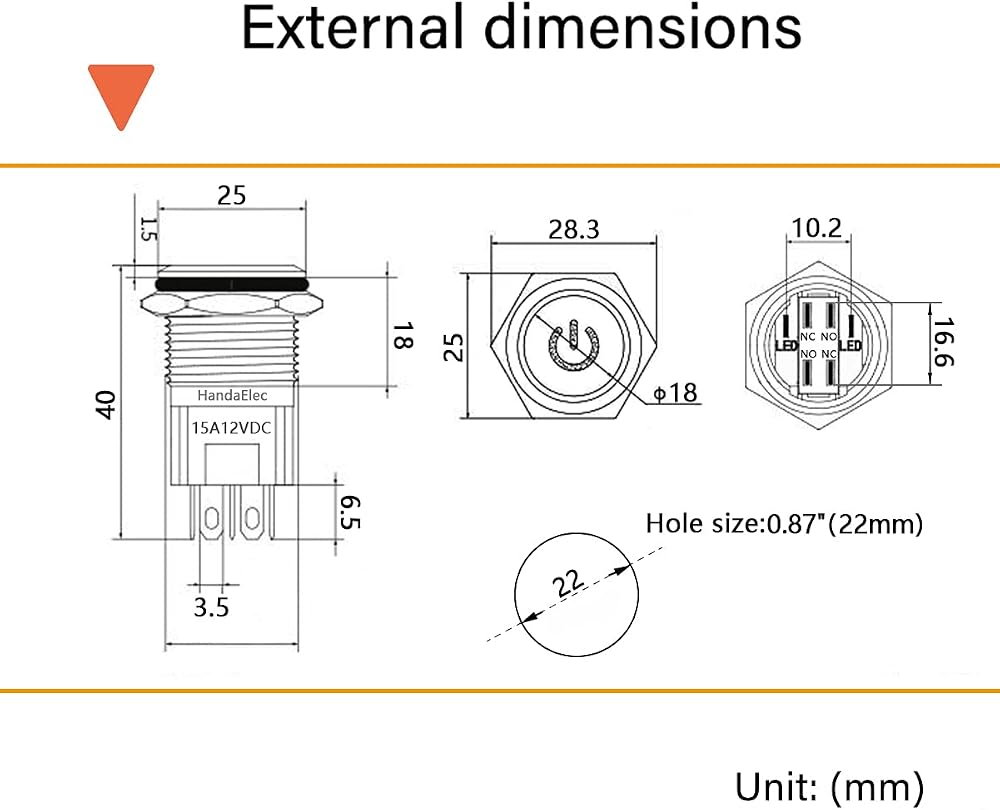

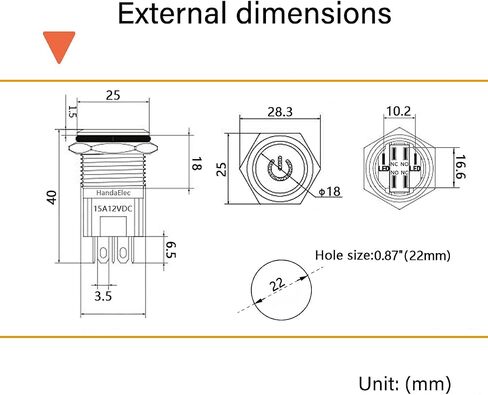

* Size:1.57" x 0.98" (L*D)/40 x 25mm
* Mounting Hole Size: 22mm 7/8"
* Line length:5.9" (15cm)

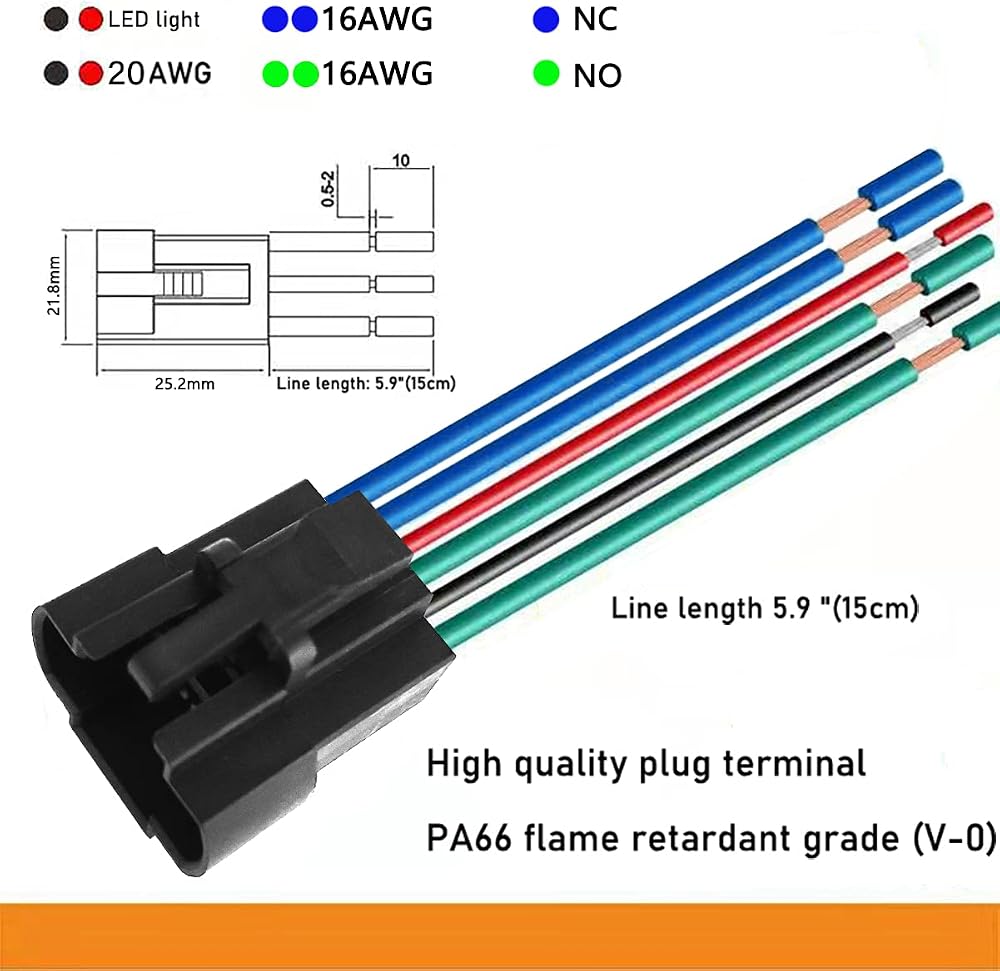

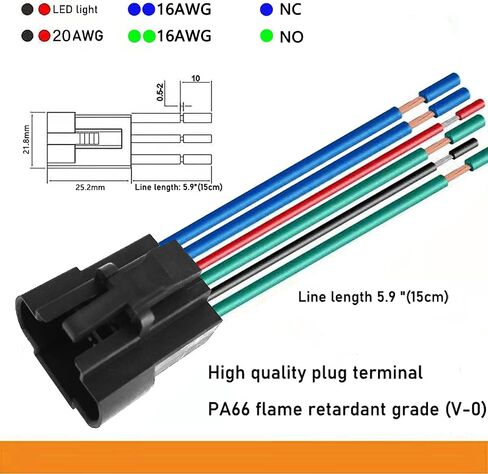

* Terminal Type: 4 Pins, Jumper terminal connector
* Operation Type: Self-Locking
* Switch Max Rating: 15A 12V/24V DC
* Operation Temperature: -40℃ to +60℃

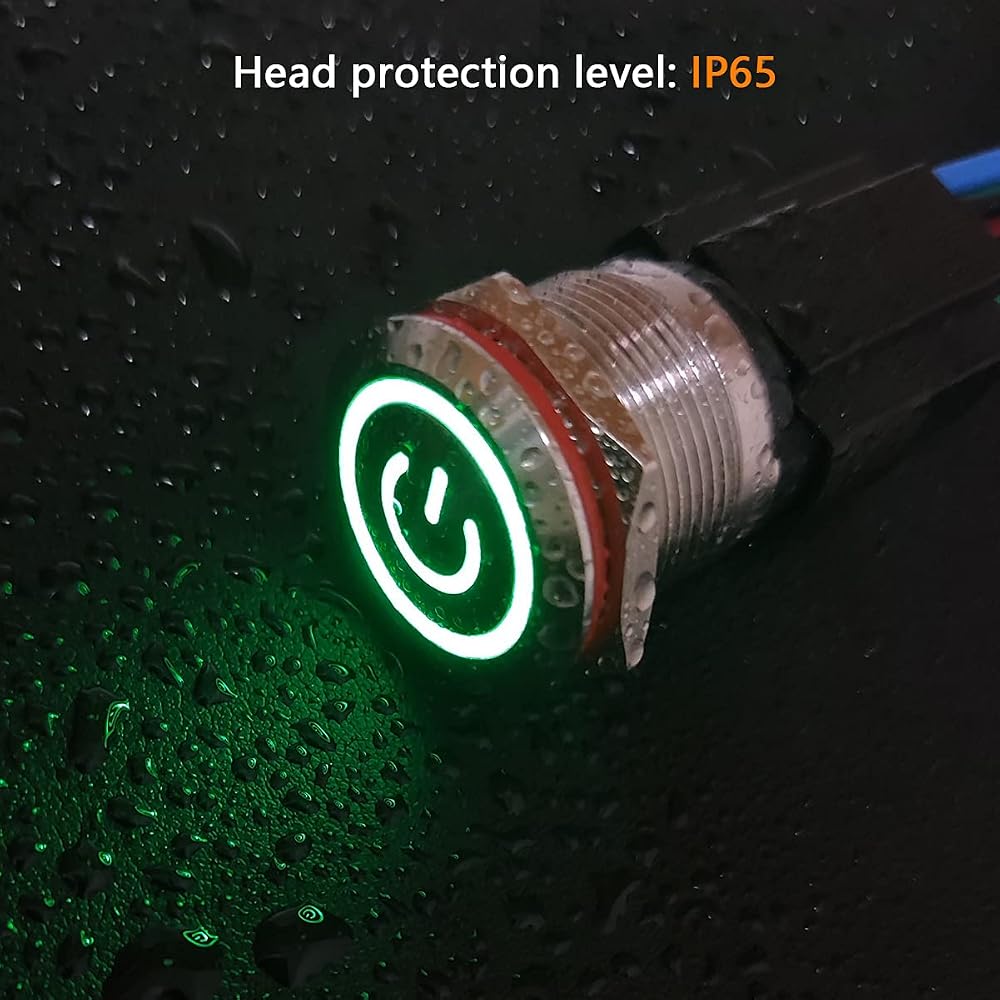

* Protection level: IP65
* Explosion-proof grade:IK8

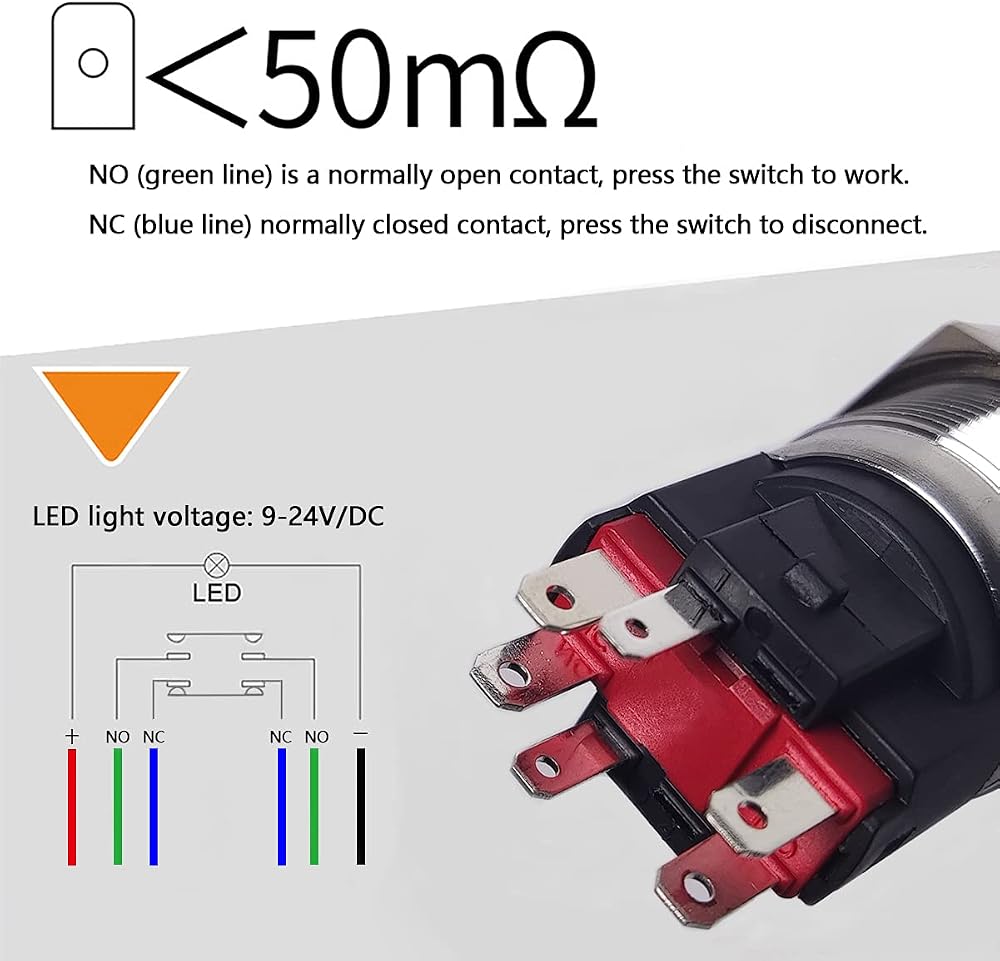

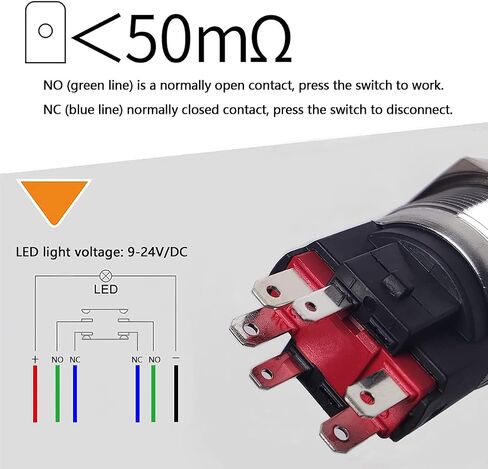

* Contact Resistance: ≤0.02Ω
* Insulation Resistance: ≥1000MΩ
* LED lamp bead life: >40000 hours
* Mechanical life: >150000 times
* Electrical life: >60,000 times

Package includes:
1. 1 x Silver shell Green Light Self-Locking Push Button Switch
2. 1 x Jumper terminal connector
3. The using guide is NOT included, this product is recommended to professional users. But if you meet any problem during operation, please feel free to contact us. We will reply you within 24 hours.
