Description
Precision continuous self-calibrating analog/digital A/D converter with differential input and resolution up to 16-bit resolution provides a 2.048V input differential voltage for the small SOT23-6 on-chip 2.048V reference. The ADS1110 can be used. The compatible I2C serial interface operates from a single 2.7V to 5.5V supply.
The ADS1110 can sample 15 30 60 or 240 times per second for conversion. The on-chip programmable gain amplifier PGA provides up to 8x gain and allows measurement of smaller signals with high resolution. In single-cycle conversion, the ADS1110 is Automatic power down after a conversion greatly reduces current consumption during idle periods.
The ADS1110 is designed for applications that require high-resolution measurements. Space and power consumption are top priorities in this application Typical applications include portable instrumentation industrial process control and small transmitters.

Parameter:
Onboard Reference:accuracy 2.048V+/-0.05%;drift 5ppm/celsius
Onboard PGA,Onboard Oscillator
16-bits no missing codes ,INL:0.01% of FSR max
Continuous Self-calibration ,Single-Cycle Conversion
Programmable Data Rate:15SPS to 240SPS ,I2C Interface:eight available addresses ,Power Supply:2.7-5.5V

Package Included:

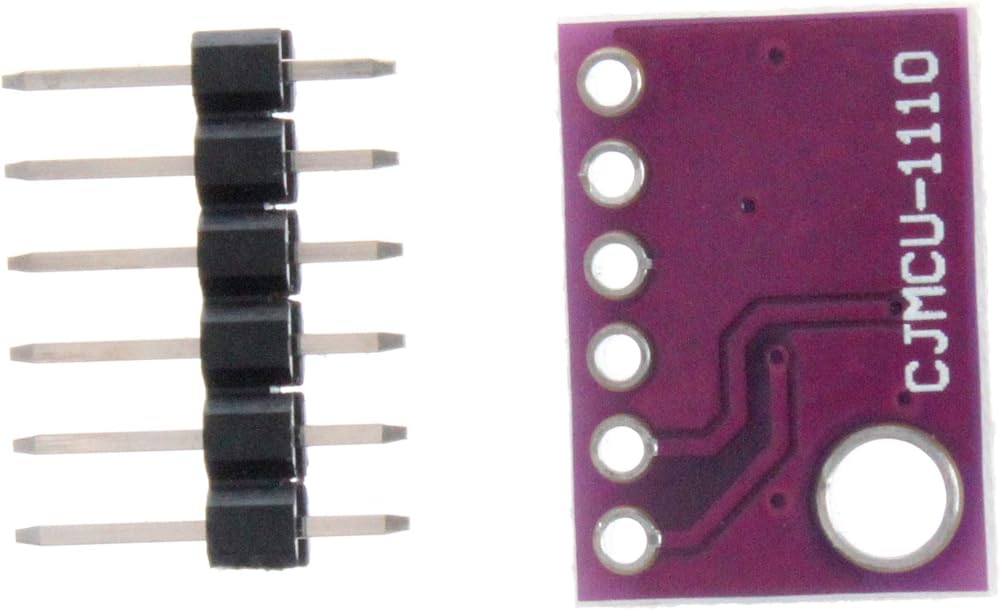

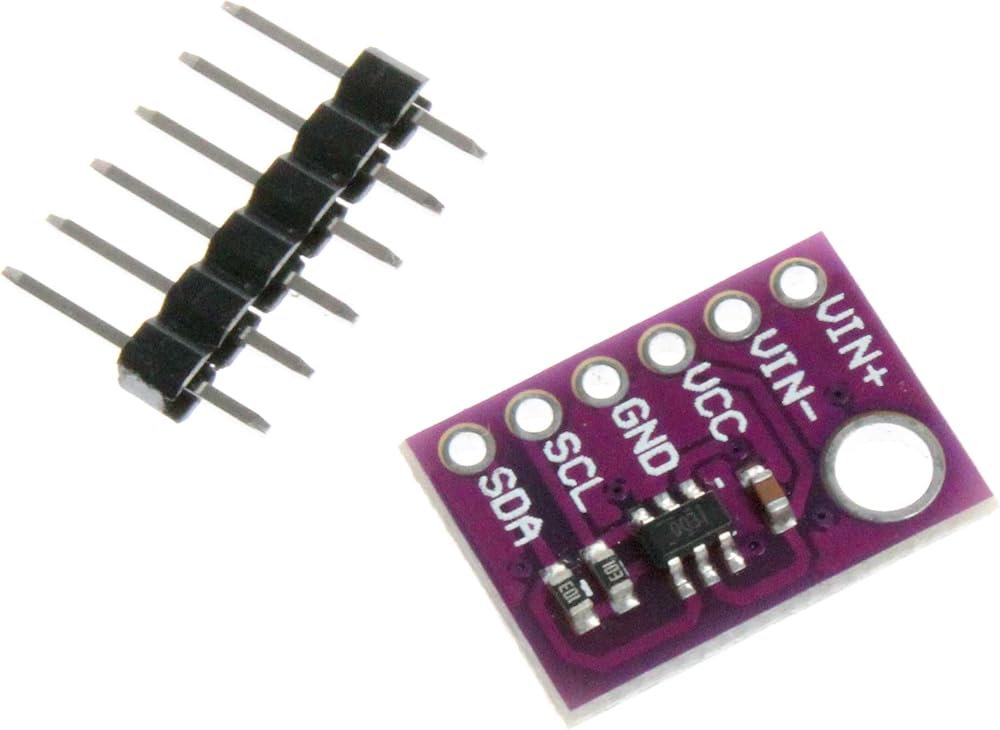

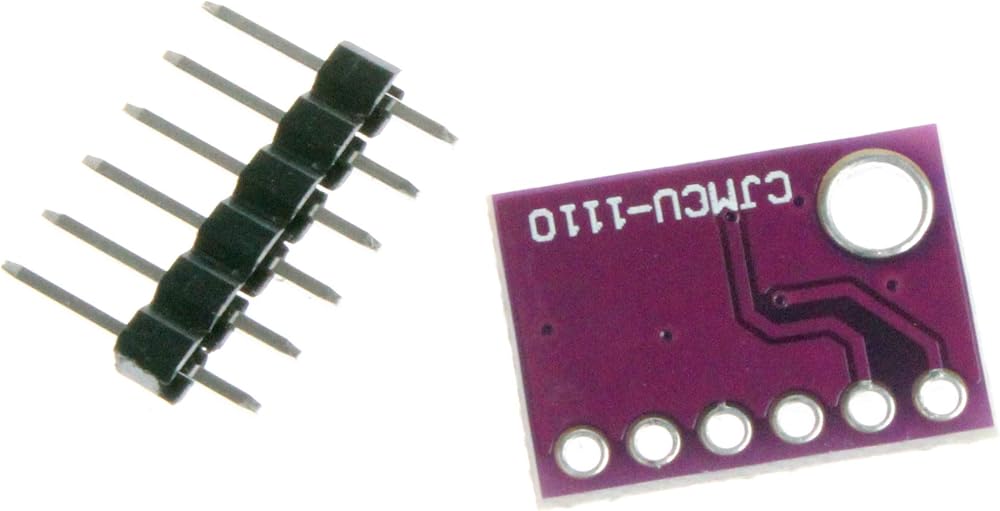

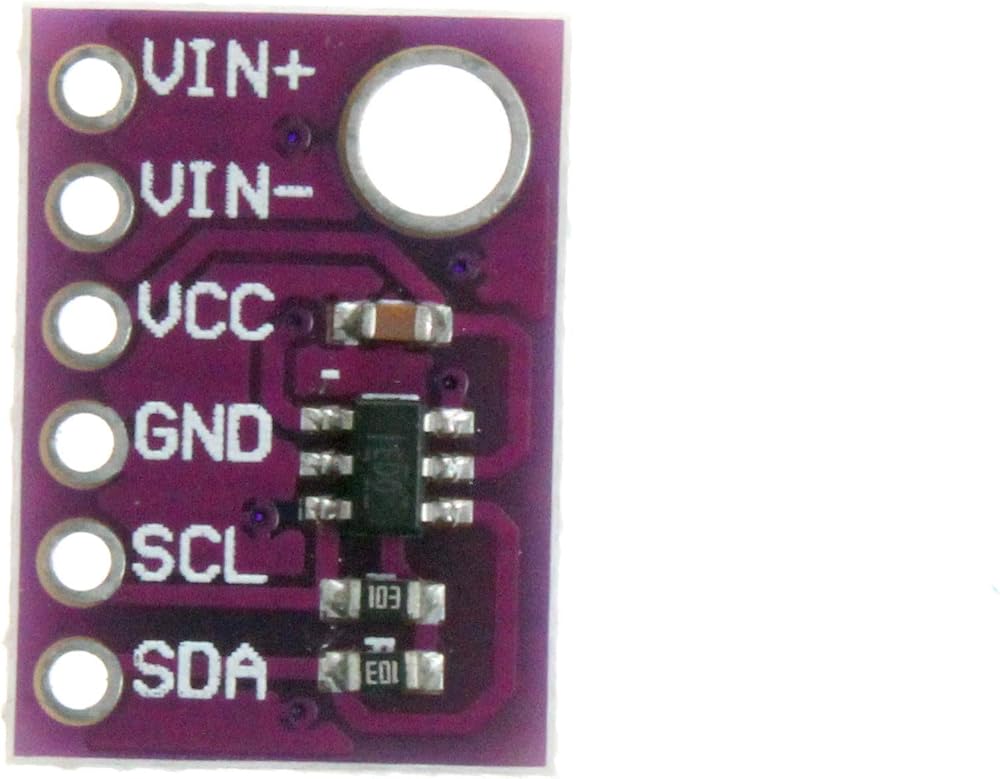

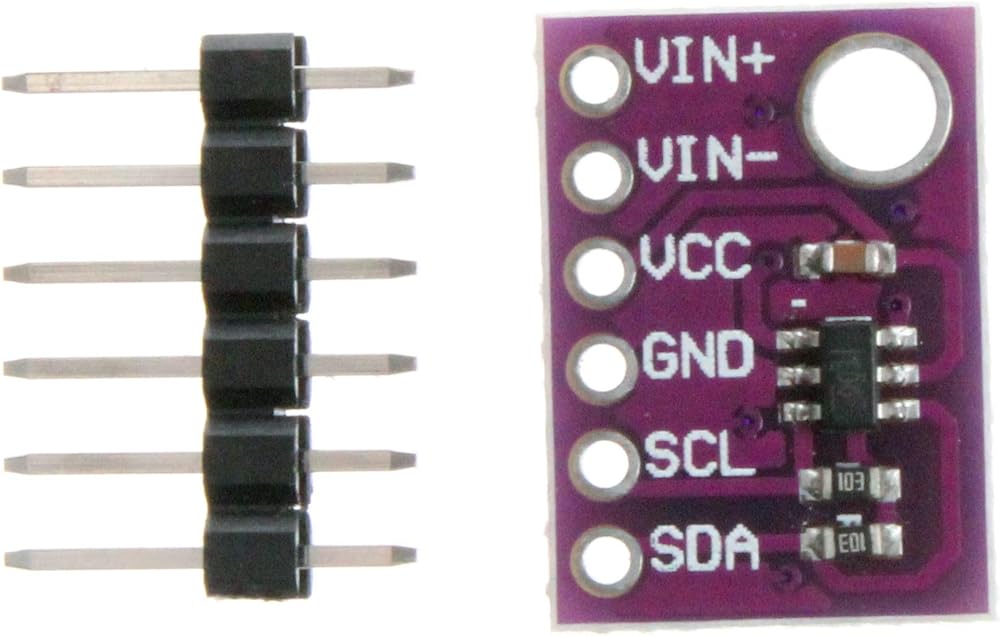

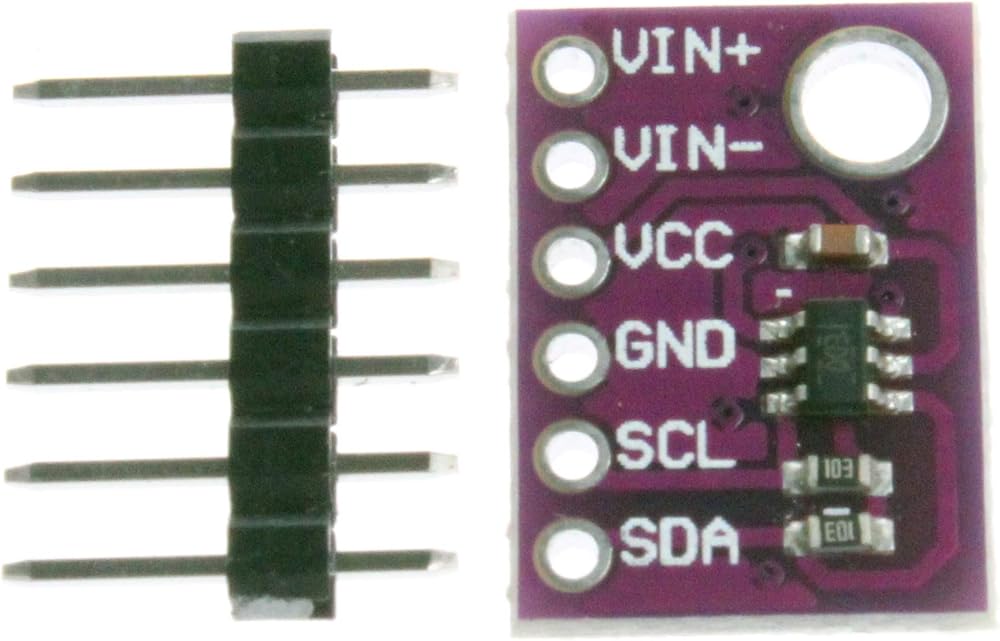

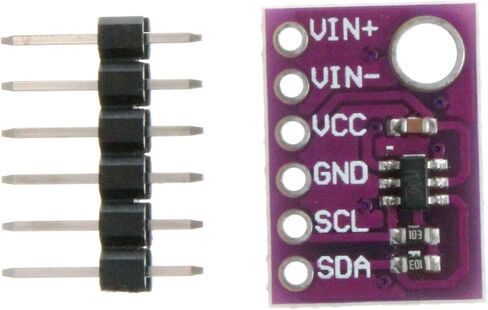

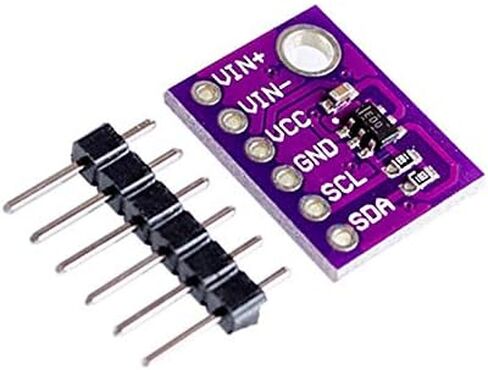

1pcs NOYITO ADS1110 16-Bit Analog/Digital AD Convertor Module
