Partial Overlay Pocket/Flipper Door Hinge Kit in Saudi Arabia Partial Overlay Pocket/Flipper Door Hinge Kit in Saudi Arabia

Partial Overlay Pocket/Flipper Door Hinge Kit

Sorry, this product is not available

Special Features

  • Constructed of steel for long lasting durability
  • Designed to be 3 way adjustable for maximum versatility to get that perfect cabinet fit

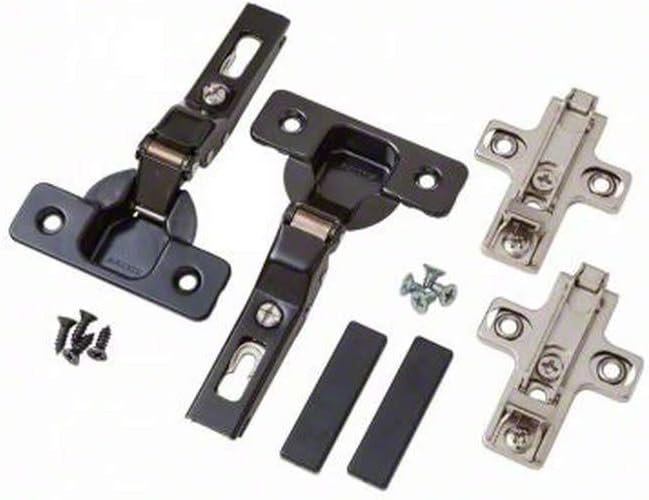

  • Includes two (2) hinges, two (2) mounting plates and installation hardware
  • Mounting hardware is included for quick and easy installation

Description

Pocket/flipper door hinges for partial overlay doors (7/16" maximum overlay; 3/4" maximum door thickness) on either frameless or face-frame cabinets. Can be used with slides in the EZ Pocket Door System for doors that weigh up to 30 lbs. and are a maximum of 42" tall x 24" wide or with slides in the KV8091 Pocket Door System for doors up to 75 lbs. and 72" tall x 26" wide. Require 40mm hinge cup holes. Note: The EZ Pocket Door System requires one set of hinges per door. The KV8091 Pocket Door System requires two sets of hinges per door.
