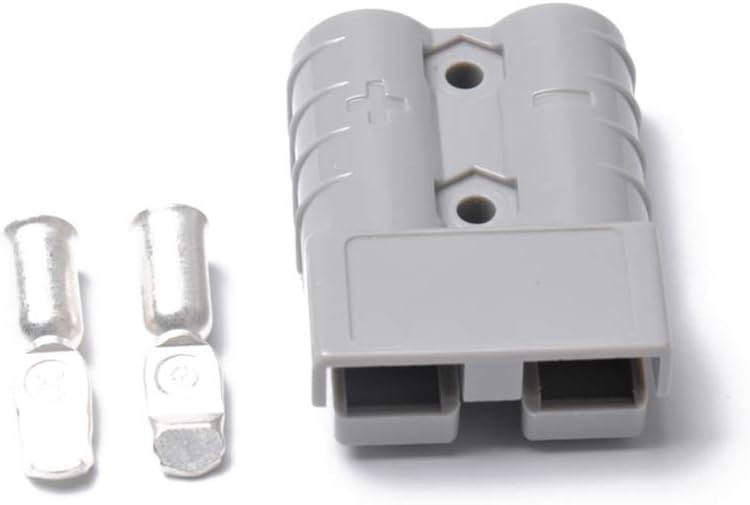

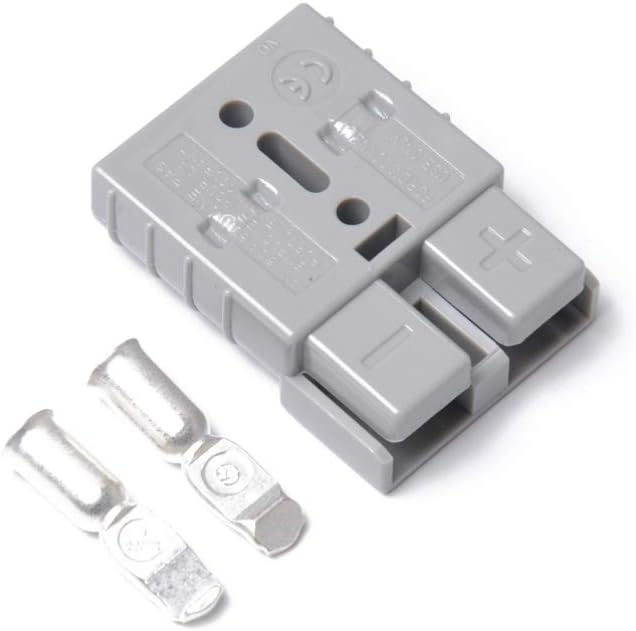

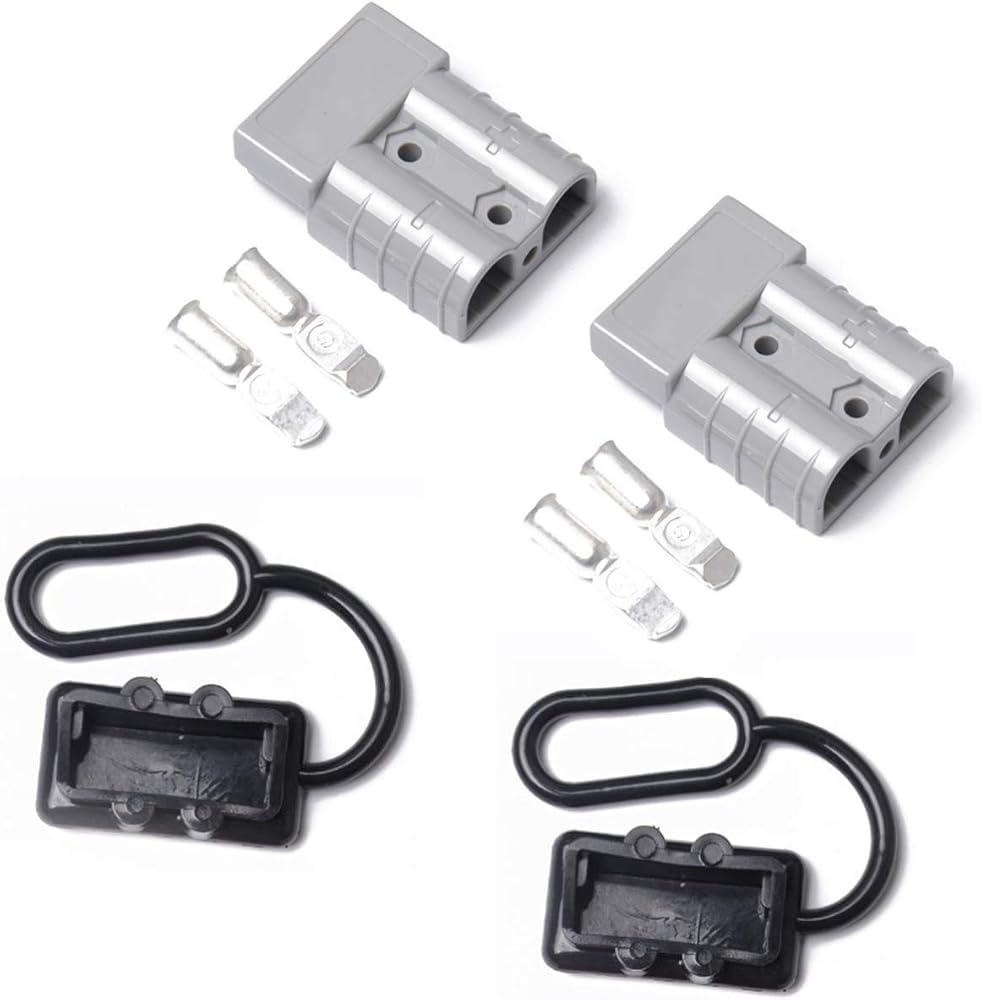

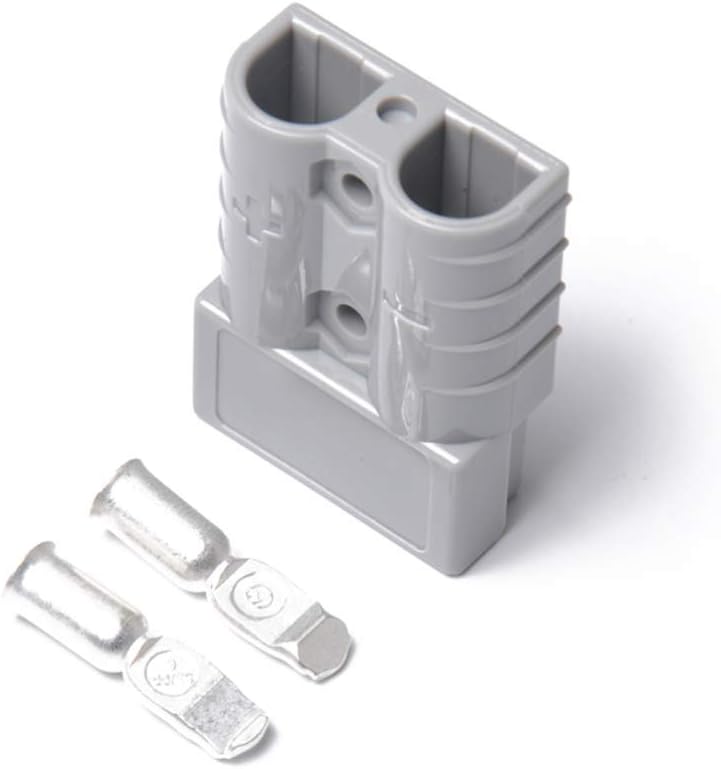

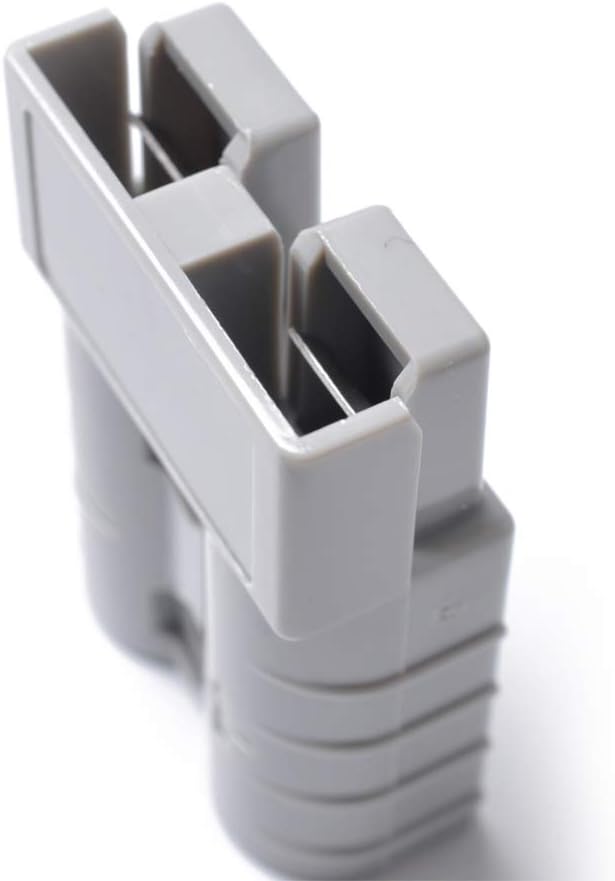

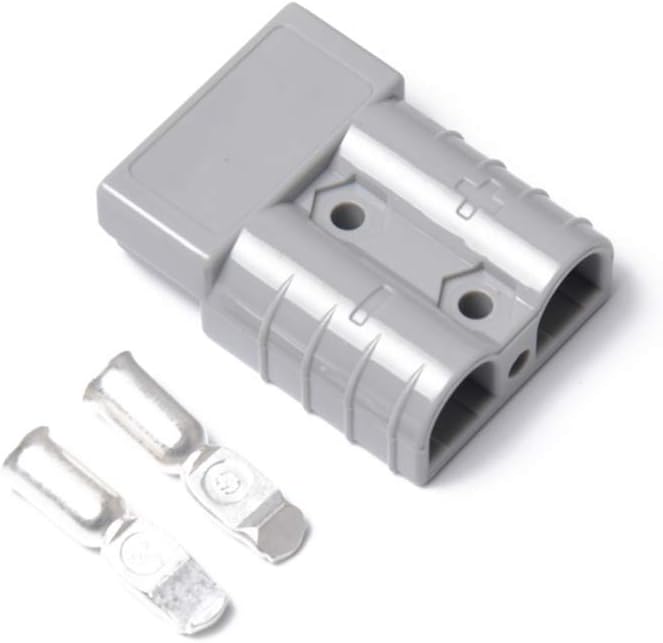

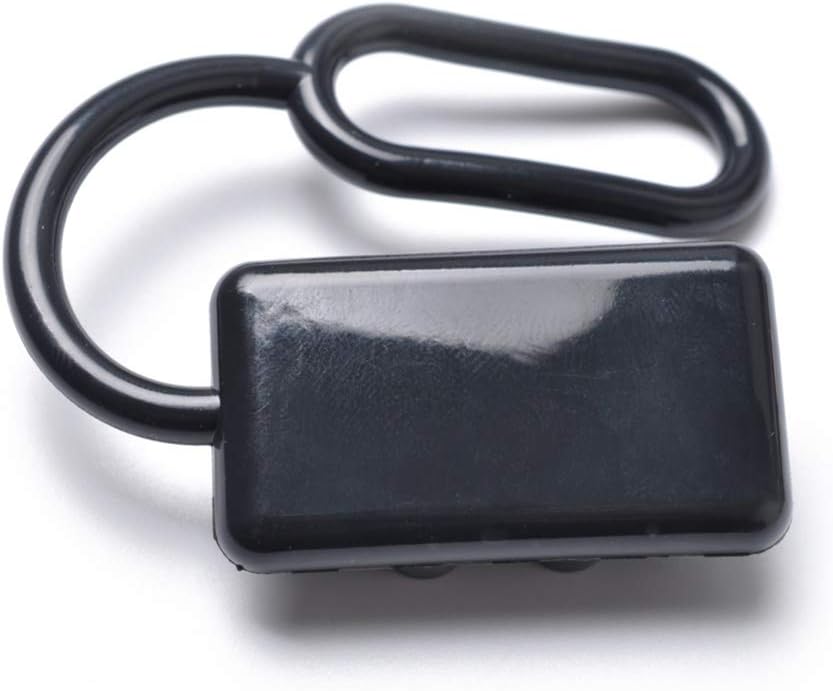

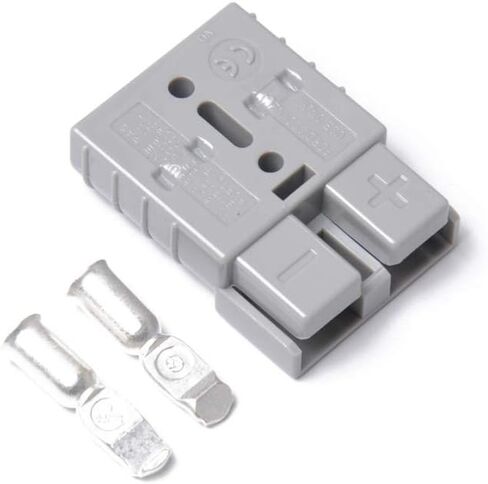

مقابس التوصيل السريع للبطارية من جارنيك بقدرة 50 أمبير، قابس موصل كهربائي لفصل البطارية مع غطاء غبار لمقطورة ونش الاسترداد

مميزات خاصة

Battery Quick Connect Plugs Stainless steel springs form a rebuts force between the that holds the connector in the mated position.

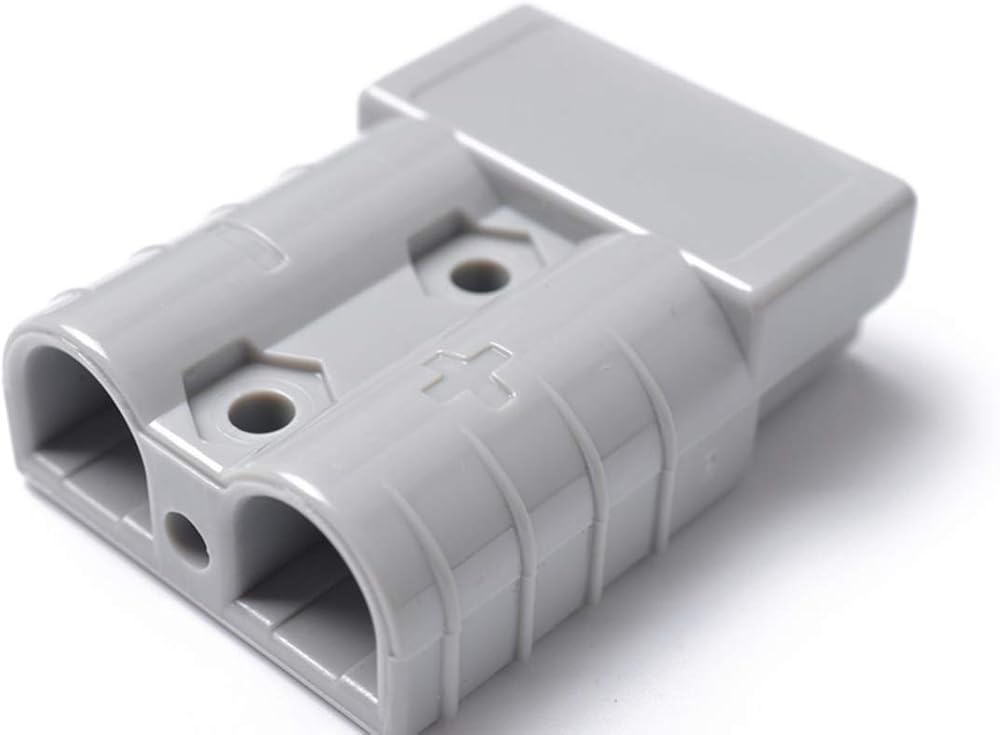

Battery Quick Connect Plugs Polycarbonate shell which is a versatile and tough plastic makes this connector sturdy and reliable.
Battery Quick Connect Plugs set offers an easy and convenient way to connect and disconnect power to winches, forklifts, chargers, power modules, cars, motorcycles, boats and other electrical devices.
Battery Quick Connect Plugs feature a sacrificial tip that allows high current circuit interrupt. Prevents accidental cross mating of circuits.

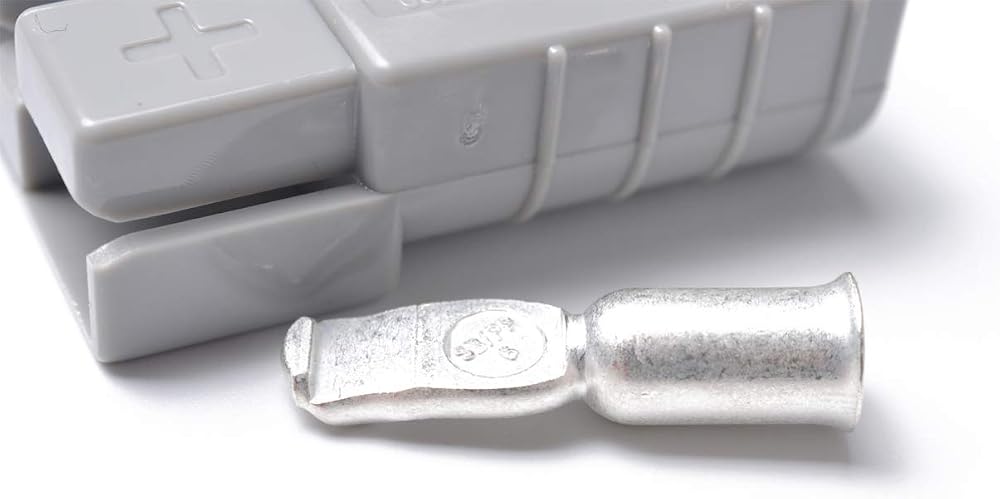

Battery Quick Connect Plugs Silver or plated copper inside housings that strongly force the together

وصف

Specifications

- Plug: Polycarbonate
- Contact material: Copper, silver plating
- Rated Voltage ( Voltage ): 600V
- Rated Current ( Amperes ): 50A
- Contact Barrel Wire Size: 6/ 10/ 12AWG ( 13. 3mmâŠƒ2; - 5. 3/ 3. 3mmâŠƒ2; )
- Maximum Wire Insulation Diameter: 0. 44 ( inches ), 11. 2 ( mm )
- Contact Retention Force: 50 ( lbf )
- AVG Contact Resistance: 200 ( micro- ohms )
- Average contact resistance: 0. 05MÎ
- Insulation resistance: 500MÎ
- Voltage proof: 2200V ( DC )
- A. No load ( Contact/ Disconnect Cycles ): To 10, 000
- B. Under load ( Hot Plug 250cycless120V ): 50A
- Avg. Unmating Force: 53N
- Operating temperature range: - 20Â°to 125Â°
- Flammability Rating of Housing Material: UL94 V- 0

Package Including
1 x Battery Quick Connect Plugs
