Features:

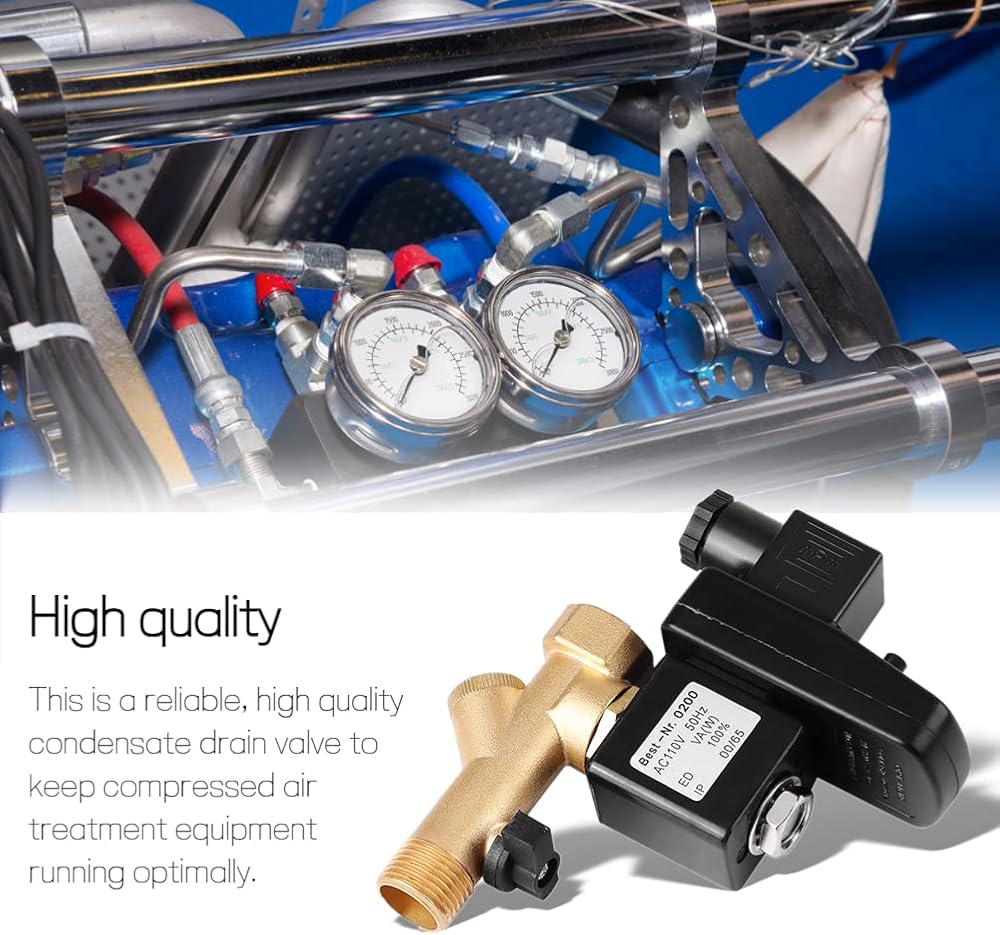

This is a reliable, high quality condensate drain valve to keep compressed air treatment equipment running optimally.

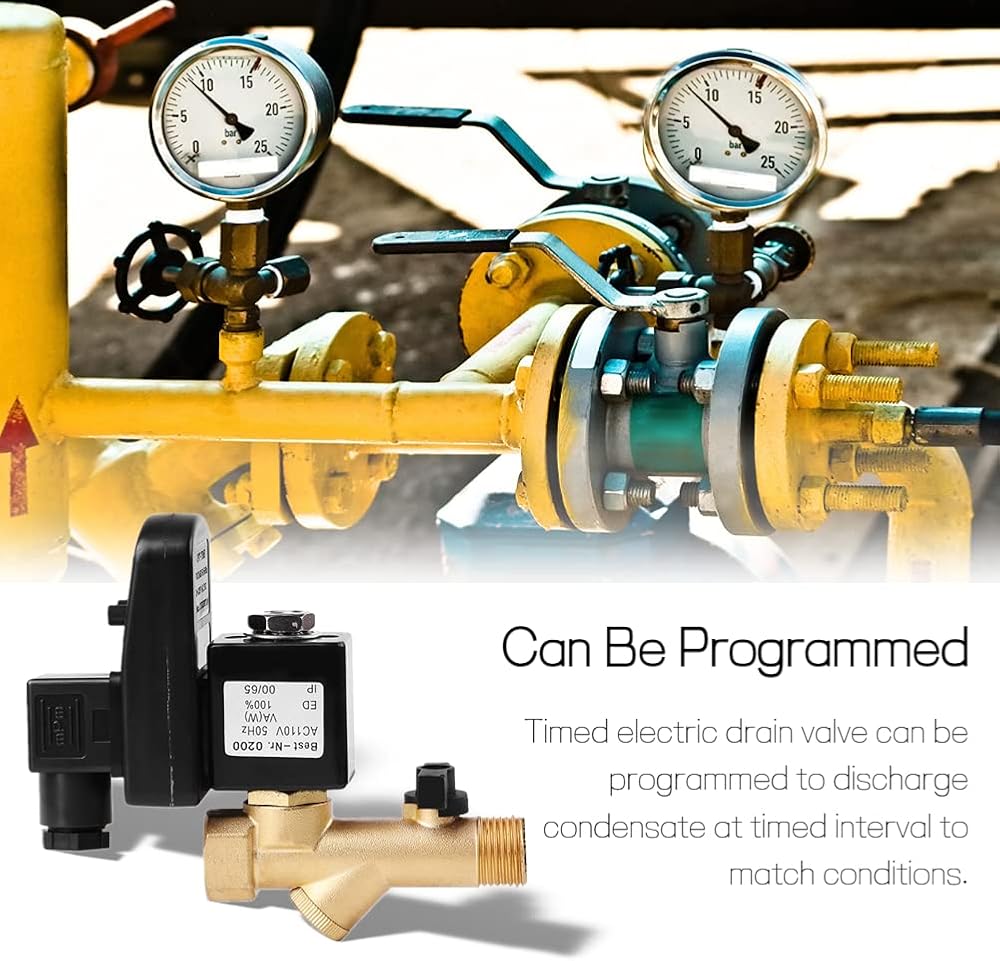

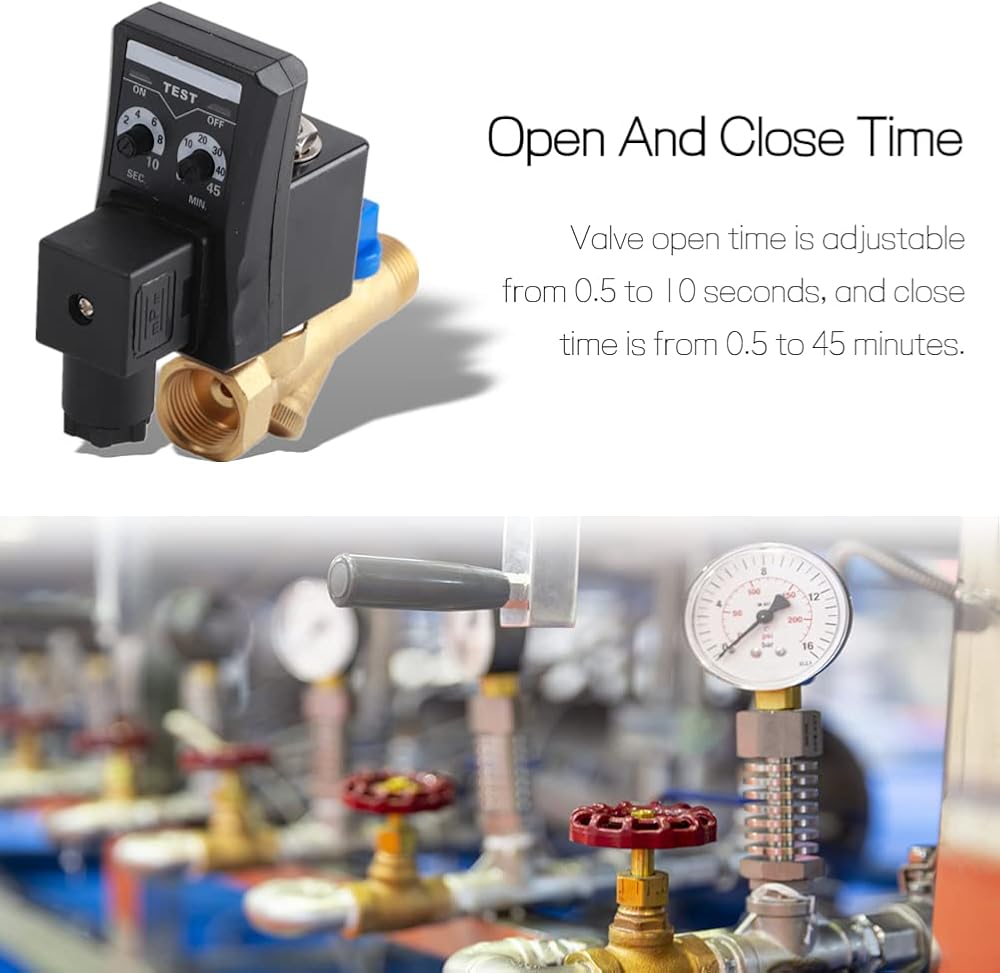

Timed electric drain valve can be programmed to discharge condensate at timed interval to match conditions. Valve open time is adjustable from 0.5 to 10 seconds, and close time is from 0.5 to 45 minutes.

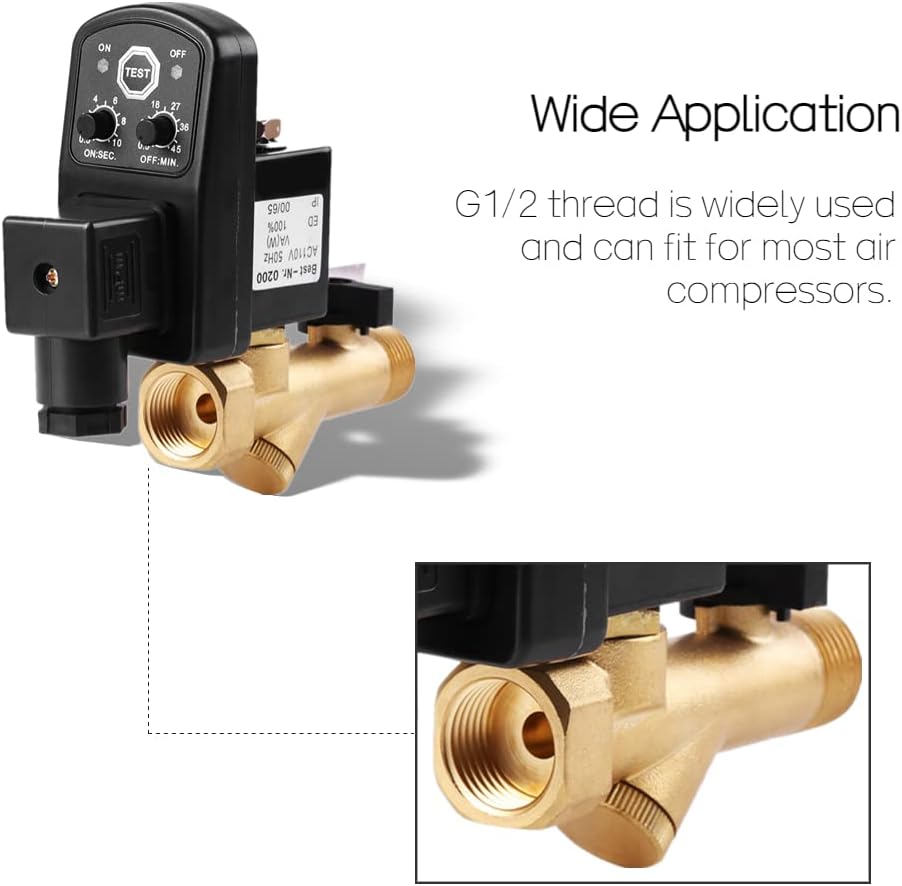

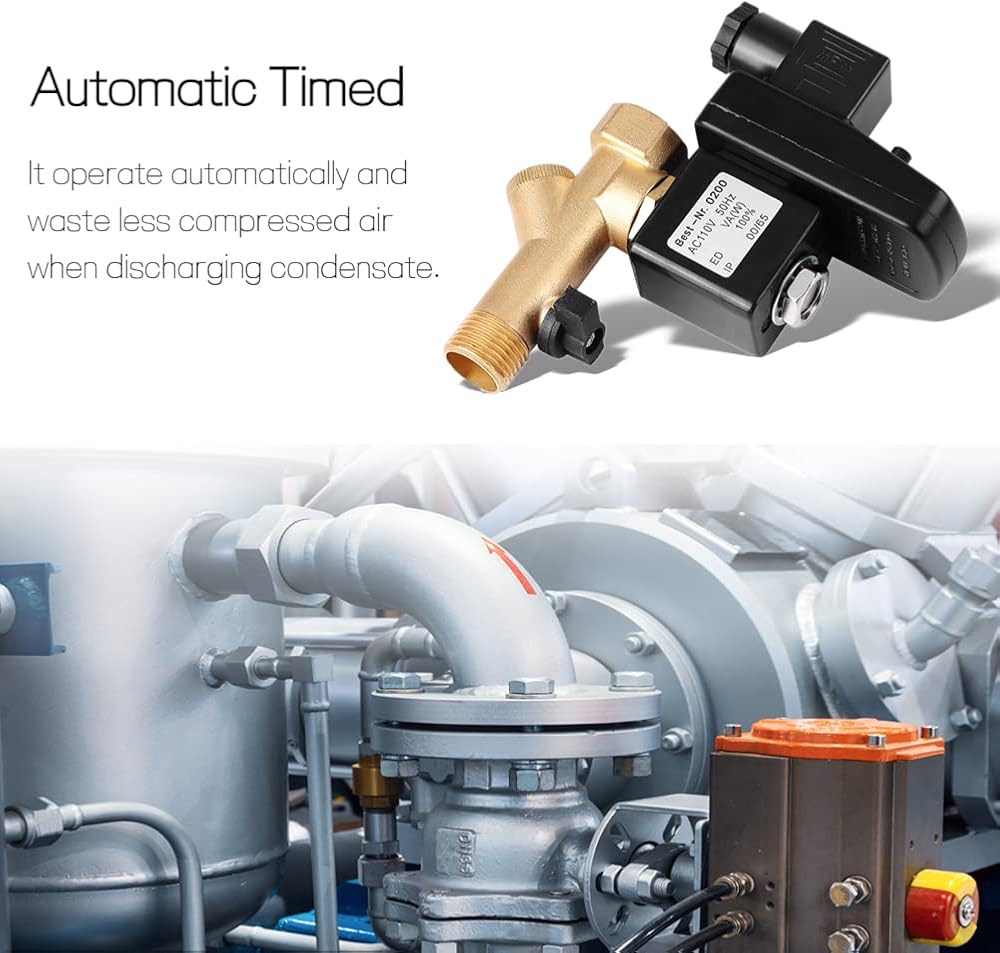

It operate automatically and waste less compressed air when discharging condensate. G1/2 thread is widely used and can fit for most air compressors.

Specifications:
Voltage: AC110V, AC230V (Optional)
Type: Integrated
Valve Material: Brass

Valve Operating Modes: Direct-acting
Interval(OFF): 0.5-45min.
Discharge Time: 0.5-10sec.
Thread: G1/2 (DN15)
Thread Outer Diameter: Approx. 21mm
Pressure: 0-1.6Mpa
Fluid: Air, water
Fluid Temperature: -5℃~80℃
Fluid Direction: One-way

Package Includes:
1 x Drain Valve

Note: The AC230V one can also connect to AC220V.
