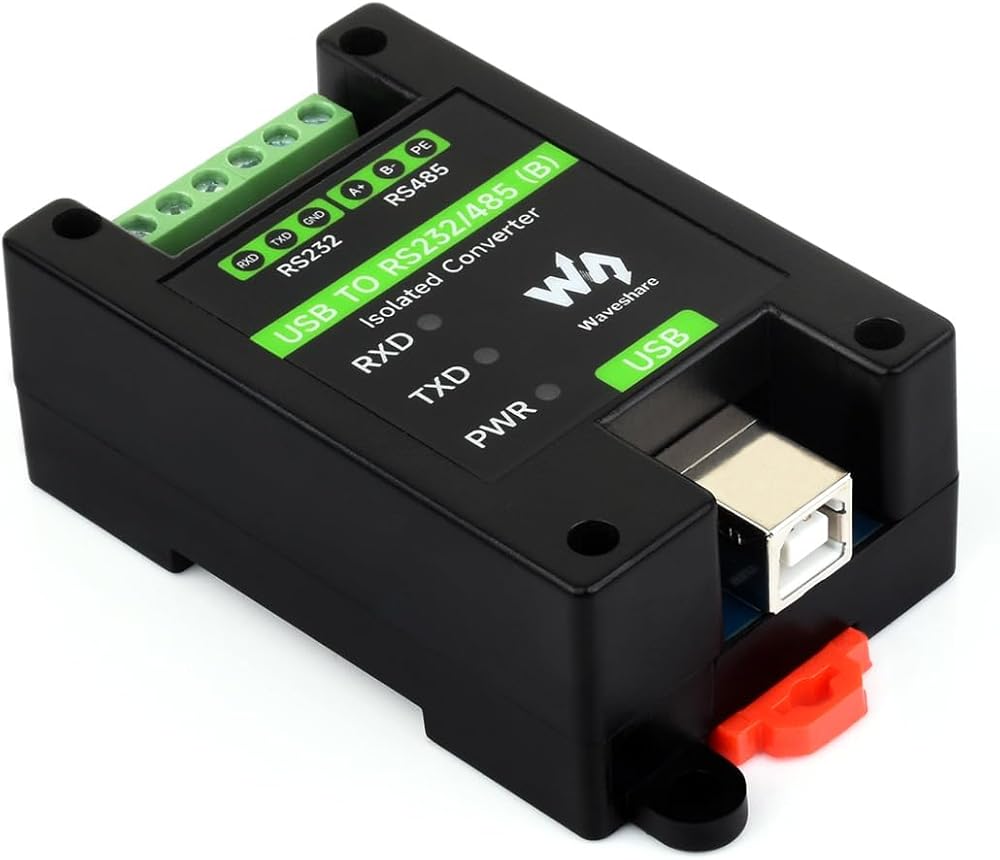

Introduction

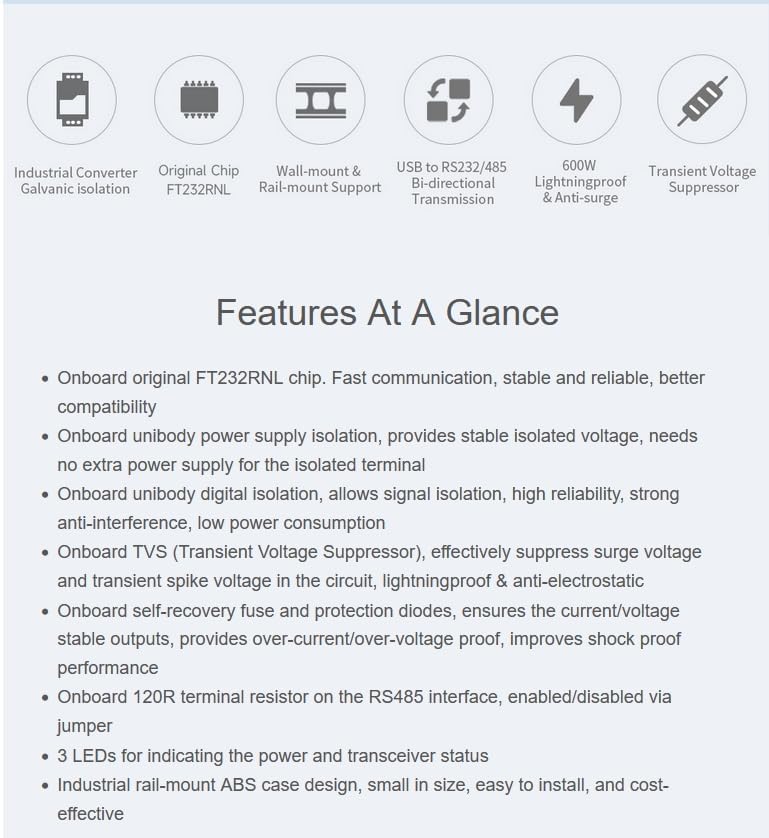

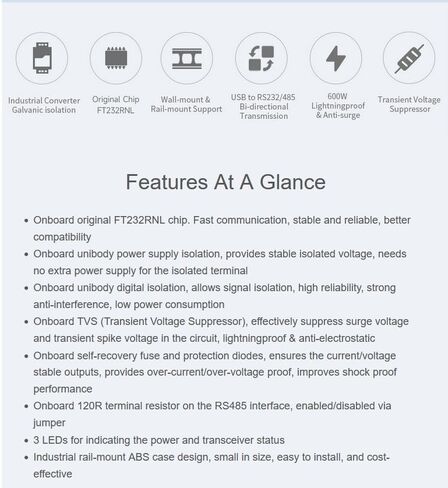

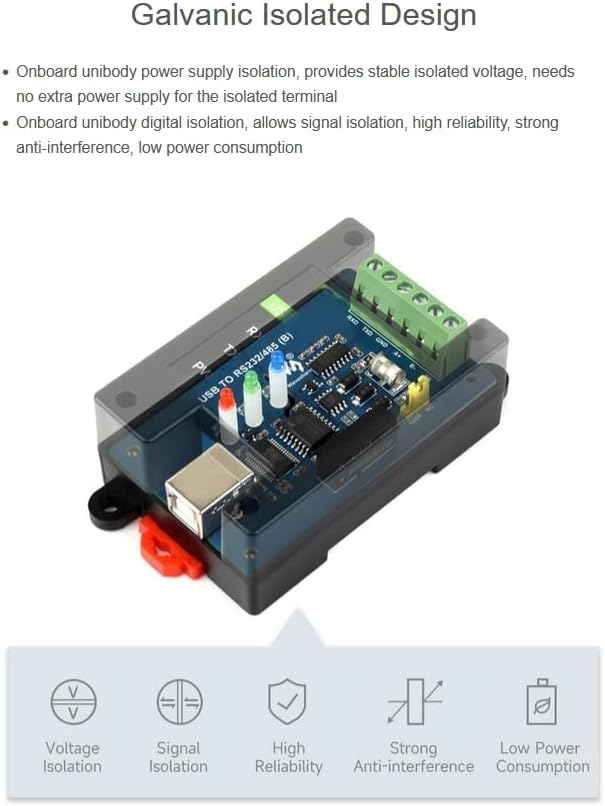

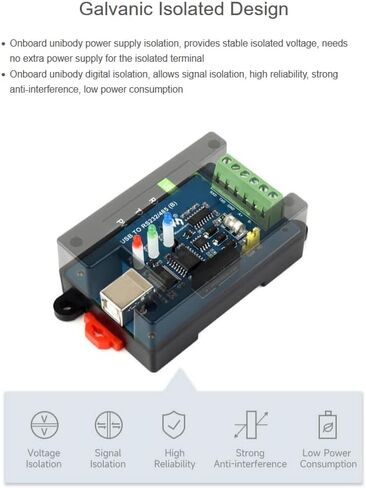

Industrial Grade Isolated USB TO RS232/485 Converter, adopts the original FT232RNL, an industrial rail case design, built-in protection circuits such as power isolation, ADI magnetic coupling isolation, and TVS. USB TO RS232/485 (B) is easy to operate, and can automatically transmit and receive without delay.

Specifications

Host port--USB
Device port --RS232/485

USB

Operating voltage--5V
Connector --USB-B
Protection --200mA self-recovery fuse, output isolation
Transmission distance--About 5m

Isolated RS232

Connector --Screw terminal
Transmission distance--About 15m
Transmission mode--Point-to-point
Baud rate--300bps ~ 921600bps

Isolated RS485

Connector --Screw terminal
Direction control --Hardware automatic control

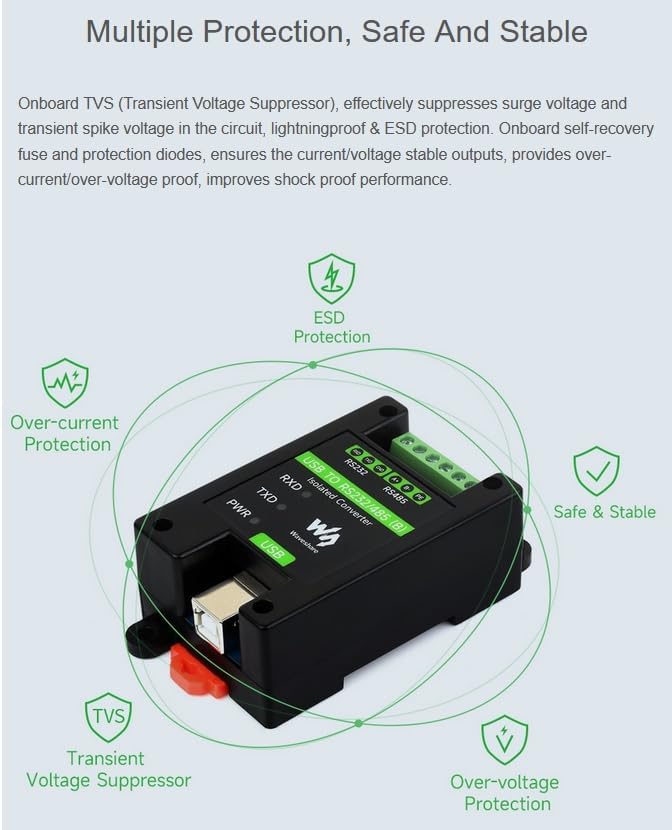

Protection--600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance--About 1.2km (low rate)
Transmission mode --Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate--300bps ~ 921600bps

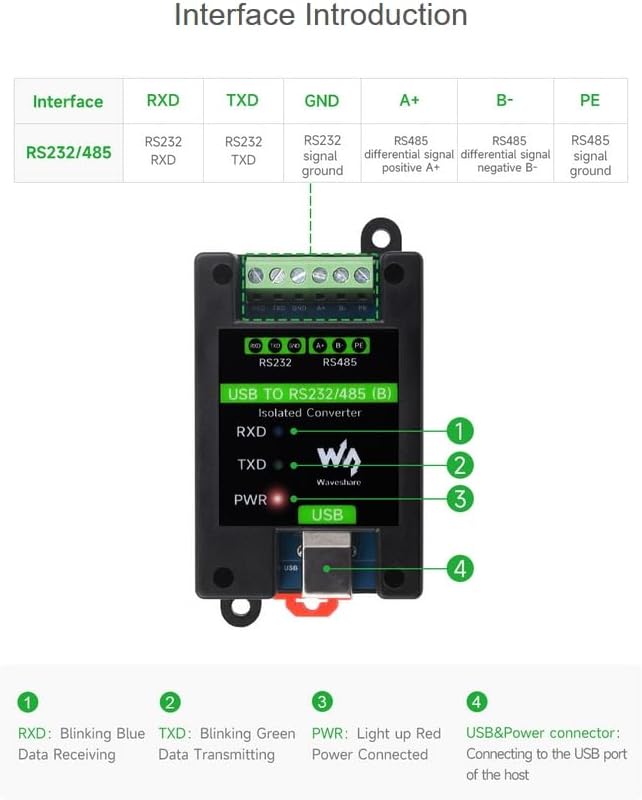

LED indicators

PWR --Red power indicator, lights up when there is USB connection and voltage is detected
TXD --Green TX indicator, lights up when the USB port sends data
RXD --Blue RX indicator, lights up when the device ports send data back

Appearance Enclosure

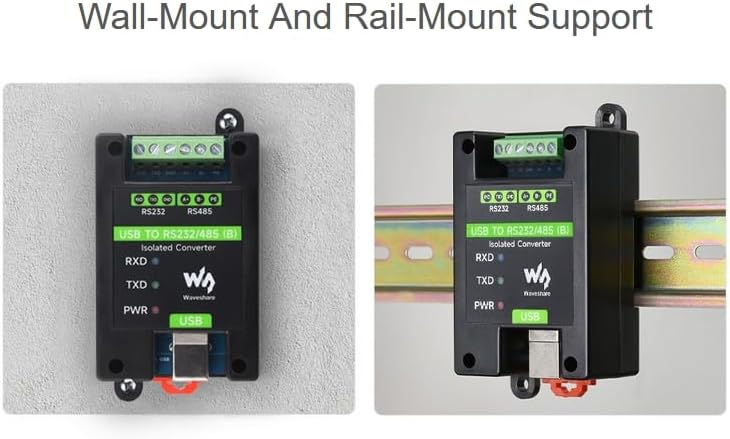

Rail-mount ABS case, suitable for 35mm DIN rail.

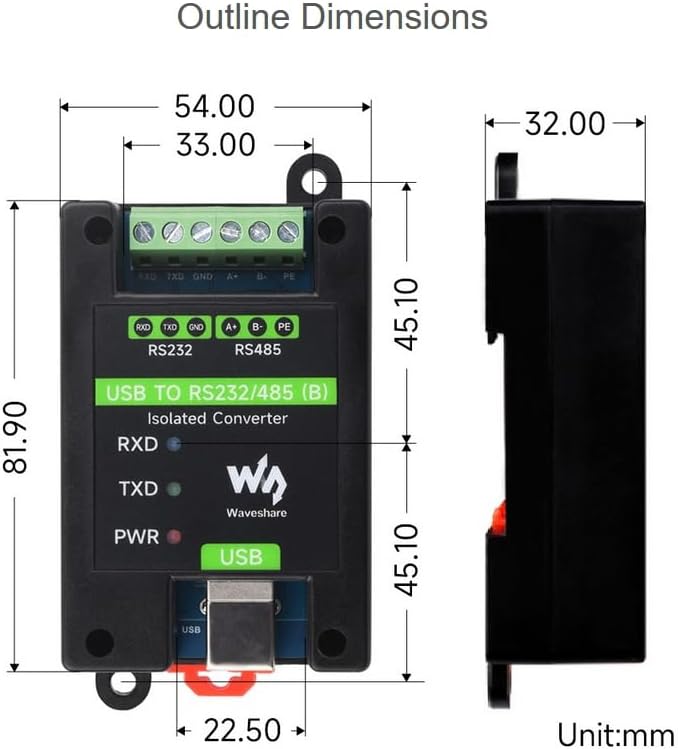

Dimensions: 81.9 × 54.0 × 32.0mm

Operating environment

Temperature:-15℃ ~ 70℃; Humidity: 5%RH ~ 95%RH

Operating system : compatible withMac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7

Comes with Online Development Resource: n9.cl/utc0s

Package Content
USB TO RS232/485 (B) x1
USB-A male to USB-B male cable ~1.2m x1
Screwdriver x1
