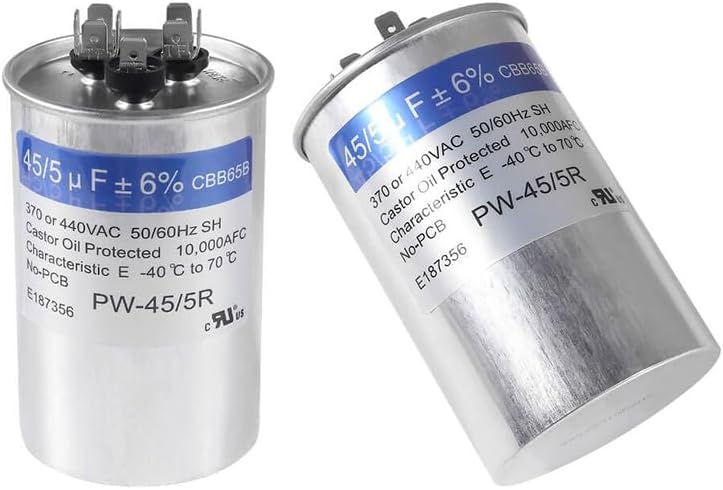

Model: CBB65B(Universal model)
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 45+5uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter(65 mm/2.56 inch) Height(95 mm/3.74 inch)
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

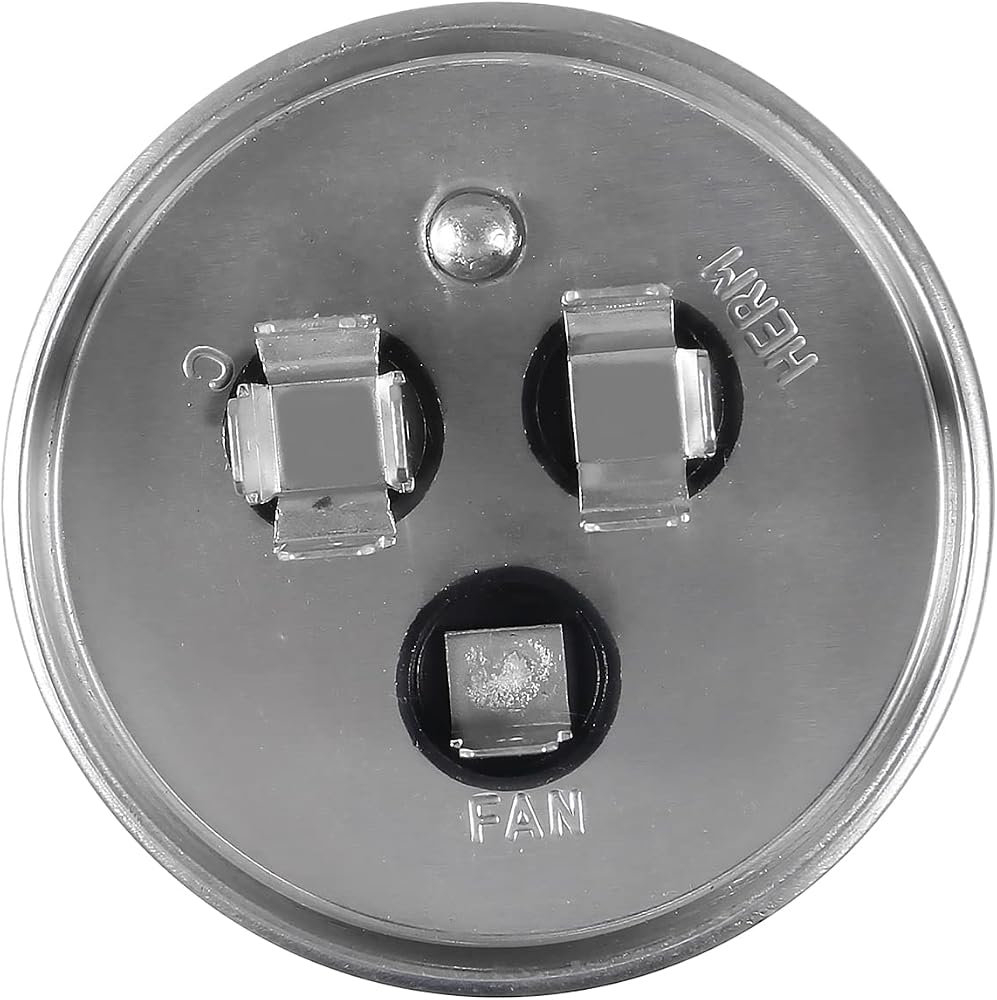

Dual capacitors have three terminals, three terminals on the top are labeled "Herm"/"H" for the compressor motor - White Cap , "Fan"/"F" for the fan - Green Cap , and "C" for the common line - Black Cap.
EASY to Replace AC Capcitor
First of all, Turn off the power to the air conditioner.
Secondly, Take out the ac capacitor.
Finally, Make sure that you know which wire is for which terminal - direct replacement without changing wiring or adapters & Confirm the appropriate capacitance (µF or MFD) and voltage.
What's important, Replace air conditioner capacitor by yourself that will save you a lot of money and time.

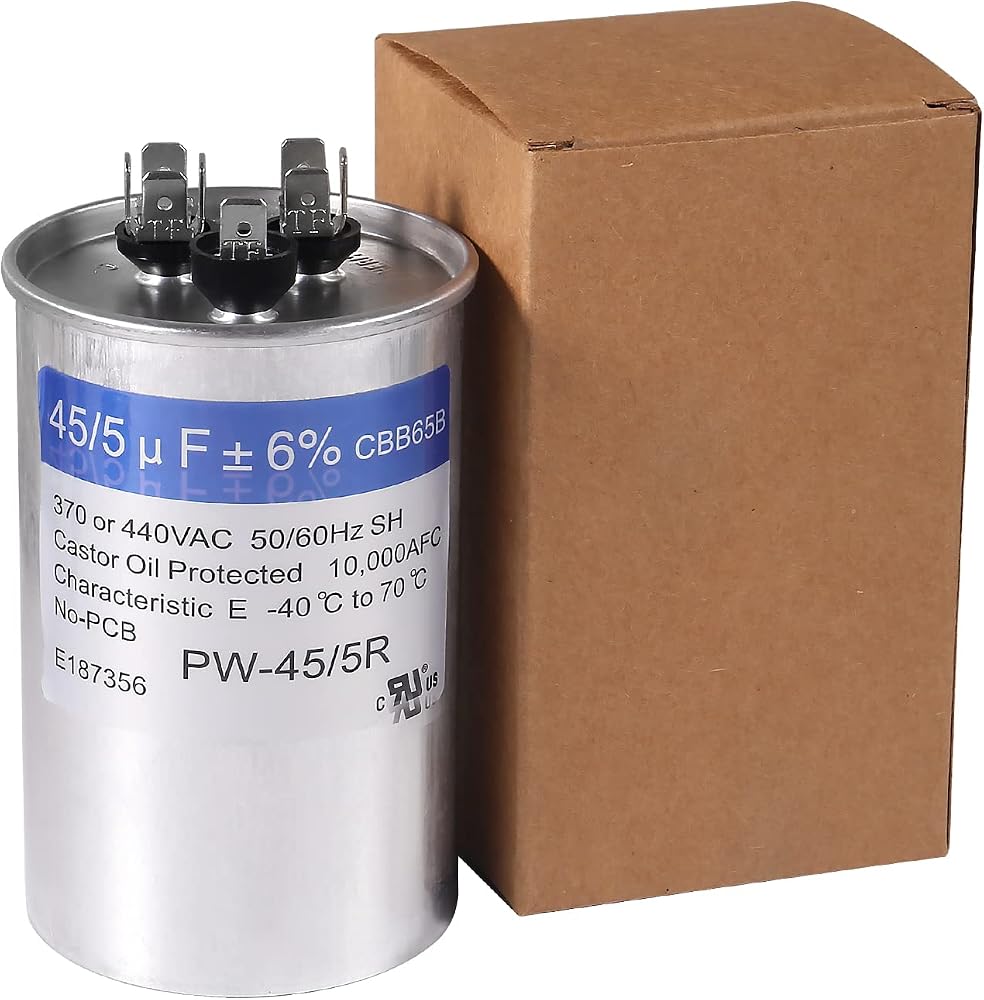

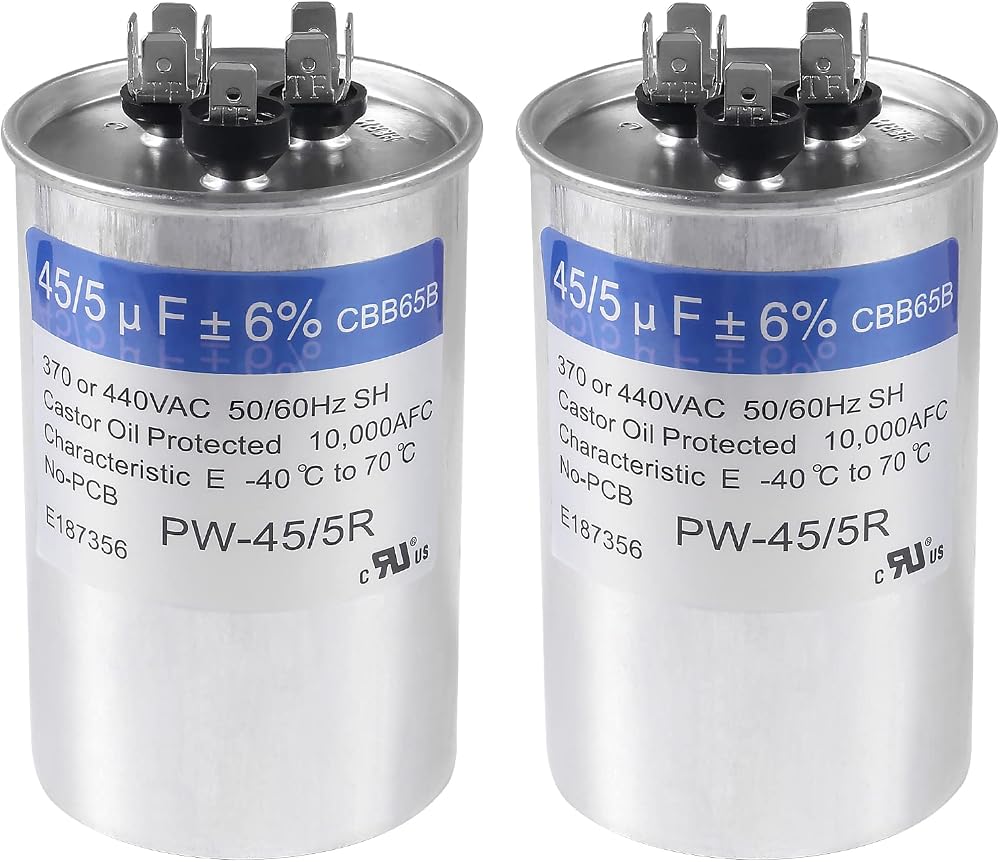

Package contains :2piece 45+5 uF 45/5 MFD 370/440 VAC Dual Run Start Round AC Capacitor.
