Feature:
1. This module uses RS485 communication interface, 32‑channel transistor output (non‑isolated), quick response
2. The output response speed 3. RS485 baud rate is optional 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200
4. High quality engineering plastic material can make sure the durability and stability of the product
5. Great and standard workmanship, adopt rail installation mode, easy and simple to install and remove

Specification:

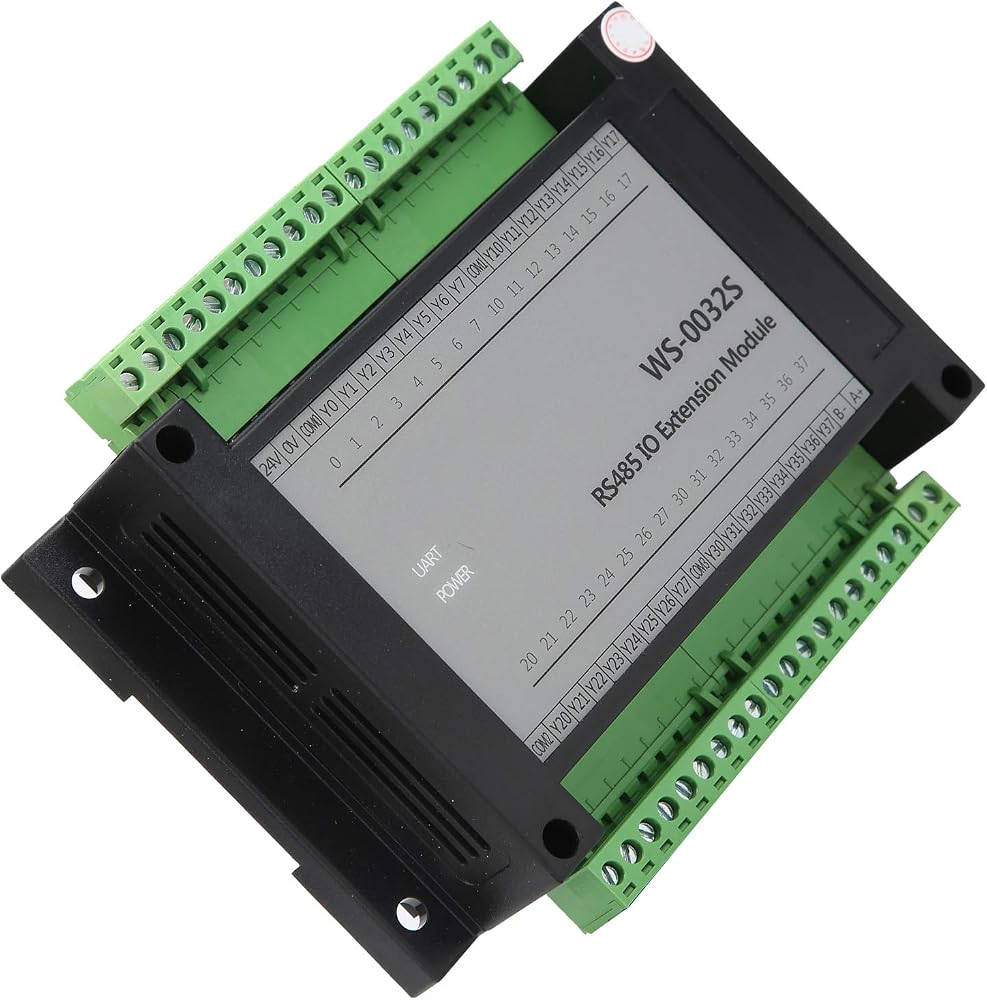

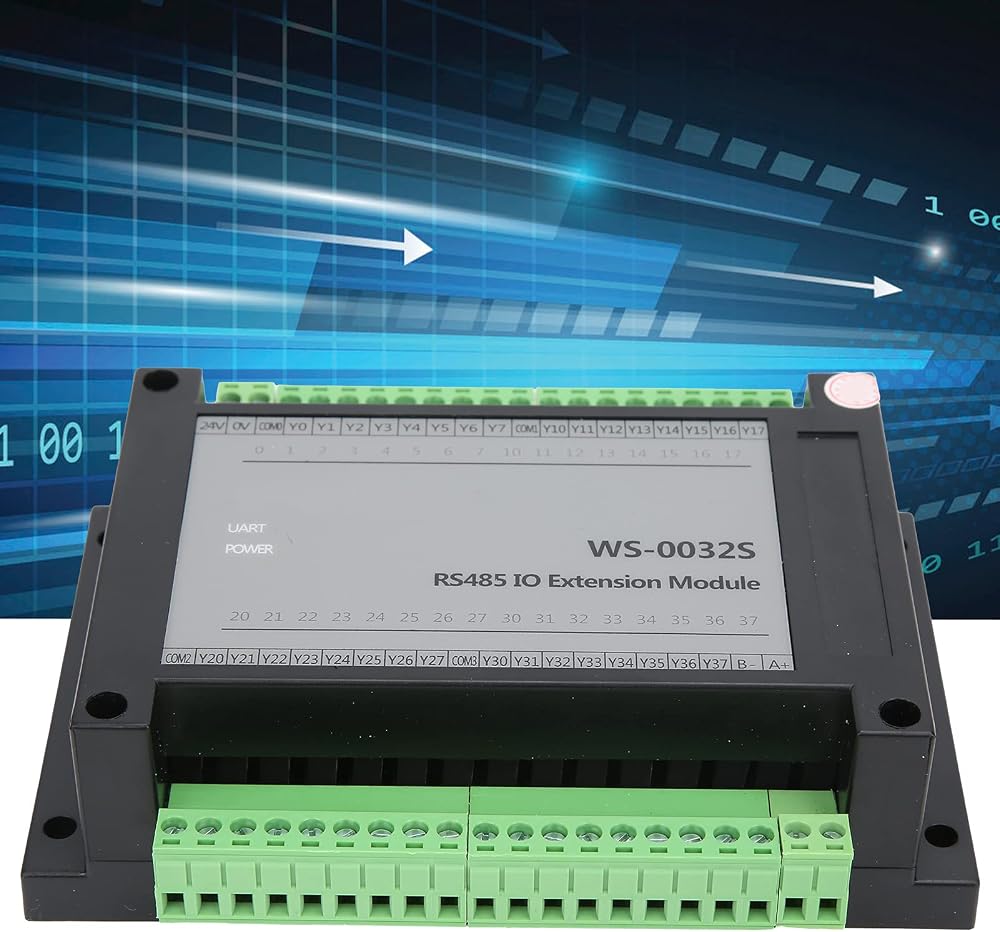

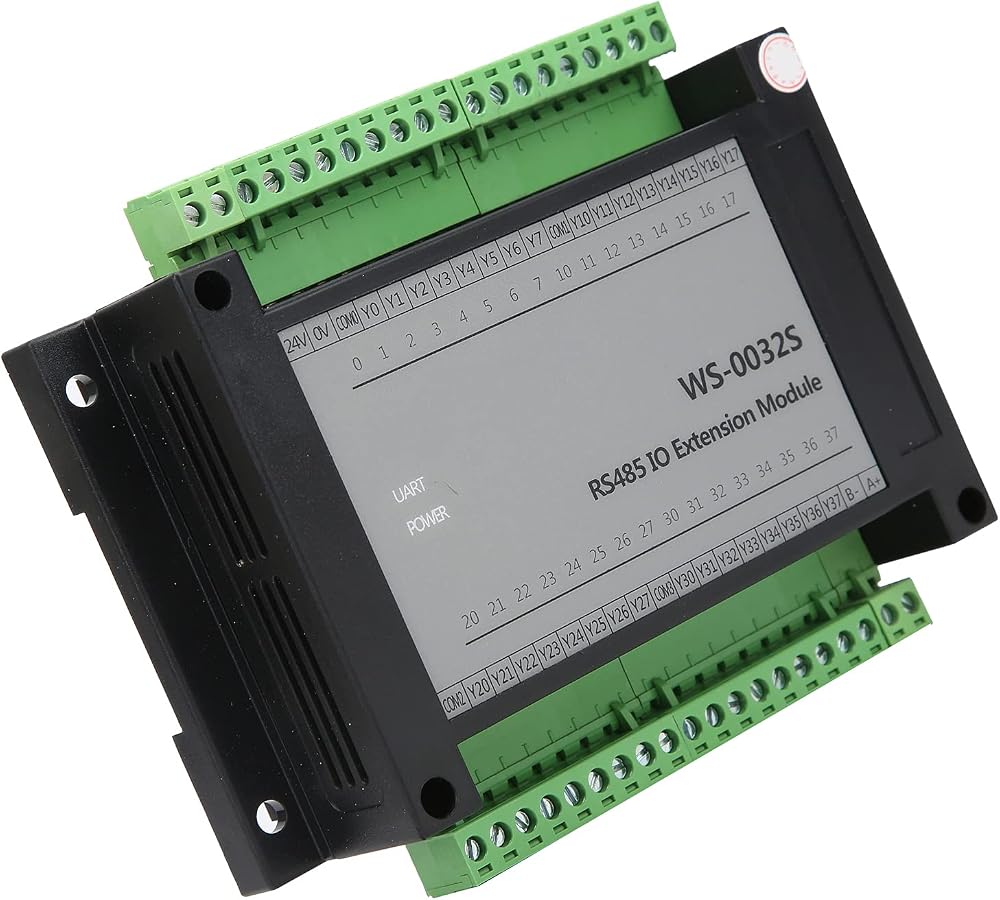

Item Type: RS485 IO Extension Module
Power Supply: 18~28V DC
Input Port Voltage: VCC
Input Terminal Trigger Mode: Ground
Input Port Trigger Current: 2mA
Output Terminal Output Mode: Pull down to com
Maximum Continuous Sink Current of a Single Output Port: 2A
Maximum Instantaneous Current of Output Single Port(≤1ms): 15A
Communication Interface: RS485; RTU
Material: Engineering Plastic
Use Environment and Installation Method:
1. In order to the internal temperature of the machine from overheating, please use the wall-mounted installation. It is required to leave enough space above and below as a heat dissipation space.
2. Leave a gap of more than 50mm between the programmable controller host and other equipment or structures. Keep away from high-voltage lines, high-voltage equipment and power equipment as much as possible.
3. Avoid dust, oil, and corrosive environments; pay attention to electrostatic protection (avoid direct contact with the circuit board circuit with your hands). Adopt rail installation.

Package List:
1 x RS485 IO Extension Module
1 x User Manual
