Technical parameters:
Resolution: 16bit 48/44.1KHz THD+N(-3dBr):-76Db S/N
Ration:83dB
Dynamic range:80 Db
Input impedance:1MΩ
Frequency response at 48KHz:20-19KHz
Singal input range:0-2.8 Vpp
Single boost gain:+20dB

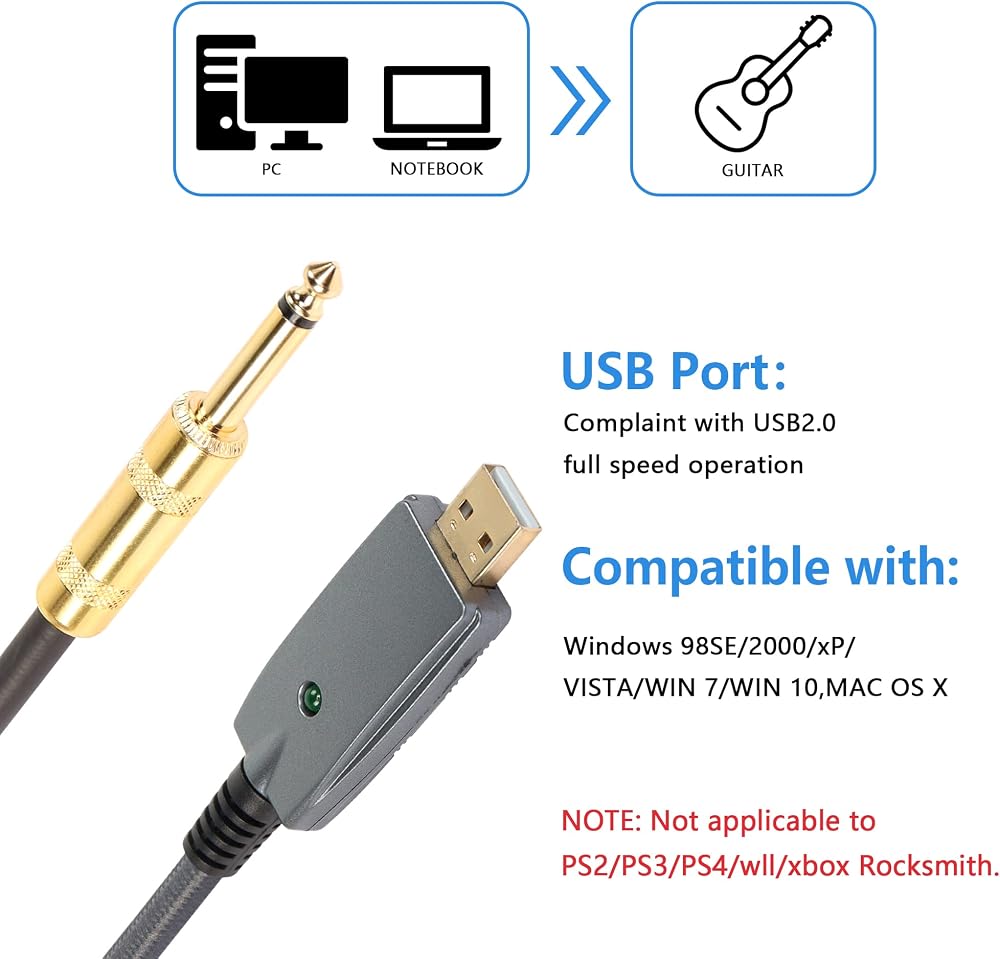

Connect the USB to TS cable to your computer and turn on your audio device (eg, condenser microphone, electronic guitar, etc.).When you are ready, please debug by following the instructions below.
Step 1:Righe-click the speaker in the lower right corner of your computer and select "Recording devices"
As show in figure:
Step 2: In the"Recording"option,select "USB Audio Device"sound card.If there are several sound cards, and you are not sure which one to select, please do not close the page, unplug the USB to TS cable from the computer,re-insert into the computer USB port, thenthere will be"USB Audio Device"prompt on the option page.
As show in figure:
Step 3: Please select "Propeerties"on this page to proceed to step 4.
As show in figure:
Step 4: Select"Recording"on this page and tick "Listen to this device".If your computer has anumber of extexnal playback devices, please drop down the menu,select the corresponding audio playback device.
As show in figure:
Step 5:Click "OK"and speak to a condenser microphone, an electronic guitar or other audio input device for testing.If you hear feedback,then the USB to TS cable is correctly connected to the compter. Otherwise,repeat steps2-5.
As show in figure:
