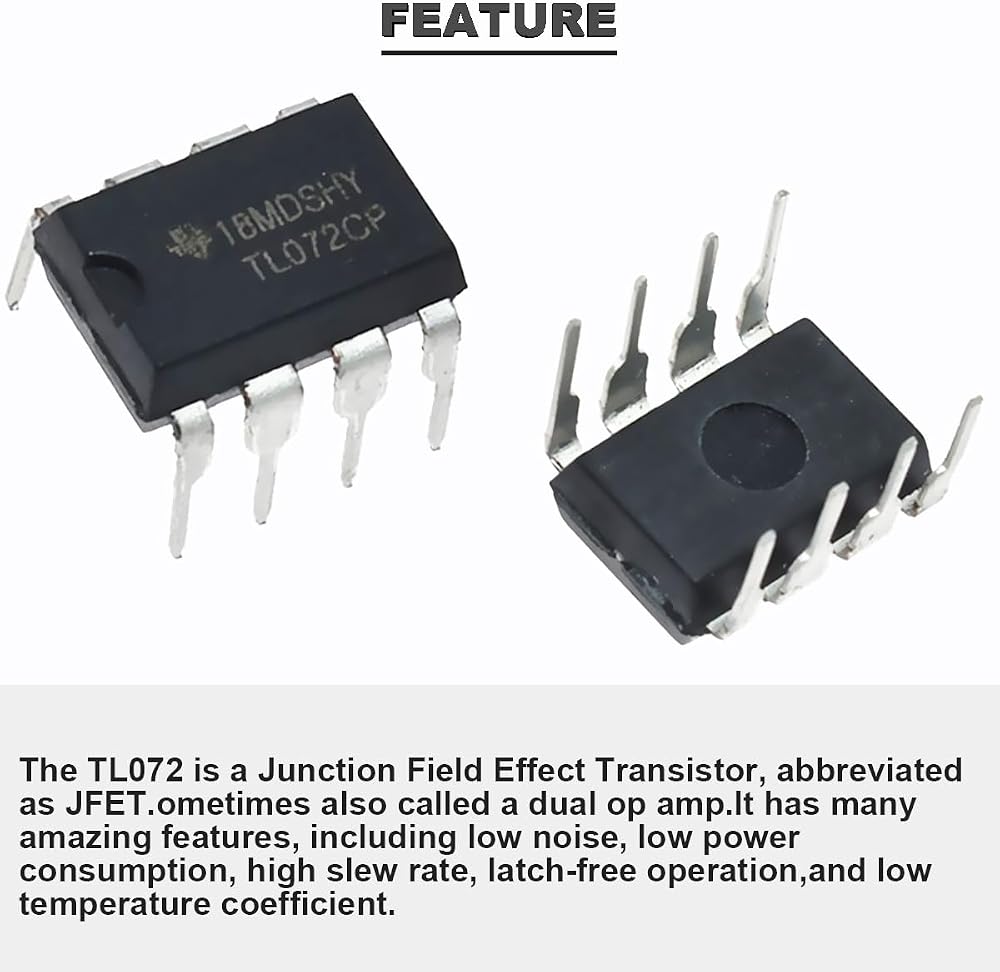

The TL072CP input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these input operational amplifiers incorporates well-matched, high-voltage and bipolar transistors in a monolithic integrated circuit.
The operational amplifiers is in the TL072CP are similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL072CP ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.

Features:
Low Power Consumption
Wide Common-Mode and Differential Voltage
Low Input Bias and Offset Currents
Output Short-Circuit Protection
Low Total Harmonic Distortion: 0.003% Typical
Low Noise
Vn = 18 nV/u221aHz Typ at f = 1 kHz
High-Input Impedance: JFET Input Stage
Internal Frequency Compensation
Latch-Up-Free Operation
High Slew Rate: 13 V/u00b5s Typical
Common-Mode Input Voltage Range
Includes VCC+

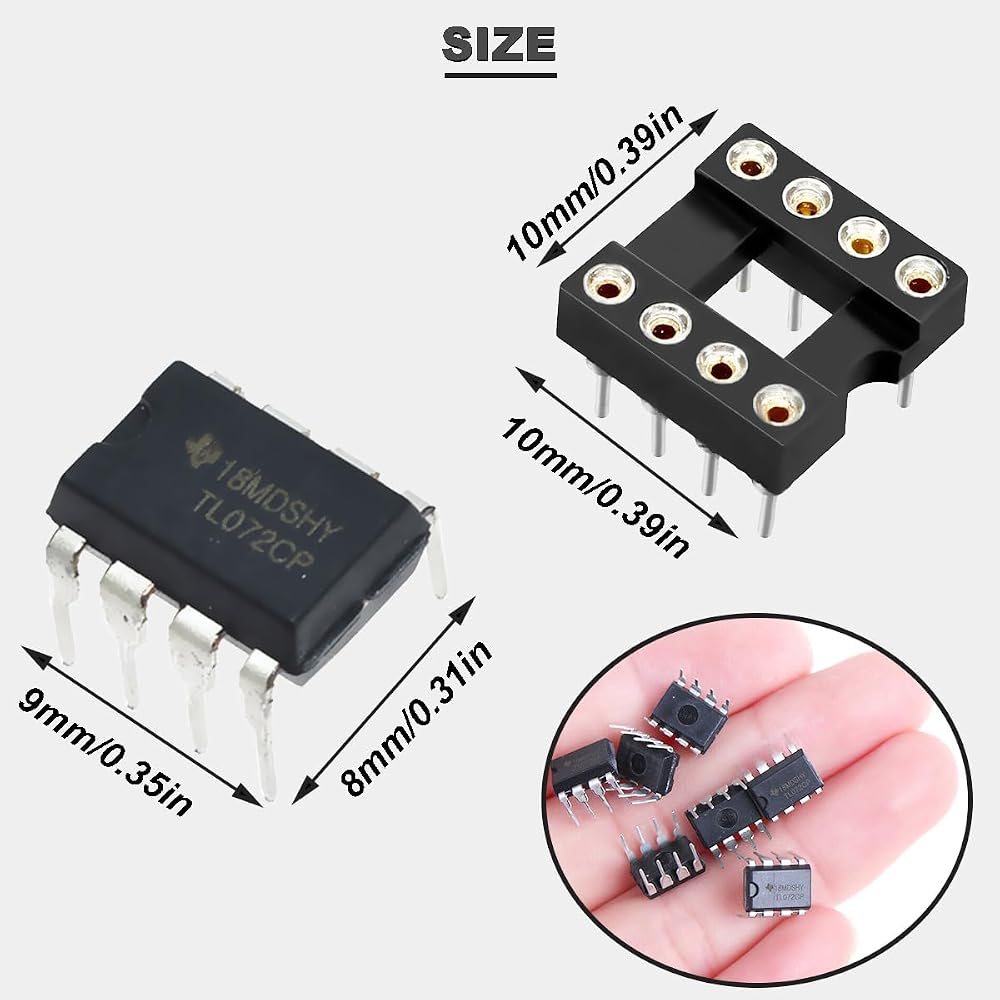

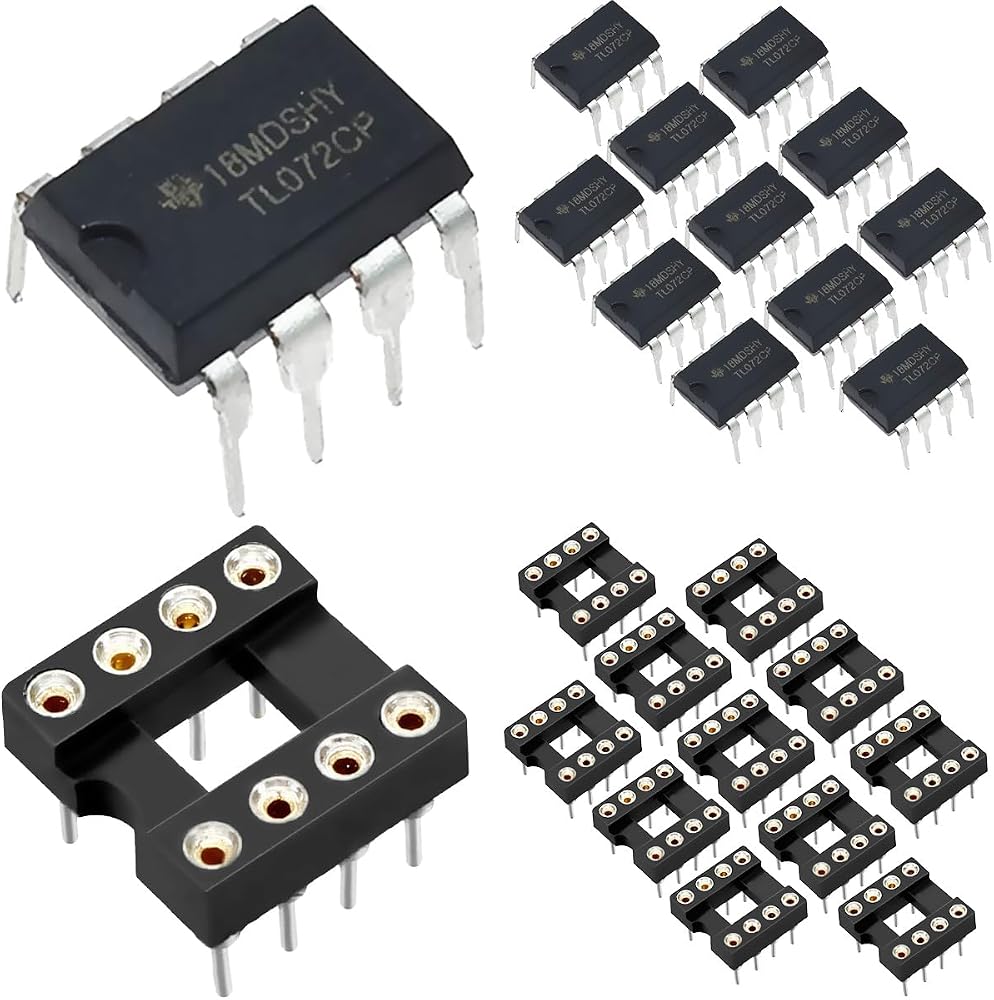

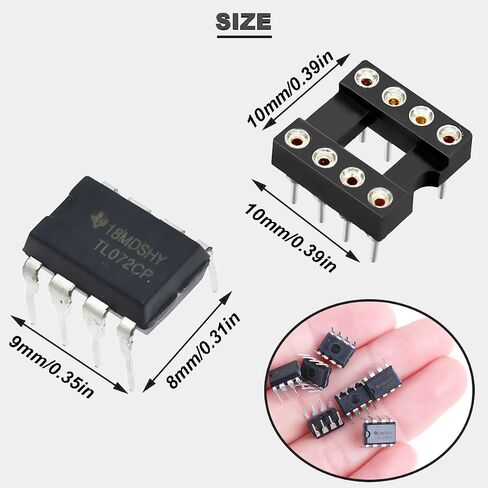

Package Includes:
12 x TL072CP Operational Amplifier
12 x Round DIP-8 IC Socket
