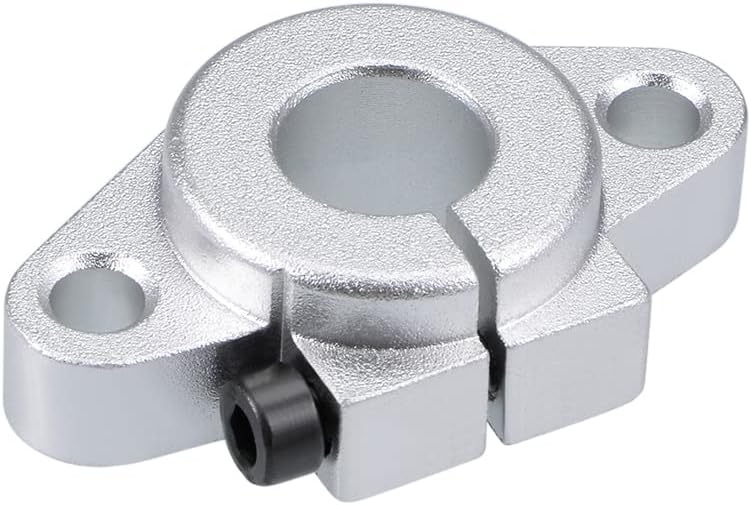

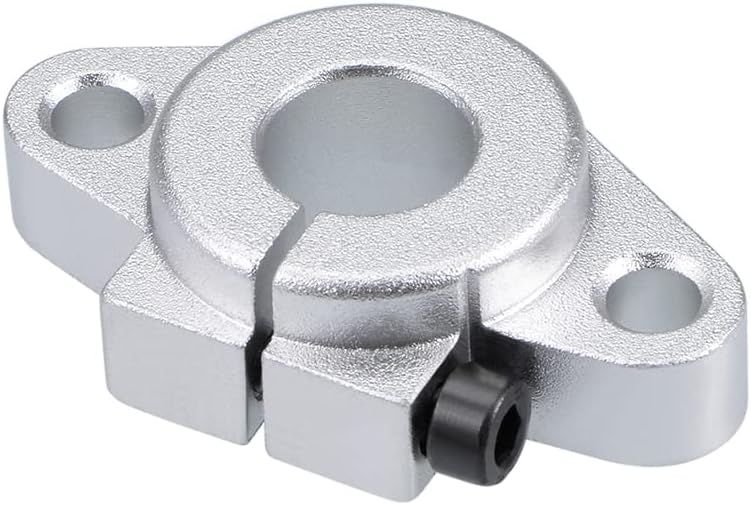

Description:
-Shaft support blocks are used for end or intermittent support where loads are light and slight shaft deflection is not a concern.
-Shaft support blocks enable clamping of shafts, remove the need for bolts to maintain shaft position.
-Shaft guides are an economic and widely used linear guide system for many applications.
-Widely used for digital 3D coordinate measuring equipment such as precision equipment or special machinery industry.

Specification:
Model: SHF12
Material: Aluminum Alloy
Fit Shaft Diameter: 12mm
Mounting Hole Diameter: 5.5mm / 0.22"
Mounting Hole Distance: 36mm / 1.42"
Clamping Bolt Size: M4

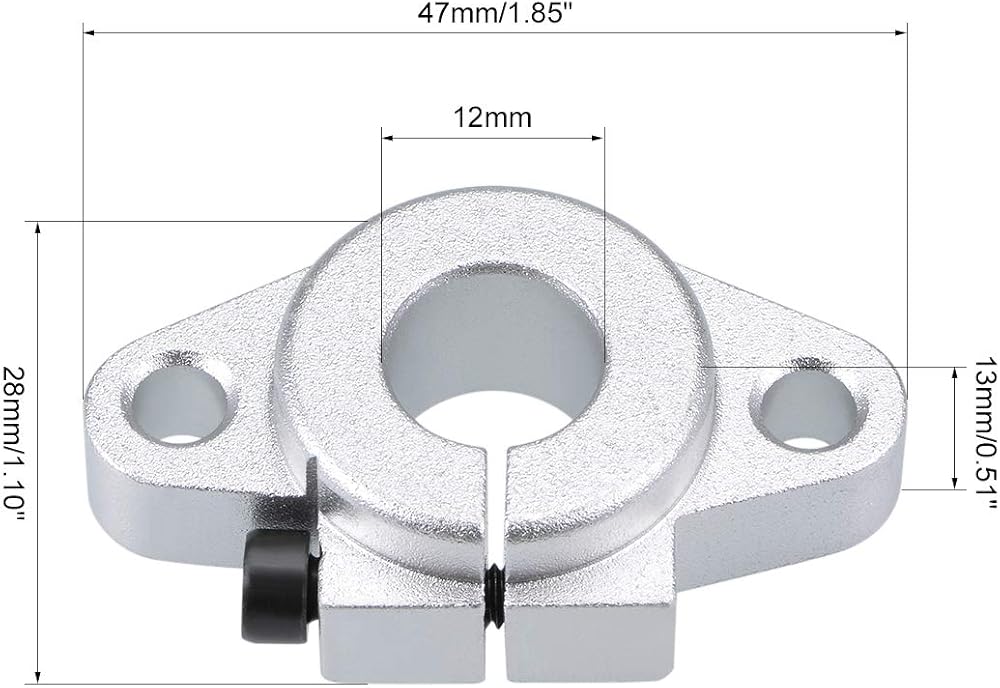

Overall Size: 47 x 28 x 13mm / 1.85" x 1.10" x 0.51" (L*W*H)

Package Content:

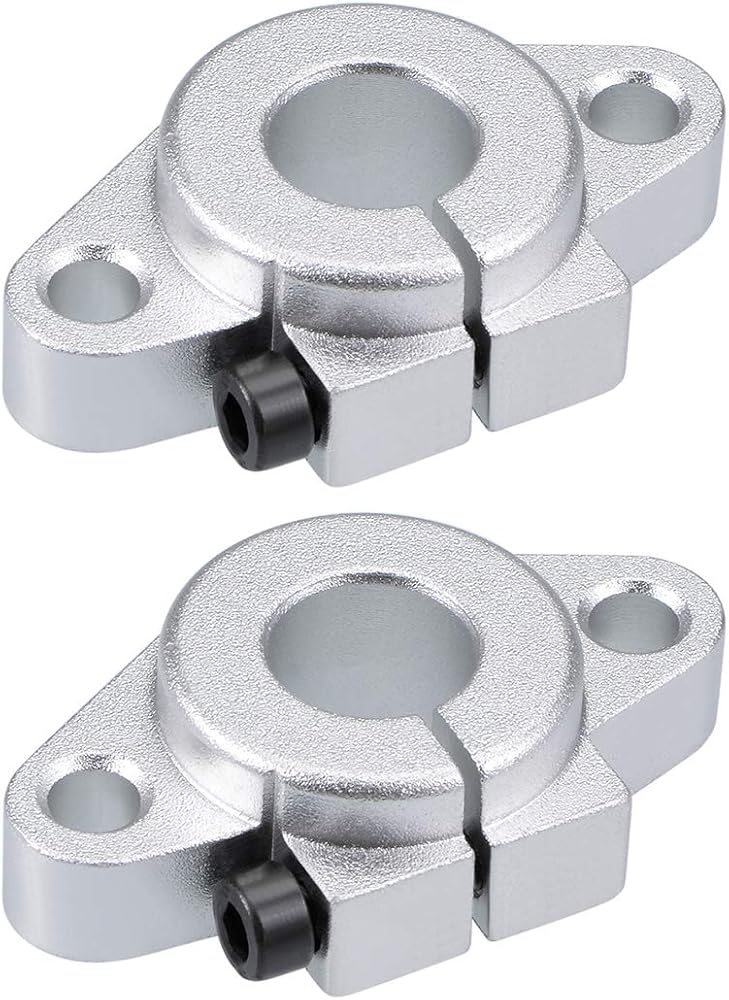

2 x Shaft Support Blocks
