مميزات خاصة

Output power: 3.2W at 4Ω and 10% THD 1.8W at 8Ω and 10% THD;I2S sampling rate: 8kHz-96kHz
Class D gain optional:3db/6db/9db2db/15dB; 35 different clocks and 128 digital audio formats can be automatically configured with a single power supply. C
For superior sound quality, the device uses a high noise immunity digital input with high jitter tolerance. It also provides excellent electromagnetic interference suppression, allowing long-line connected speakers without the need for external filtering.
Widely used for Arduino, Raspberry Pi and ESP32.
Package Content:2 x MAX98357 Audio Power Amplifier Module, 1 x 11.8" Female-Male Dupont Cables 20 PIN

وصف

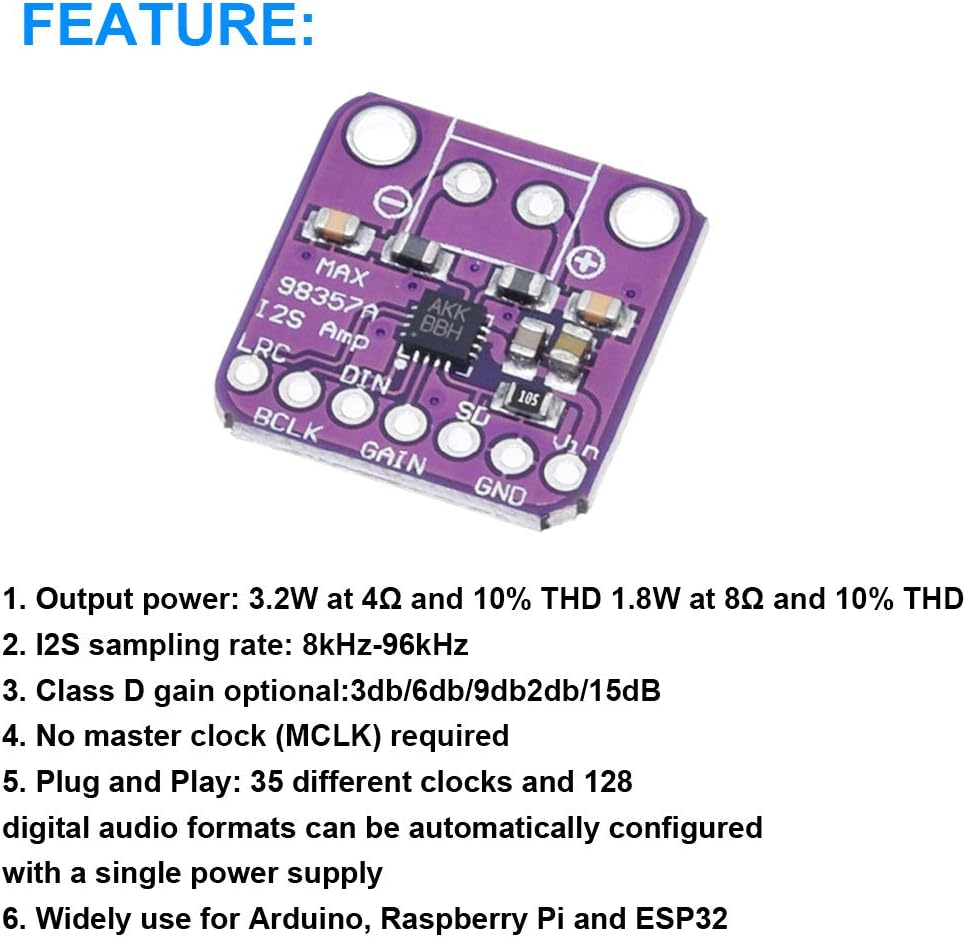

Description:
1. Output power: 3.2W at 4Ω and 10% THD 1.8W at 8Ω and 10% THD
2. I2S sampling rate: 8kHz-96kHz
3. Class D gain optional:3db/6db/9db2db/15dB
4. No master clock (MCLK) required
5. Plug and Play: 35 different clocks and 128
digital audio formats can be automatically configured
with a single power supply
6. Widely use for Arduino, Raspberry Pi and ESP32

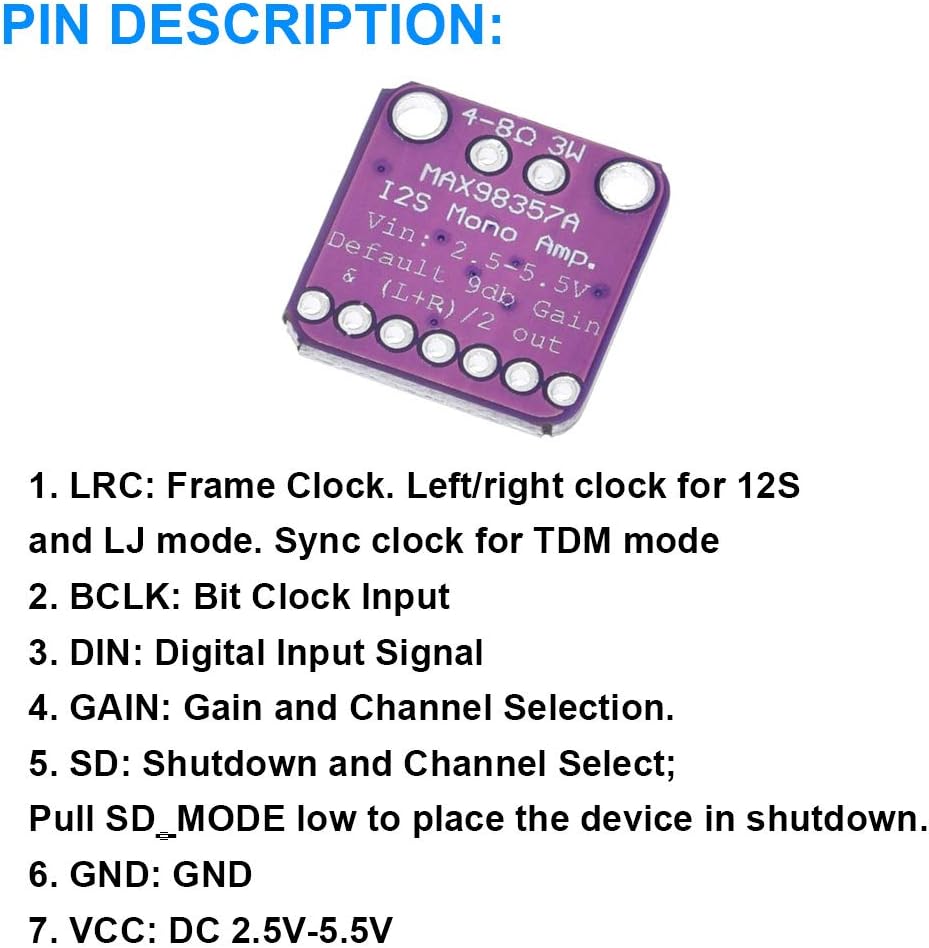

Pin Description:
1. LRC: Frame Clock. Left/right clock for 12S
and LJ mode. Sync clock for TDM mode
2. BCLK: Bit Clock Input
3. DIN: Digital Input Signal
4. GAIN: Gain and Channel Selection.
5. SD: Shutdown and Channel Select;
Pull SD_MODE low to place the device in shutdown.
6. GND: GND
7. VCC: DC 2.5V-5.5V

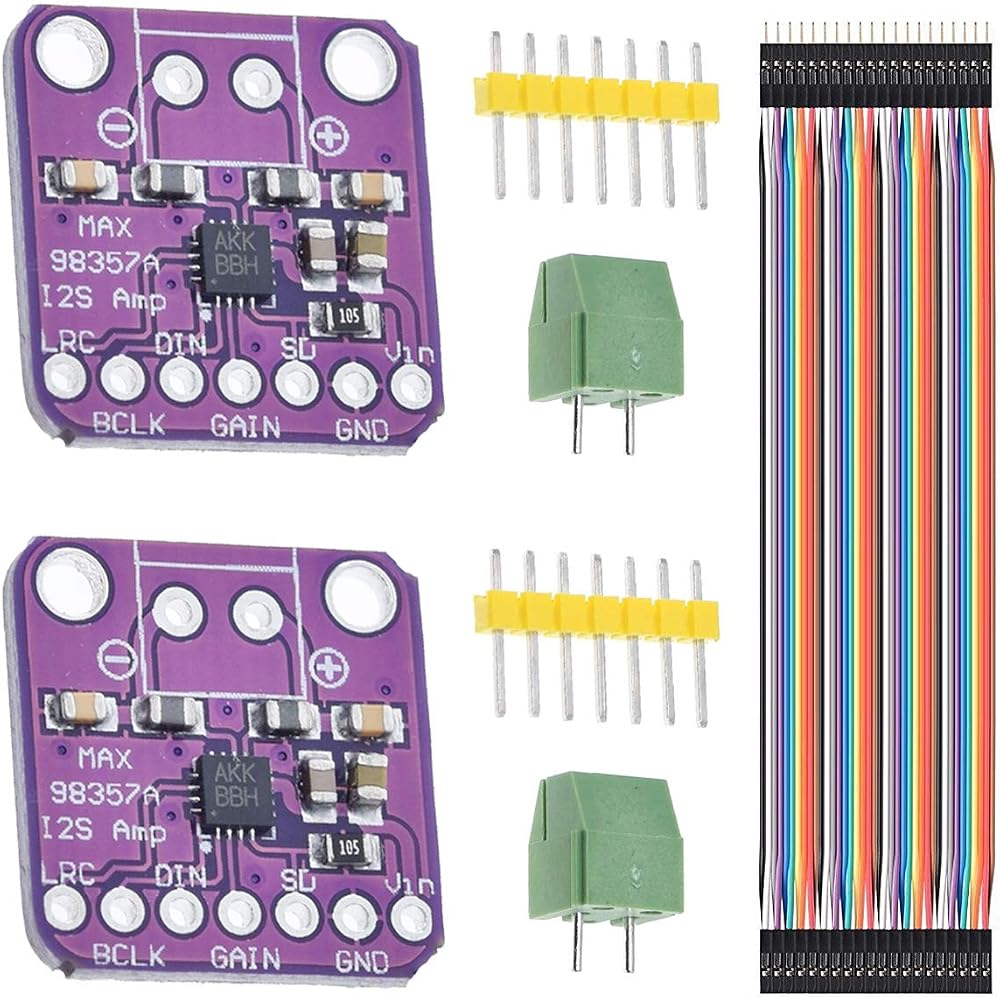

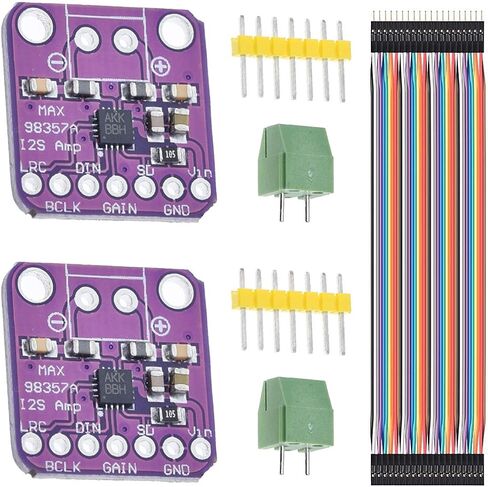

Package Included:
2 x MAX98357 Audio Power Amplifier Module
1 x 11.8" Female-Male Dupont Cables 20 PIN
