Specifications

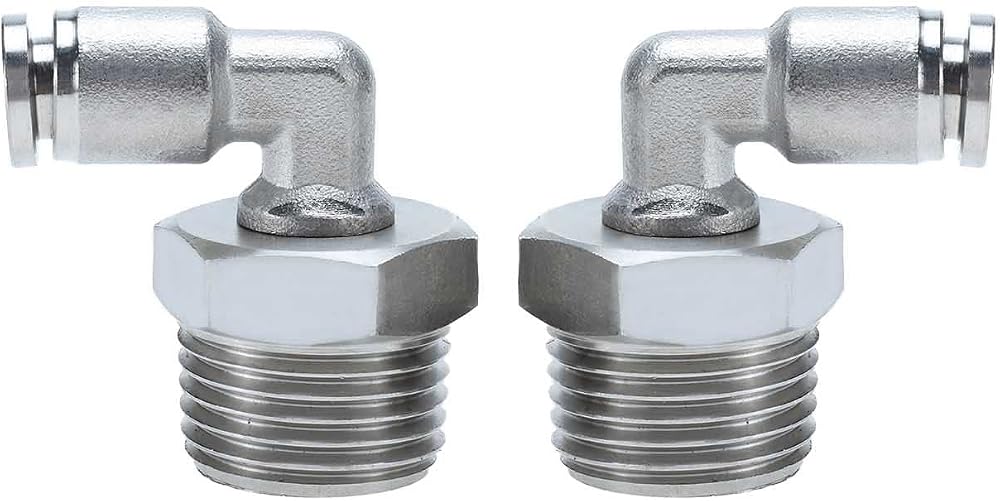

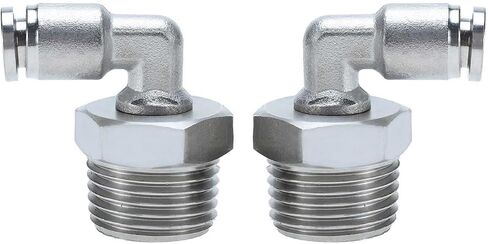

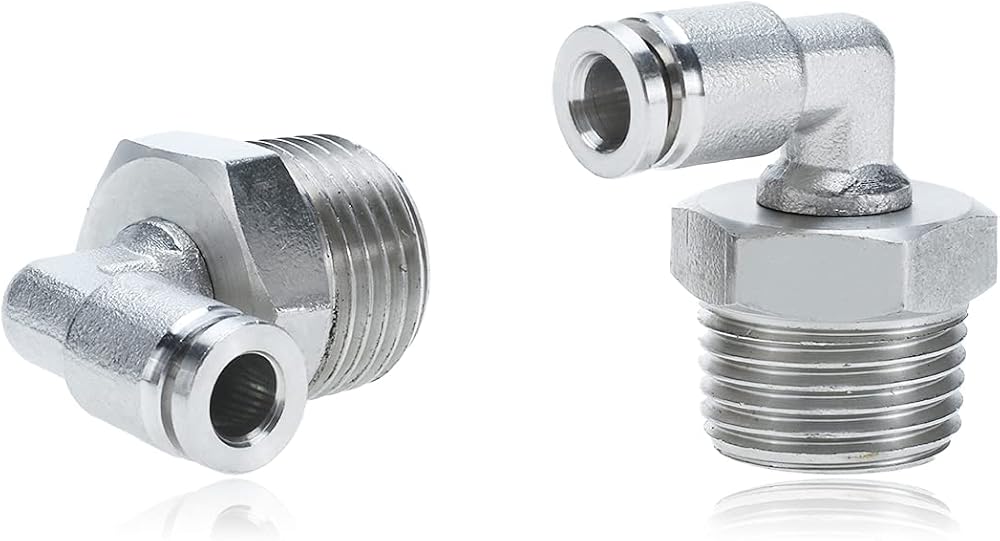

▪ Name : Push to Connect Fittings
▪ Type : Male Elbow Fittings
▪ Material : 304 Stainless Steel

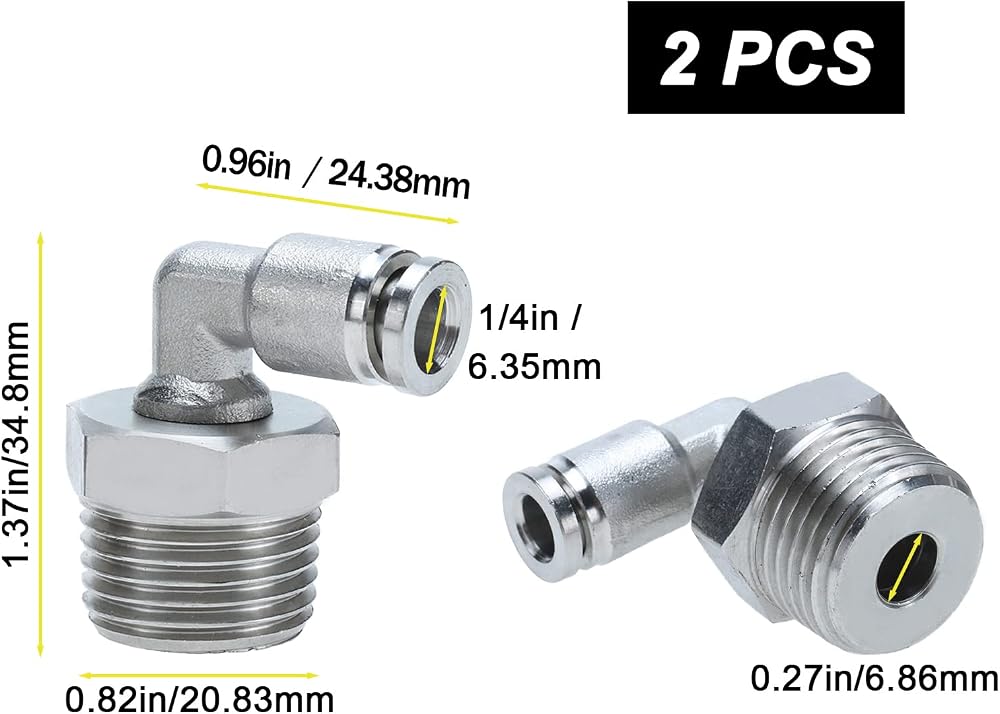

▪ Size : 1/4 Inch Tube OD x 1/2 Inch NPT Thread
▪ Medium : Air/Water/Oil, etc
▪ Working Temperature : -17.22℃-200℃ (-4°F-392°F)
▪ Max Pressure : 3.0Mpa (435psi.Seal)
▪ Applicable Tube : PU / PA / PE / PVC
▪ Quantity : 2

Features

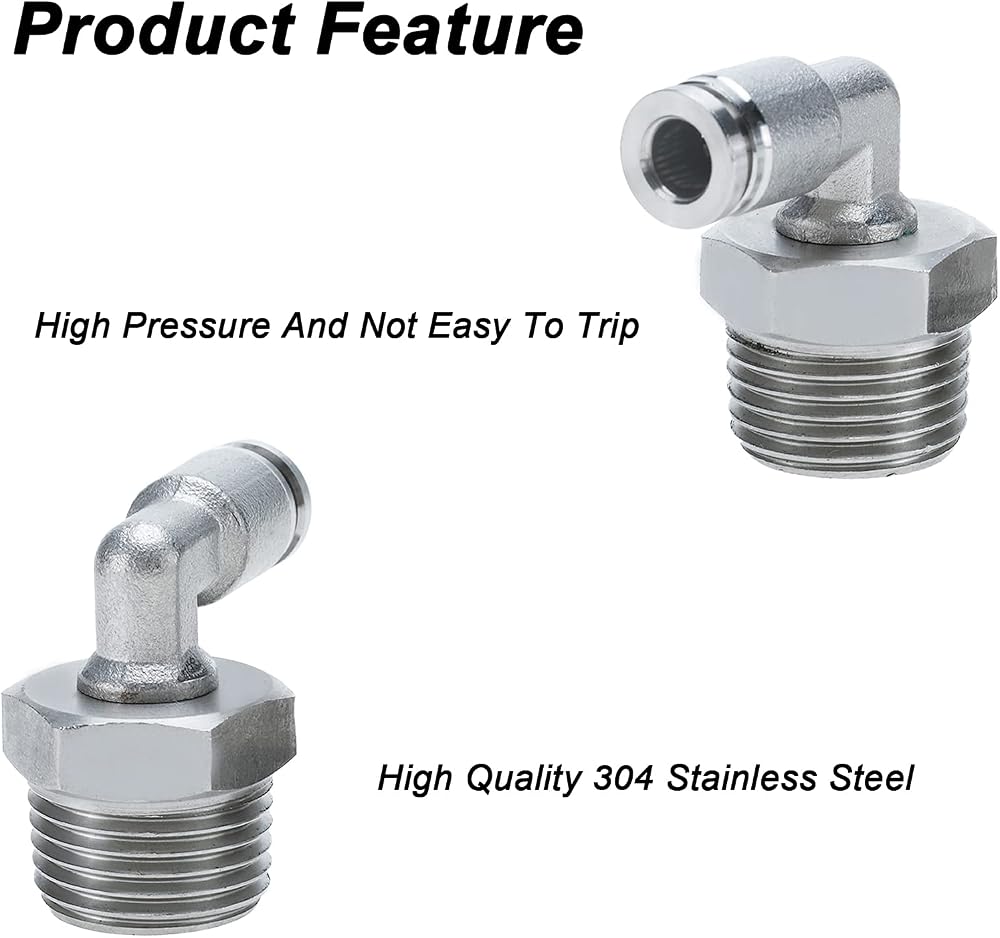

▪ 304 Stainless Steel : Abrasion resistance, corrosion resistance, low temperature resistance, thermal expansion performance and good heat preservation performance.
▪ NOT easy to leak. Good sealing performance.
▪ Easy to install, just insert the tube inside. no need to use other tools.

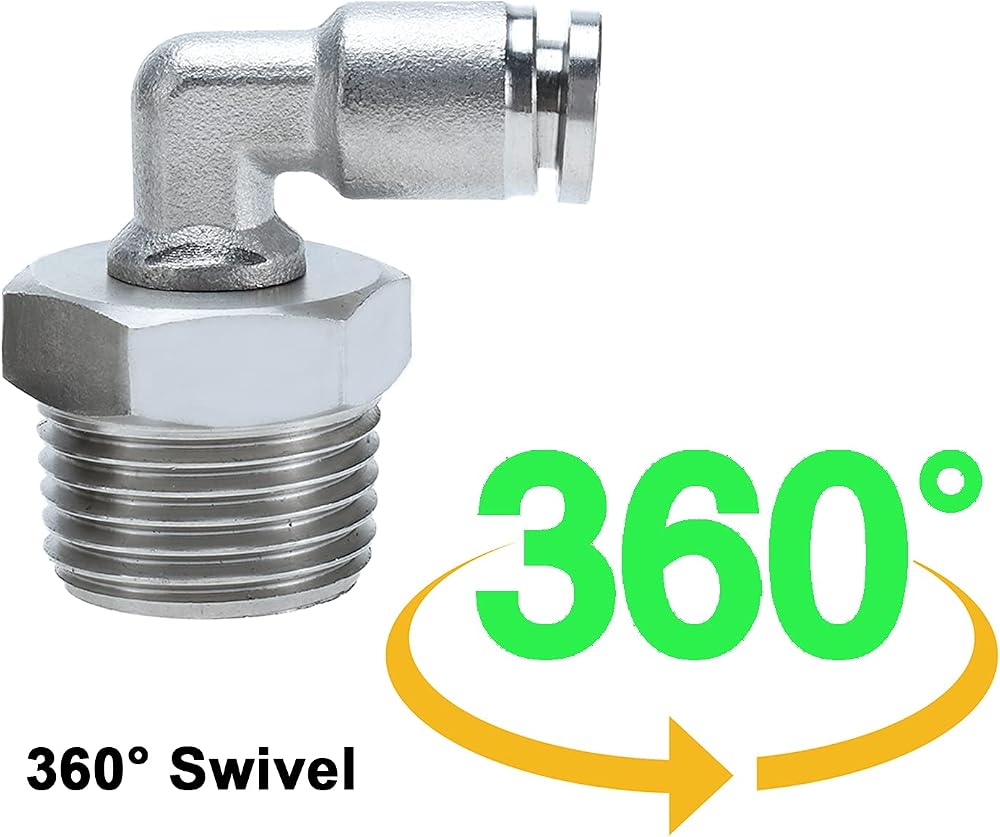

▪ Can Rotate 360° even after installation

Applications
▪ Used for The Connection of Pipes and different Pneumatic Components.

Pay Attention

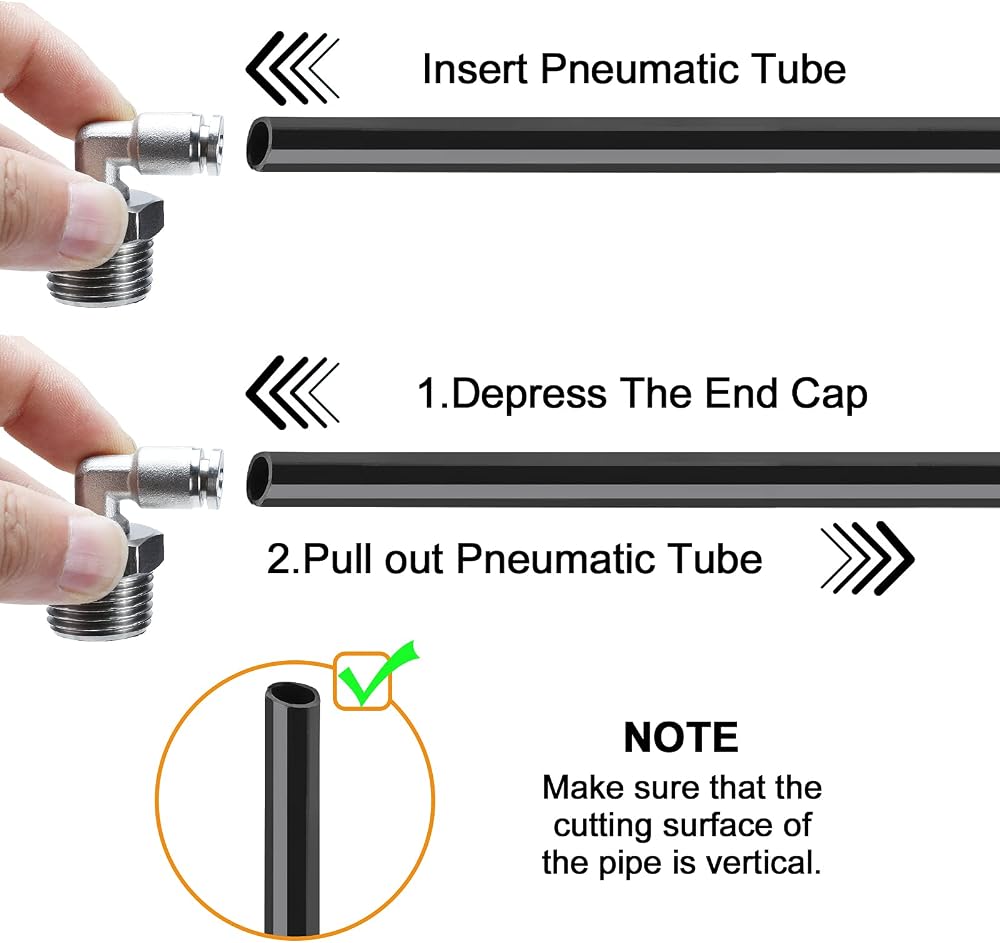

▪ The Cutting Surface of the Tube must be Vertical.
▪ The tube must be inserted into the bottom of the fittings when inserting.
▪ Check that the tube cannot be pull out of the fittings after installing.

Note
▪ Not fit for Drinking Water Pipes.
▪ Do Not Use it under Extra External Load (Bend, Twist or Pull), Or it will cause damage or leakage.
▪ Avoid Mixing with incompatible materials.
▪ Manual measurement, error 1-3mm, depending on the actual situation, please understand.
