〖Radio Wiring Harness 20Pin〗This car radio connector will compatible with boss BV9358B, BV9973, BV9976, BV9978, BV9979B, BV9980BT, BV9386NV, AV6116Bi, AV6117B, AV614BH models.
〖20Pin Car Radio Wire Connector〗This car stereo harness will compatible with boss DV271BT, DV271BT, DV281BT, DV516BT, DV517BT, DV526BT, DV527BT, DV604i, DV605, DV614BH, DV615B, DV625BH, DV637MB, DV695MB, DV704Bi, DV704i, DV705, DV715B, DV715BT, DV735MB, DV737MB models.
〖20Pin Car Radio Wiring Cable〗This 20pin radio plug will compatible with boss XDVD110BT, XDVD1170, XDVD1175BT, XDVD1262, XDVD1265BT, XDVD136BT, XDVD156BT, XDVD156BT, XDVD176BT, XDVD176BT, XDVD210, XDVD210BT, XDVD236BT, XDVD256BT, XDVD256BT, XDVD276BT, XDVD600 models.

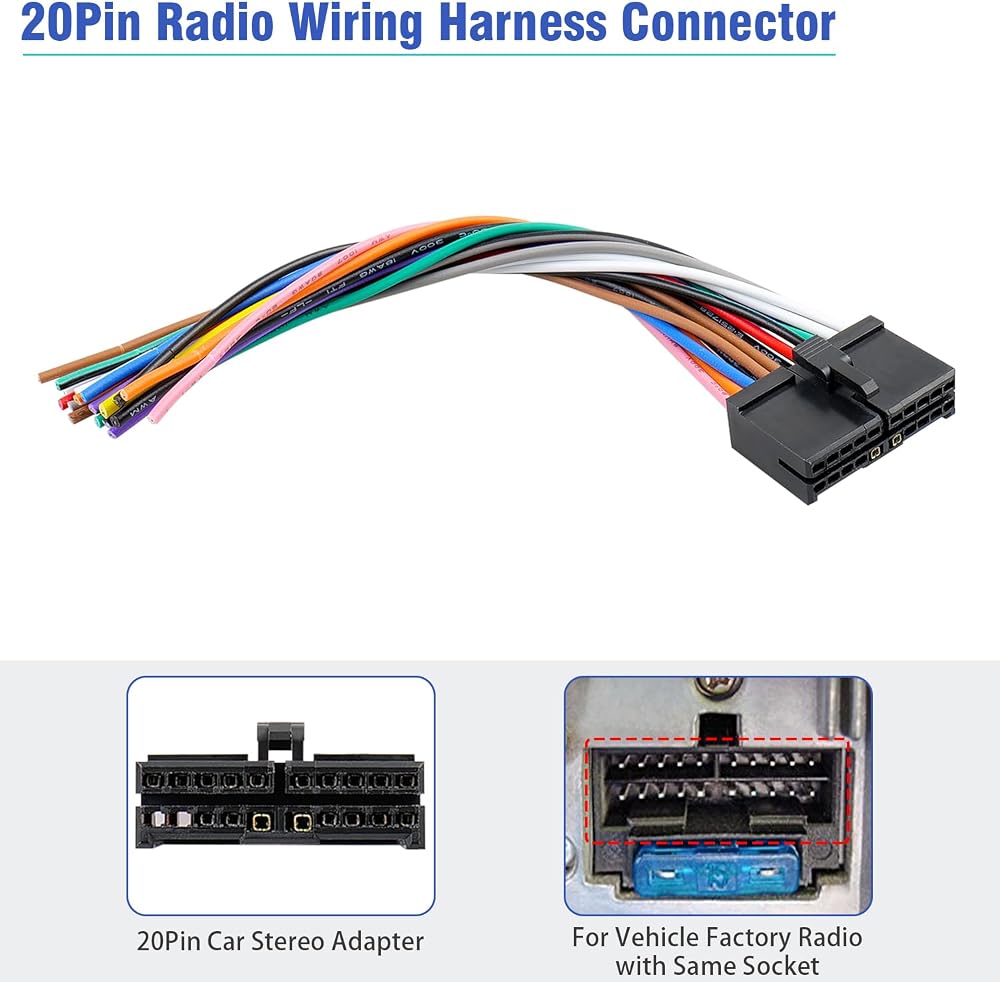

〖Car Stereo Wiring Harness Adapter〗20pin stereo power and speaker plug for car head unit. Please kindly check your radio socket is 20pin or not. Jayubien radio harness comes with butt connectors for a simple and quick installation by crimp the butt connectors (not heat shrink tube type).

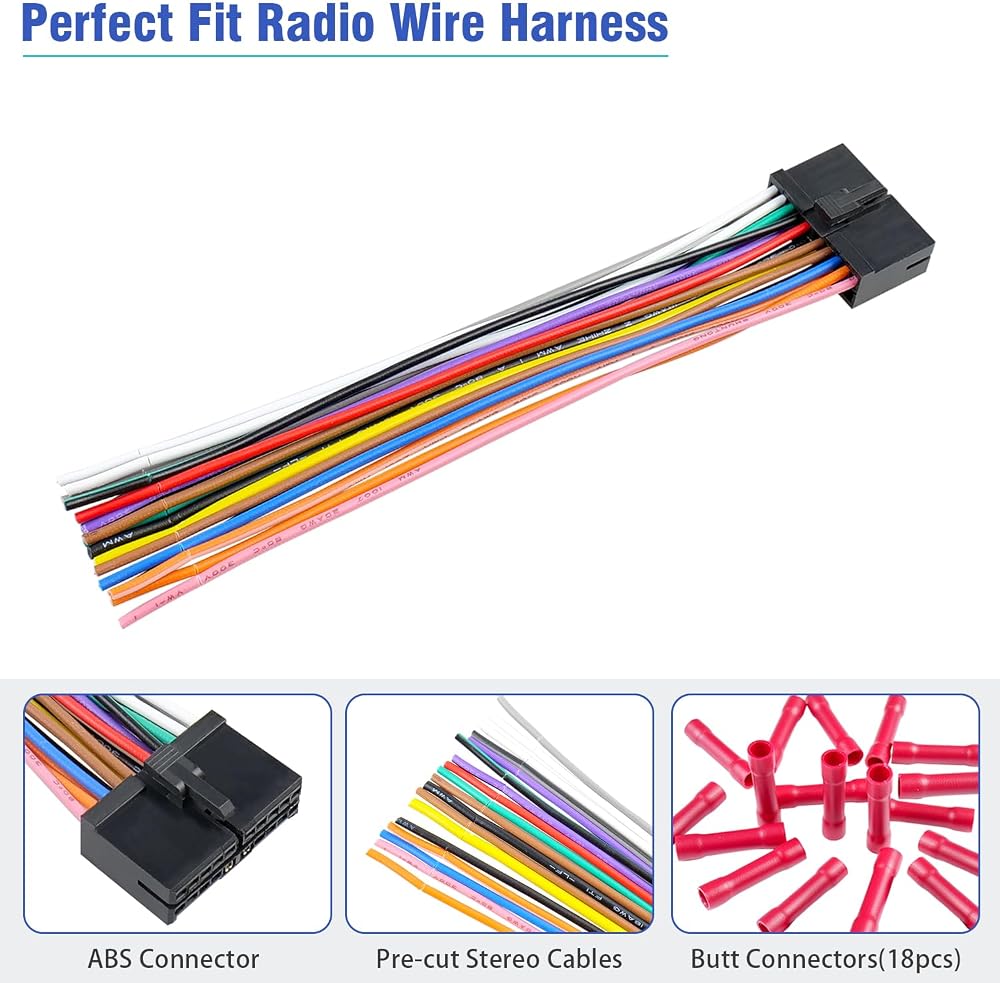

〖Package List〗1x20Pin Radio Wire Harness (18pcs wires),1x20PCS Wire Harness Butt Connectors.

وصف

Product Package

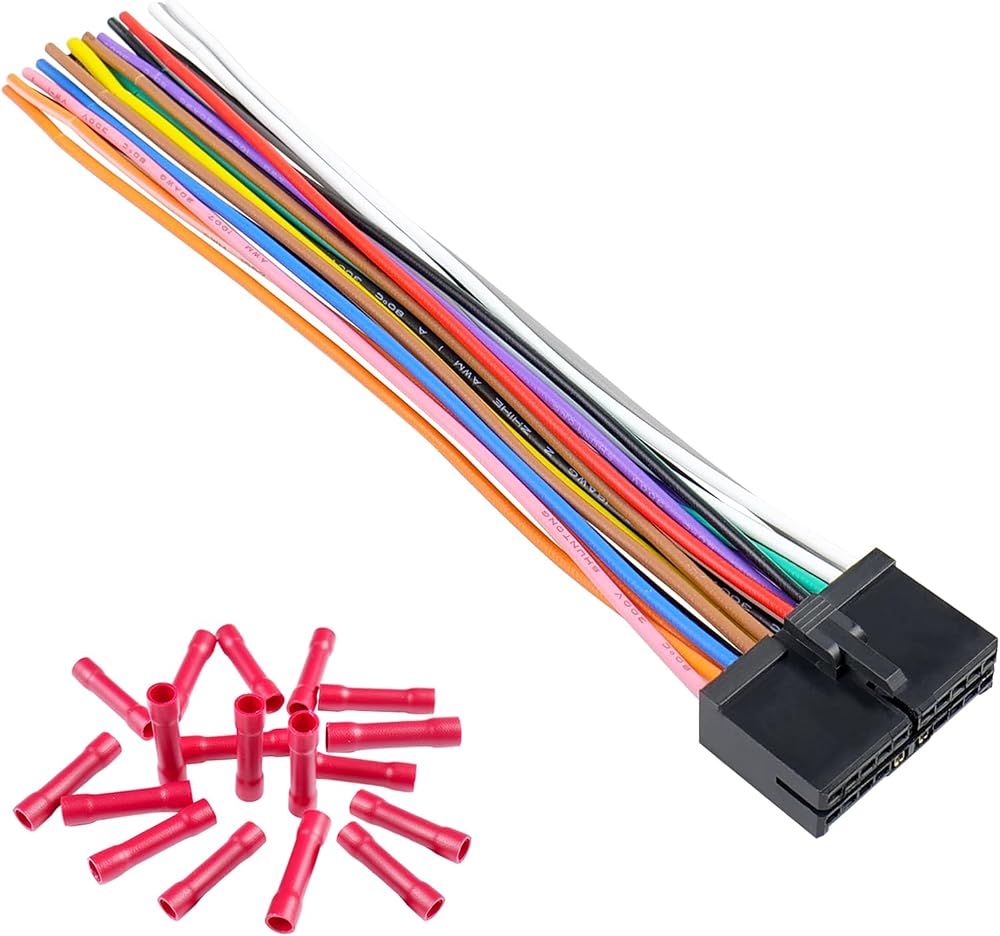

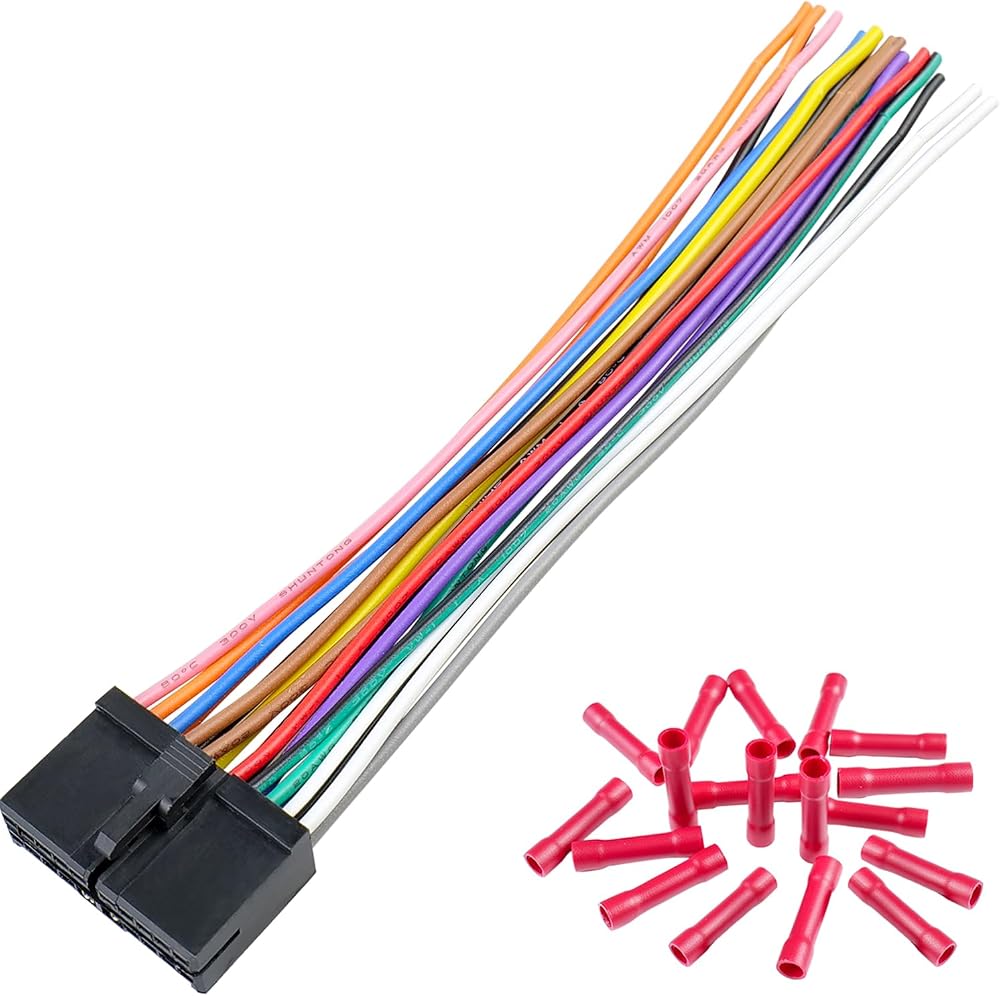

1 x 20Pin Stereo Wiring Harness Adapter
20 x Butt Connectors

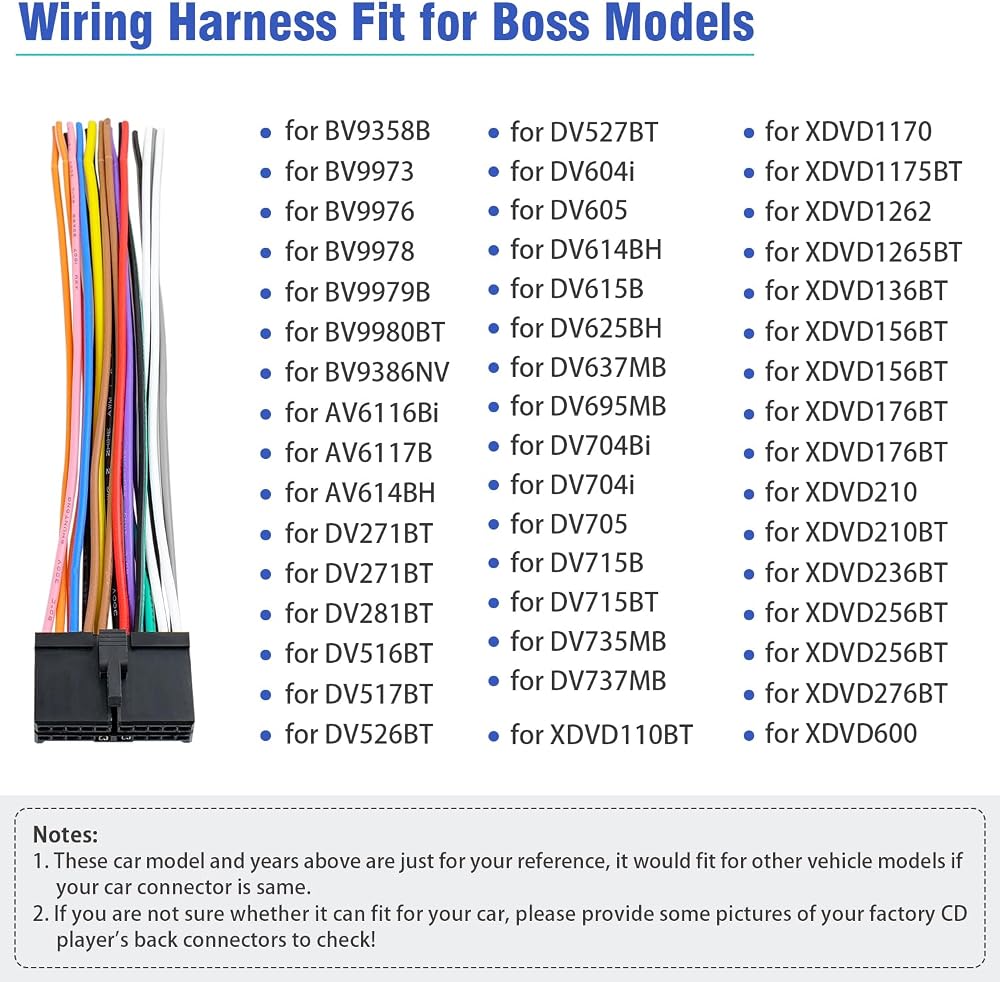

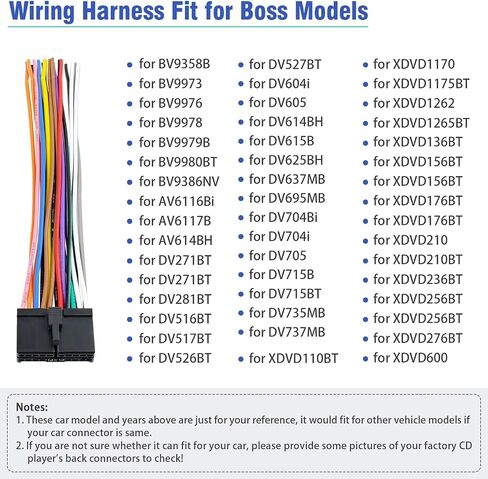

Stereo Harness Fits for Models
for BV9358B, BV9973, BV9976, BV9978, BV9979B, BV9980BT, BV9386NV, AV6116Bi, AV6117B, AV614BH
for DV271BT, DV271BT, DV281BT, DV516BT, DV517BT, DV526BT, DV527BT, DV604i, DV605, DV614BH, DV615B, DV625BH, DV637MB, DV695MB, DV704Bi, DV704i, DV705, DV715B, DV715BT, DV735MB, DV737MB
for XDVD110BT, XDVD1170, XDVD1175BT, XDVD1262, XDVD1265BT, XDVD136BT, XDVD156BT, XDVD156BT, XDVD176BT, XDVD176BT, XDVD210, XDVD210BT, XDVD236BT, XDVD256BT, XDVD256BT, XDVD276BT, XDVD600

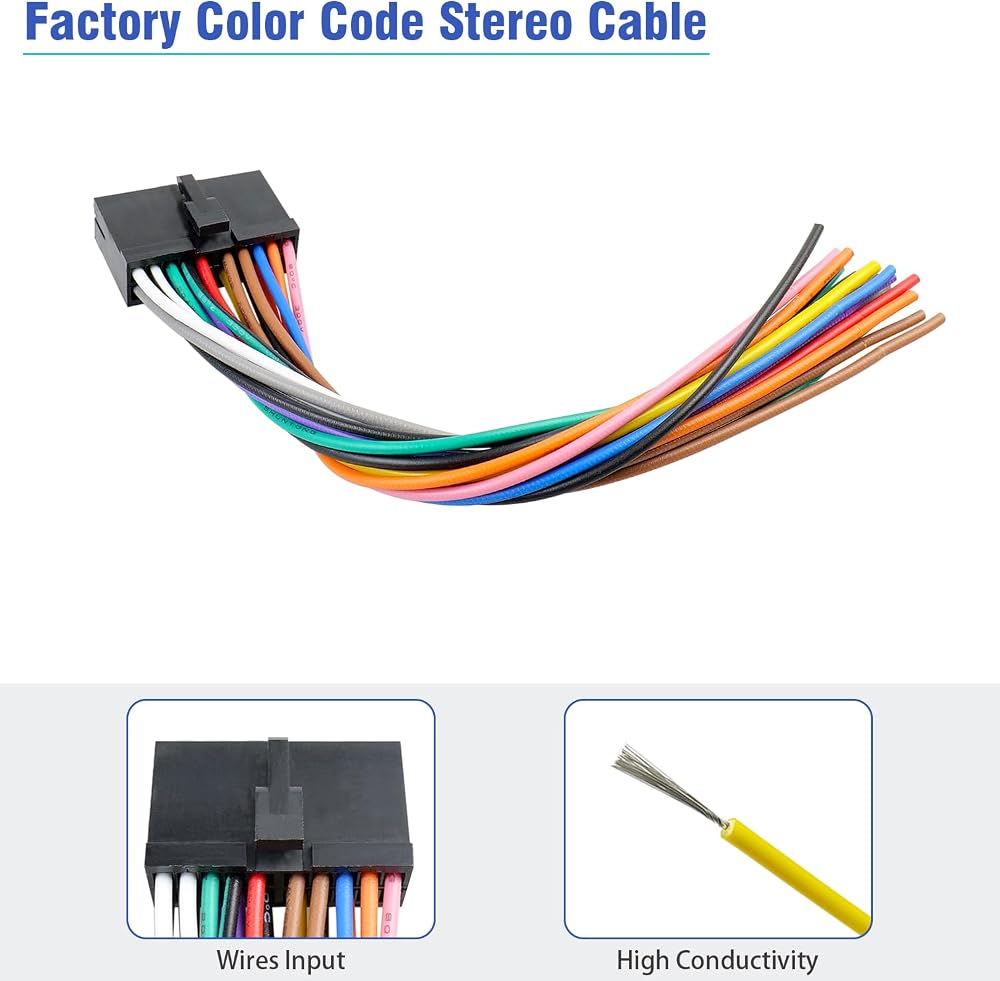

Wiring Connection of Car Radio Harness
Red: to Ignition Switch/ACC +12V
Yellow: to Power Supply +12V
Black: to GND Ground Wire B-
Blue: to ANT (Auto Antenna Power)
Orange: to Illumination wire
Green: Left Rear Speaker (+)
Green and Black: Left Rear Speaker (-)
White: Left Front Speaker (+)
White and Black: Left Front Speaker (-)
Gray: Right Front Speaker (+)
Gray and Black: Right Front Speaker (-)
Purple: Right Rear Speaker (+)
Purple and Black: Right Rear Speaker (-)

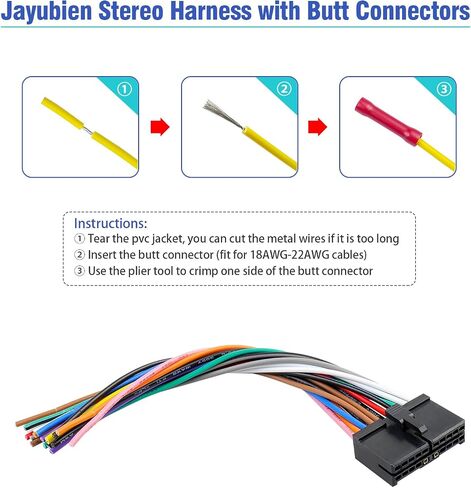

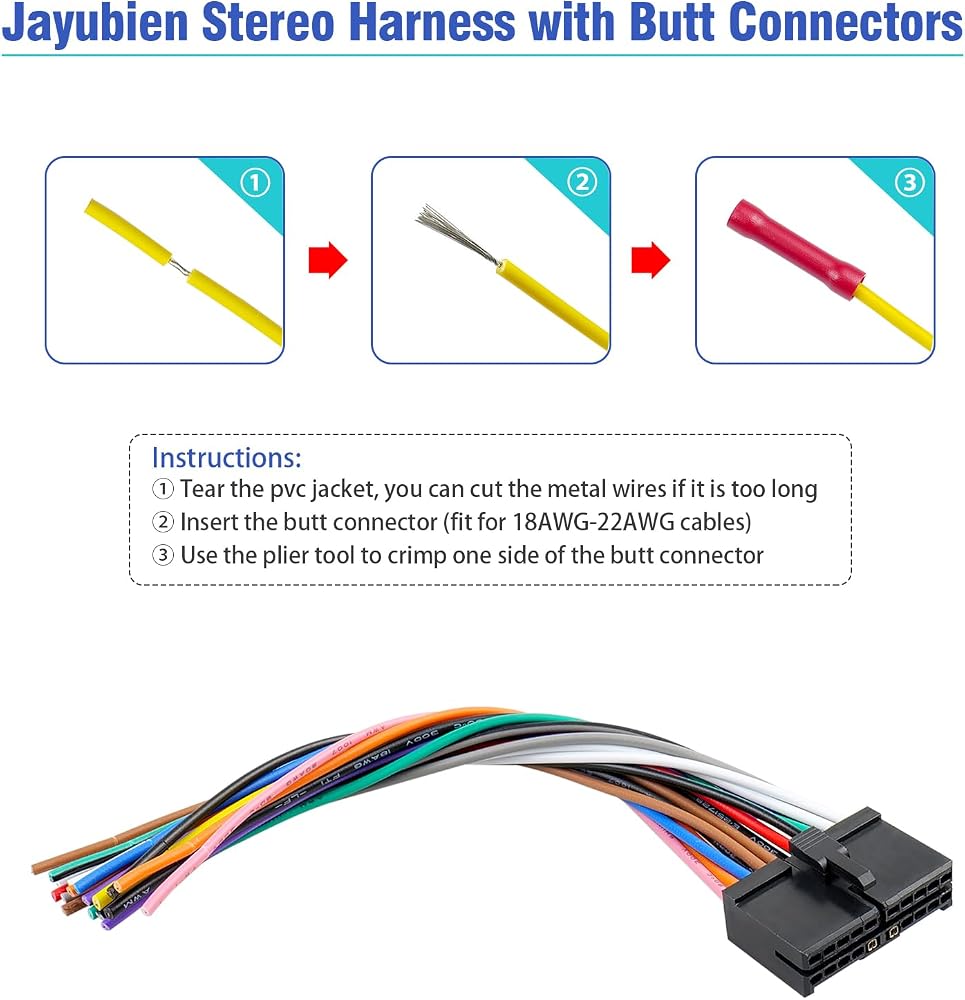

How to Use the Butt Connectors
①Tear the pvc jacket, you can cut the wires if it is too long
②Insert the butt connector (fit for 18AWG-22AWG cables)
③Use the plier tool to crimp one side of the butt connector
