Product Description

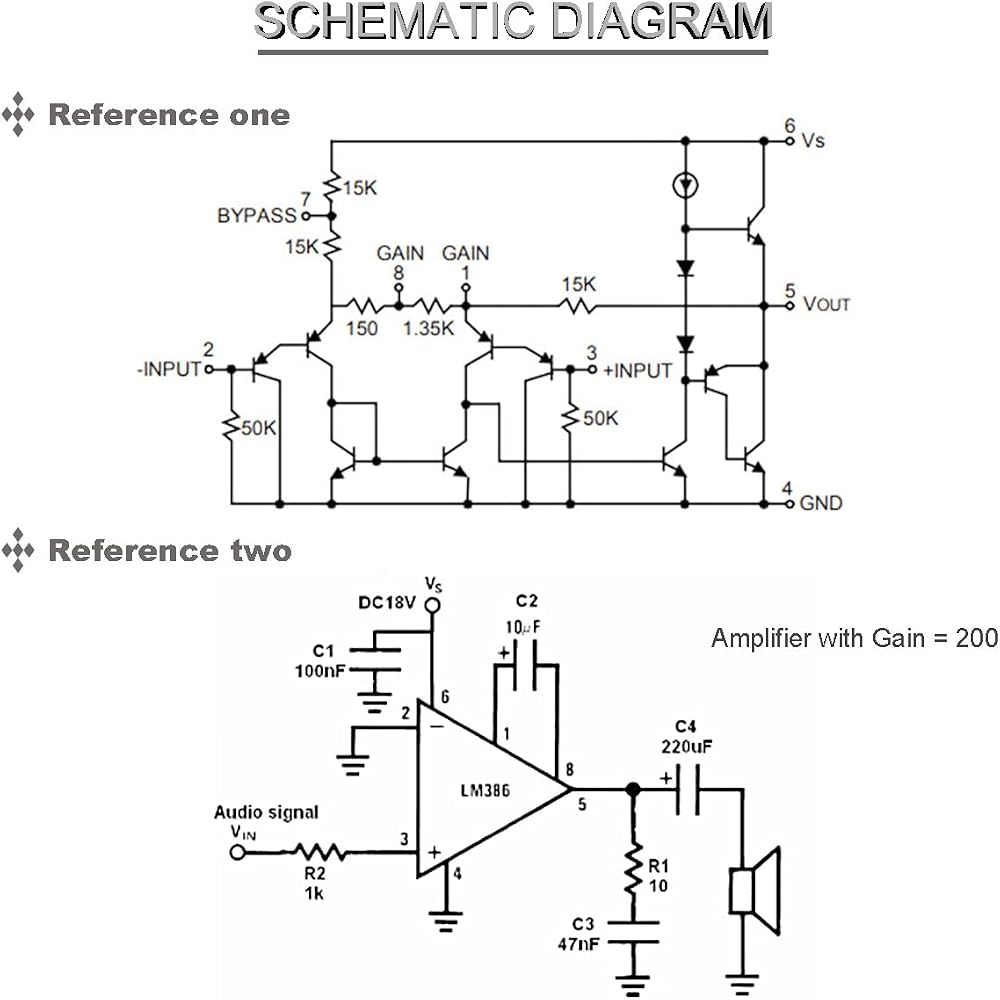

The LM386N are power amplifiers designed for use in low voltage consumer applications.The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs are ground referenced while the output automatically biases to one-half the supply voltage.The quiescent power drain is only 24 mW when operating from a 6-V supply, making the LM386N ideal for battery operation.

Item Specifications:
Model:LM386N.
Type:Audio Amplifier IC.

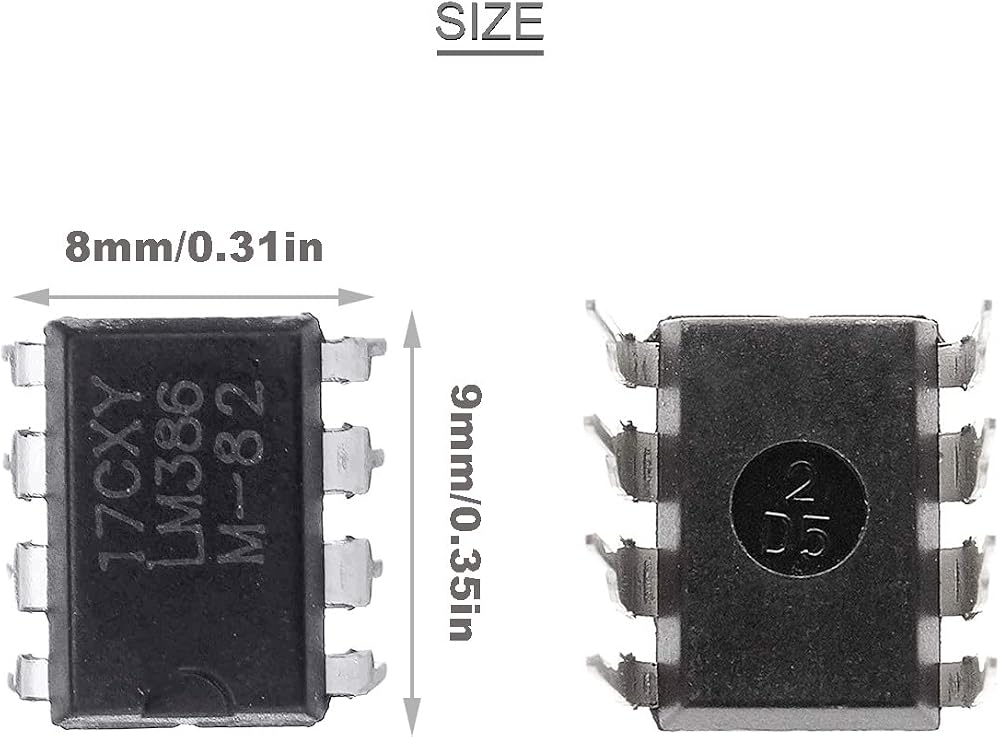

Package type:DIP8.
Input voltage range:4V–12V or 5V–18V.
Quiescent current drain:4mA.
Voltage gains:20 ~ 200.

Package includes:

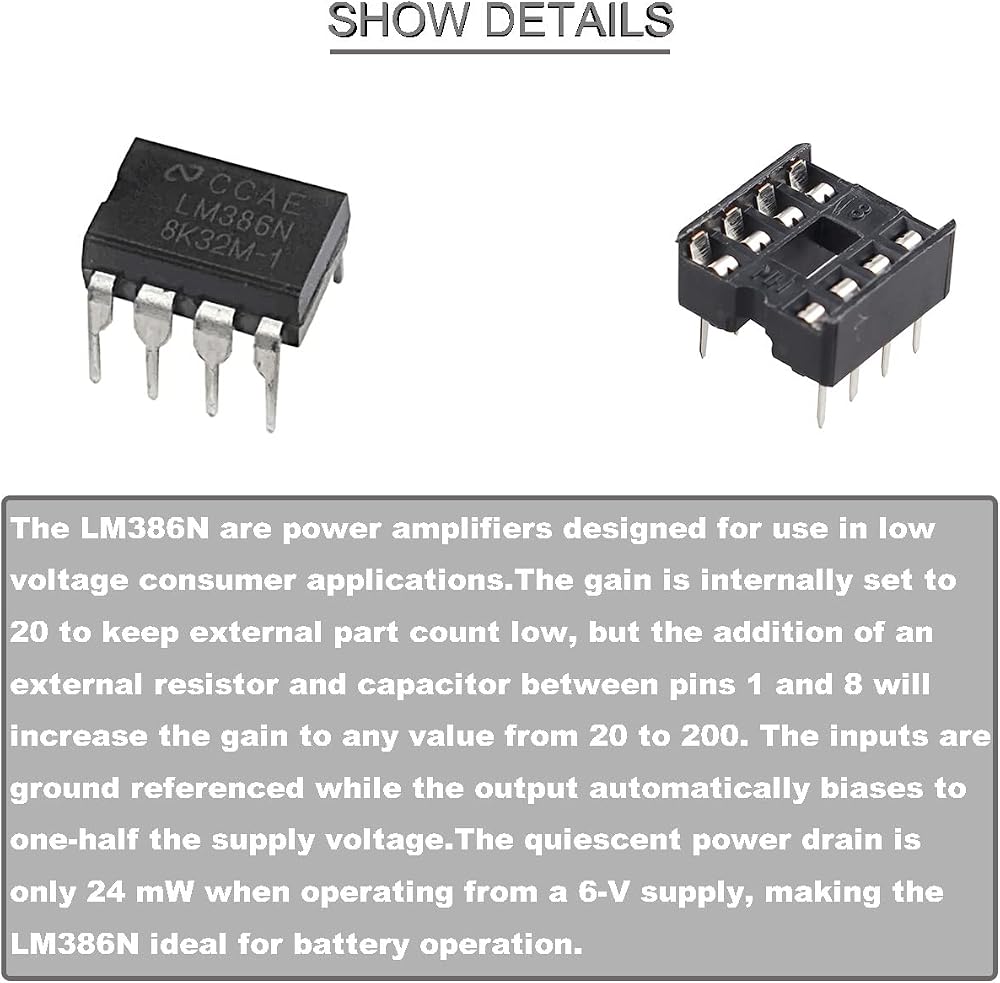

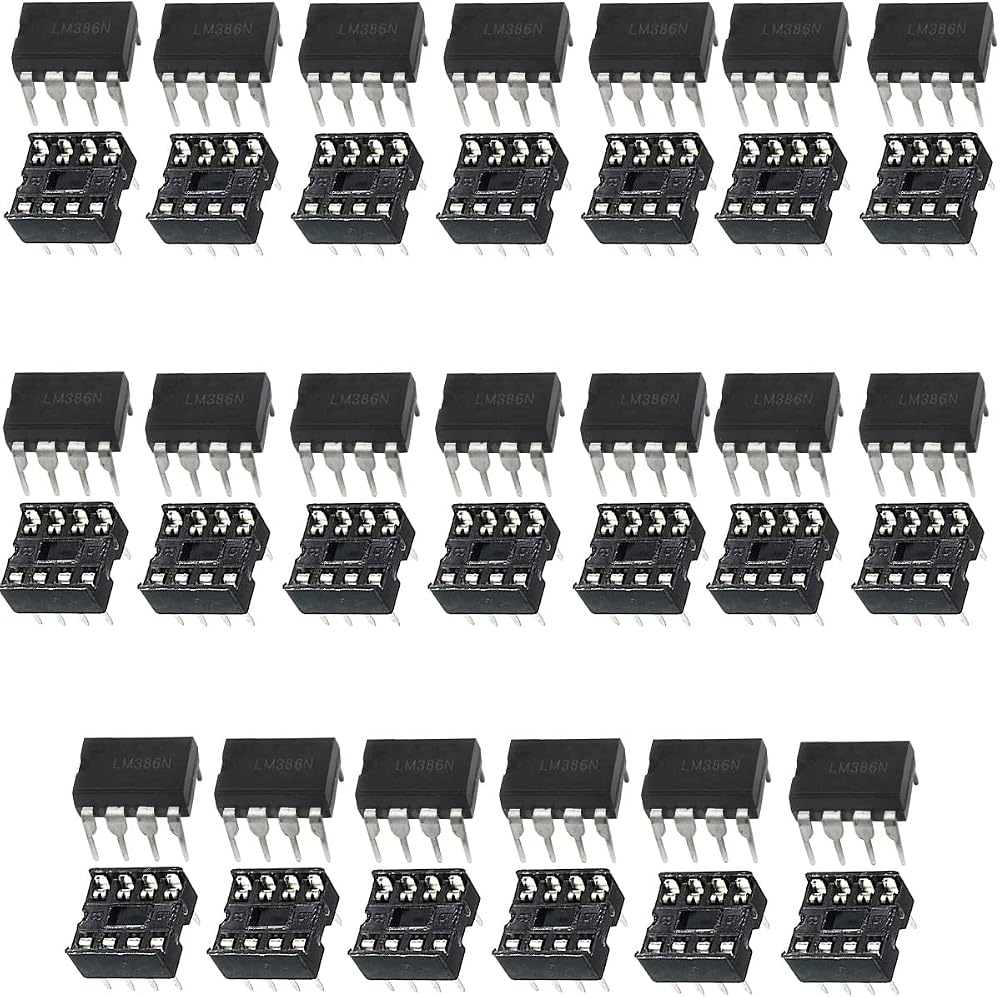

20 x LM386N audio amplifier
20 x DIP-8 IC socket
