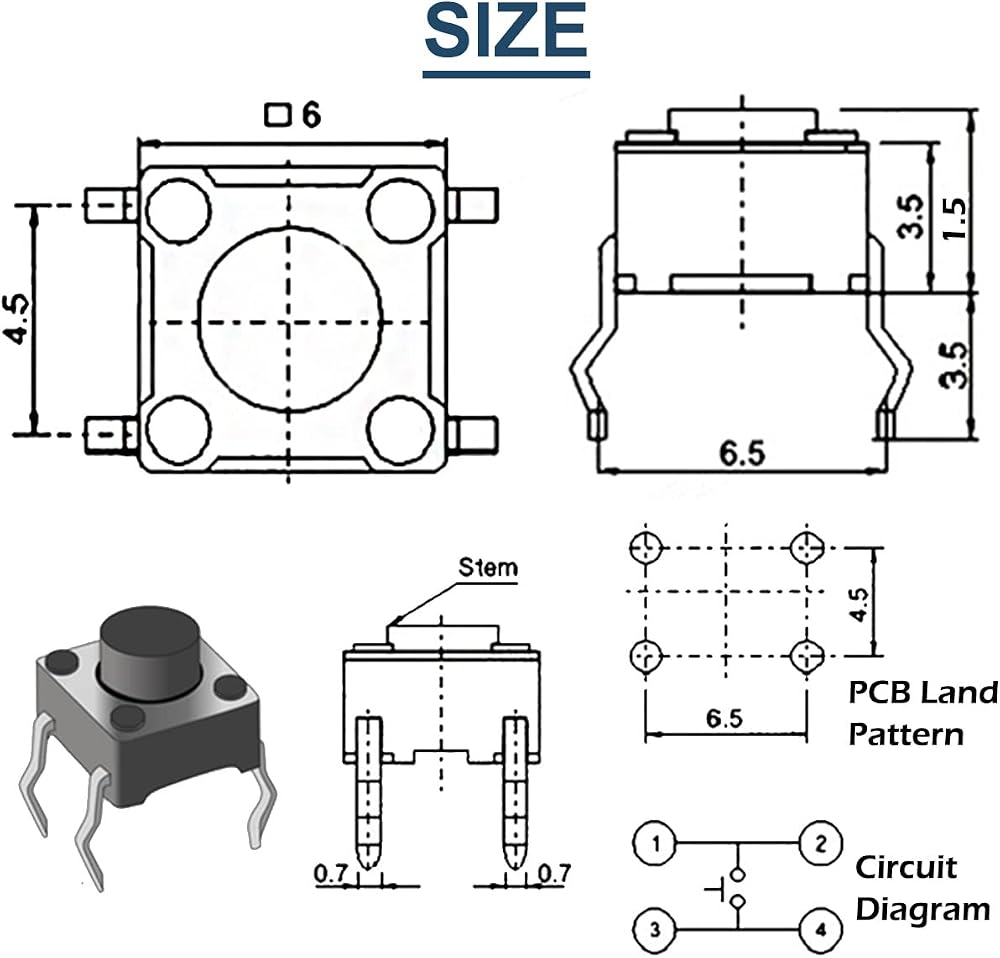

🔳[Product]Name : Tact Switch, Contact Type: Momentary Contact, 6x6x5mm micro tact switches for connecting electrical circuits. 4 Pin
🔳[Parameters]Operating temperature: -30~+70℃, Rated load: DC12V 0.6A, Insulation resistance: ≥100MΩ, Contact resistance: 0.03Ω, Product type: 4 pin vertical

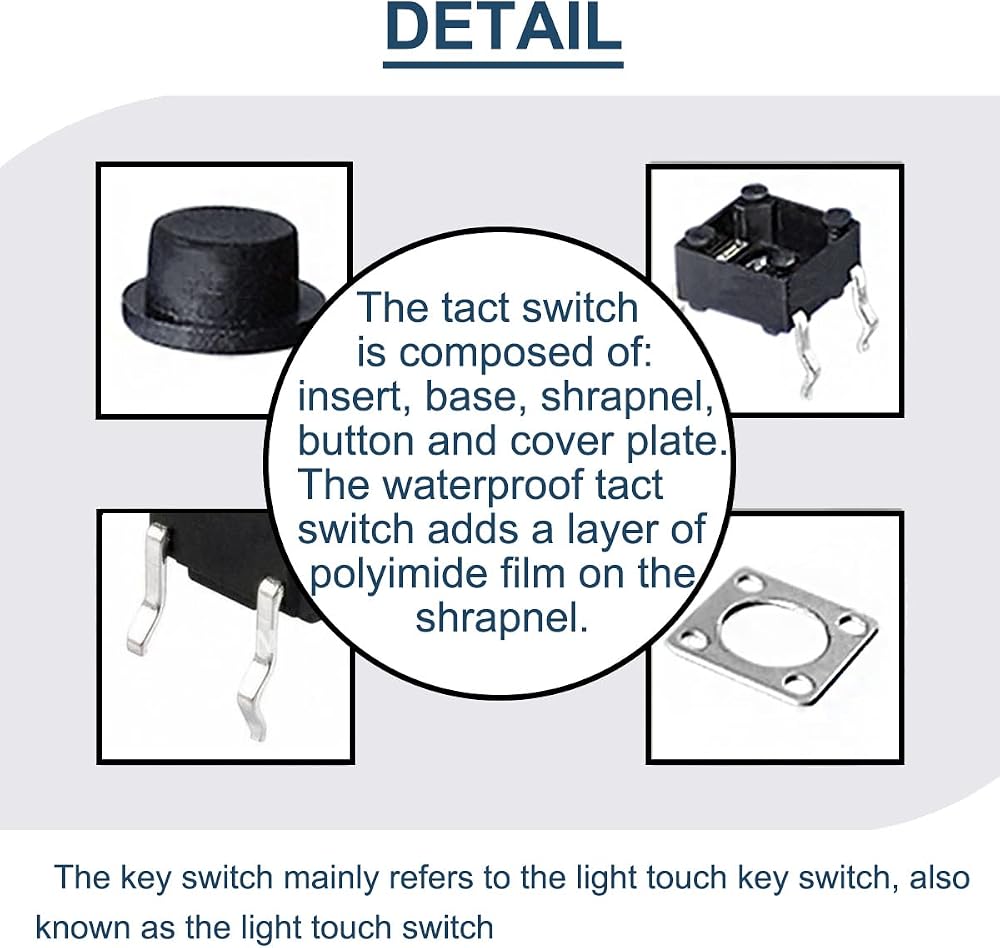

🔳[Tact switch composition]It is composed of inserts, bases, shrapnel, buttons and cover plates. The waterproof tact switch adds a layer of polyimide film on the shrapnel

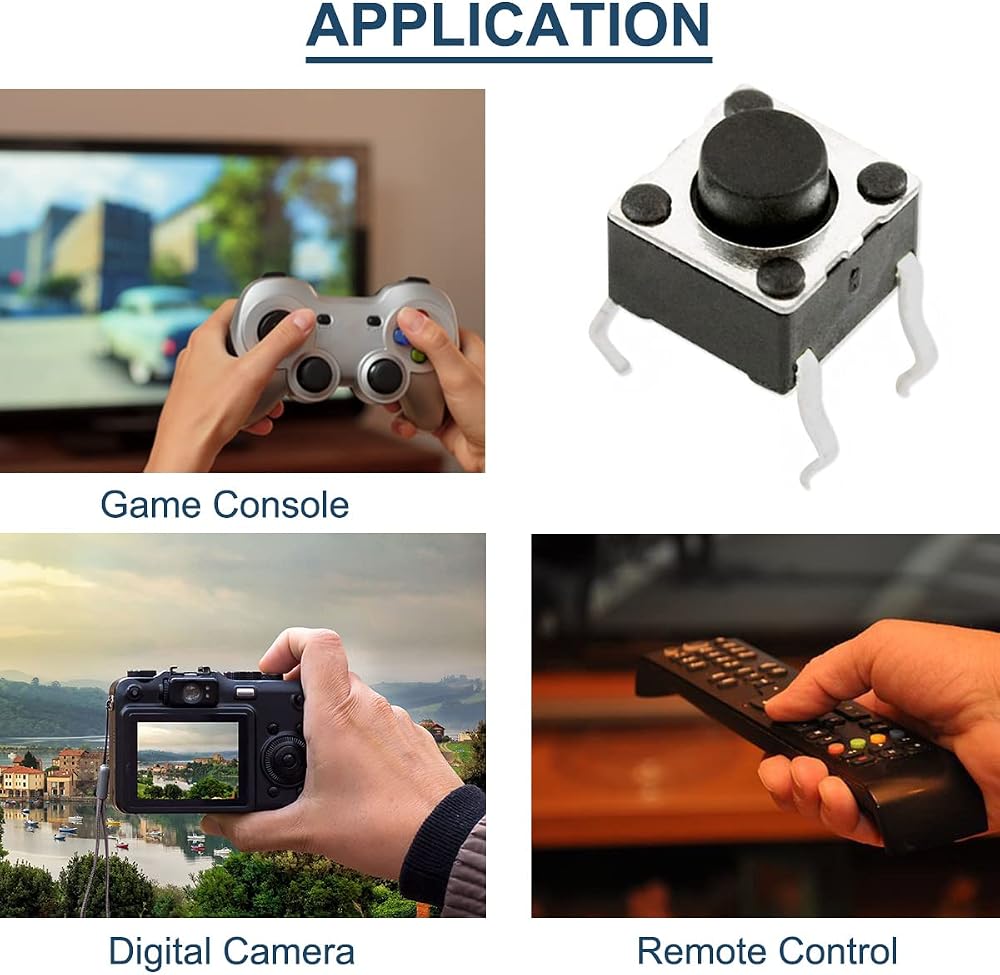

🔳[Wide range of uses] This product can be used in audio-visual equipment, digital products, remote controls, game consoles, household appliances, toys, computer products, printers, fans, machine tool control devices.

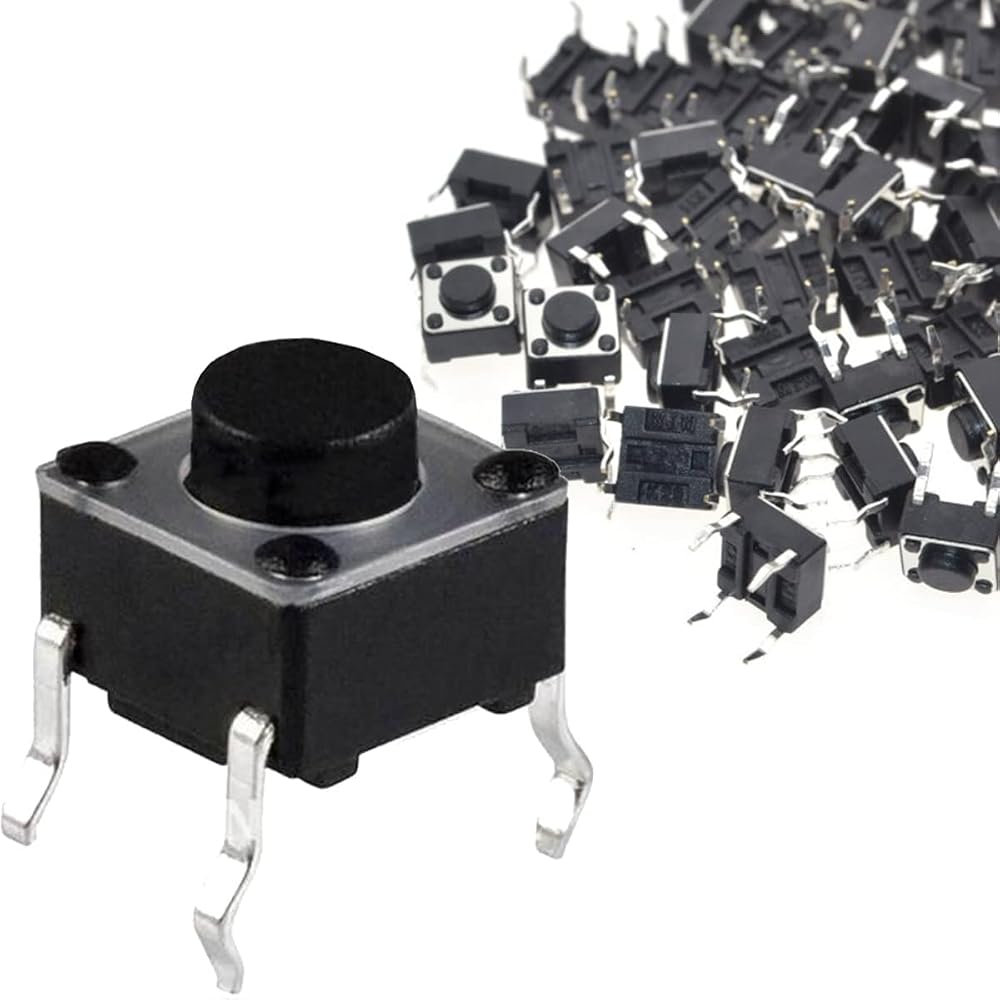

🔳[Package includes]You will get 100 x 4Pin Momentary Tactile Tact Push Button Switch(6X6X5)

وصف

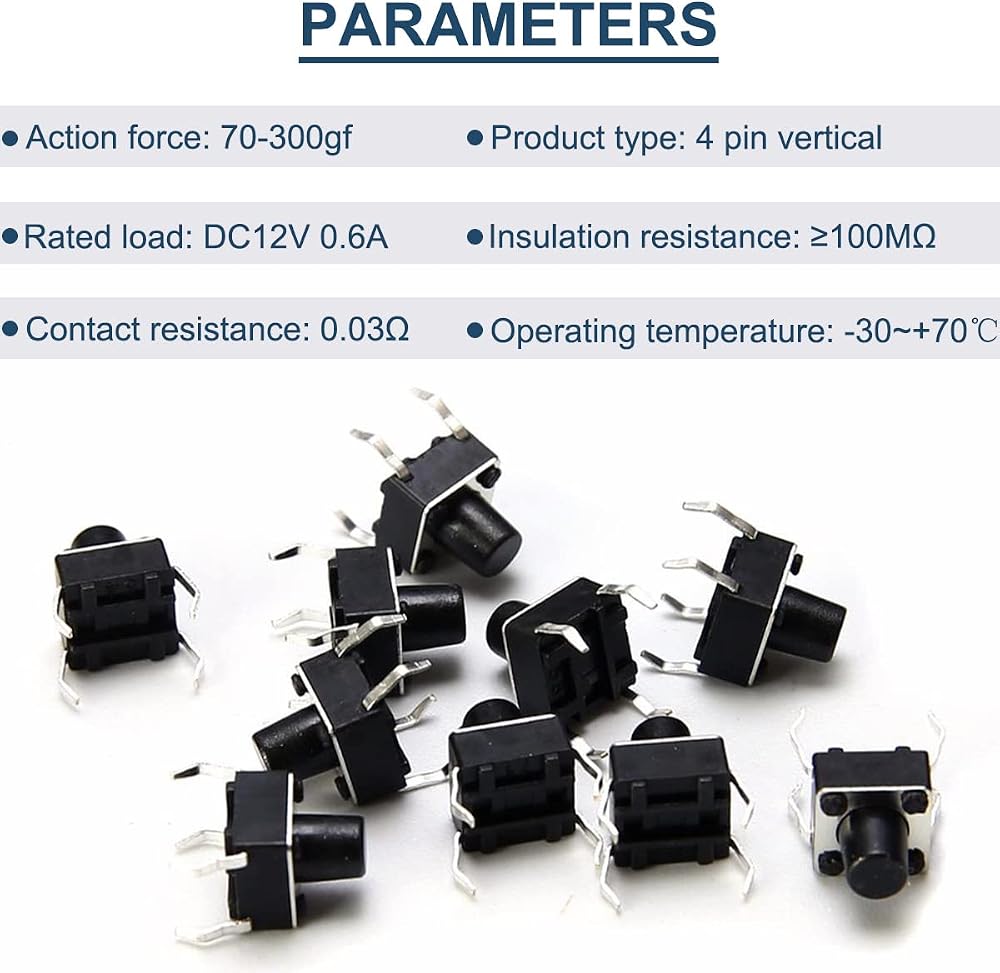

Parameters：
Operating temperature: -30~+70℃
Rated load: DC12V 0.6A
Insulation resistance: ≥100MΩ
Contact resistance: 0.03Ω
Action force: 70-300gf
Product type: 4 pin vertical

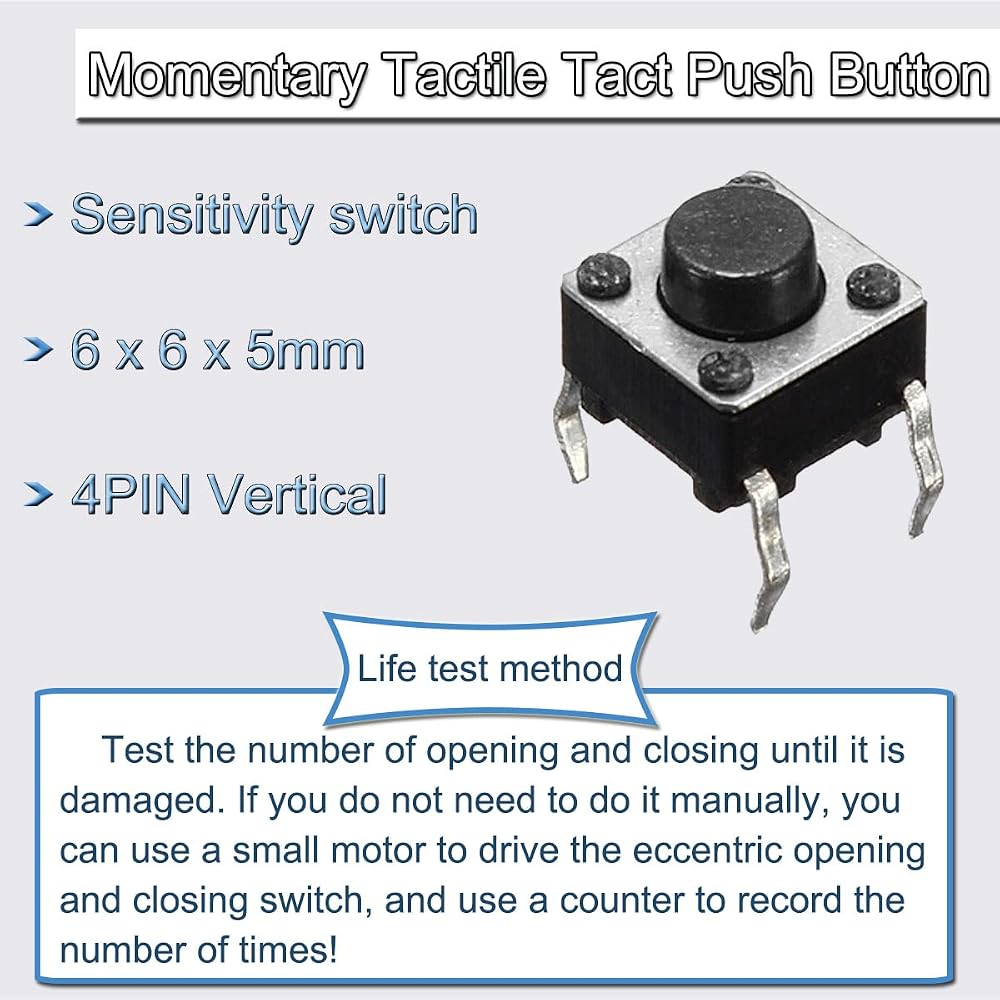

Life test method:
Test the number of opening and closing until it is damaged. If you do not need to do it manually, you can use a small motor to drive the eccentric opening and closing switch, and use a counter to record the number of times!

Package includes
100 x4Pin Momentary Tactile Tact Push Button Switch(6X6X5)
