مميزات خاصة

Efficient Power Conversion: Equipped with a 2A / 5V Battery Eliminator Circuit (BEC) in linear mode, the brushless motor efficiently converts input power to ensure stable and consistent . Its maximum speeds of up to 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, and 35,000rpm for 12 poles BLM demonstrate its high performance capabilities.
High Output and Reliability: With a continuous output of 30A and a burst of 40A for up to 10 seconds, the brushless motor delivers strong and reliable performance. Its high efficiency ensures optimal power delivery without compromising on durability
Versatility: The brushless motor is compatible with a wide range of aircraft or RC helicopter , making it suitable for various applications. Its flexibility allows for easy integration into different devices.
Battery Compatibility: The brushless motor can be powered by 2-3 cells lithium batteries or 5-9 cells NiCd/NIMh batteries, providing users with options and flexibility in terms of power sources. This battery compatibility allows for convenient adaptation to various power requirements.
Easy Installation: The brushless motor comes with T plug and 3.5mm banana connectors, making it easy and convenient to install. The connectors enable quick and secure electrical connections, ensuring a hassle- setup process.

وصف

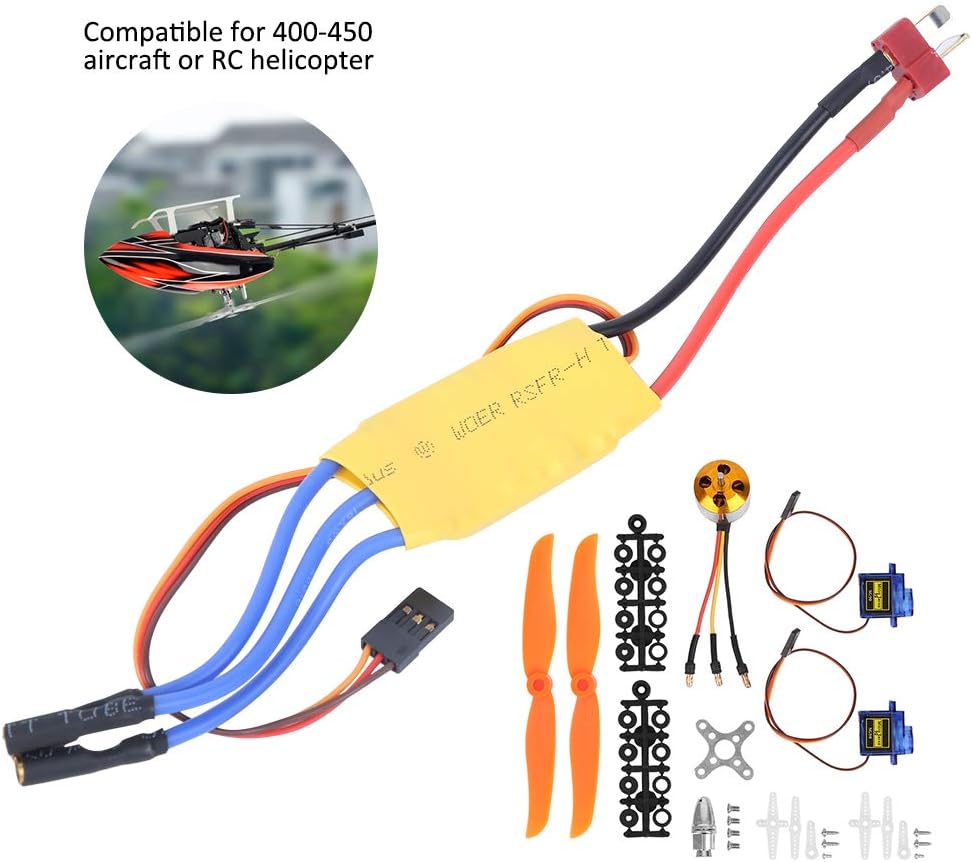

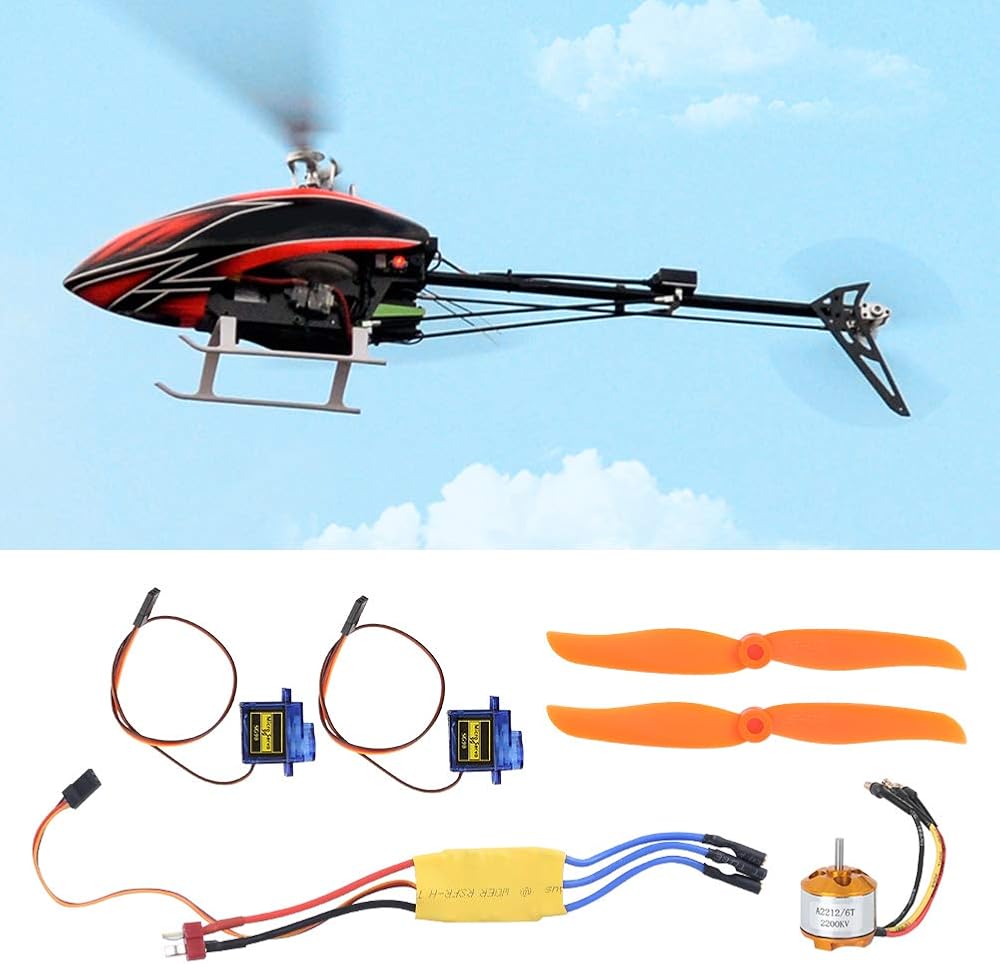

1. Compatible for 400-450 aircraft or RC helicopter, widely applications.
2. Output, continuous 30A, burst 40A up to 10 seconds. High efficiency and reliable.
3. Input voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
4. BEC: 2A / 5V (Linear mode). Maximum speed 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
5. With T plug and 3.5mm banana connectors, easy and convenient for installation.

Specification:
Condition: 100% Brand New
Item Type: RC Plane Parts
Material: ABS + Electronic Components
Type: 2200KV Motor + 6035 Propeller + 9G Servo + 30A ESC

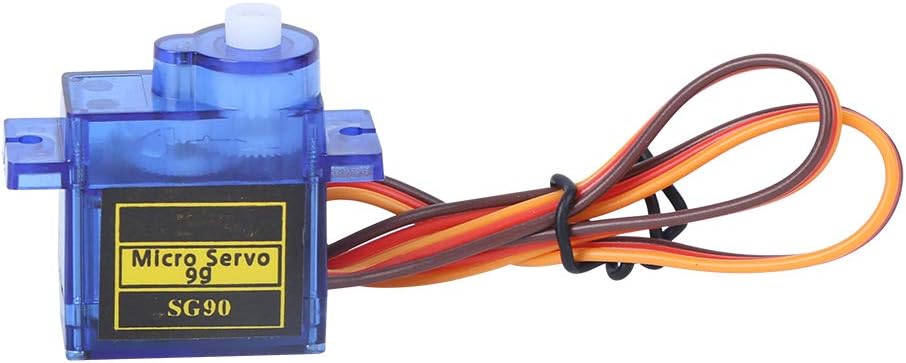

SG90A 9G Servo:

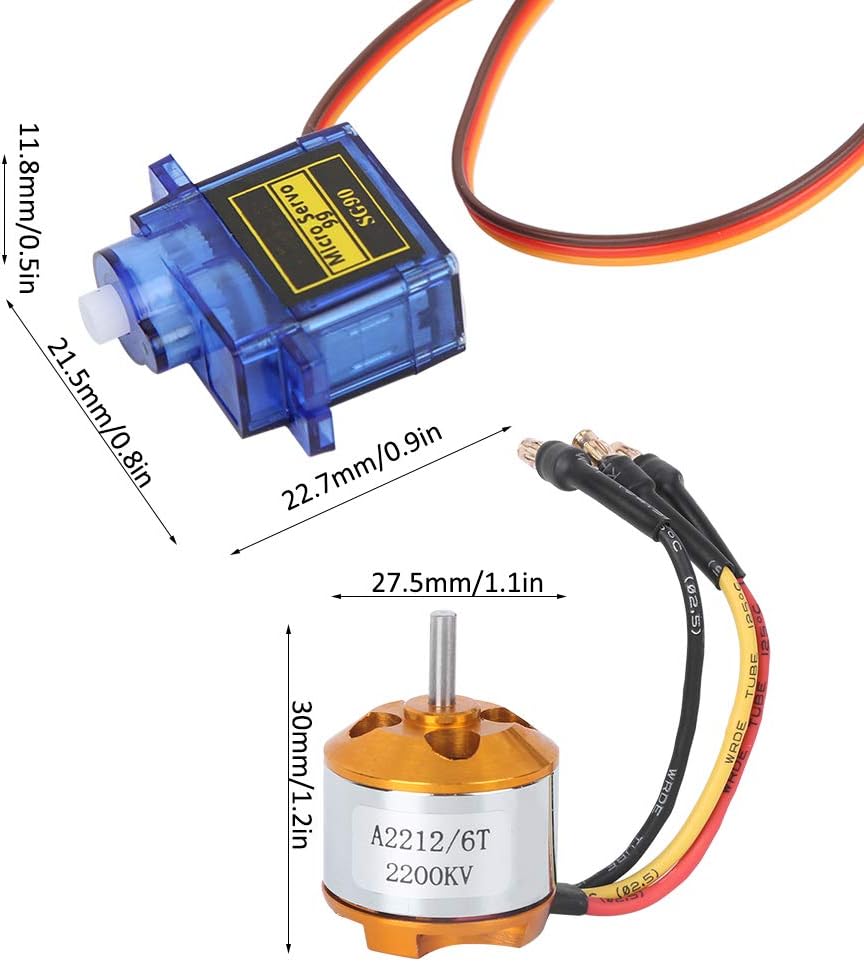

Size: Approx. 21.5 x 11.8 x 22.7mm / 0.8 x 0.5 x 0.9in
Weight: 9 g / 0.3 oz(approx.)
No-Load Speed: 0.12 seconds / 60 degrees (4.8V)
Blocking Torque: 1.5-1.7kg/cm (4.8V-6V)
Working Temperature: -30 ~ + 60 ℃
Dead Zone Setting: 5 microseconds
Working Voltage: 4.8V-6V

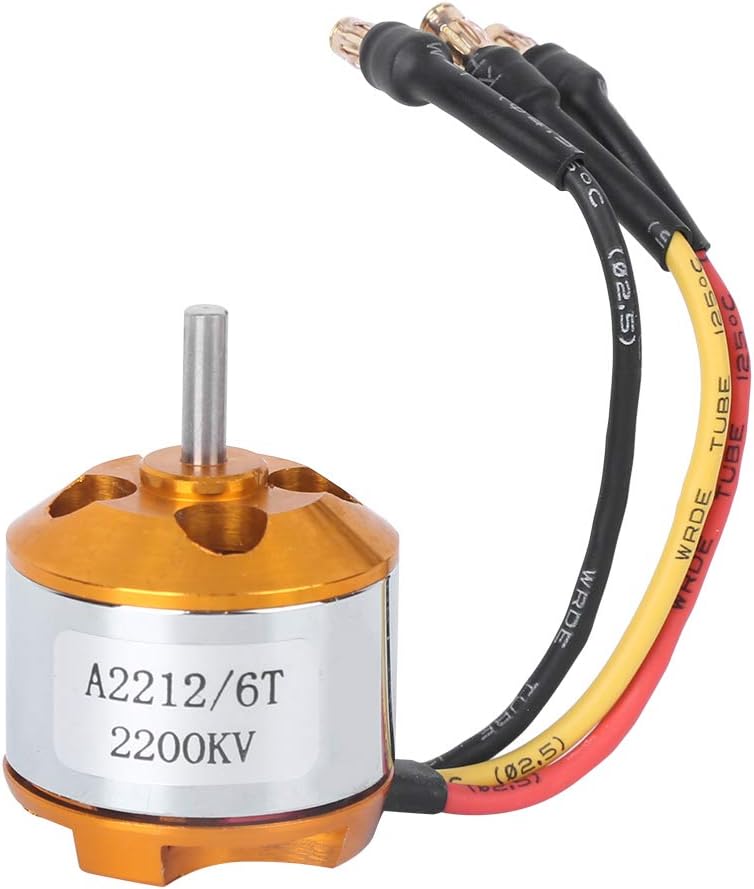

A2212 2200kV Motor:
2200 KV:
Ri Ω (M) : 0.033
Battery: 2-3 li - Po
Maximum Power: 342W
Test Item: 7x3/7x4
Motor Size: Approx. 27.5 x 38mm / 1.1 x 1.5in
Shaft Diameter: Approx. 3.17mm / 0.1in

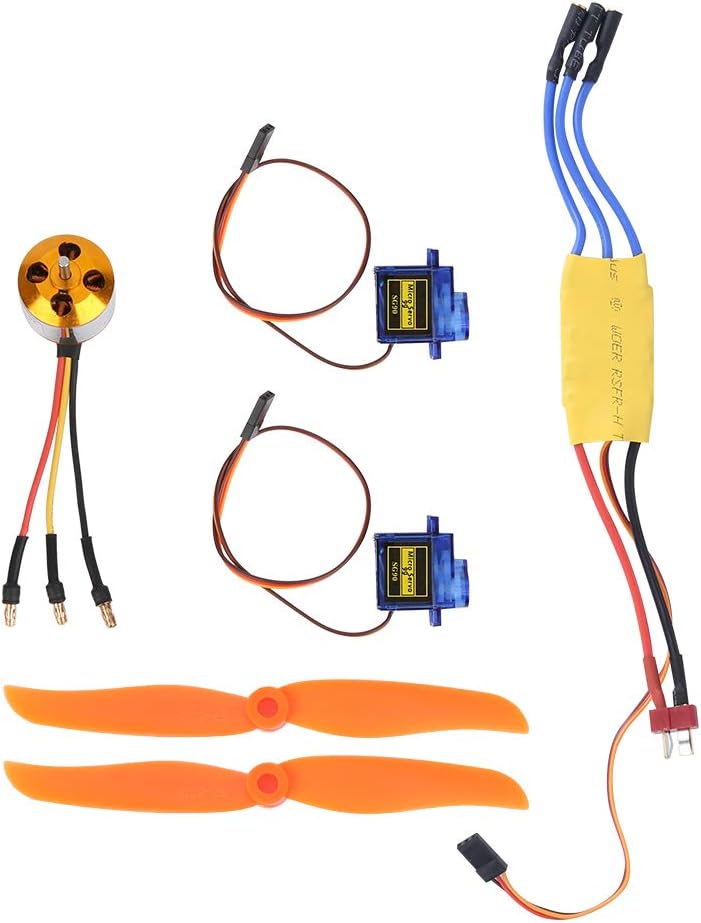

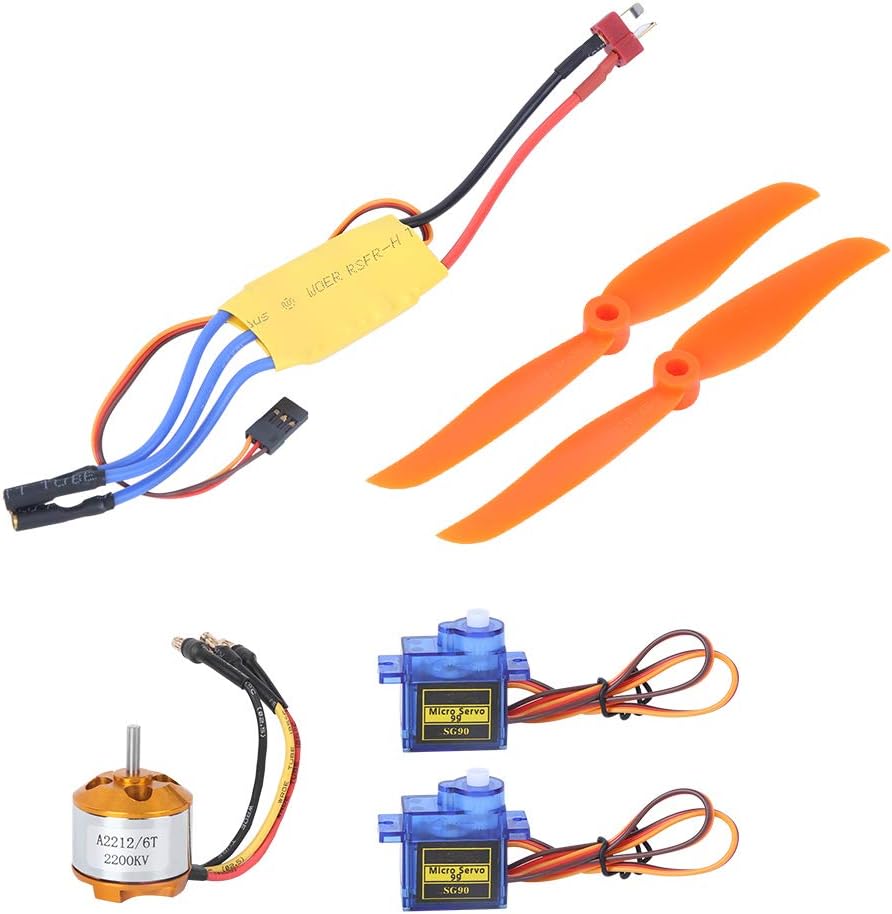

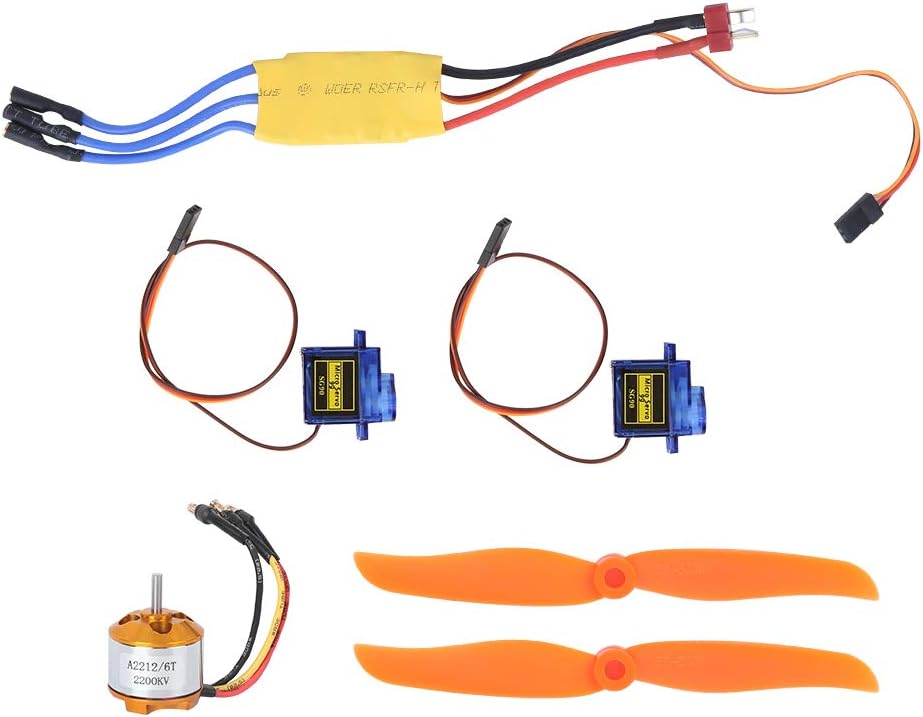

packing list:
2 x 9G SG90 Servo
1 x A2212 KV2200 Brushless Motor
2 x 6035 Propeller
1 x 30A ESC
2 x Propeller Gasket

Note:
This ESC cannot refreshing the firmware.
