مميزات خاصة

🥇【Parameter】Rating Voltage/Current: DC 30V 0.5A; Contact Resistance: Less than 30mΩ; Insulation Resistance: More than 100mΩ; Withstand Voltage: 500V AC; Insertion and Extraction Force: 3N~30N

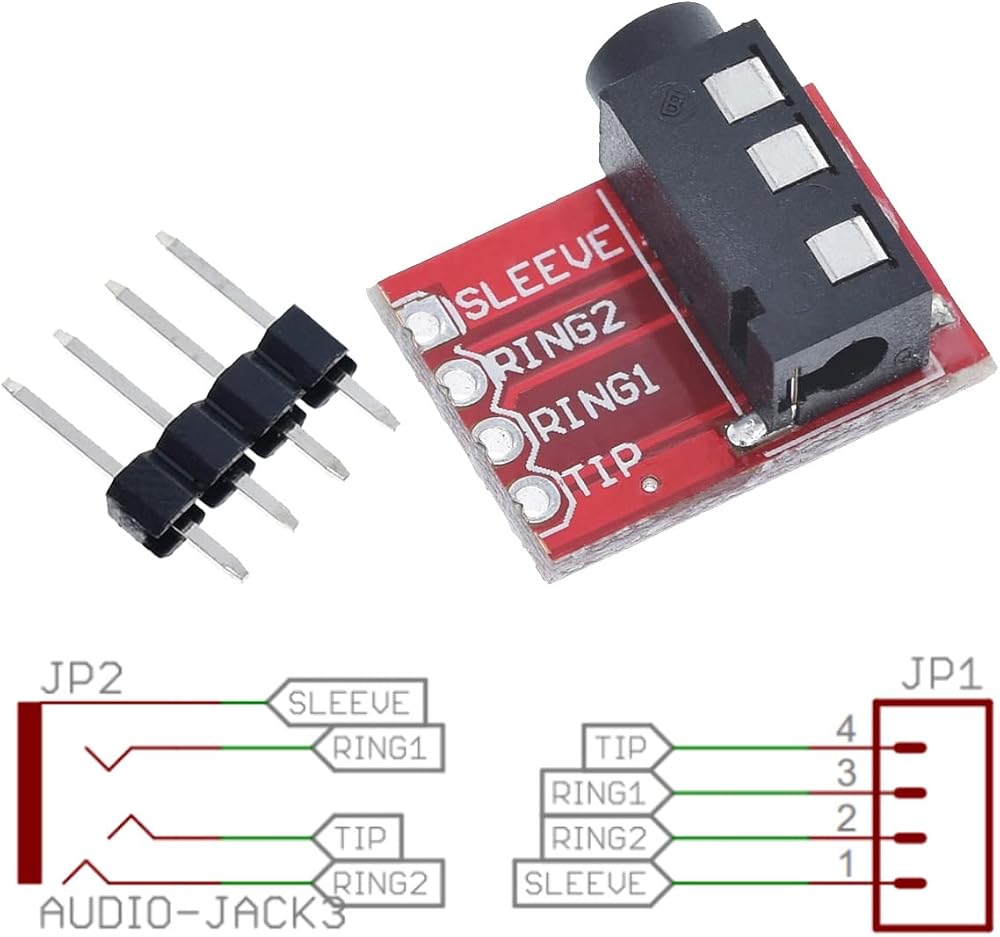

🥇【TRRS】TRRS stands for “Tip, Ring, Ring, Sleeve,” which reflects the fact that, unlike a standard stereo connector, this actually has three conductors and a ground.

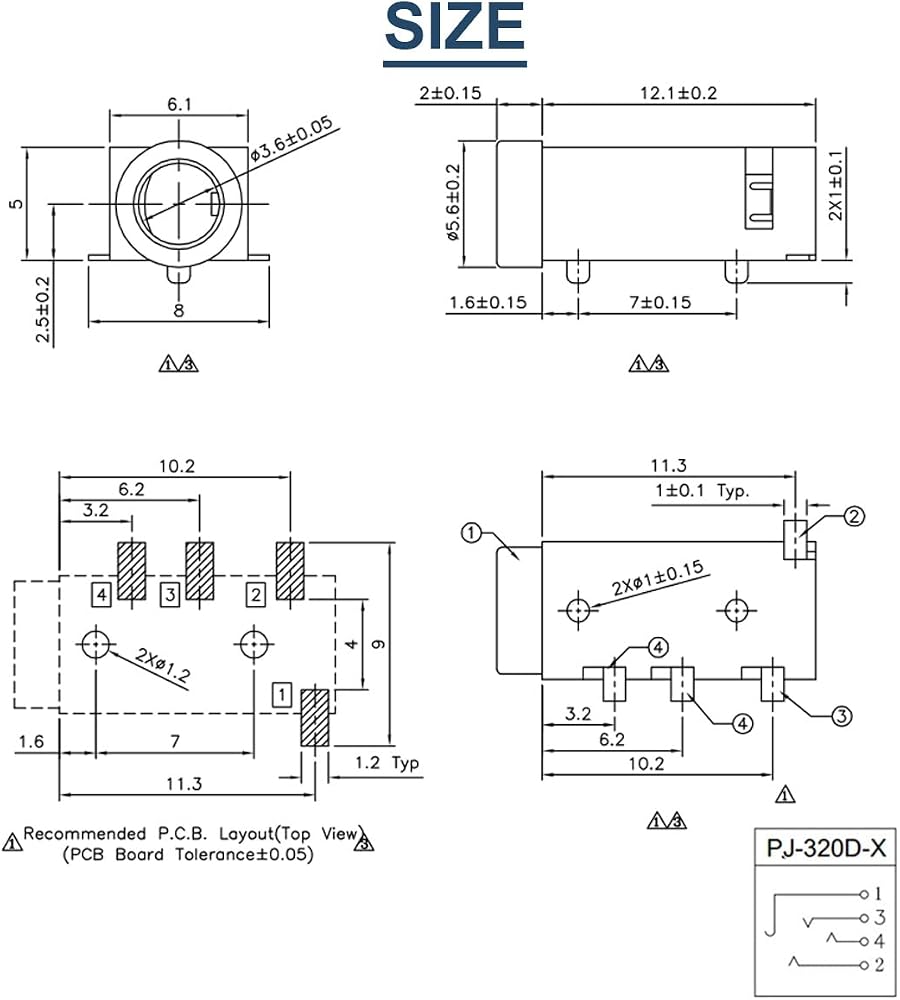

🥇【Size】17 x 12 x 6mm / 0.67 x 0.47 x 0.24inch (LxW);

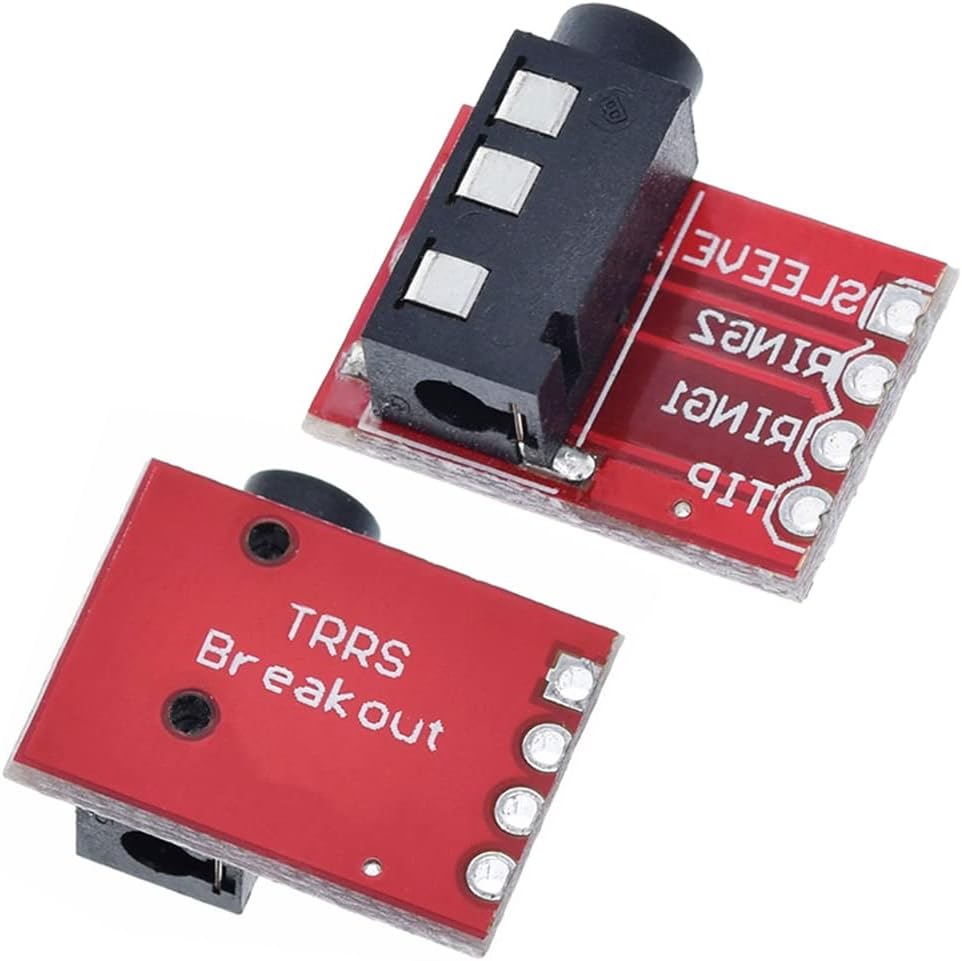

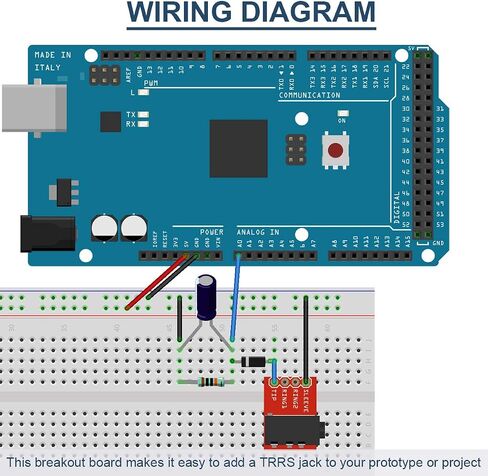

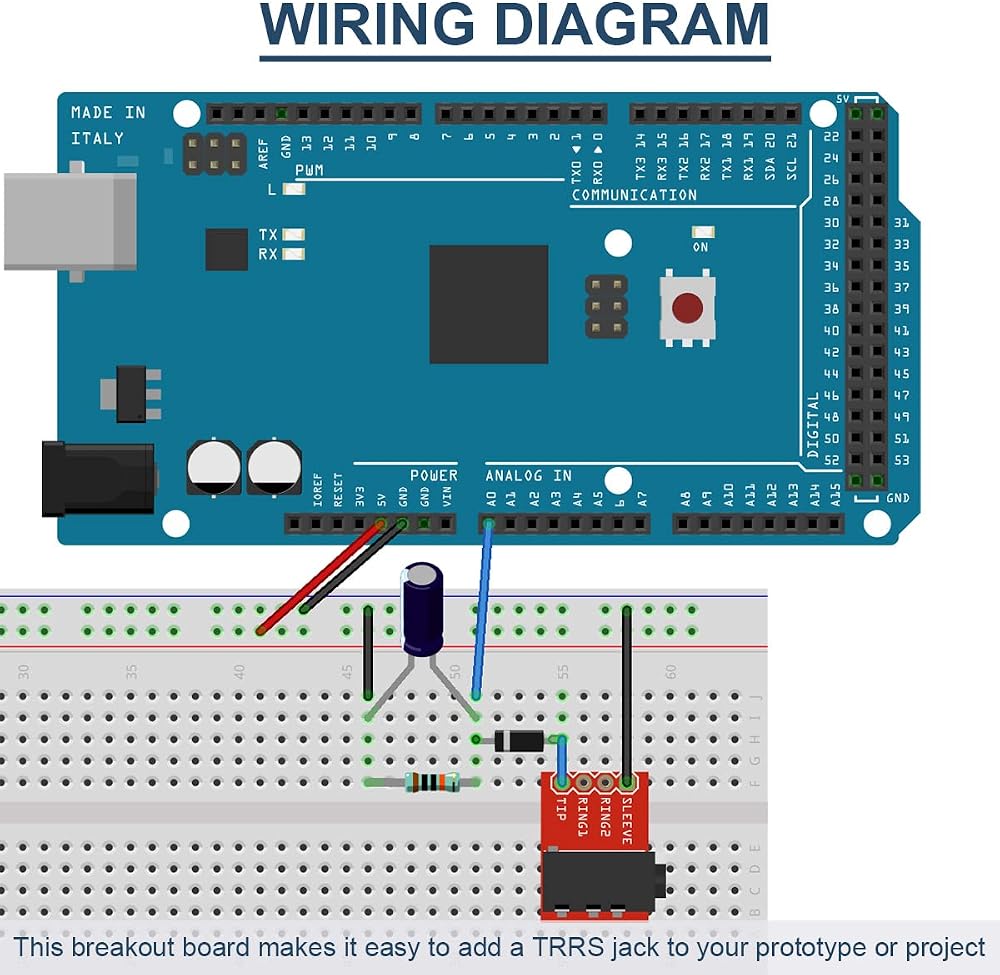

🥇【Application】This breakout board makes it easy to add a TRRS jack to your prototype or project by breaking out each conductor to a standard 0.1" spaced header.
🥇【Package Content】The package comes with 10 x TRRS 3.5mm Audio Jack Breakout

وصف

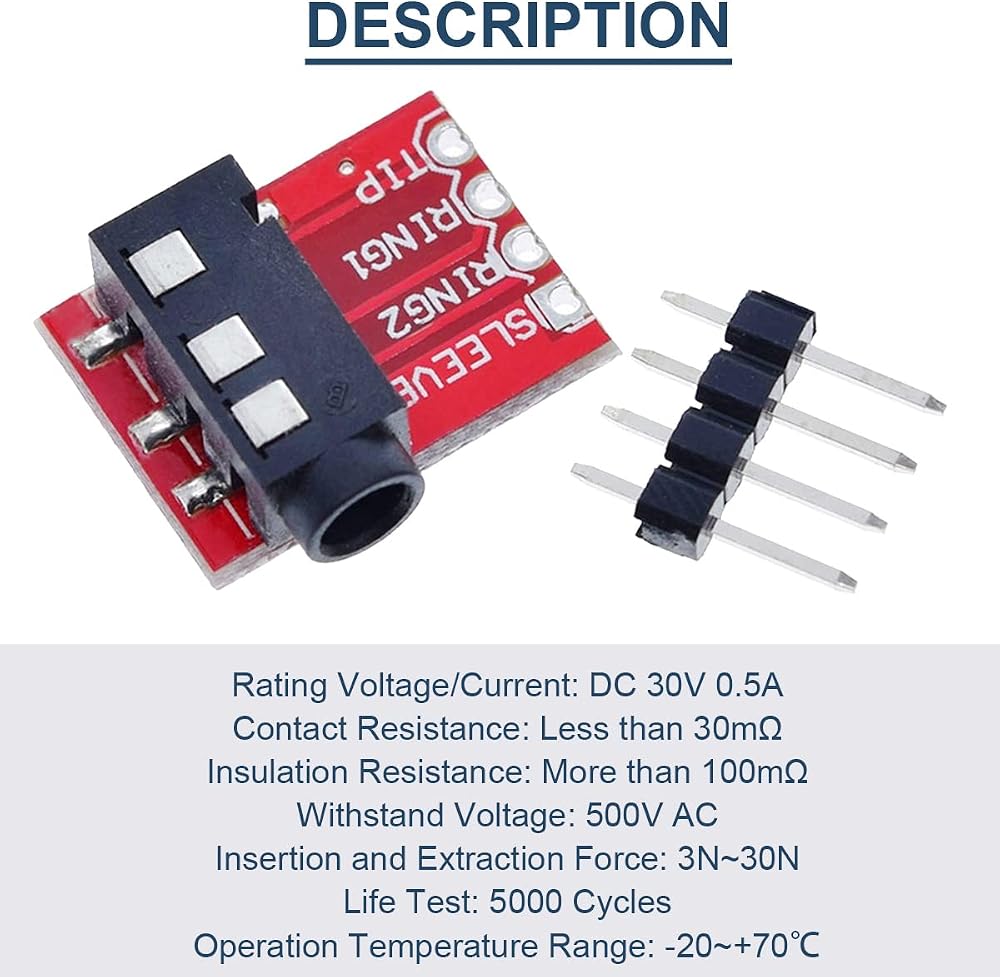

Specification:
Rating Voltage/Current: DC 30V 0.5A
Contact Resistance: Less than 30mΩ
Insulation Resistance: More than 100mΩ
Withstand Voltage: 500V AC
Insertion and Extraction Force: 3N~30N
Life Test: 5000 Cycles
Operation Temperature Range: -20~+70℃

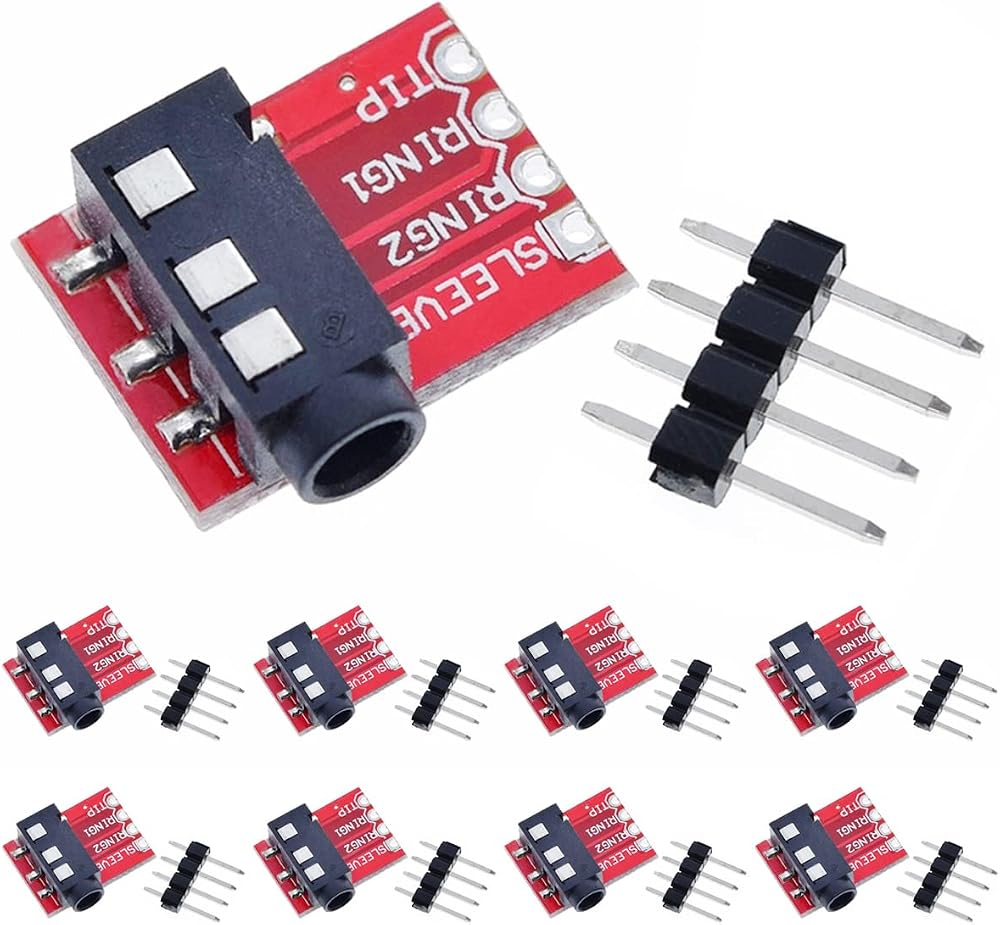

Package Included:
10 x TRRS 3.5mm Audio Jack Breakout
