PENGLIN 2PCS RJ45 Waterproof Ethernet Connector,Panel Mounting RJ45 Cat5/5e Ethernet LAN Cable Connector Double Head for Outdoor Network LED Equipment in Saudi Arabia PENGLIN 2PCS RJ45 Waterproof Ethernet Connector,Panel Mounting RJ45 Cat5/5e Ethernet LAN Cable Connector Double Head for Outdoor Network LED Equipment in Saudi Arabia PENGLIN 2PCS RJ45 Waterproof Ethernet Connector,Panel Mounting RJ45 Cat5/5e Ethernet LAN Cable Connector Double Head for Outdoor Network LED Equipment in Saudi Arabia PENGLIN 2PCS RJ45 Waterproof Ethernet Connector,Panel Mounting RJ45 Cat5/5e Ethernet LAN Cable Connector Double Head for Outdoor Network LED Equipment in Saudi Arabia PENGLIN 2PCS RJ45 Waterproof Ethernet Connector,Panel Mounting RJ45 Cat5/5e Ethernet LAN Cable Connector Double Head for Outdoor Network LED Equipment in Saudi Arabia PENGLIN 2PCS RJ45 Waterproof Ethernet Connector,Panel Mounting RJ45 Cat5/5e Ethernet LAN Cable Connector Double Head for Outdoor Network LED Equipment in Saudi Arabia

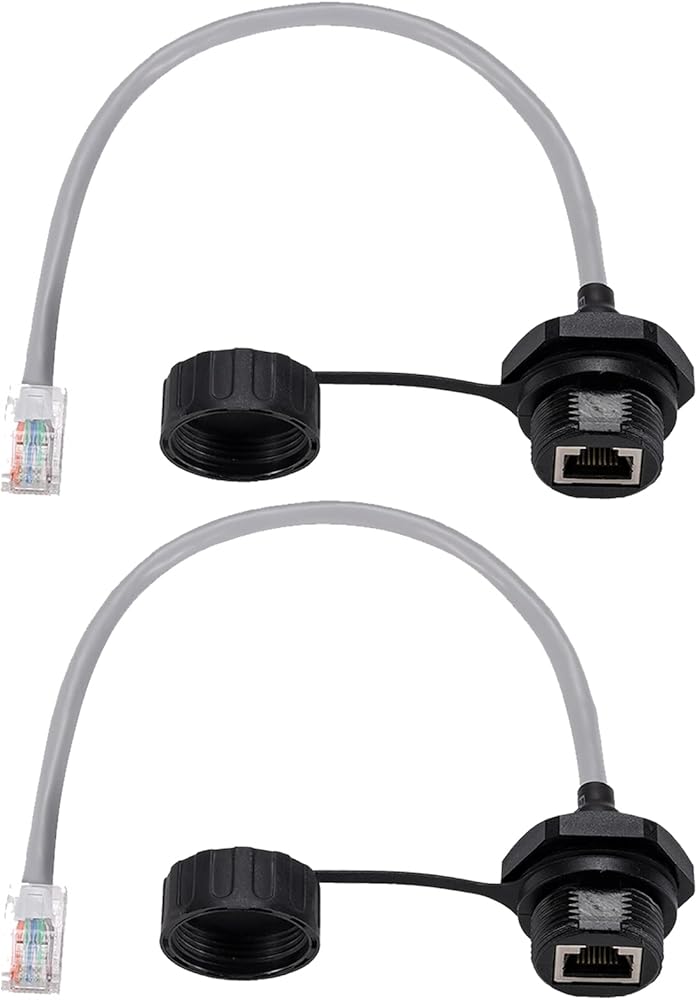

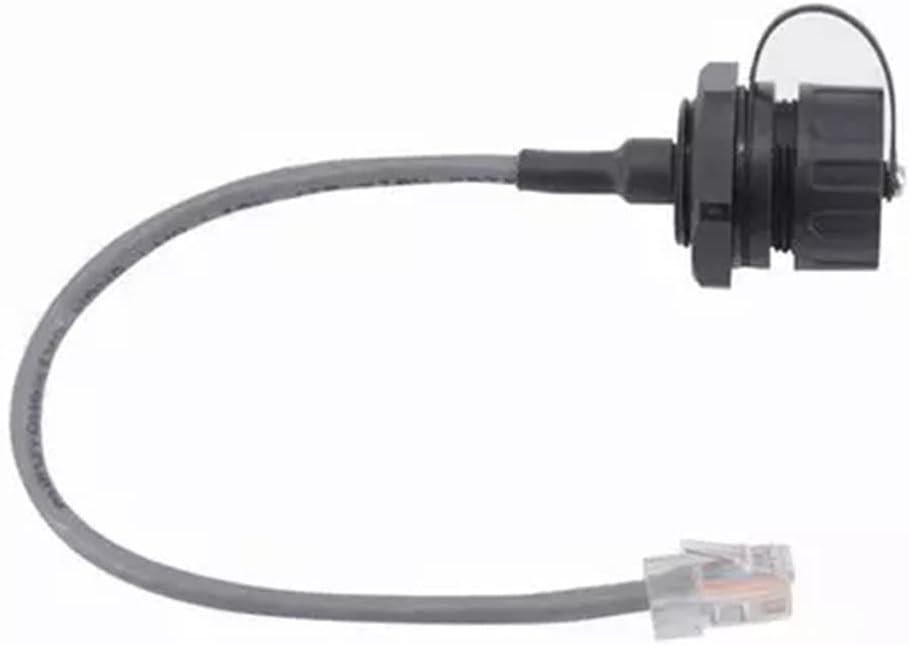

PENGLIN 2PCS RJ45 Waterproof Ethernet Connector,Panel Mounting RJ45 Cat5/5e Ethernet LAN Cable Connector Double Head for Outdoor Network LED Equipment

SAR 35
Brand
PENGLIN
Weight
55 g
– 1 +

Special Features

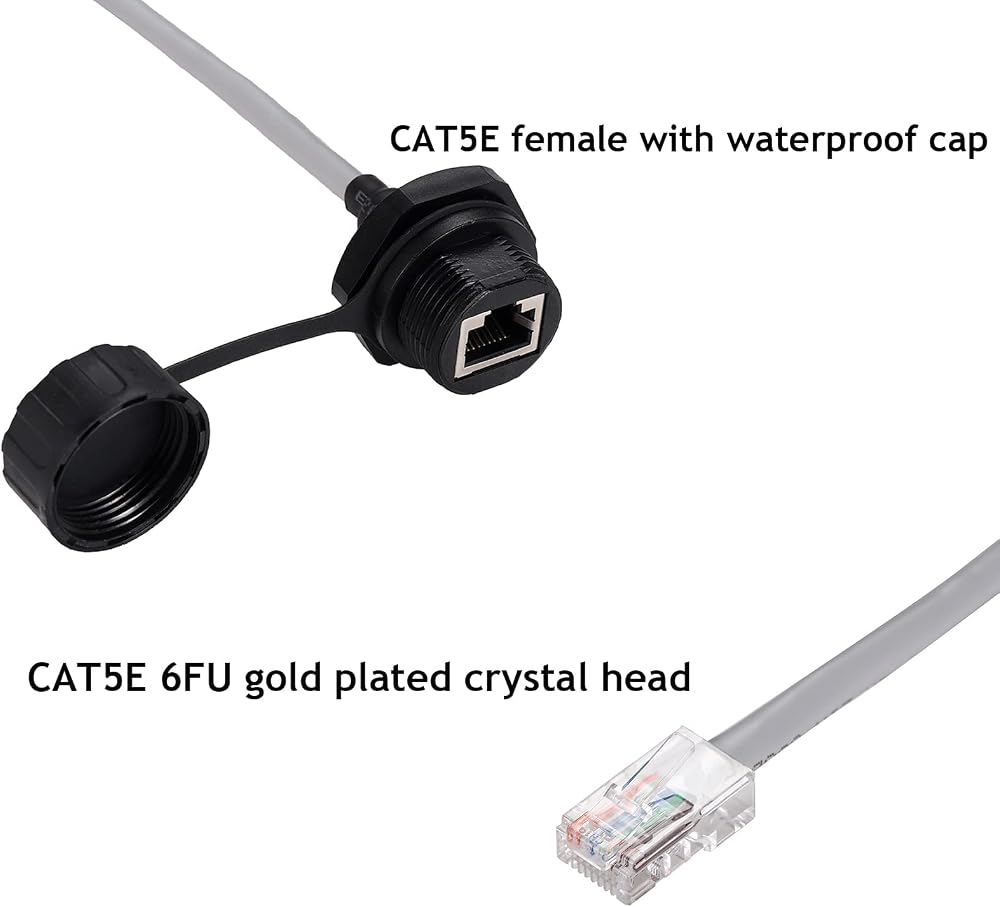

  • 【Good performance】 pure copper super class 5 and class 6 network cable, gold-plated RJ45 female base, 6FU gold plated crystal head, CAT5E/CAT5 network.

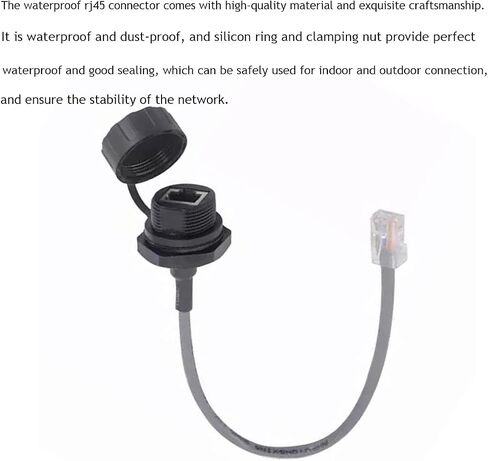

  • 【IP67 waterproof and dust-proof】cat5e network coupler is waterproof and dust-proof, and silicon ring and clamping nut provide perfect waterproof and good sealing, which can be safely used for indoor and outdoor connection. This can well protect the cable head, prevent the environment from interfering with the network cable, and ensure the stability of the network.
  • 【High Quality & Durable】The waterproof rj45 connector comes with high-quality material and exquisite craftsmanship, flame retardant and UV resistant, durable for long term use.

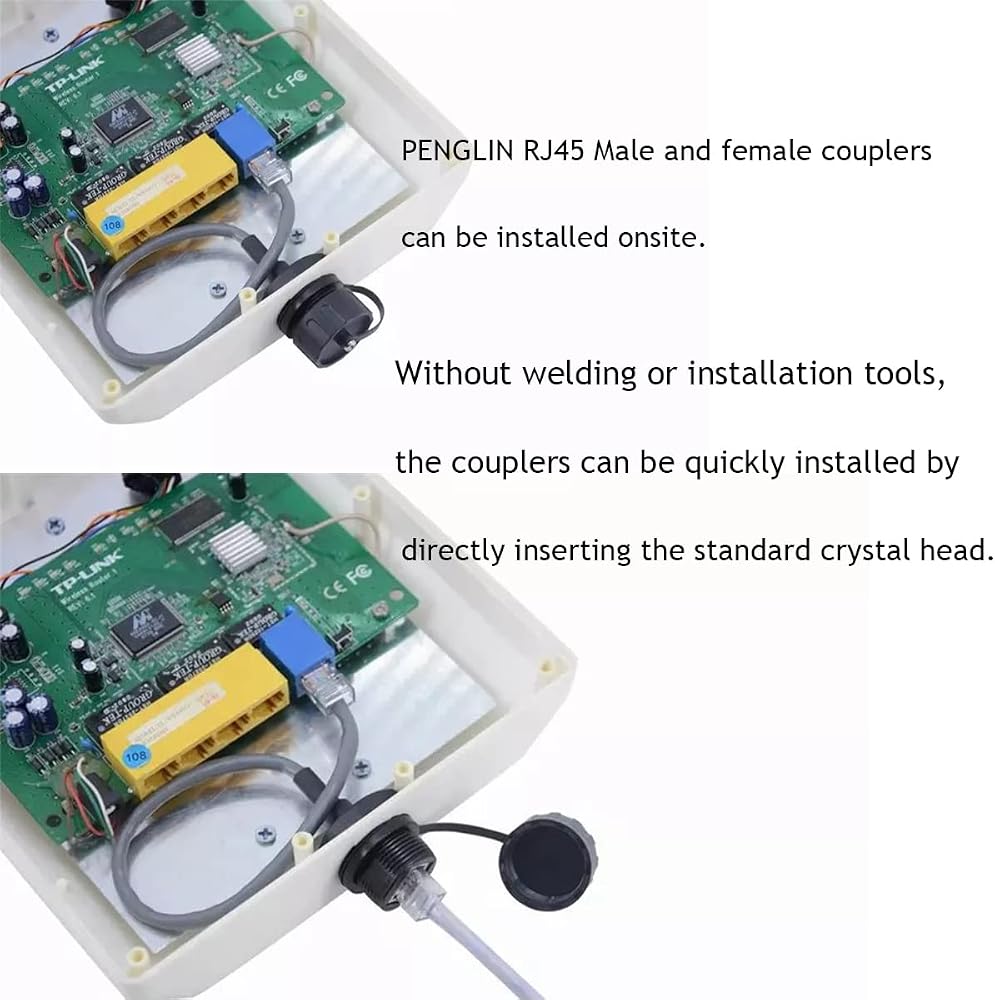

  • 【EASY INSTALLATION】RJ45 Male and female couplers can be installed onsite. Without welding or installation tools, the couplers can be quickly installed by directly inserting the standard crystal head.
  • 【Widely used】 Especially suitable for the use of network equipment in harsh industrial or outdoor environment, whether it is under, outdoor, humid, high temperature and other complex network environment, this waterproof RJ45 network connector, the internal gold-plated needle, and good waterproof performance, can ensure the stability of the network is not affected by the environment.

Description

Technical Specifications:
Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45
Network cable length: 250mm/9.84inch
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock

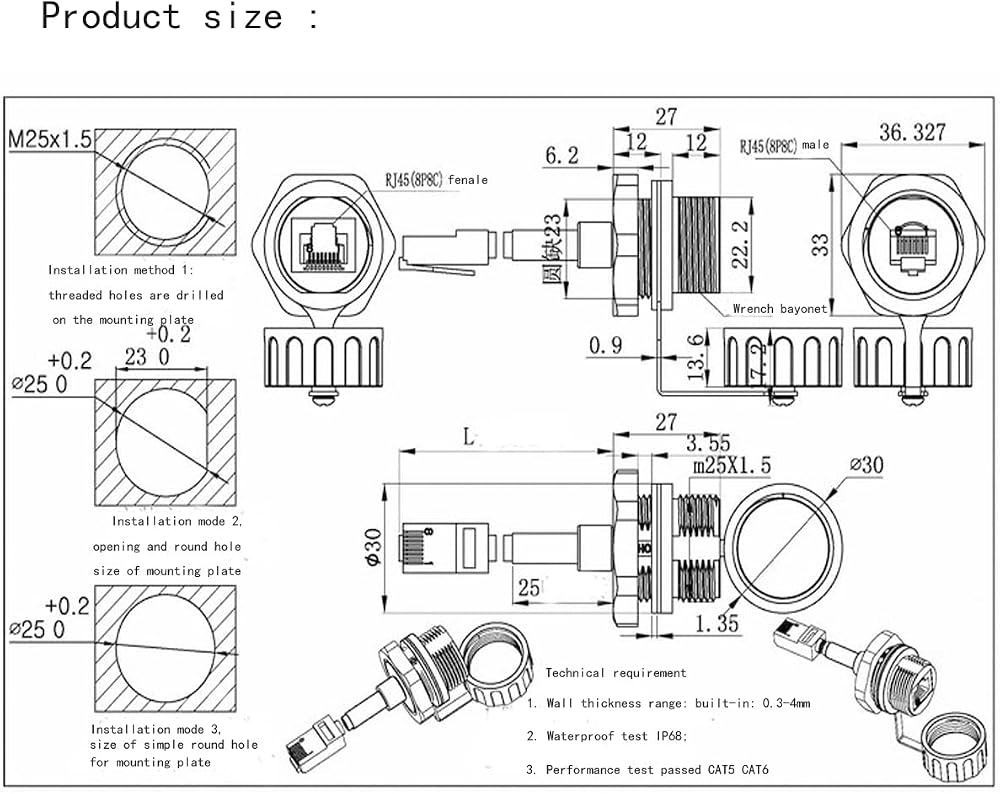

Mounting hole size: M25*1.5
Case wall thickness: 0.3~4mm
Connector transmission classification: CAT5E
Transmission speed range: 10BASE-T. 100 BASE-T and 1000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: ＞500MΩ
Compressive strength: AC 500V 50HZ or 60HZ for 1 minute
Contact resistance: ＜10mΩ
Material:
Shell: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Package Included:
1x Waterproof RJ45 Connector
