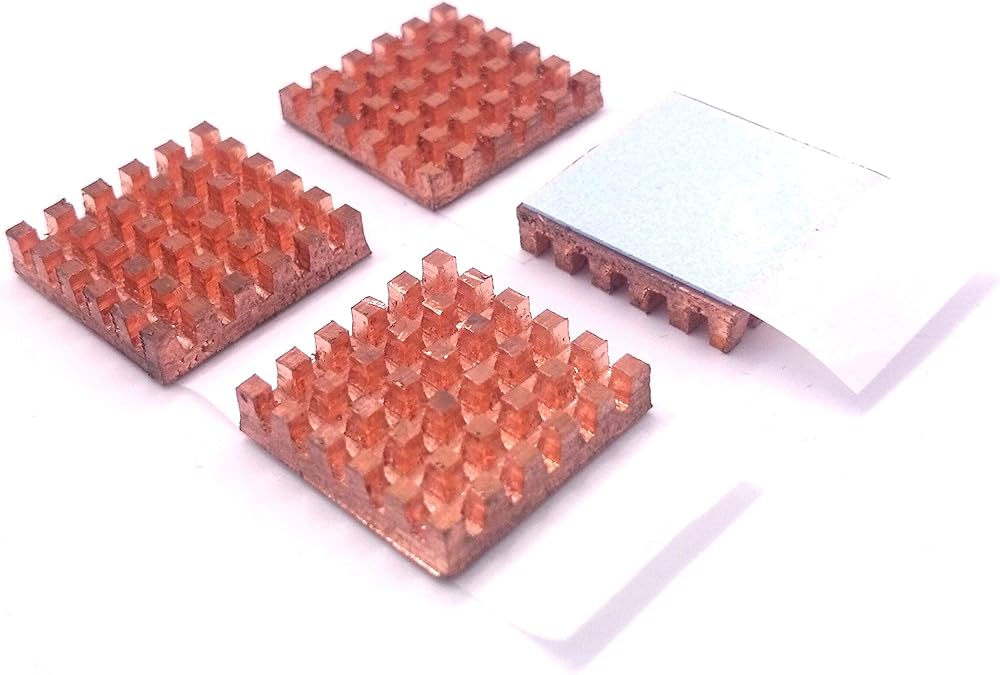

25mm Copper Heatsink Kit

Material: Engraved C1100 Copper

Color: Copper tone

Coating: Pure copper

Dimension: 25mm x 25mm x 4mm (L *W*H)

Weight: 14 gram per piece

Mounting Style: SMD/SMT

Fin Style: Vertical

Number of fins: 6x6

Pre applied 3M 8810 thermal conductive adhesive tape

Tape Thermal Conductivity: 0.60 W/m-K (datasheet-8810.pdf)

Standard: RoHS compliance

Model No: 252504C04-3M-8810

Package Includes: 4 pieces 25mm copper heatsink

4pcs 25mm Heatsink 25x25x4mm + pre Applied Thermal Conductive Adhesive Tape (25mmx25mmx4mm) (Copper 25mm)

0.98" x 0.98" x 0.16" / 25mm (L) x 25mm (W) x 4mm (H) copper heat sink kit is made from C1100 alloy with high thermal conductivity, durable structure stability and light weight. The heat sink engraved in vertical and horizontal grooves, that is greatly increases the heat dissipation function. This kit of heat sink comes with 25x25mm pre-applied thermal conductive adhesive tape, for easy installation and optimum heat conductivity.

4pcs 25×25 copper heatsink together with pre-applied thermal conductive adhesive tape is easy to install and efficient in heat conduction from power source. This 25mm copper heat sink kit is suitable for a variety of cooling applications such as cooling Raspberry Pi, IC Chips, LED Modules etc. These heat sinks have profiles which are short enough to fit within standard cases.
