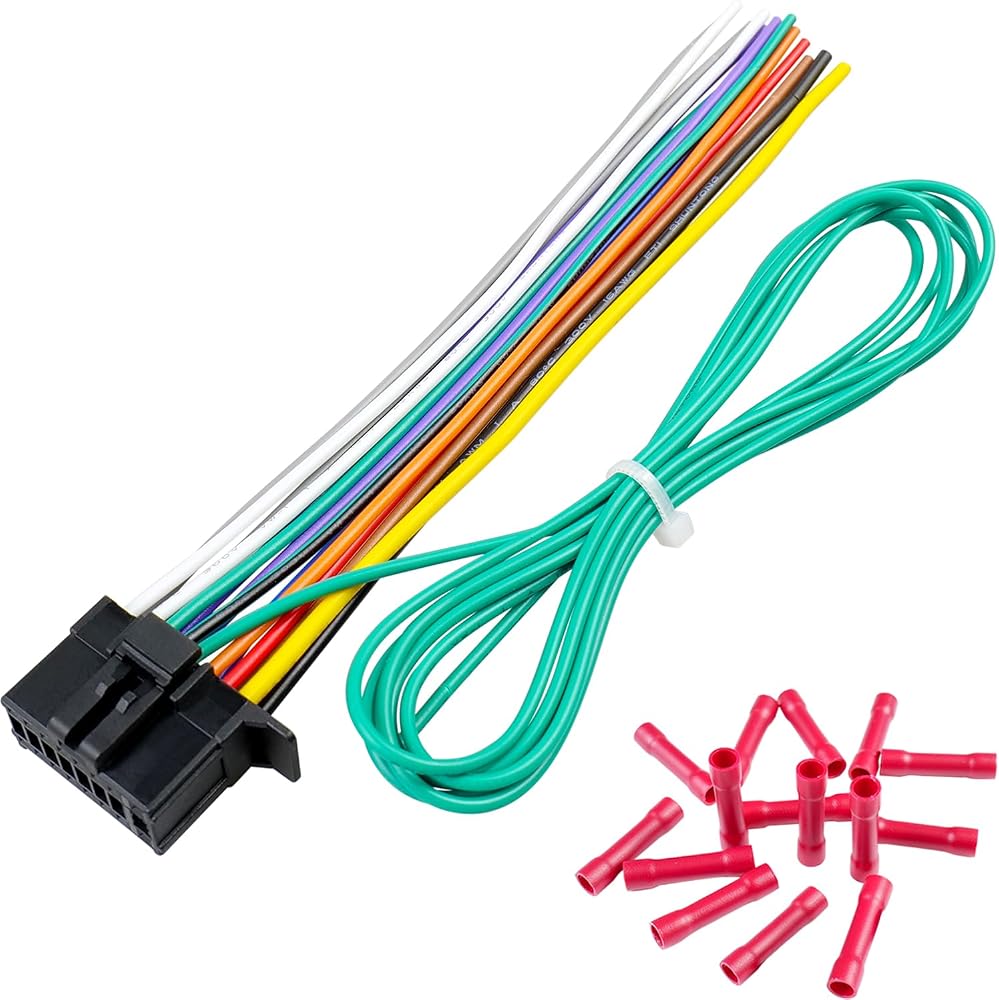

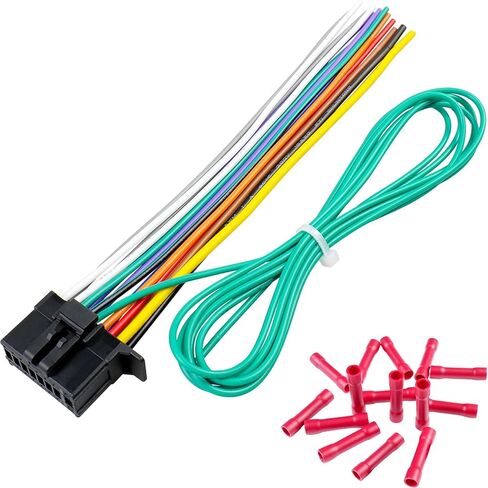

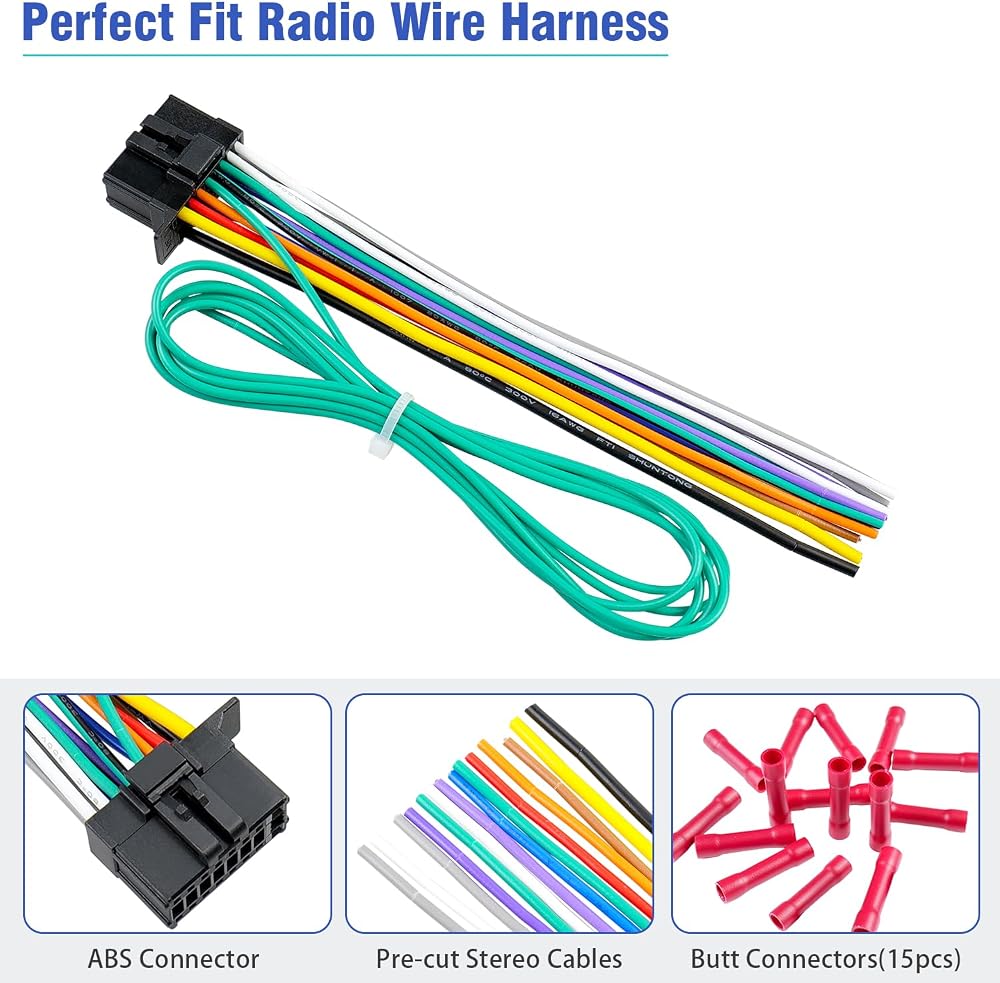

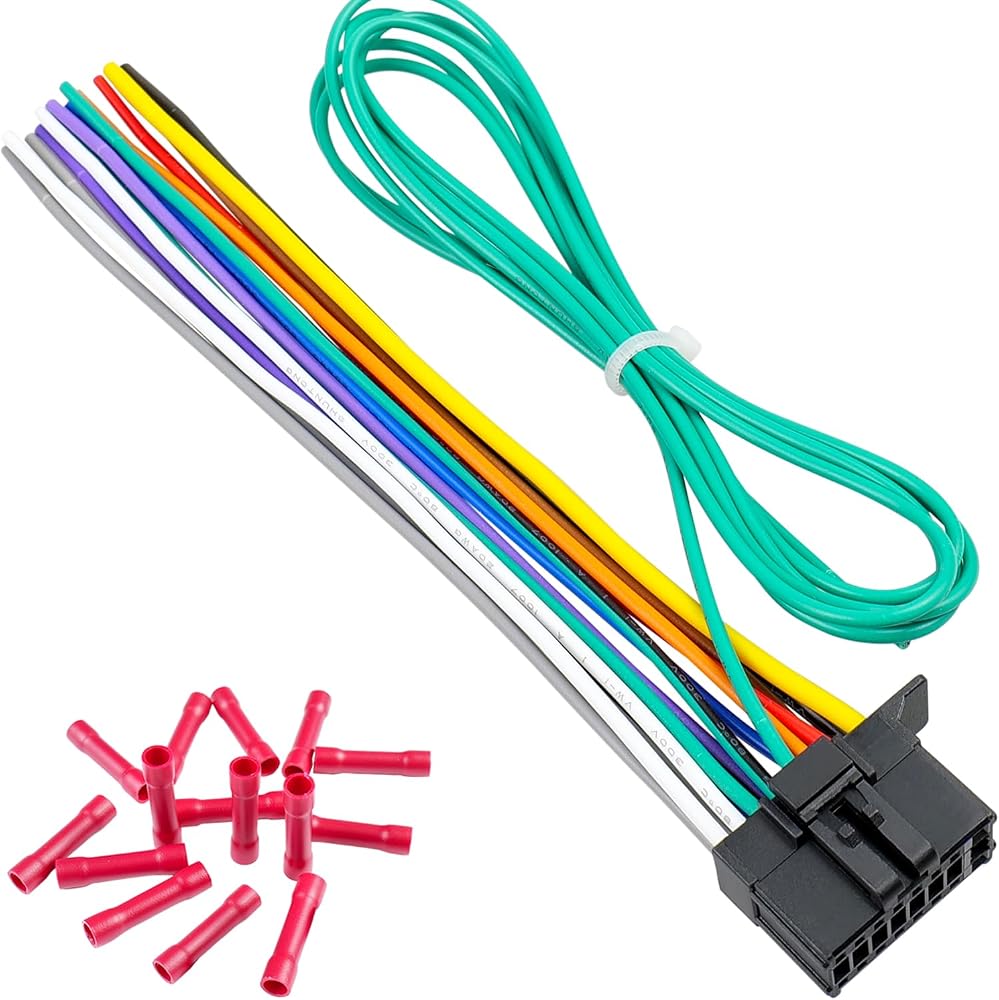

Product Package

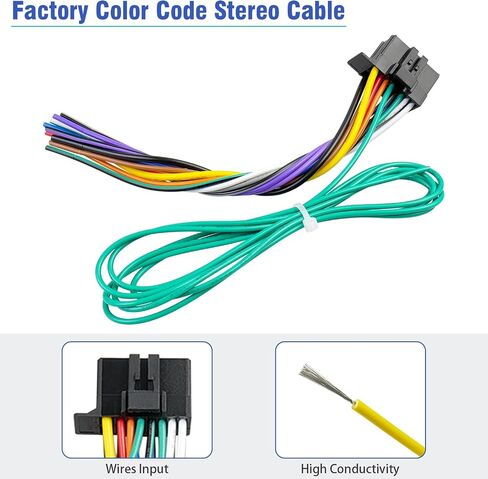

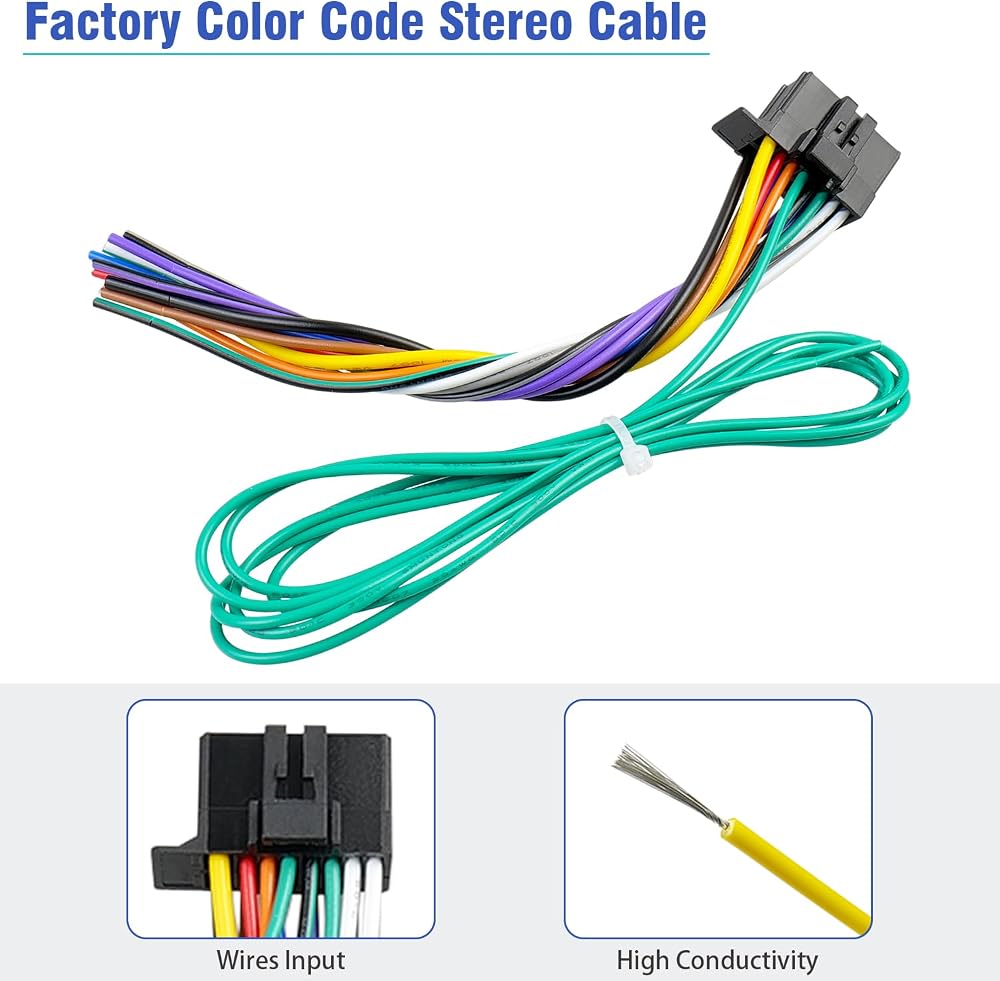

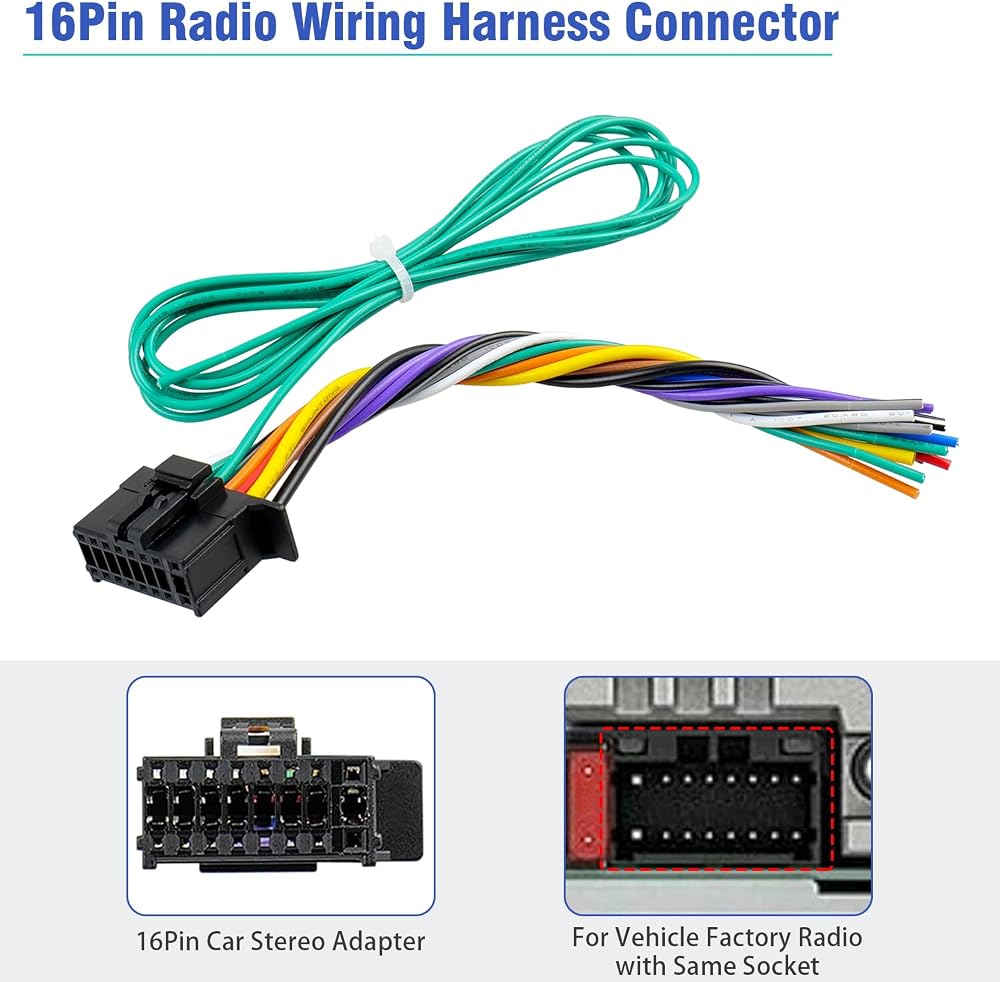

1 x 16Pin Stereo Wiring Harness
16 x Butt Connectors

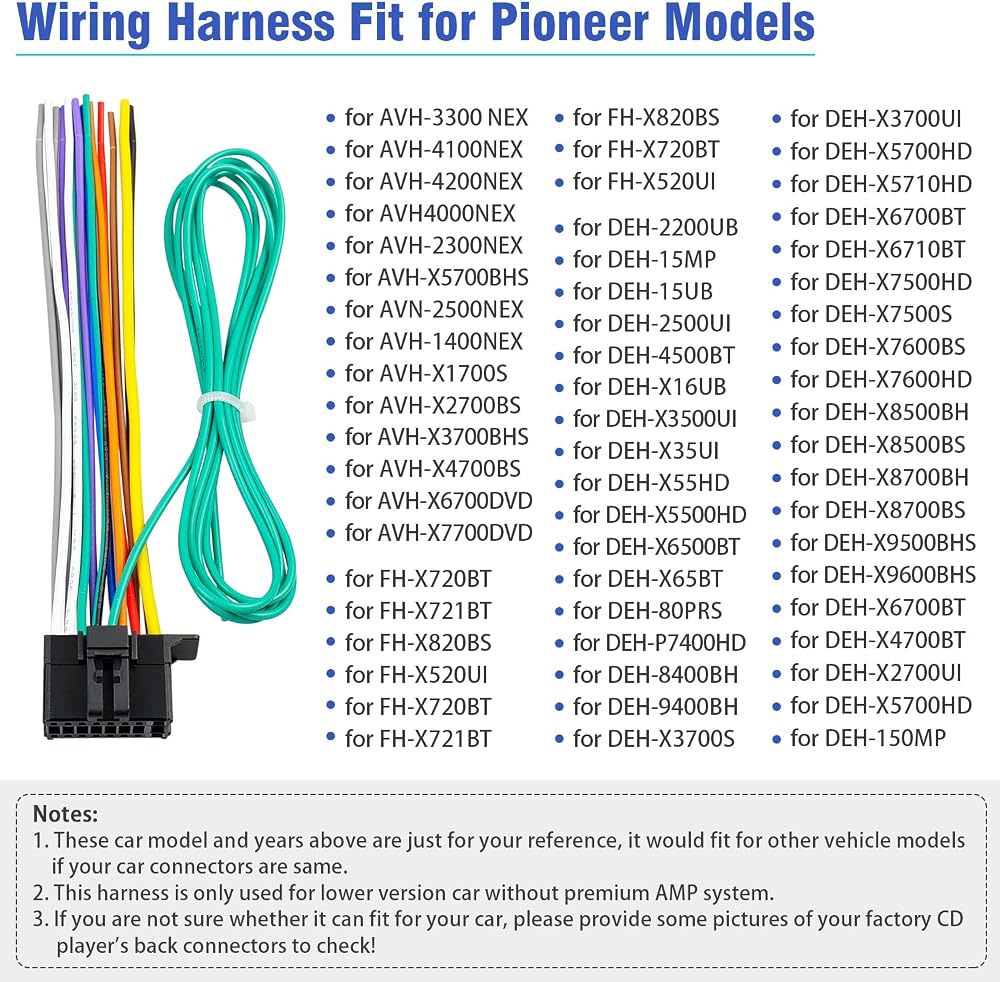

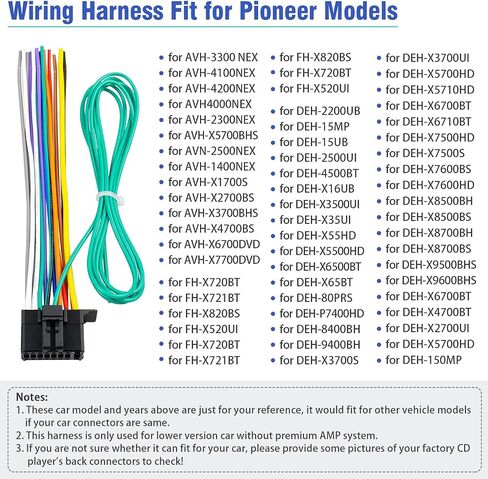

Fit for Models
for AVH-3300 NEX
for AVH-4100NEX
for AVH-4200NEX
for AVH4000NEX
for AVH-2300NEX
for AVH-X5700BHS
for AVN-2500NEX
for AVH-1400NEX
for AVH-X1700S
for AVH-X2700BS
for AVH-X3700BHS
for AVH-X4700BS
for AVH-X6700DVD
for AVH-X7700DVD
for FH-X720BT
for FH-X721BT
for FH-X820BS
for FH-X520UI
for FH-X720BT
for FH-X721BT
for FH-X820BS
for FH-X720BT
for FH-X520UI
for DEH-2200UB
for DEH-15MP
for DEH-15UB
for DEH-2500UI
for DEH-4500BT
for DEH-X16UB
for DEH-X3500UI
for DEH-X35UI
for DEH-X55HD
for DEH-X5500HD
for DEH-X6500BT
for DEH-X65BT
for DEH-80PRS
for DEH-P7400HD
for DEH-8400BH
for DEH-9400BH
for DEH-X3700S
for DEH-X3700UI
for DEH-X5700HD
for DEH-X5710HD
for DEH-X6700BT
for DEH-X6710BT
for DEH-X7500HD
for DEH-X7500S
for DEH-X7600BS
for DEH-X7600HD
for DEH-X8500BH
for DEH-X8500BS
for DEH-X8700BH
for DEH-X8700BS
for DEH-X9500BHS
for DEH-X9600BHS
for DEH-X6700BT
for DEH-X4700BT
for DEH-X2700UI
for DEH-X5700HD
for DEH-150MP

Wiring Connection of Radio Wire Harness
Red: to Ignition Switch/ACC +12V
Yellow: to Power Supply +12V
Black: to GND Ground Wire B-
Blue: to ANT (Auto Antenna Power)
Orange: to Illumination wire
Green: Left Rear Speaker (+)
Green and Black: Left Rear Speaker (-)
White: Left Front Speaker (+)
Gray and Black: Right Front Speaker (-)
White and Black: Left Front Speaker (-)
Gray: Right Front Speaker (+)
Purple: Right Rear Speaker (+)
Purple and Black: Right Rear Speaker (-)

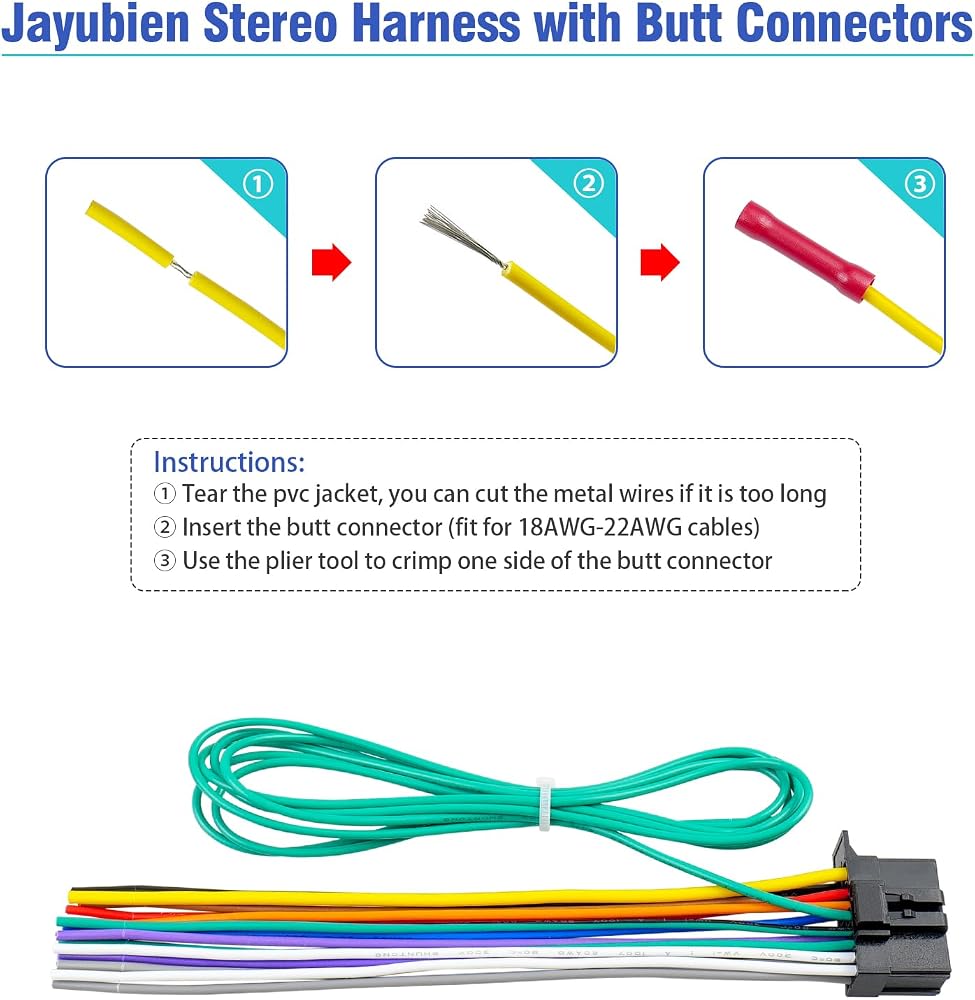

How to Use the Butt Connectors
①Tear the pvc jacket, you can cut the wires if it is too long
②Insert the butt connector (fit for 18AWG-22AWG cables)
③Use the plier tool to crimp one side of the butt connector
