Corona GR7SF 2.4GHz 7CH S.BUS Receiver with 3X Gyro Futaba S-FHSS Compatible Transmitter T6J T8J 10J T14SG 16SZ for FPV Airplane

SAR 130
Brand
SoloGood
Weight
33 g
– 1 +

Special Features

  • CORONA 2.4GHz S-FHSS Compatible Receiver is designed to use with FUTABA S-FHSS 2.4GHz transmitters, such as T6J,T8J,T10J and T14SG under S-FHSS protocol mode.
  • Mode supply: No mixer, Dual-aileron, V-tail mixer, Delta mixer Independent simple gyro gain adjustment for Aileron, Elevator and Rudder
  • S.BUS output support expanding servo channels @the 8th channel Support gyro function switch on and off in flying by Switching signal of CH5
  • Make sure that your plane has good status before installing GR7SF and other electrical device on it.
  • The receiver need to be firmly mounted near the gravity of the plane by double side tape

Description

Specifications:

Voltage Range :3.6~8.5V

Operating Current: 60mA max

Operation temperature: -10~70 degC

Latency: 6.8mS

Sensitivity: about -96dBm

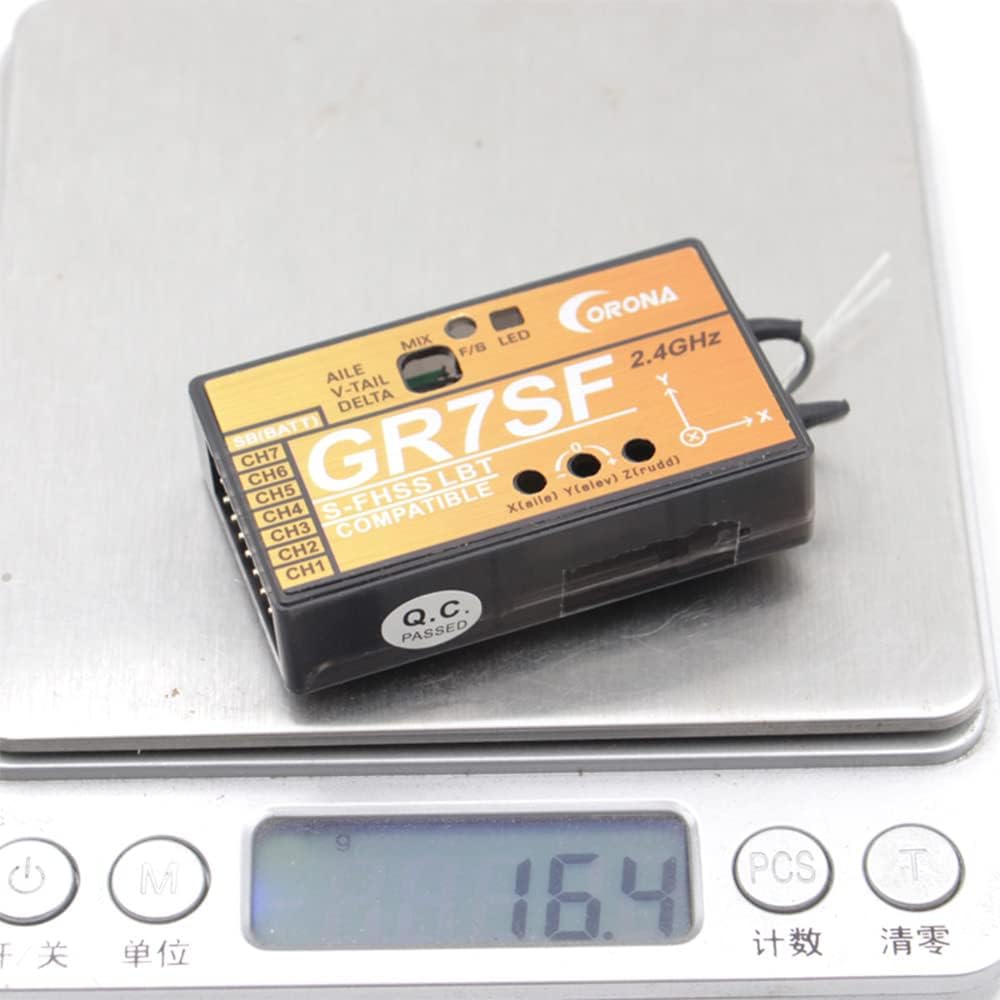

Weight: 16g

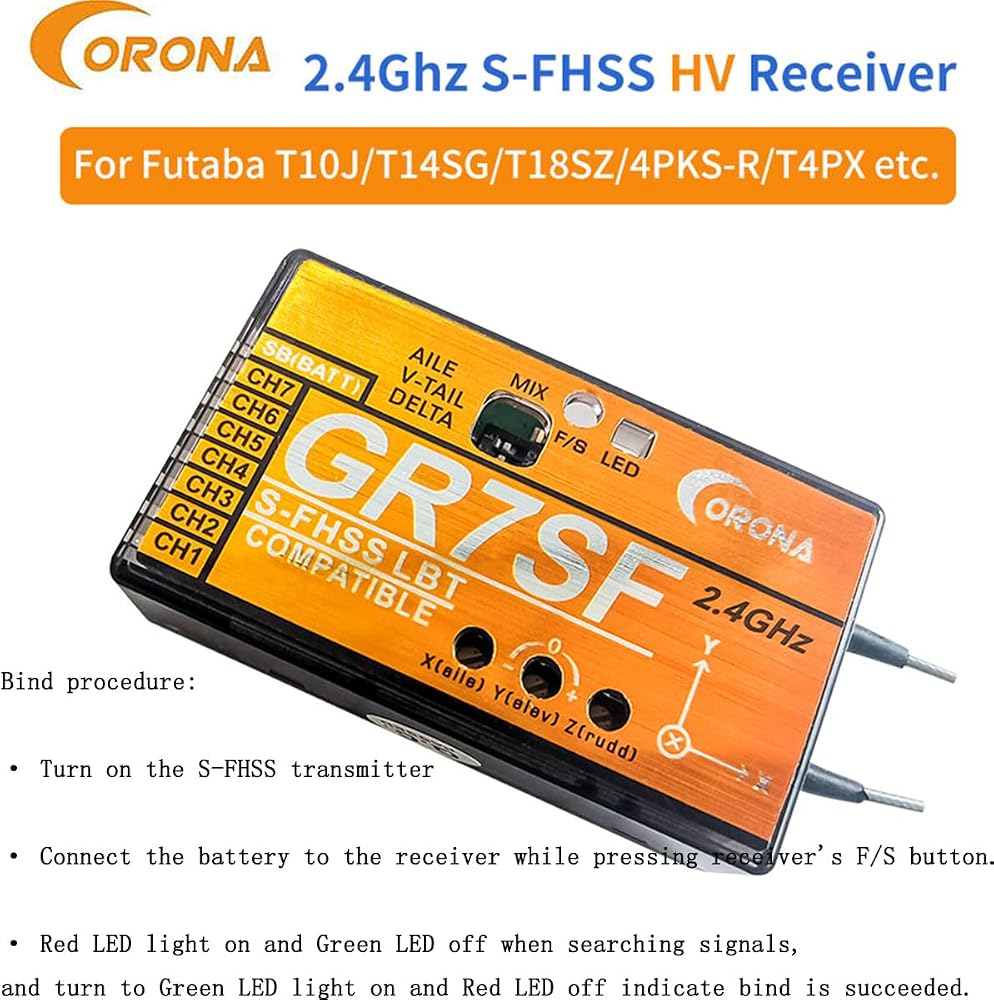

Bind procedure:

· Turn on the S-FHSS transmitter

· Connect the battery to the receiver while pressing receiver's F/S button.

· Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.

Including:

1* Corona GR7SF RECEIVER
