Description:

Features:

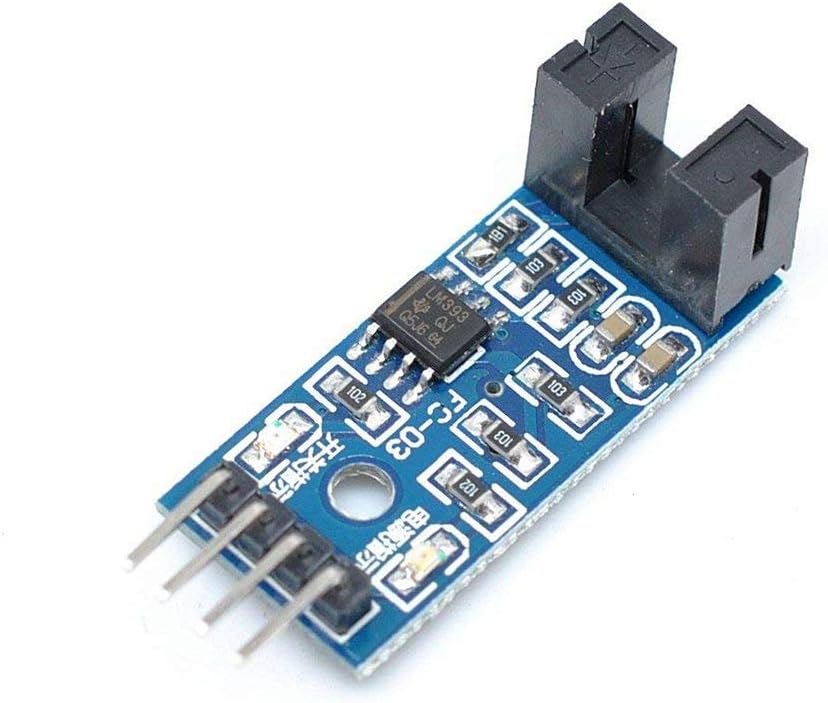

1, the use of imported groove coupler sensor, slot width 5mm.
2, output status indicator lamp output high, output low lights.
3, block, output high; no shelter, output low.
4, the comparator output signal clean, good waveform, driving ability, than 15mA.
5, the working voltage of 3.3V-5V
6, the output format: digital switching output (0 and 1)
7, a fixed bolt holes for easy installation
8, small PCB board size: 3.2cm x 1.4cm/1.3 x 0.6inch
9, using a wide voltage comparator LM393

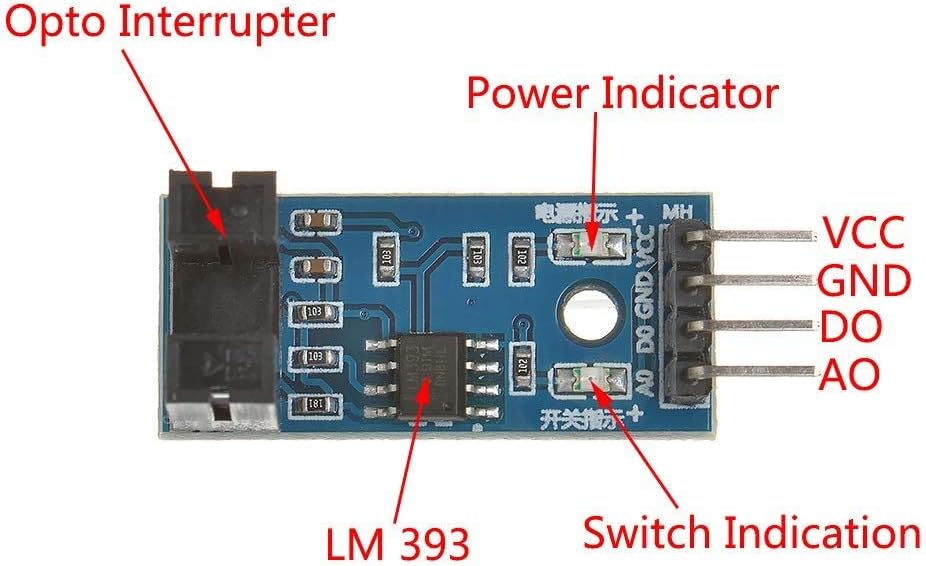

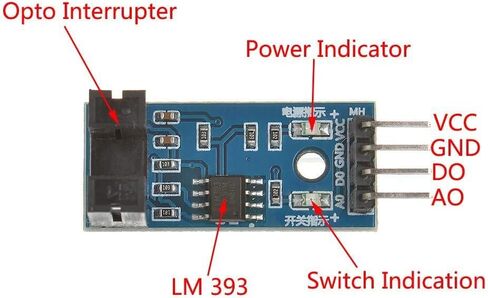

Wiring instructions:
1, VCC positive power supply 3.3-5V
2, GND power supply is negative
3, DO TTL switching signal output
4, AO this module does not work

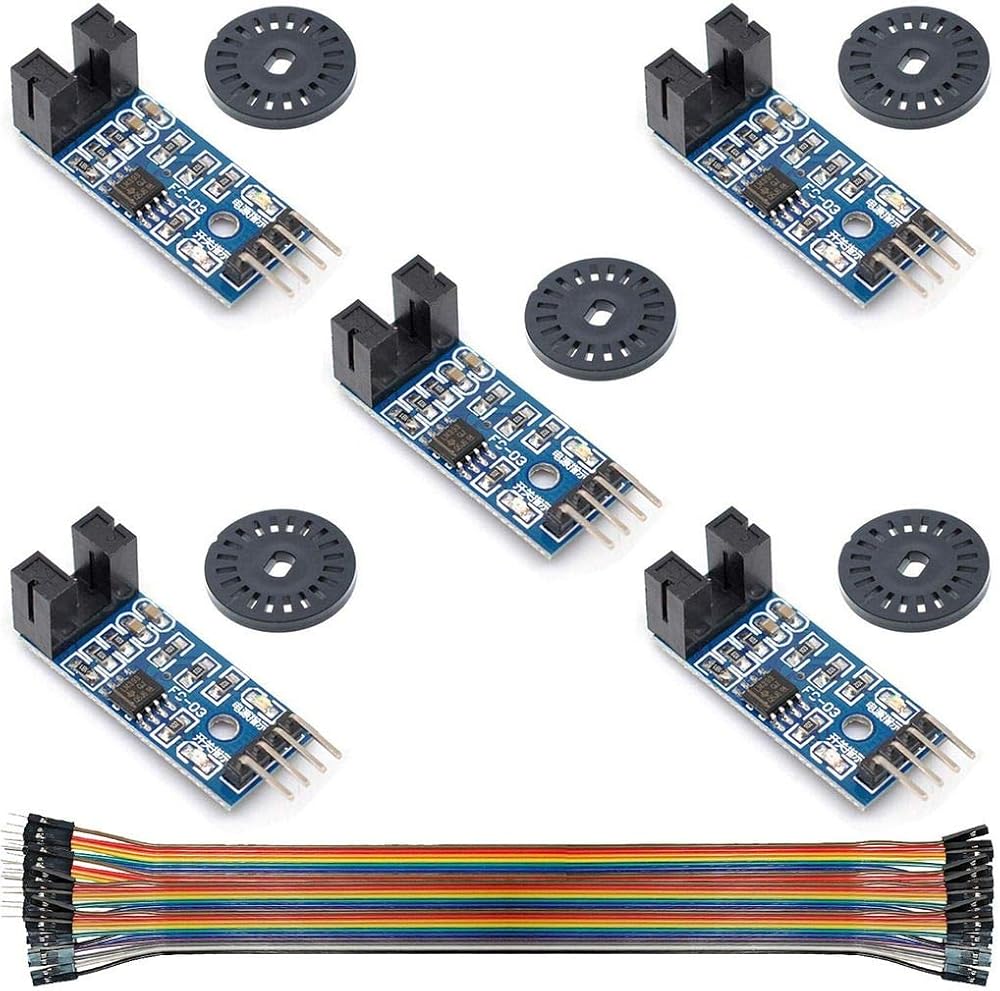

Package includes:
5 x Speed Measuring Sensor LM393
5 x Encoders
2 x 10Pin Dupont Cable Female to Male
2 x 10Pin Dupont Cable Female to Female
