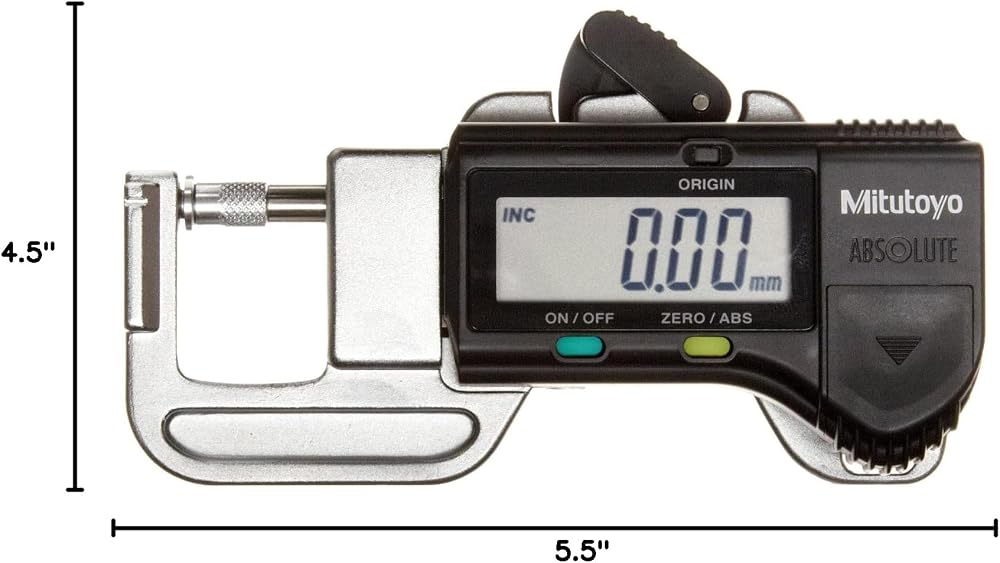

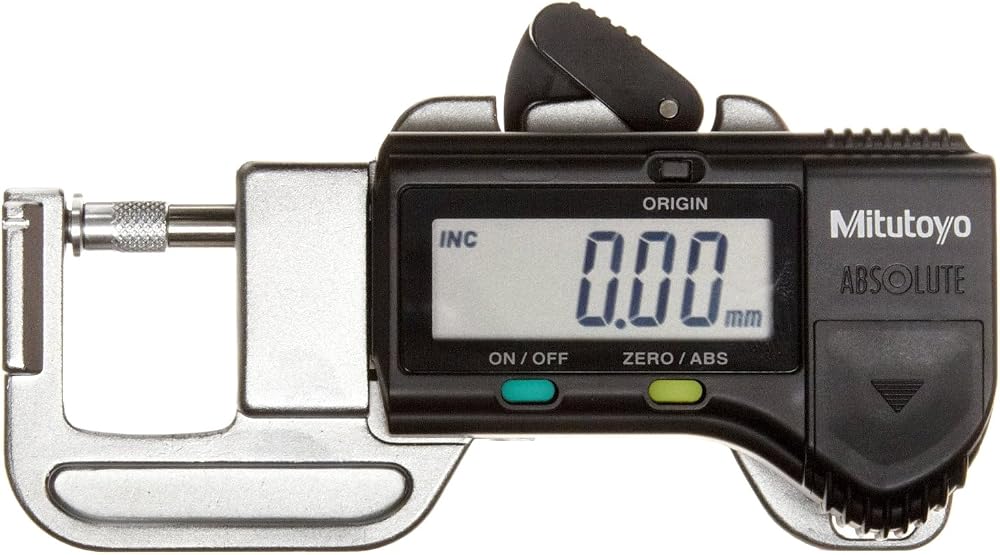

The Mitutoyo 700-118-20 Quick Mini digital thickness gauge is for measuring the thickness of small, thin, or fine objects such as jewels, paper, leather, and wire. This gauge has a measurement range of 0 to 0.5" (0 to 12.7mm), a resolution of 0.0005" (0.01mm), and an accuracy of + or - 0.001". The LCD screen displays in inches or metric units. This model is lightweight (70g) and compact (72.3mm long). Functions include origin setting and zero setting. This gauge has a measuring force of 2.0 Newtons (N) or less. It has a battery life of approximately 2 years under normal use. This unit comes with an SR-44 battery and fitted, plastic case.
SpecificationsAnvil/spindle typeFlat spindle and anvilRange0 to 0.5" (0 to 12.7mm)Resolution0.0005" (0.01mm)Accuracy+ or - 0.001"FaceLCD displays in both inches and metric unitsMeasuring forceLess than 2.0NWeight70gDimensions44.8 x 72.3 x 20mm (H x W x D)Power sourceSR-44 battery (included)
H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
What's in the Box?Mitutoyo 700-118-20 digital thickness gauge
SR-44 battery

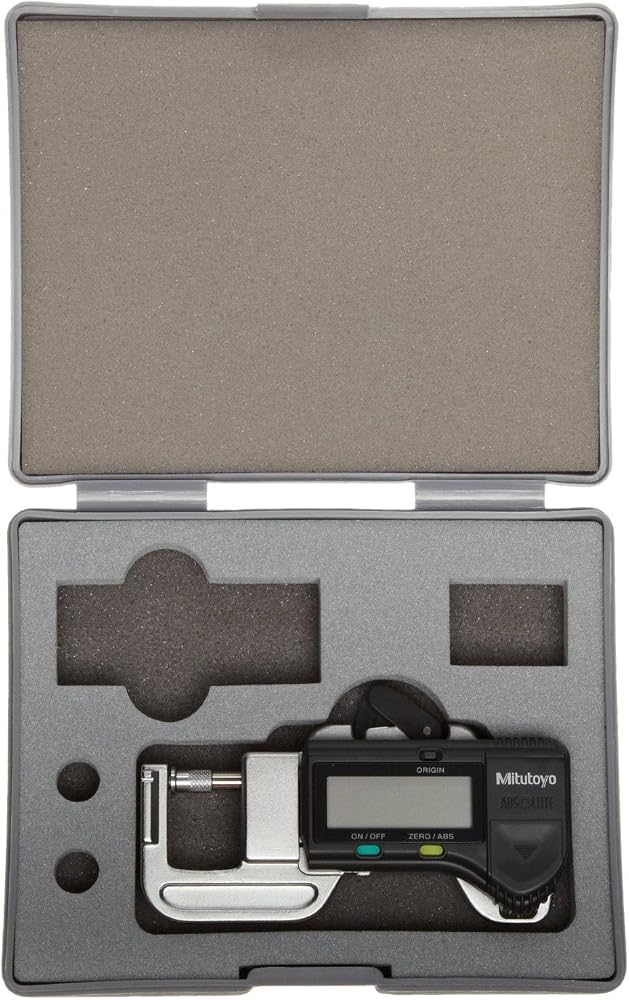

Plastic case
