مميزات خاصة

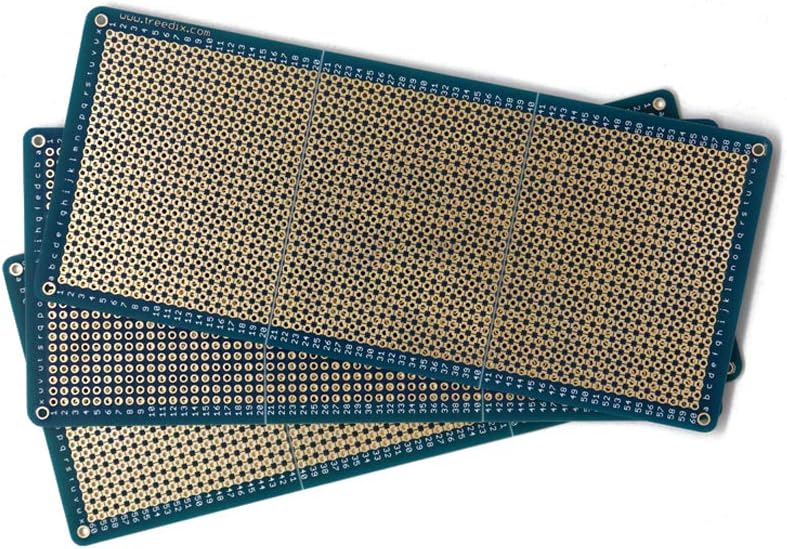

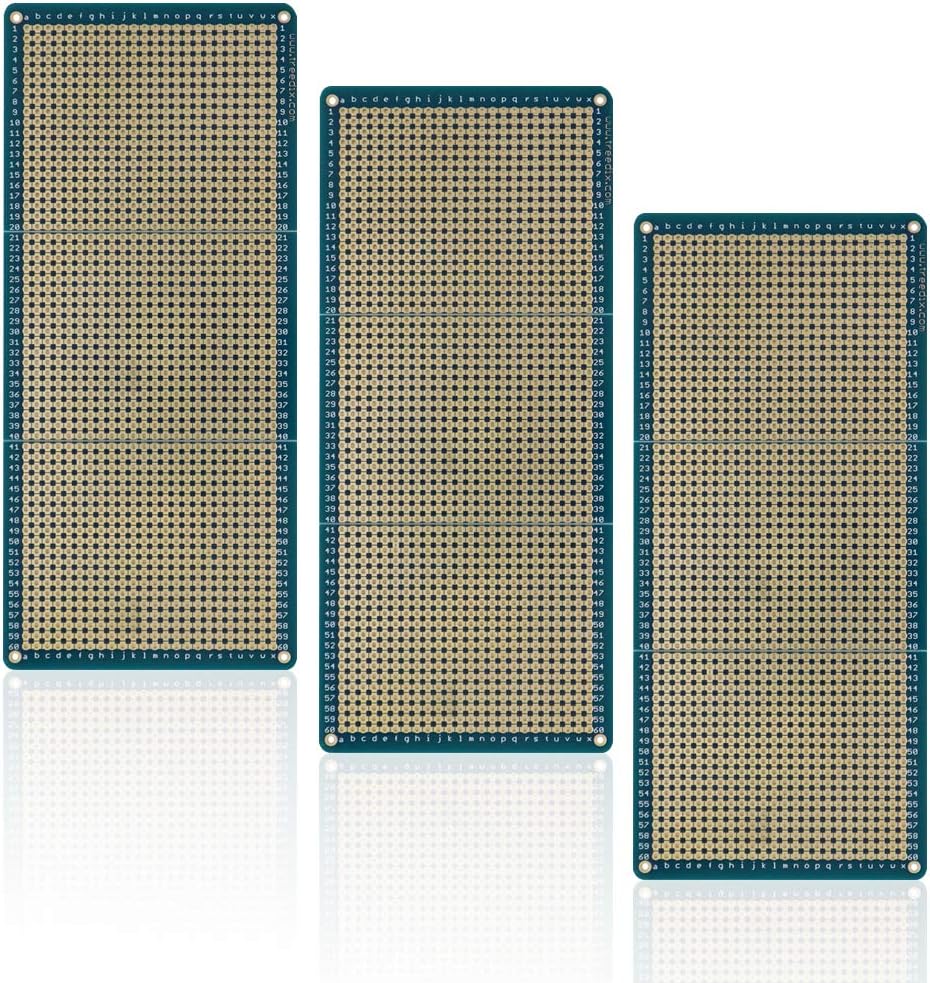

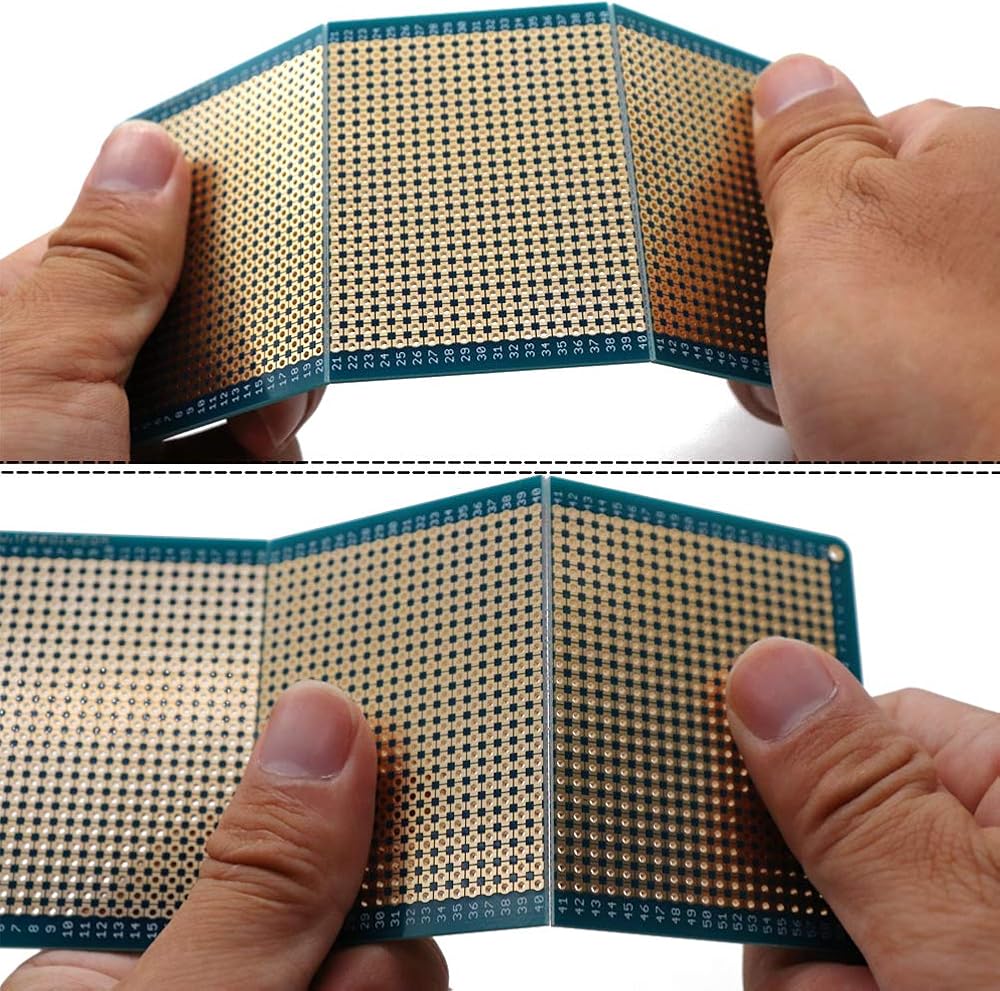

Split design can turn one piece into three smaller pieces, which is easy for you to expand your projects. The features of this board is that you don't have to insert the pins of components and kits in the group of holes. Components and kits can be mounted variously on your will.
Used for electronic experiments and point-to-point DIY soldering projects, can be expandable with pin header and female header, designing your own Arduino kits. The Breadboard Kit is convenient for the prototypes and circuit design experiment and other DIY projects. Perfect for Arduino, Raspberry Pi, and other programming boards.

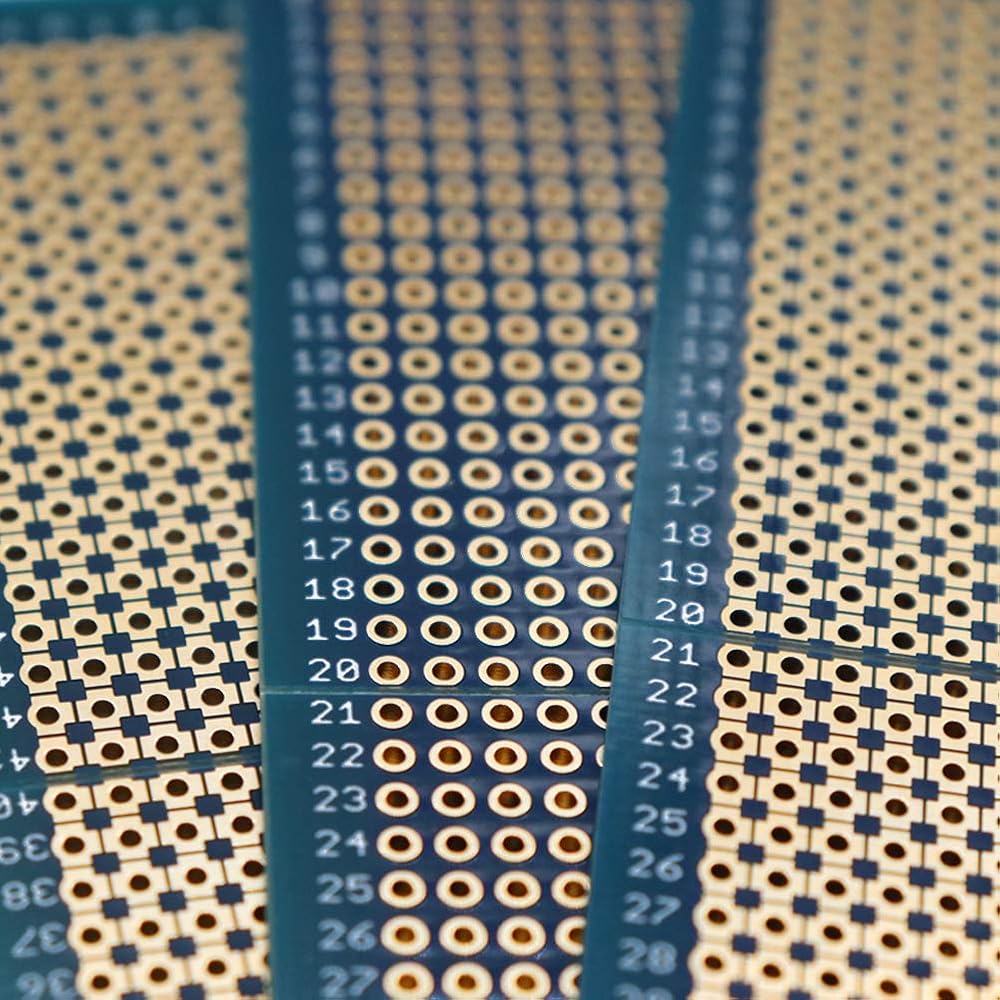

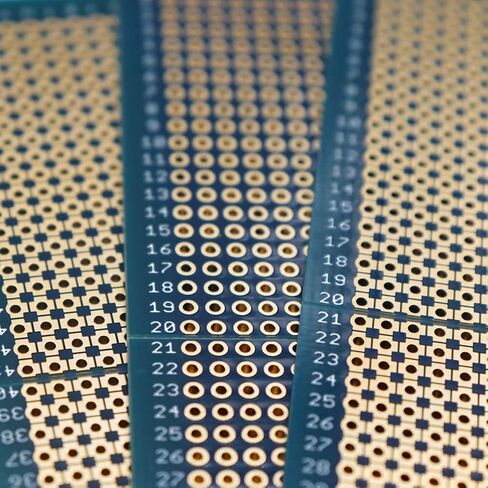

Standard IC spacing 2.54MM hole plated through among the pad can be perfectly working with 3mm&5mm LED Diode kit, Electrolytic Capacitor kit, Monolithic Ceramic Capacitor kit, Resistor kit, etc.
Electroless Nickel Gold finished prevent the copper on PCB from being oxidized and corroded and is good for soldering and touching. To be your friendly companion on your Arduino journey.
Made of glass fiber FR-4 material, having the features of high heat resistance, corrosion resistance, mechanical strength, insulation.

وصف

Specification：
Board Material: Glass Fiber FR4
Color: Blue, Gold
Hole pitch: 2.54mm
Hole diameter: 1mm
Thickness: 1.5mm

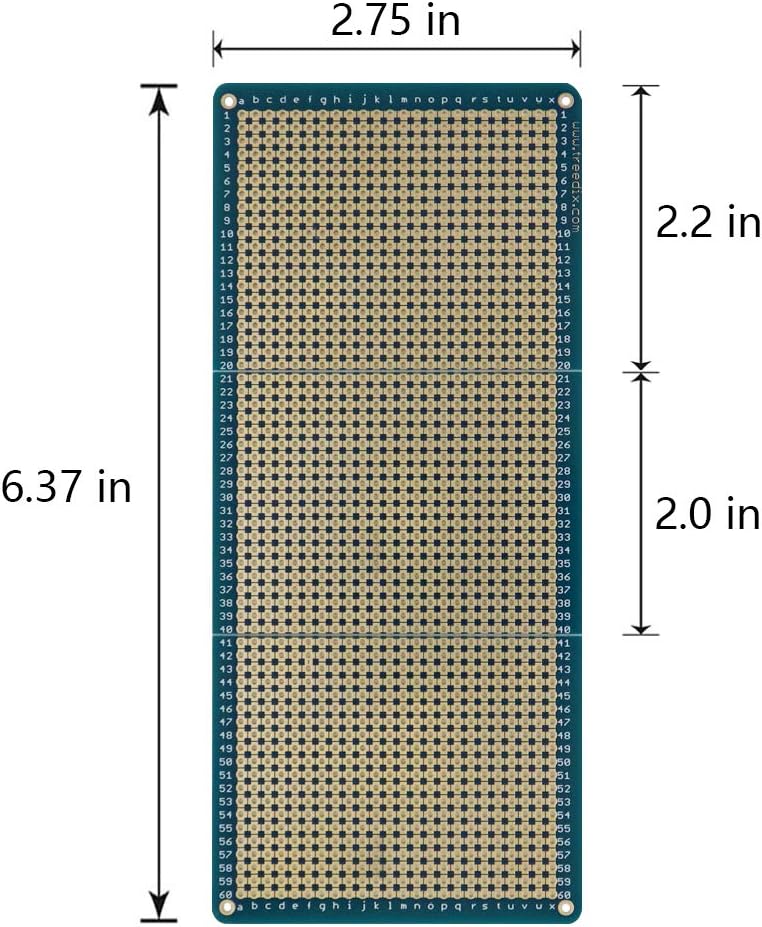

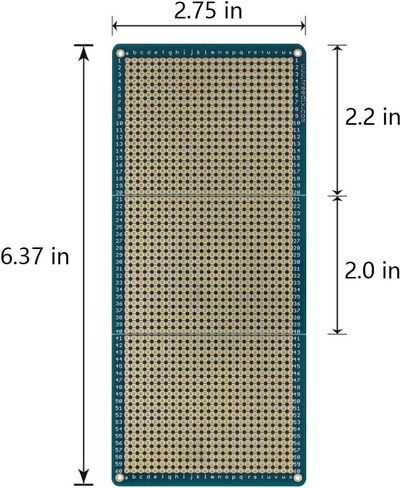

Size: 161.9 x 70 mm / 6.37 x 2.75 inch
Extension Clips: Yes (Can extend with other boards)
Input voltage: 6.5-12V (DC) or USB power supply
Output voltage: 3.3V/5V (Switchable)
Maximum output current: 1440 tie-points total: IC-circuit area and power rails area

Packages Included:
3 x 1440 tie-points Solderable Breadboard ( Split design )
( One piece of 1440 tie-points Solderable Breadboard can be splited into three pieces of 480 tie-points Solderable Breadboard)
