Product Description

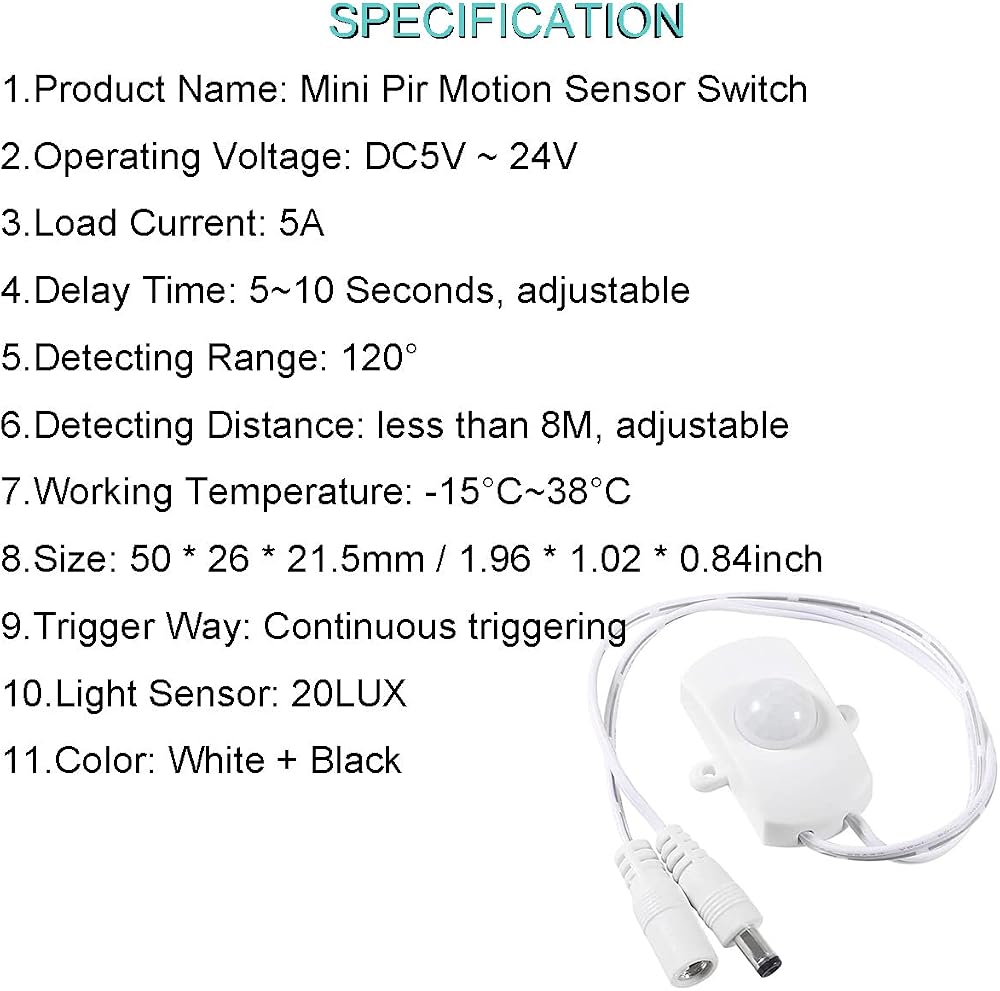

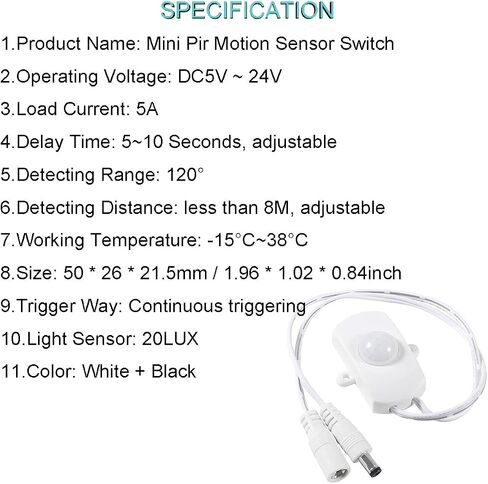

Specification
1.Product Name: Mini Pir Motion Sensor Switch
2.Operating Voltage: DC5V ~ 24V
3.Load Current: 5A
4.Delay Time: 5~10 Seconds, adjustable

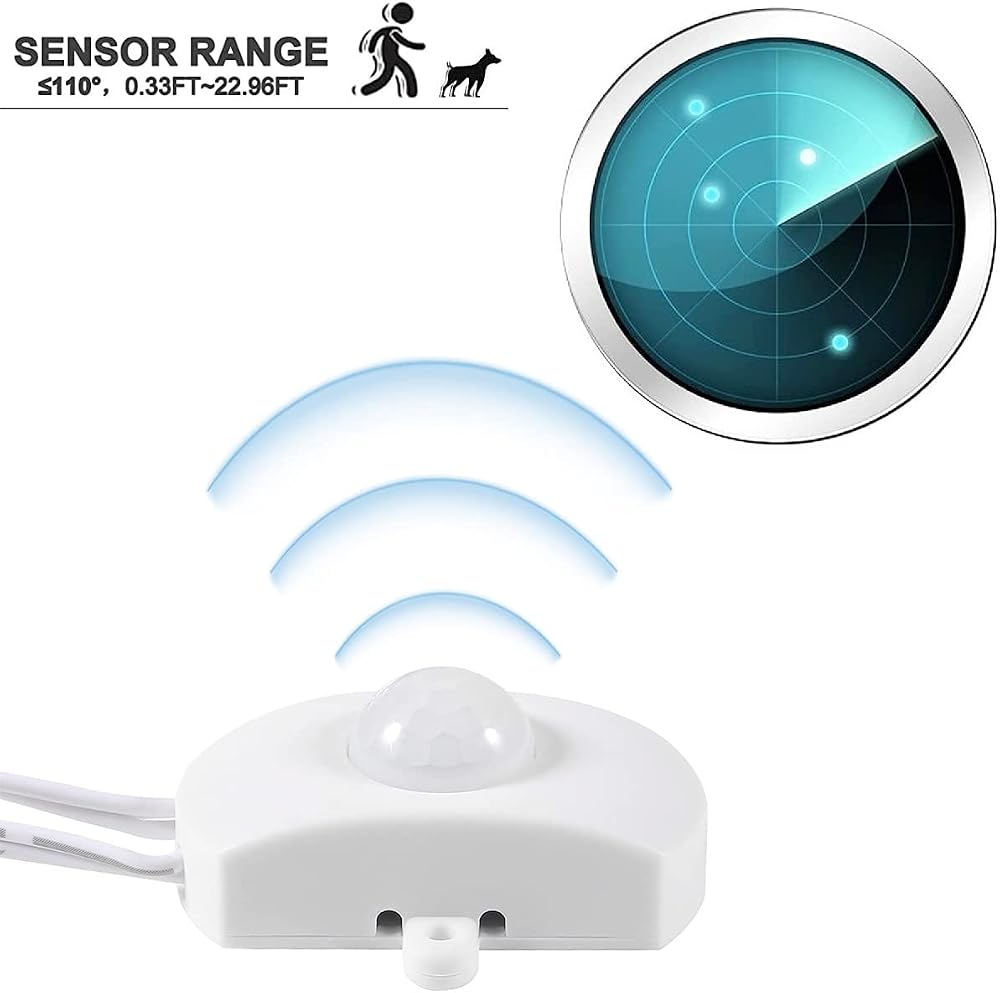

5.Detecting Range: 120°
6.Detecting Distance: less than 8M, adjustable
7.Working Temperature: -15°C~38°C

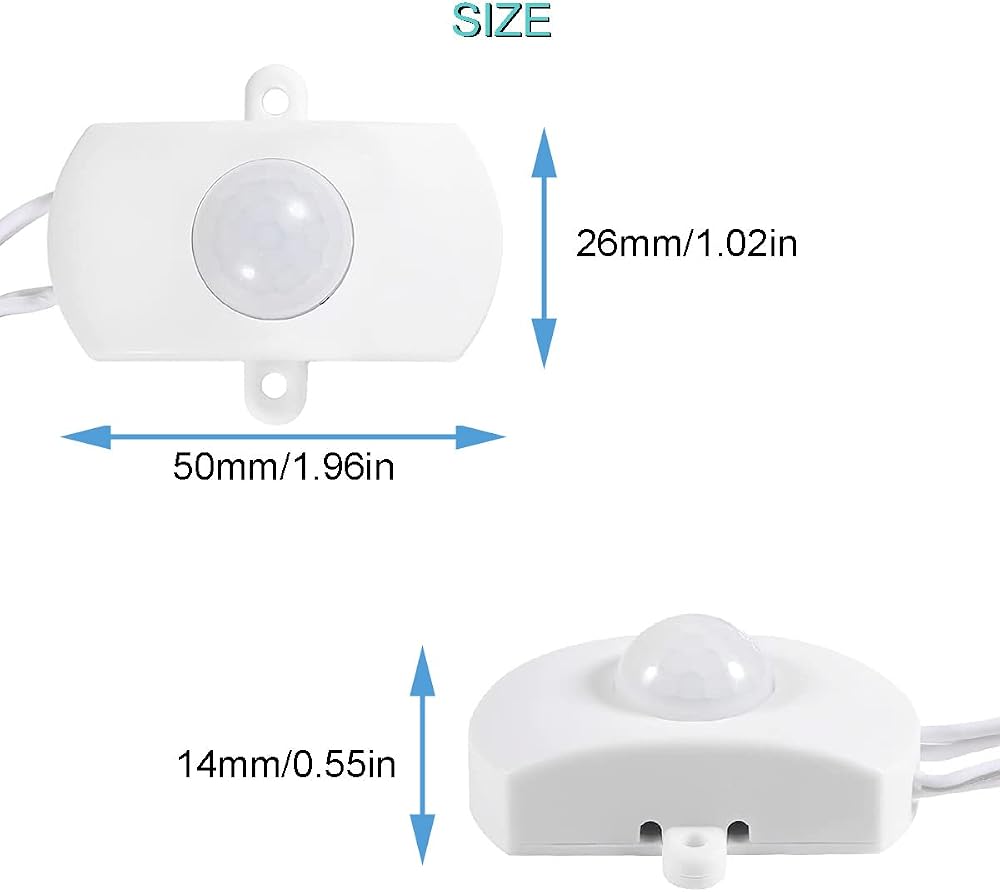

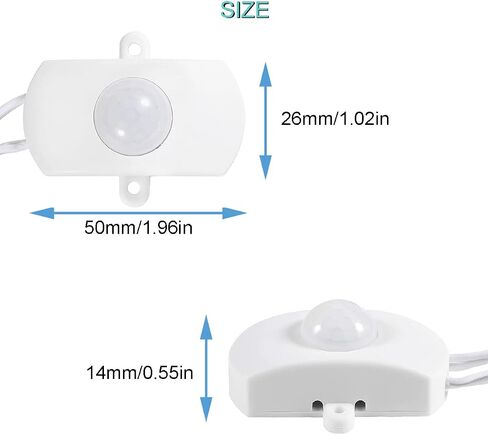

8.Size: 50 * 26 * 21.5mm / 1.96 * 1.02 * 0.84inch
9.Trigger Way: Continuous triggering
10.Light Sensor: 20LUX
11.Color: White + Black

Note:
1.Don't exposed to direct sun light or lighting, big wind, near a heater or air condition
2.Don't fix it at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though
3.Don't fix it in strong shock or vibration environment
4.The PIR Sensor requires a "warm-up time" in order to function properly, about 10s to1min,depend on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will be ready
5.The sensitivity for left-right direction is better than up-down direction, make sure the installation direction is left-right

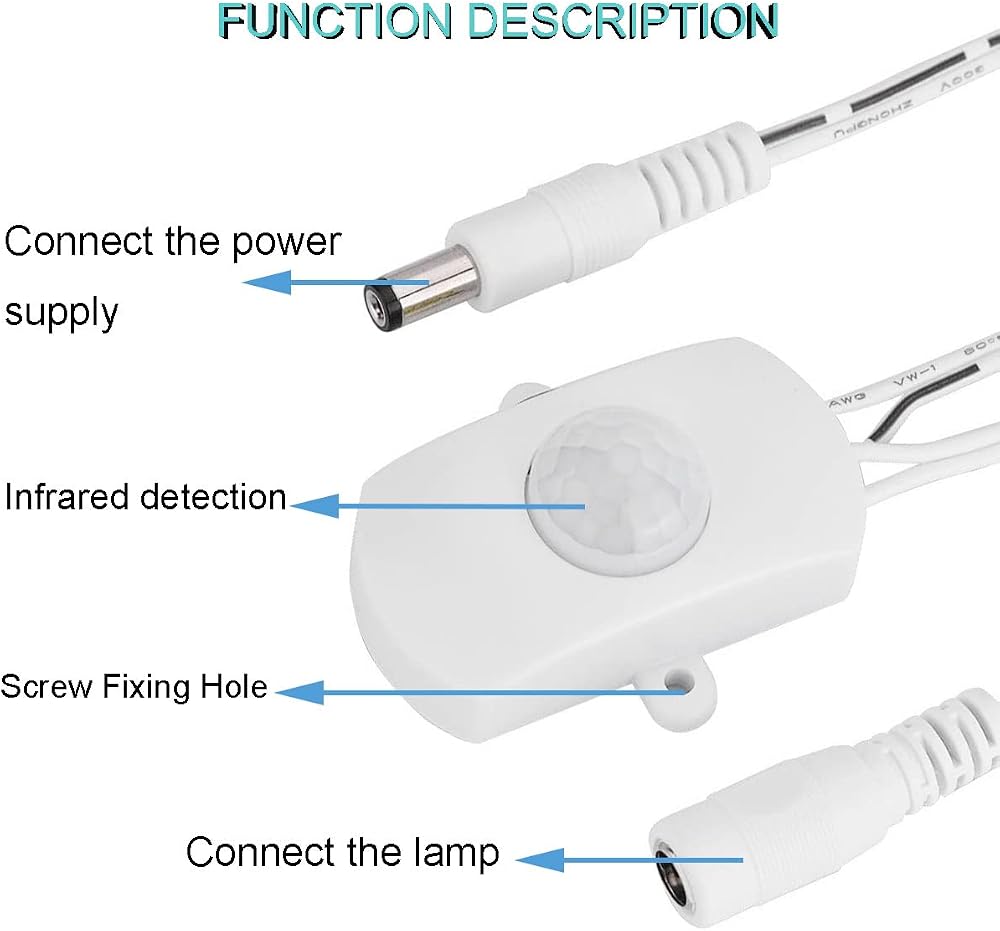

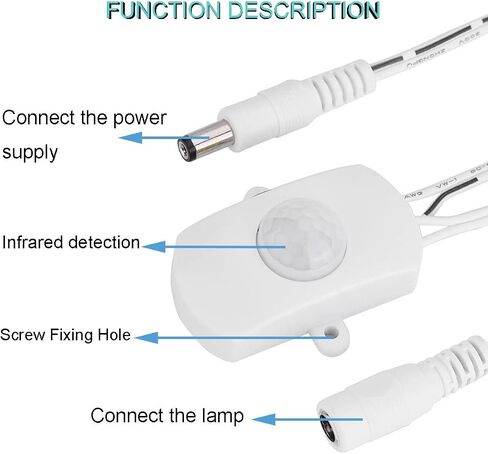

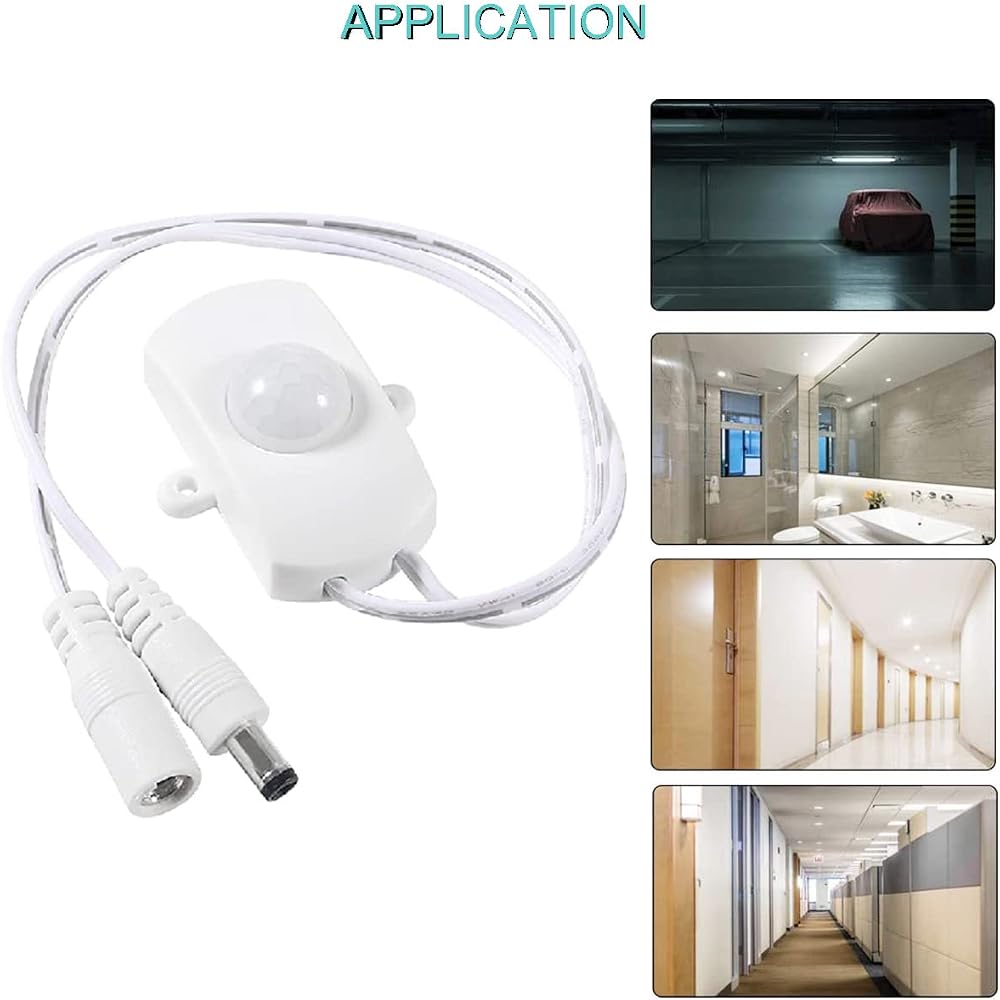

Male and Female DC Power Connectors

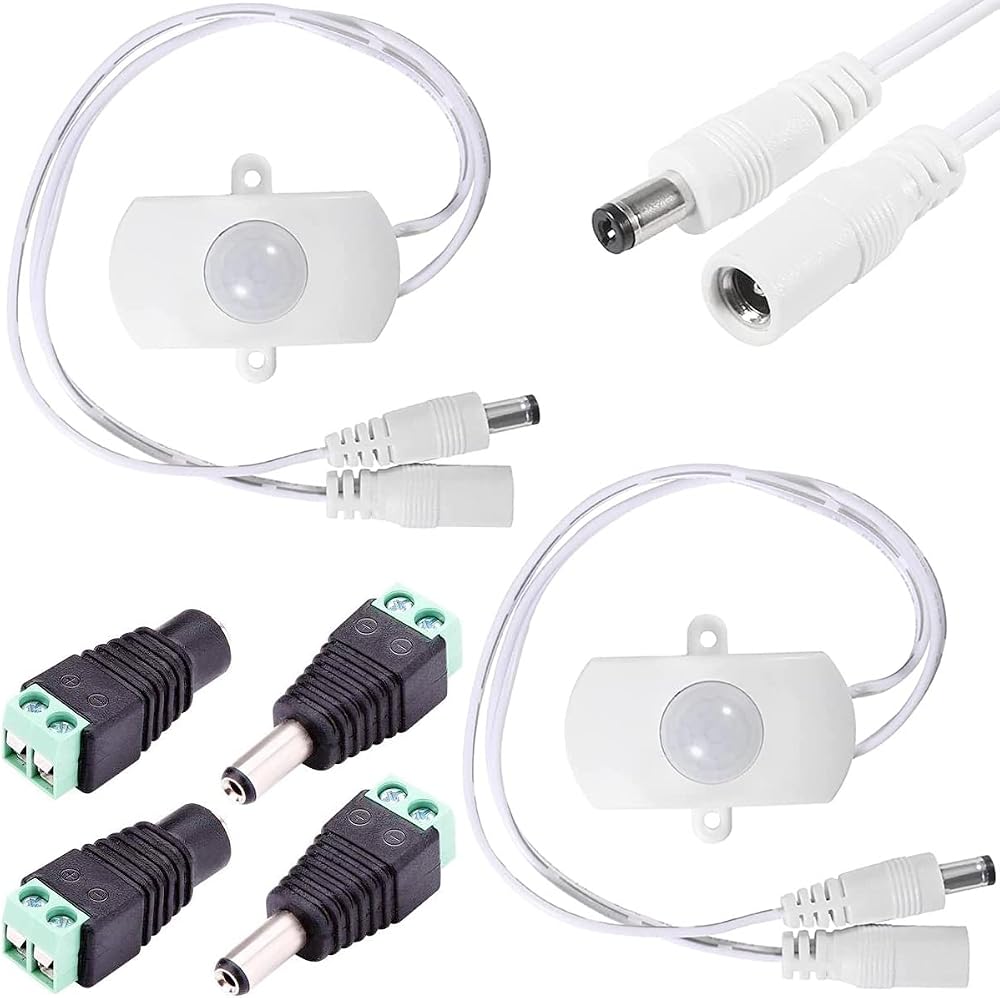

Package Includes:
2 x Mini Pir LED Motion Sensor
2 × Female DC Power Connector
2 × Male DC Power Connector
