Product description
Compatible P/N:
ULN2003 ULN2003A ULN2003APG ULN2003AN

Maximum Continuous Collector Current:500 mA
Maximum Collector Emitter Voltage:50 V
Transistor Configuration:Common Emitter
Maximum Collector Emitter Saturation Voltage:1.6 V
Operating Temperature:-20 °C~+85 °C
Size: 19.2mm x 8.5mm x 7.2mm
Encapsulation: DIP-16

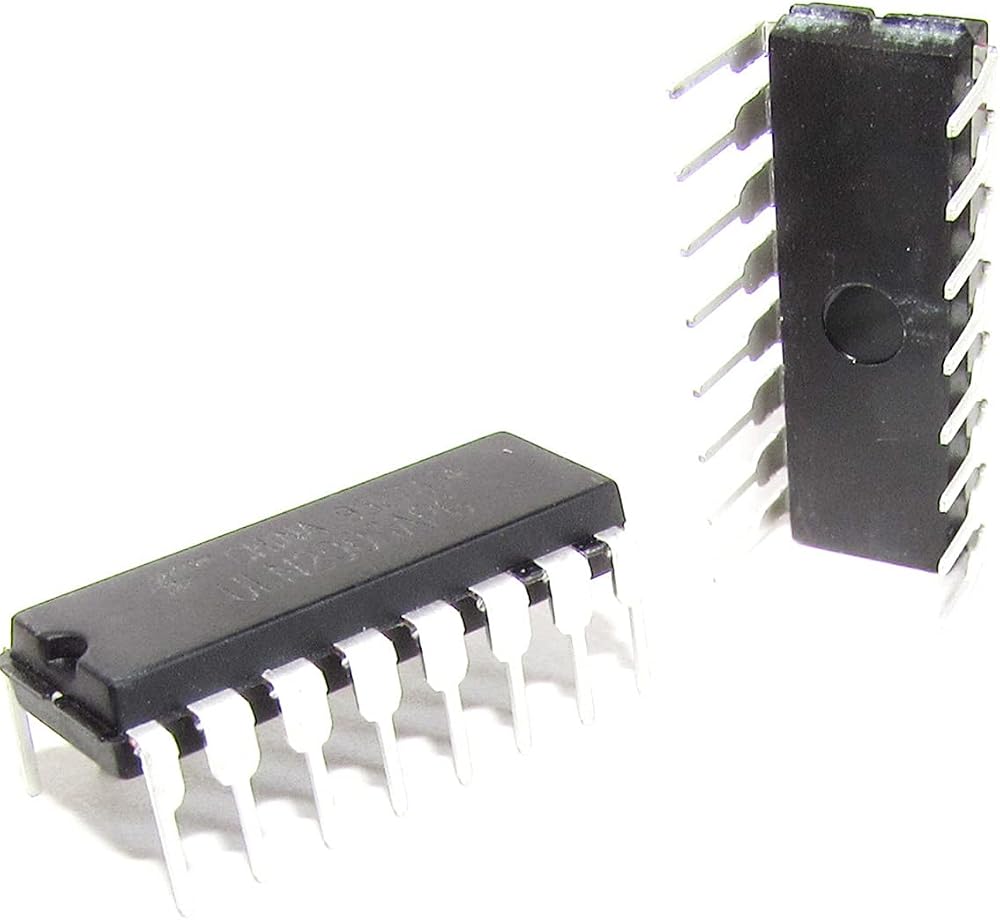

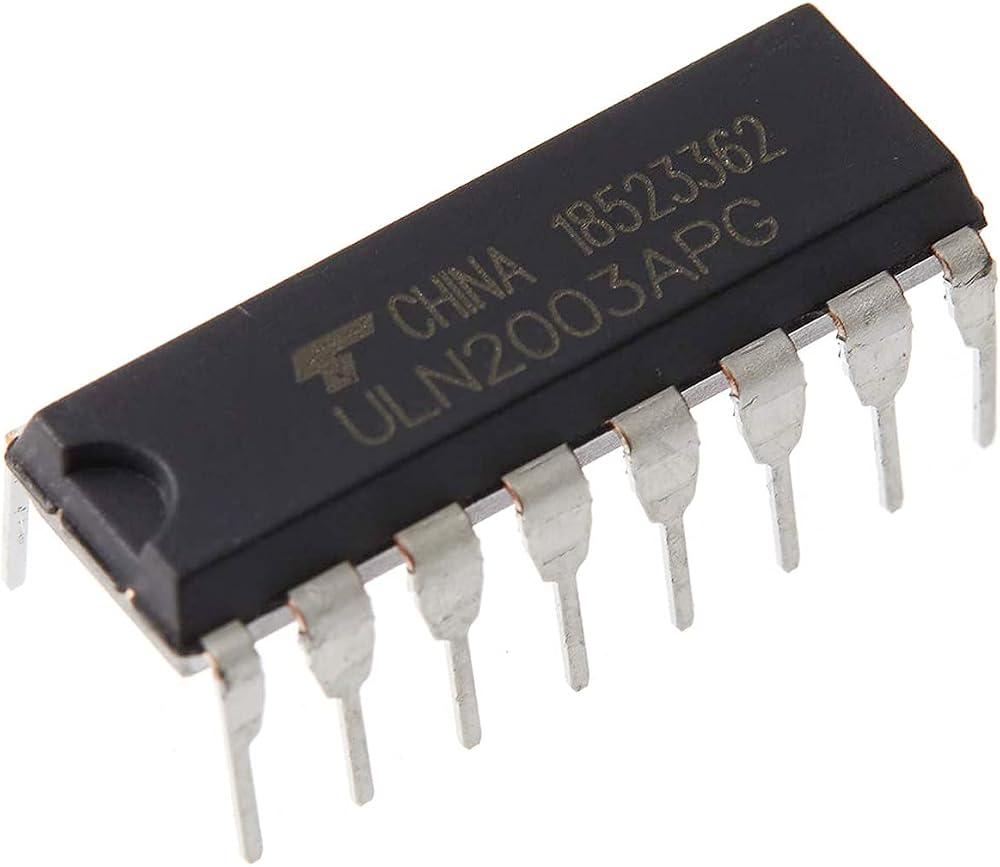

The ULN2003APG is a high-voltage, high-current composite transistor array consisting of seven silicon NPN composite transistors. Each pair of Darlington is connected in series with a 2.7K base resistor.
It can be used with TTL and CMOS circuits at 5V operating voltage. Directly connected, you can directly process data that was previously processed using standard logic buffers.

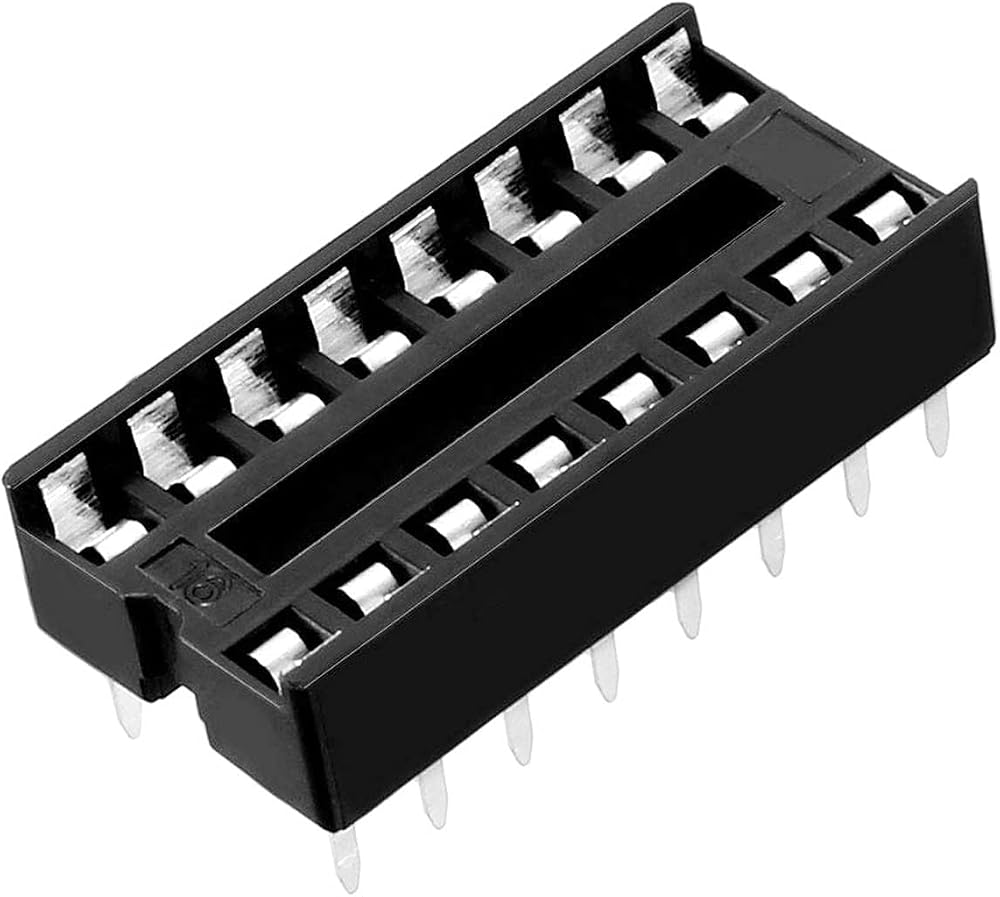

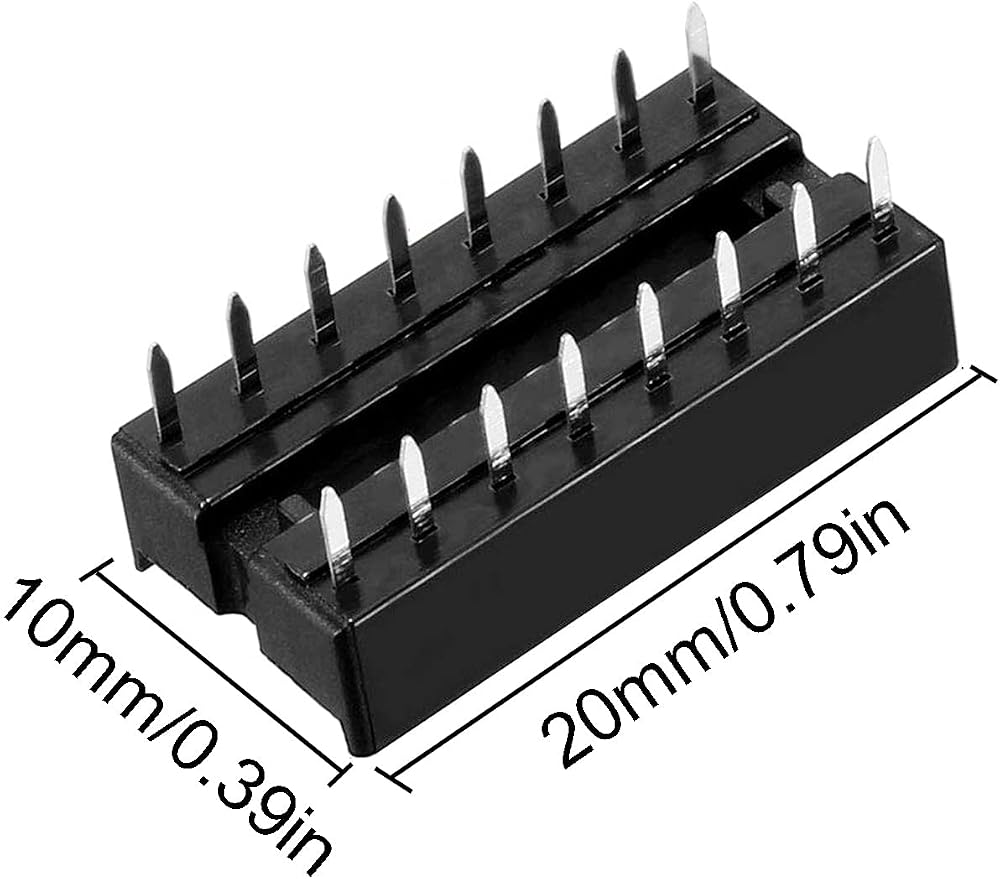

Chip Socket Adaptor:
Easy Operation:
Step 1: Solder the IC socket to the PCB circuit board.
Step 2: Insert the chip into the IC socket, finish.
The IC socket is the carrier between the chip and the PCB circuit board, the chip can be pulled and inserted directly without soldering to the PCB board.

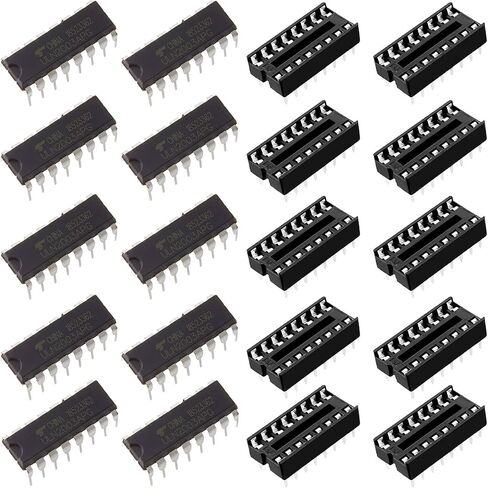

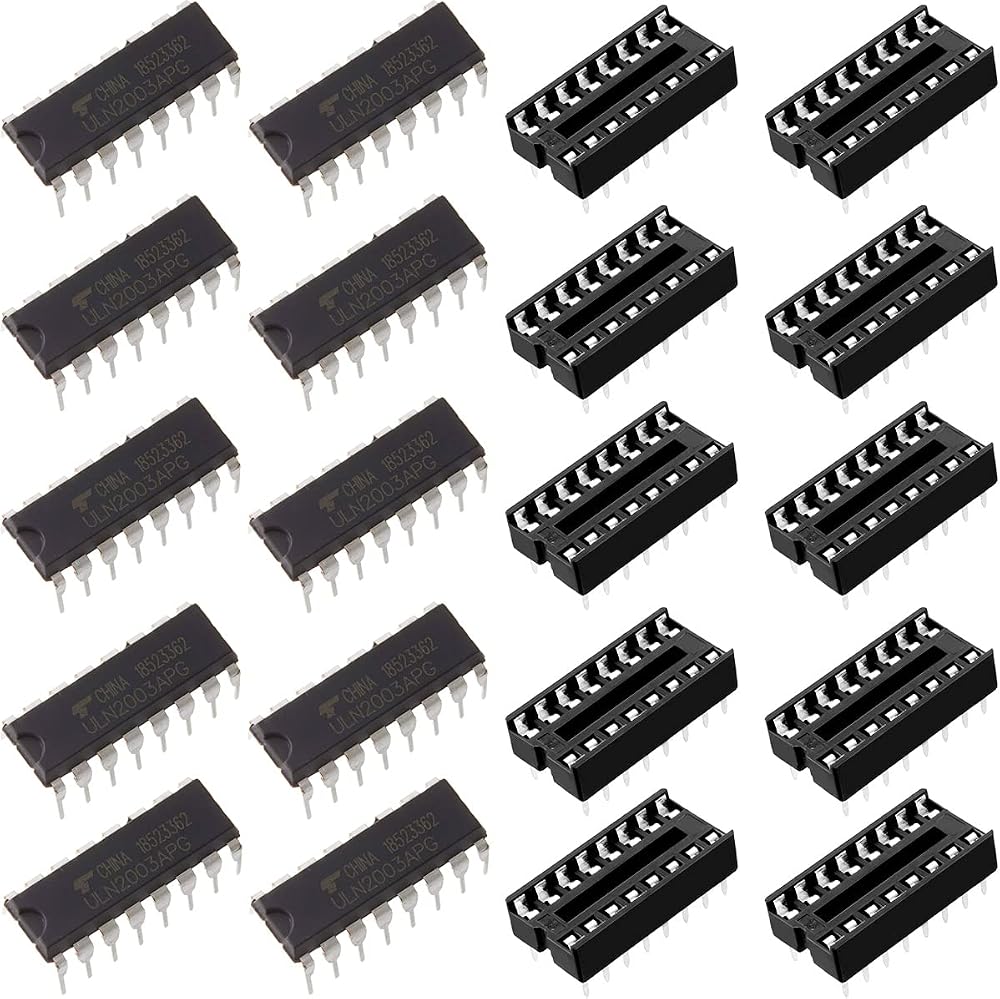

Package Included:
10 x ULN2003A Chip
10 x Chip Socket Adaptor
