Parameters
Product Name : Aluminium Shell Resistors;
Resistance Value :25Ω
Power Rating : 25W;
Resistance accuracy : ± 5% (J);
Dimension : 27*15*15.5mm/1.06*0.59*0.61 inch(L*W*H) (The size does not contain Pins and fixed parts);

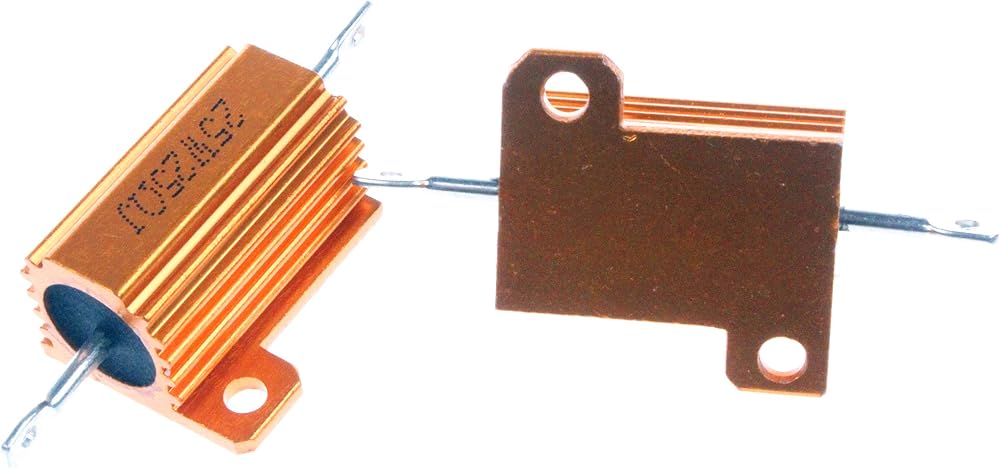

Fixed part Size: 8.8 * 7.3mm / 0.35*0.29 inch (L * W).The bottom of the resistor protrudes with a mounting hole.
Pins length : 12.1mm / 0.48 inch;
External Material : Aluminum;
Color : Gold ;
Net Weight : 13.3g / 0.03b;
Suitable for inverter, LED lights, speakers, frequency divider, servo industry and other industrial control
This product using a professional process potting, with a solid, temperature, moisture resistance, high anti-vibration, explosion-proof and so on.

Tips:
This product in the use of time, there will be heat phenomenon.
Do not touch the outside of the resistor directly by hand when the resistor is in operation for a long time to avoid injury.
If the resistor work for a long time, please do Heat dissipation.

Package Included :

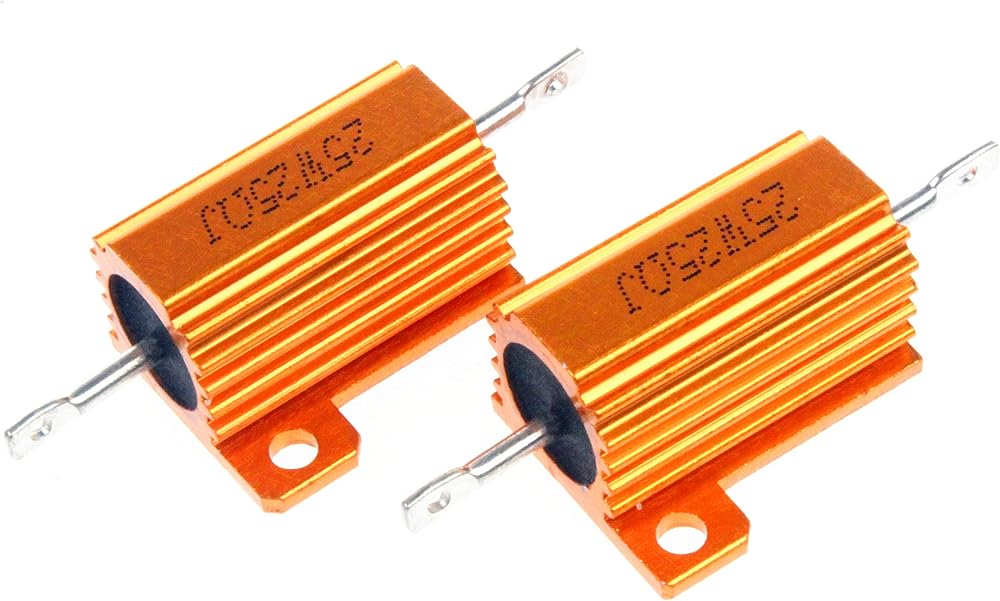

2Pcs LM YN 25 Watt 25 Ohm 5% Electronic Aluminium Shell Resistors
