Feature:

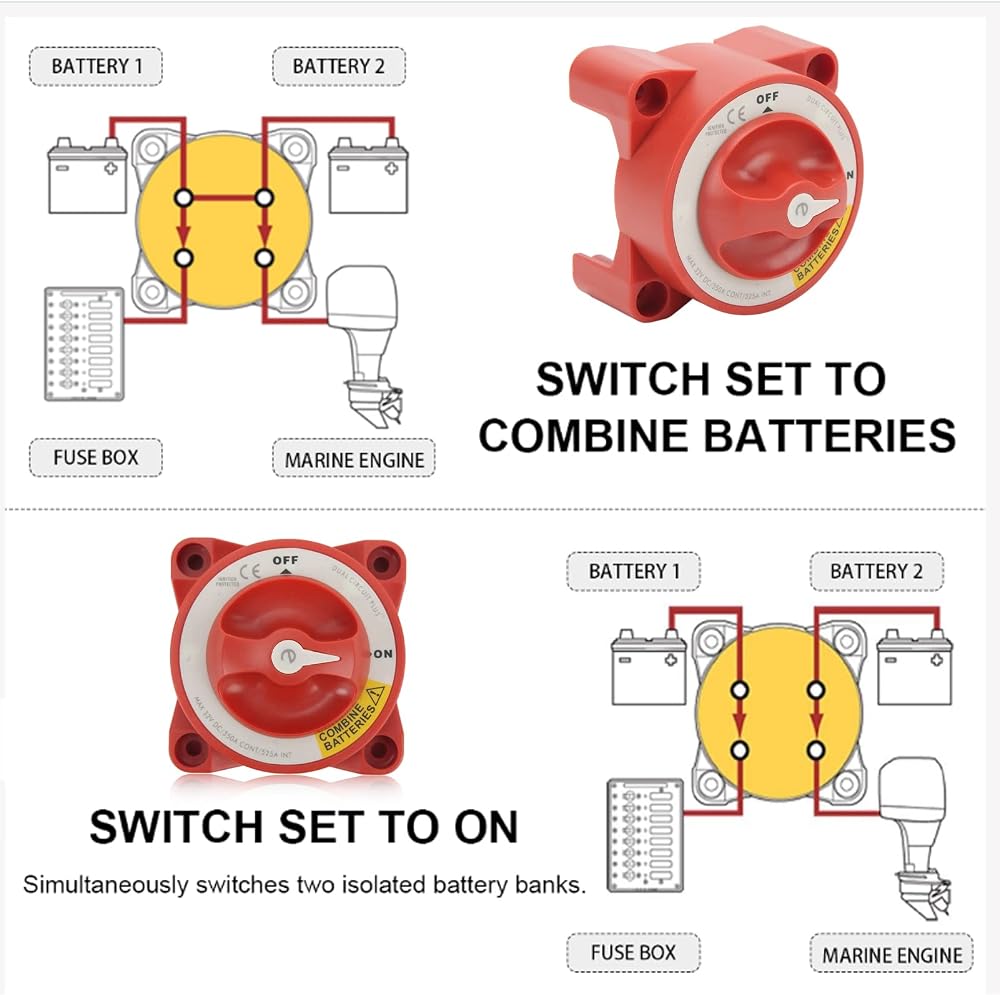

1. Advantage: Make before break contact design, support for switching without interrupting power, switching two isolated battery packs simultaneously or combining battery packs to all loads.

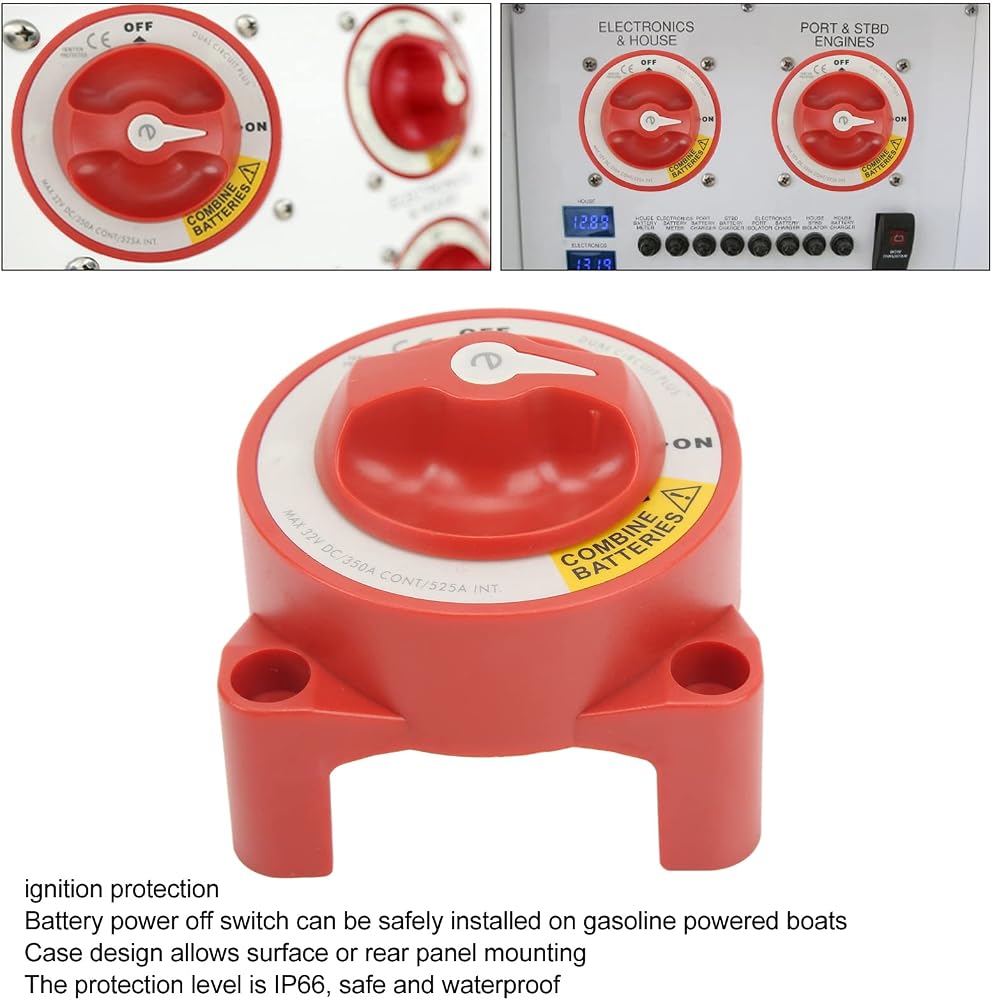

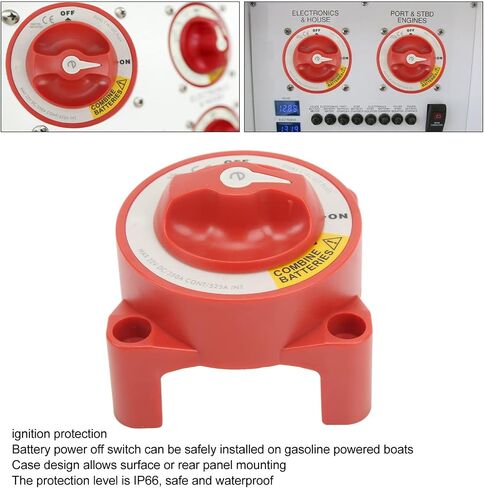

2. Ignition Protection: The battery disconnect switch can be safely installed on gasoline powered boats, and the continuous rated current of the inboard gasoline or engine is 350A.

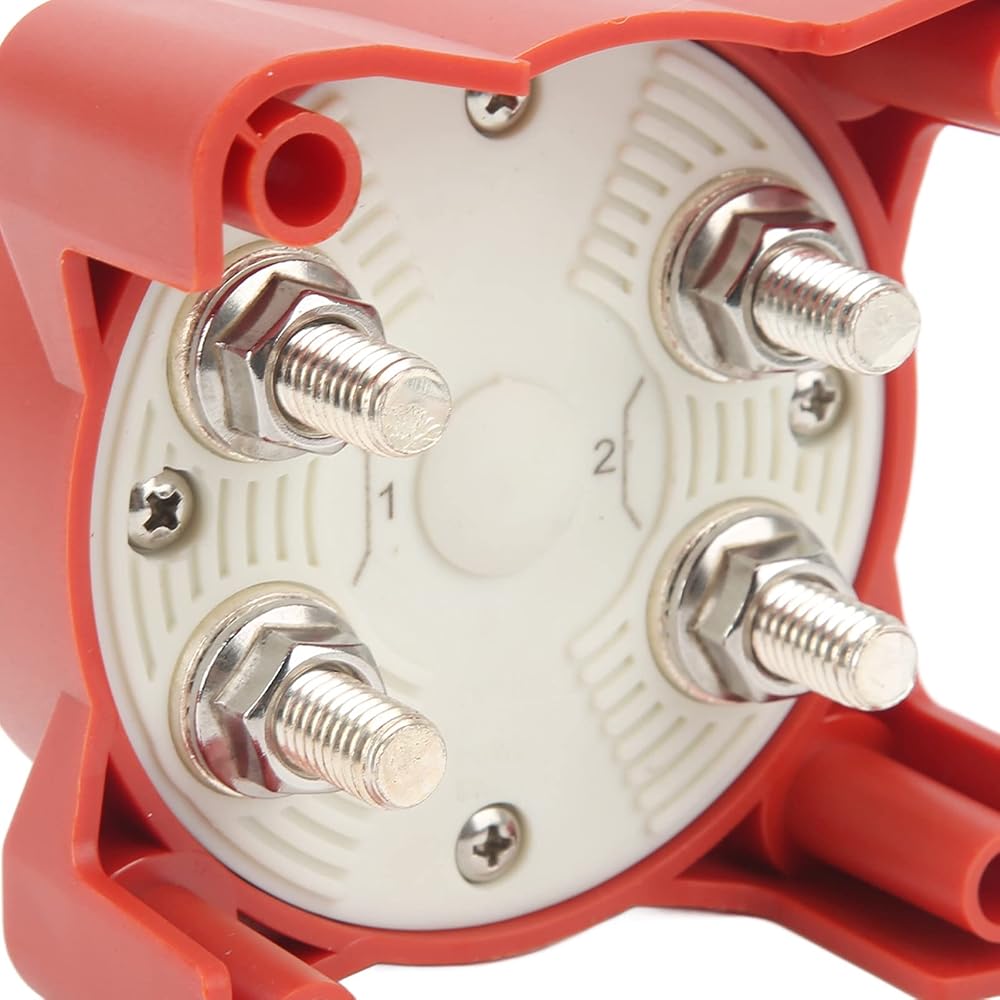

3. 4 Studs: Tinned copper studs fits for maximum conductivity accept battery cables up to 4/0 AWG, studs accept 3/8in (M10) ring terminals, and 7/8in (22mm) stud lengths accept multiple cable terminations.
4. Easy Mount and Waterproof: The housing design, support surface or rear panel mount, the tactile indicators communicate knob position by feel, and the enclosure is IP66 rated for safety and water resistance.

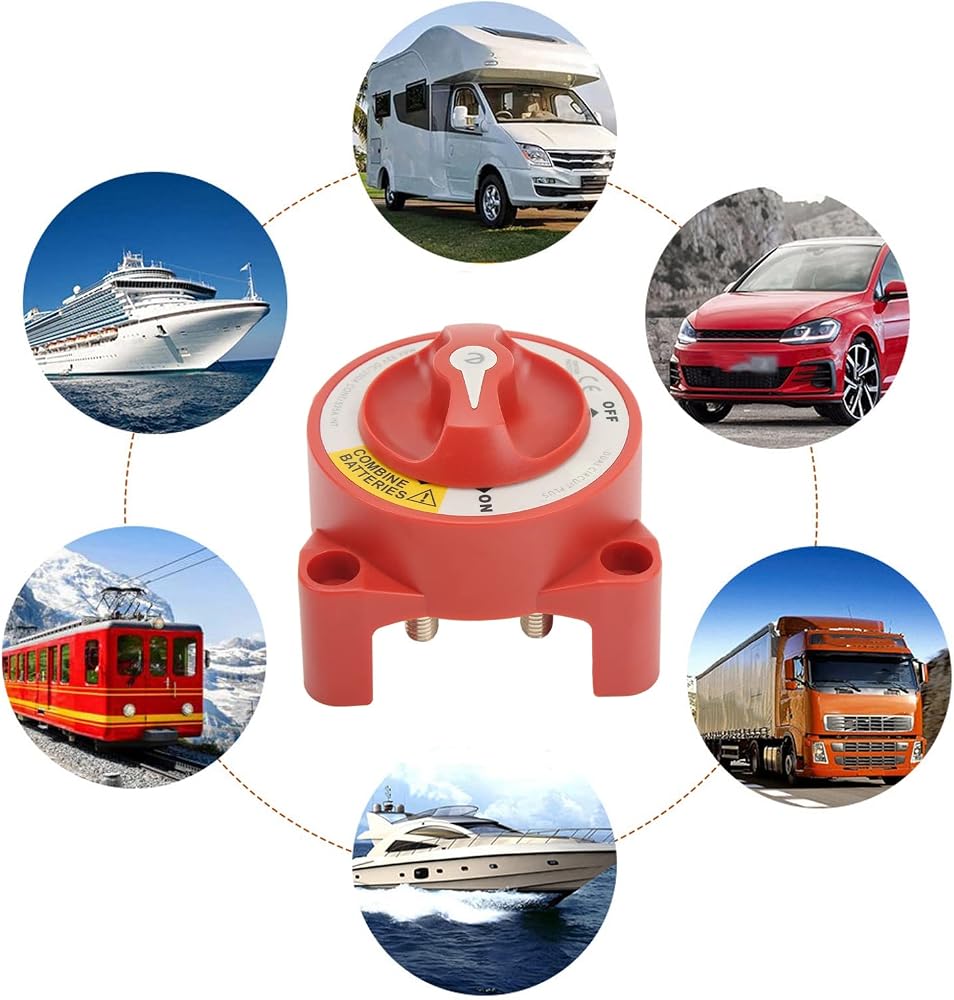

5. Wide Application: Battery power cutoff switch can be widely used in boats, small yachts, RVs, camper, trucks, cars, ATV, UTV battery banks and so on.

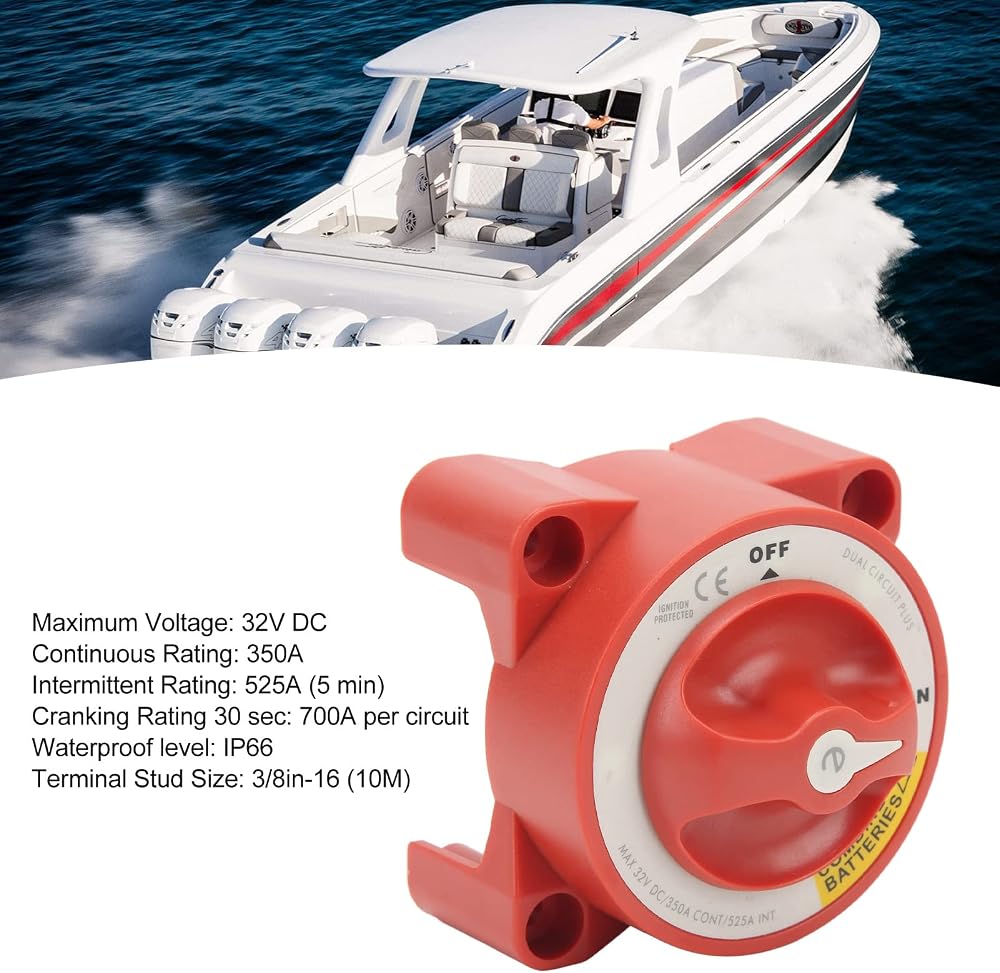

Specification:
Item Type: Battery Isolator Switch
Material: ABS plastic shell, copper silver plated inner core

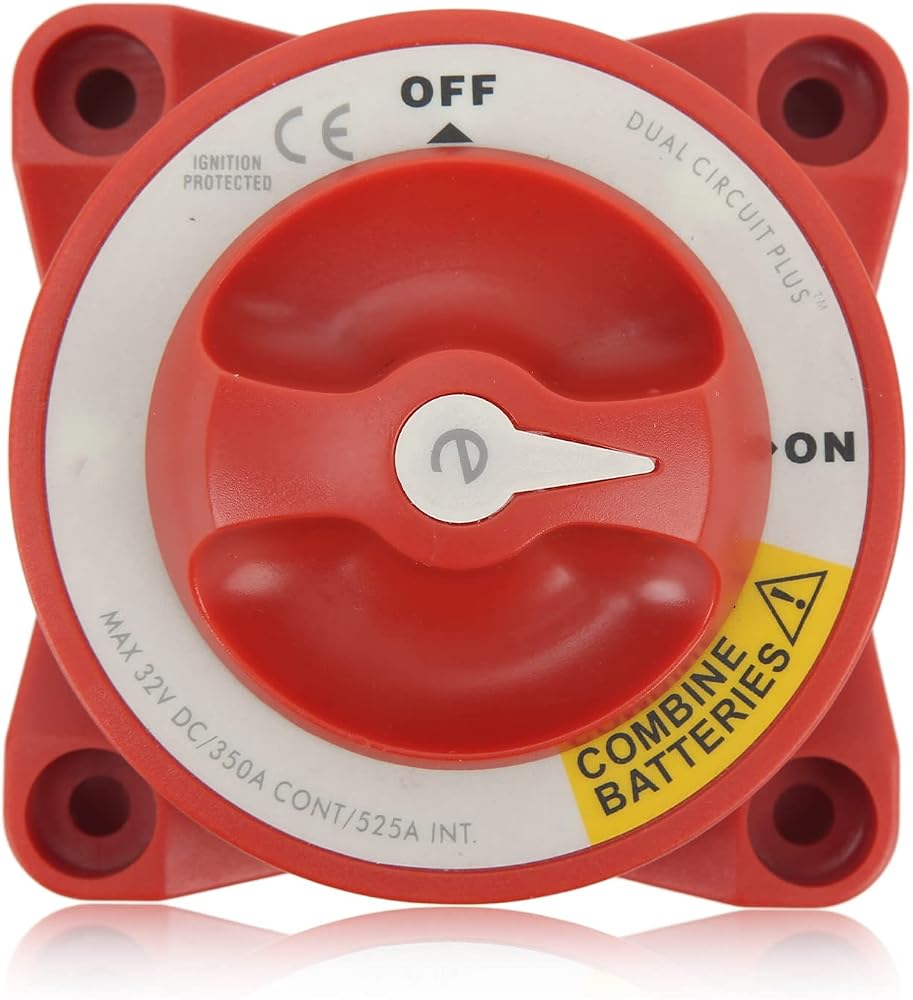

Gear: OFF ON
Maximum Voltage: 32V DC
Continuous Rating: 350A
Intermittent Rating:525A (5 min)
Cranking Rating 30 Sec: 700A Per Circuit
Waterproof Level: IP66

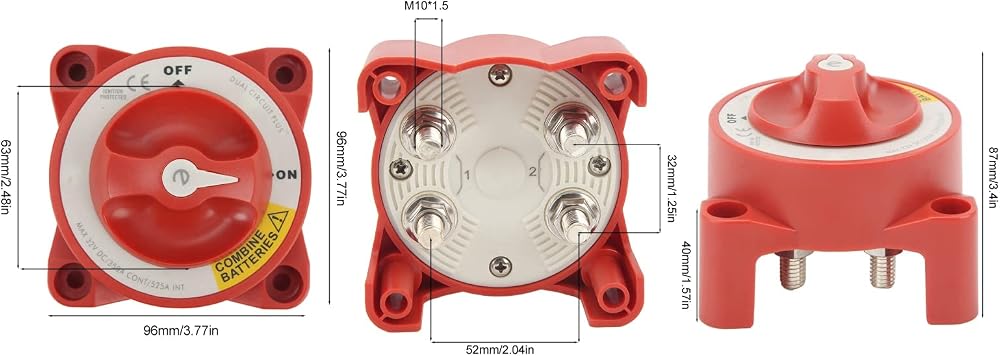

Terminal Stud Size:3/8in-16 (10M)
Applicable: Suitable for Marine, Boat, RV, big truck, modified car
Package List: 1 x E-Series Battery Switch
