10Pcs MAX485 Module TTL Turn RS - 485 RS485 Module Converter Board Single Chip Development Accessories, for Arduino Integrated Circuits

SAR 47
Brand
DAOKAI
Weight
40 g
– 1 +

Special Features

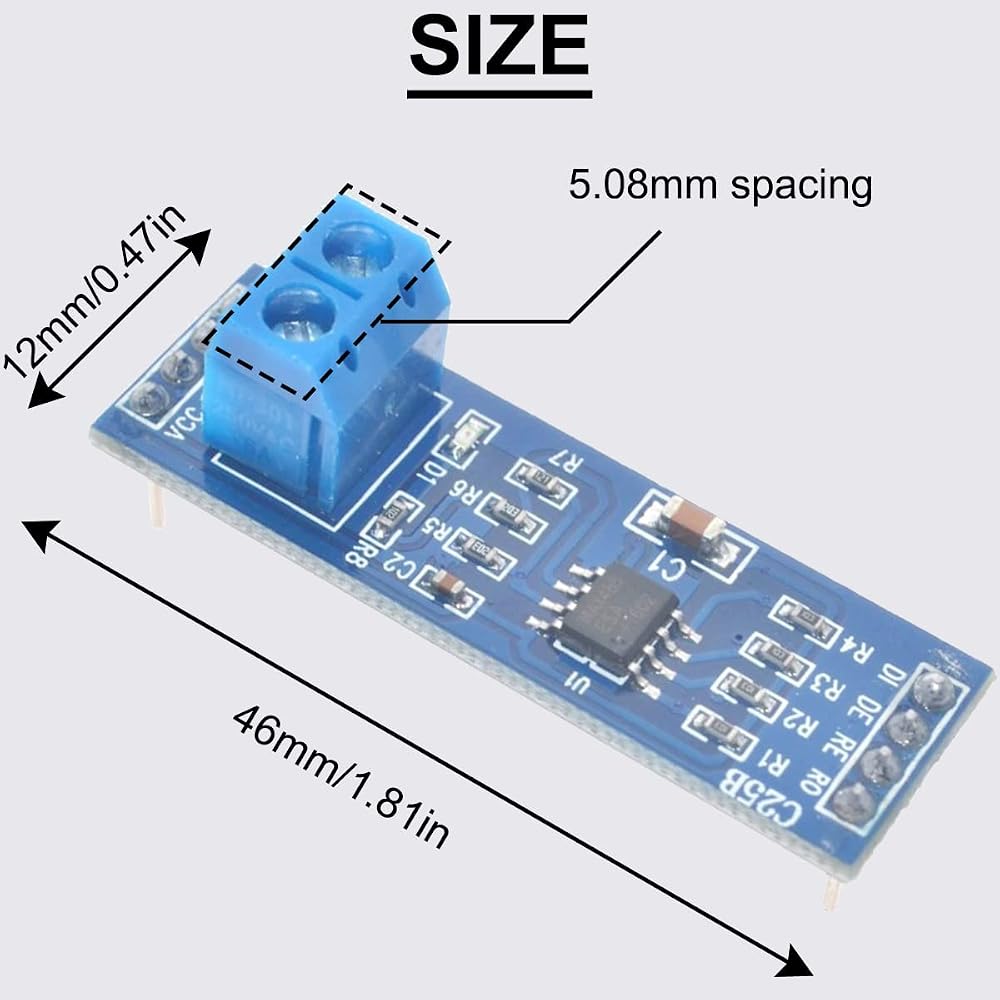

  • ⚡[Specification] Chip: MAX485 chip, working voltage: 5V, board size: 46x12mm/1.81x0.47in.
  • ⚡[MAX485 chip] The onboard MAX485 chip is a low-power, slew-rate limited transceiver for RS-485 communication.
  • ⚡[Feature]All the pins of the chip have been drawn out and can be controlled and operated by the microcontroller.
  • ⚡[Terminal] on-board with 5.08(mm) pitch 2P terminal, convenient for RS-485 communication wiring.

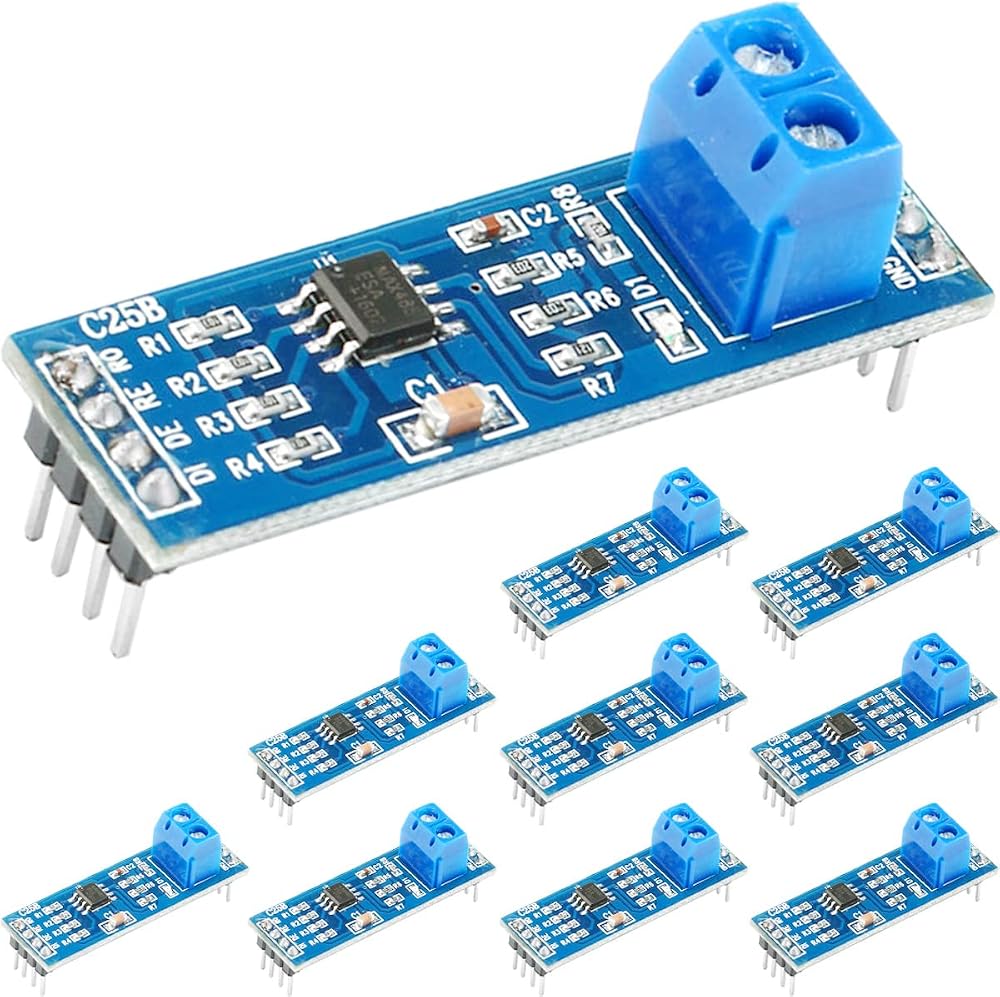

  • ⚡[Package includes]You will get 10 x TTL turn RS - 485 MAX485 chip RS485 module.

Description

Product Instruction：

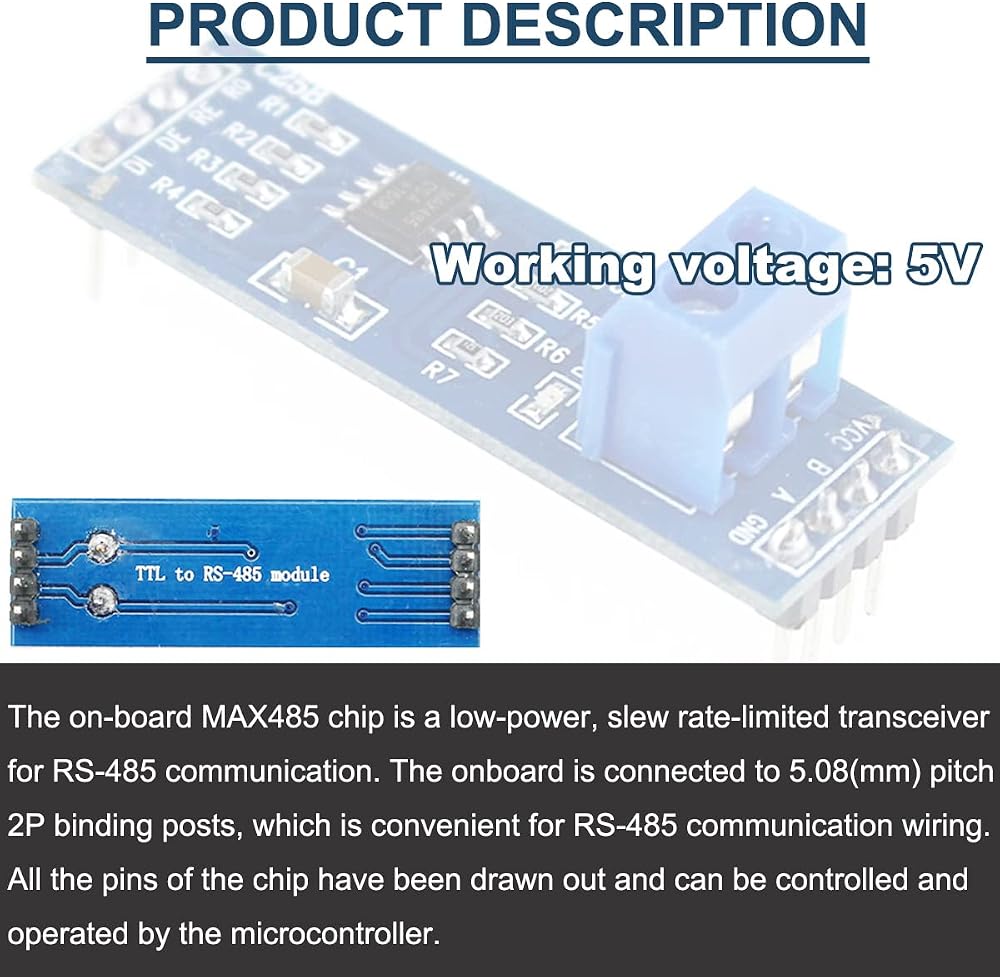

The on-board MAX485 chip is a low-power, slew rate-limited transceiver for RS-485 communication. The onboard is connected to 5.08(mm) pitch 2P binding posts, which is convenient for RS-485 communication wiring. All the pins of the chip have been drawn out and can be controlled and operated by the microcontroller.It works at a single 5V power supply and the rated current is 300uA.

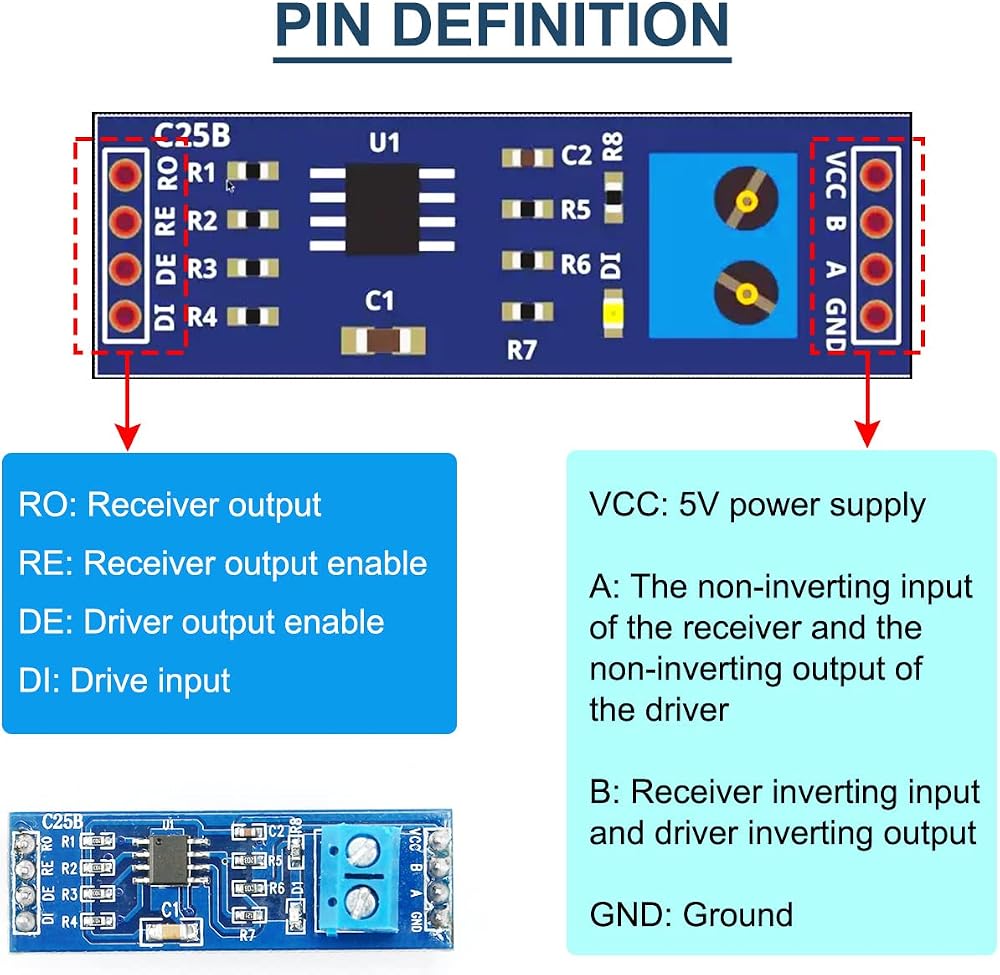

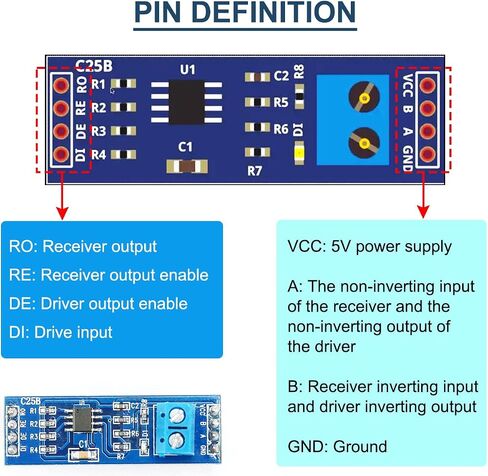

Pin definition:
RO: Receiver output
RE: Receiver output enable
DE: Driver output enable
DI: Drive input
VCC: 5V power supply
A: The non-inverting input of the receiver and the non-inverting output of the driver
B: Receiver inverting input and driver inverting output
GND: Ground

Package includes:
10 x TTL turn RS - 485 MAX485 chip RS485 module
