GEPRC GEP-M10-DQ Series GPS Module

SAR 165

Brand
GEPRC
Weight
8 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • GEP-M10 series GPS positioning module has the features of small size, fast positioning, stable connection, and convenient use.
  • it supports GPS + BDS + Galileo + QZSS + SBAS joint positioning, the highest Up to 32 satellites.
  • Built-in Flash chip and farad capacitor can save configuration parameters and fast hot start. Small volume ceramic antenna provides good receiving ability.
  • Integrated QMC5883L magnetometer and DPS310 barometer can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing and other model products.
  • When you have any questions, write to us, we will provide the best customer service.

Description

Specifications

Model: GEP-M10-DQ
GPS chip: u-blox M10
Magnetometer: QMC5883L
Barometer: DPS310
Input voltage: 3.3V-5V
Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
Channel: 72ch
Navigation satellites: Up to 32 pieces
Output protocol: UART(ublox),I2C
Baud rate: 115200bps
Output Frequency: 10Hz
Speed Accuracy: 0.05 m/s
Horizontal positioning accuracy: 2D ACC1.5m(Weather)
Timing accuracy: 30 ns
Receiver sensitivity: Trace-162dBm, Capture-160dBm
Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
Maximum acceleration: 4G

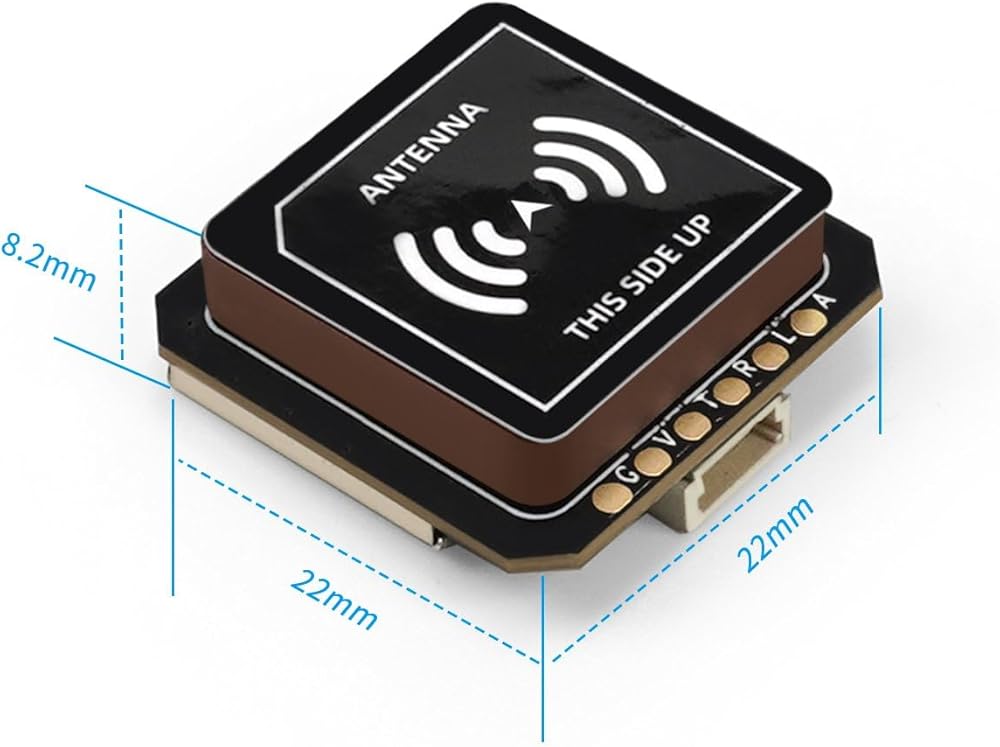

Size:22*22*8.2mm

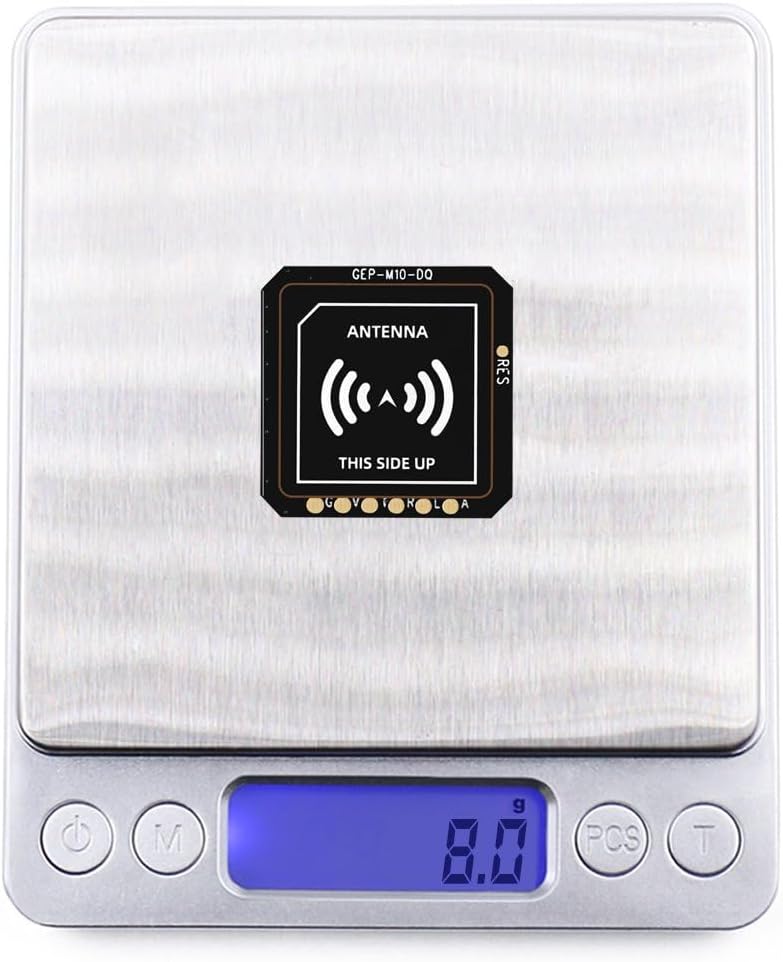

Weight: 8.0g

Includes

1 x GPS module
1 x Terminal wire
1 x Instruction manual
1 x GEPRC sticker
1 x Heat shrink tubing
