Xiaoyztan 10 Pcs KSD9700 110 Celsius Bimetal Thermostat Normally Close NC Type Temprerature Control Switch Units for Houshold Applicances or Other Thermal Projects in Saudi Arabia Xiaoyztan 10 Pcs KSD9700 110 Celsius Bimetal Thermostat Normally Close NC Type Temprerature Control Switch Units for Houshold Applicances or Other Thermal Projects in Saudi Arabia

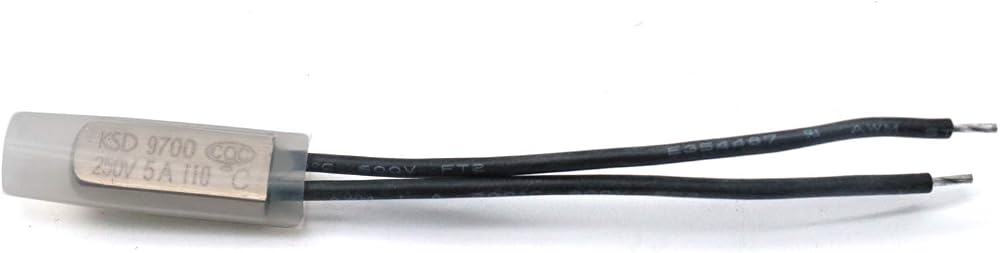

Xiaoyztan 10 Pcs KSD9700 110 Celsius Bimetal Thermostat Normally Close NC Type Temprerature Control Switch Units for Houshold Applicances or Other Thermal Projects

SAR 45
Brand
Xiaoyztan
Weight
36 g
– 1 +

Special Features

  • PACKAGE - 10 x 110℃ Normally Closed Bimetal Thermostat.
  • INTRODUCTION - KDS9700 is a thermal switch with a rectangle bimetal normally closed temperature sensor, widely used in home appliance and rsquo; use motor and electrical equipment, such as air Conditioner motor, transformer, thermal appliances, etc.
  • PRINCIPLES - Normally, it is in free state and the contacts are closed when the electrical appliance is working in normal condition. When the temperature rises to the preset operating temperature, the bimetal sheet jumps, the transmission contacts act quickly, and the circuit is disconnected.
  • FEATURES - Disconnection Temperature: 110℃ / 230°F; Rated Voltage: 250V; Current: 5A; Max Rated.DIMENSIONS - Cable Length: 65mm/ 2.6inches; Head Dimension: 20 x 8 x 3mm / 0.79 x 0.31 x 0.12 inch (L*W*T).
  • DIFFERENCE NOTICE - Please allow 1-3mm measurement difference due to manual measurement and a certain degree of color difference caused by camera lenses, different phone screens, and different monitors.

Description

Specifications:
Model.No: KSD9700
Material: Plastic, Bimetal
Contact: NC(Normal Close)
Rated Voltage: 250V
Current: 5A
Max Rated Disconnection Temperature: 110℃
Color: Silver Tone, Black
Cable Length: 6.5cm/ 2.6"
Head Dimension: 20x8x3mm / 0.79"x0.31"x0.12"(L*W*T)
Weight: 36g

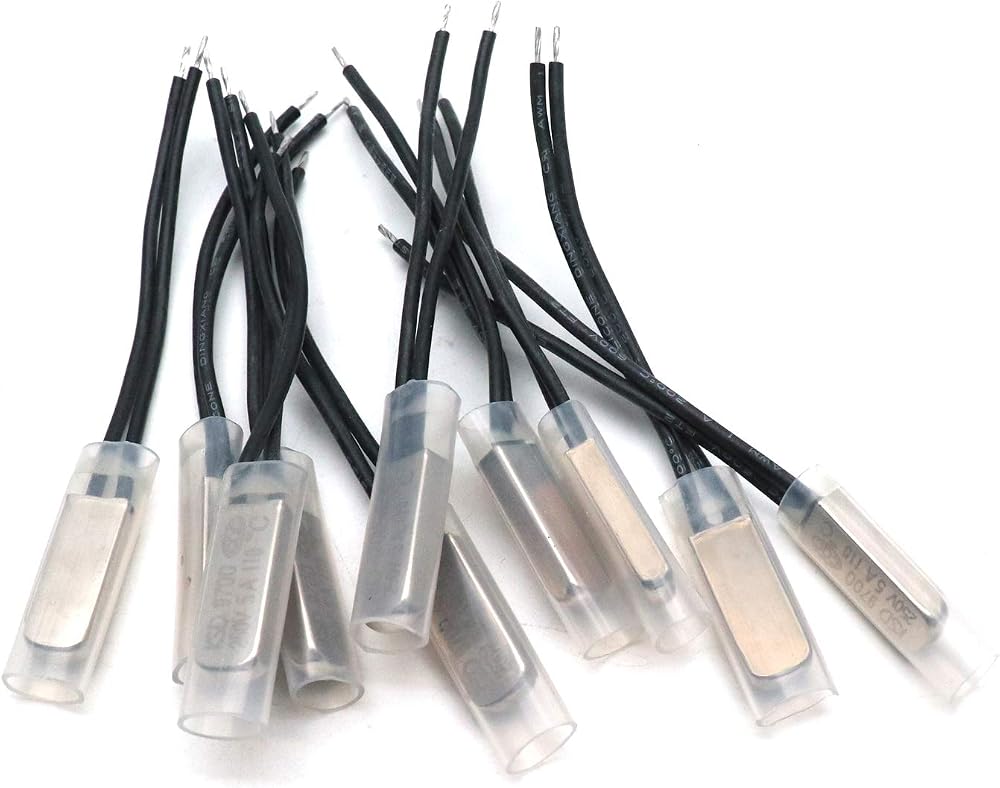

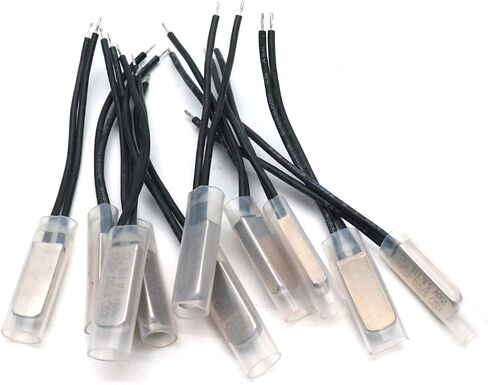

Package Content: 10 x Temperature Control Switch

Notice:
1. Please keep the cap firm with the installation surface of the controlled appliance when install. Please wipe conduction silicon grease to the sensing surface in order to insure effect of the temperature sensing.
2. Never collapse or deform the plastic or metal shell during installation in order to avoid any influence to its performance.
3. For products used in circuit at no more than 5A current, please choose the lead with cross-section surface of copper core falls within0.4-0.75mm for connection.
4.This product is not suitable for heat in the air, only applies to contact heat! (available binding wire, iron wire, fixed or 704 silicone rubber for fixed)
5. Metal shell case charged, work is not suitable for the water.
6. When installation, the temperature control switch shall be clingy was charged with the installation of the equipment surface.
