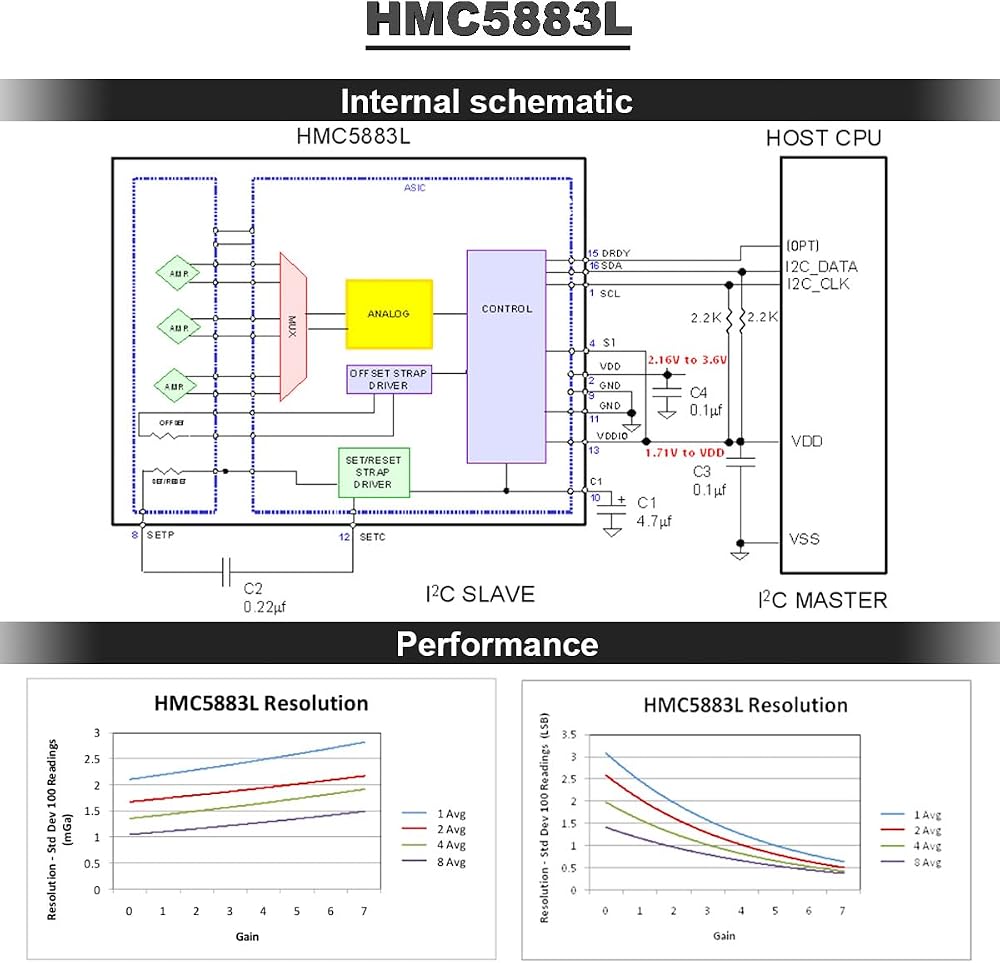

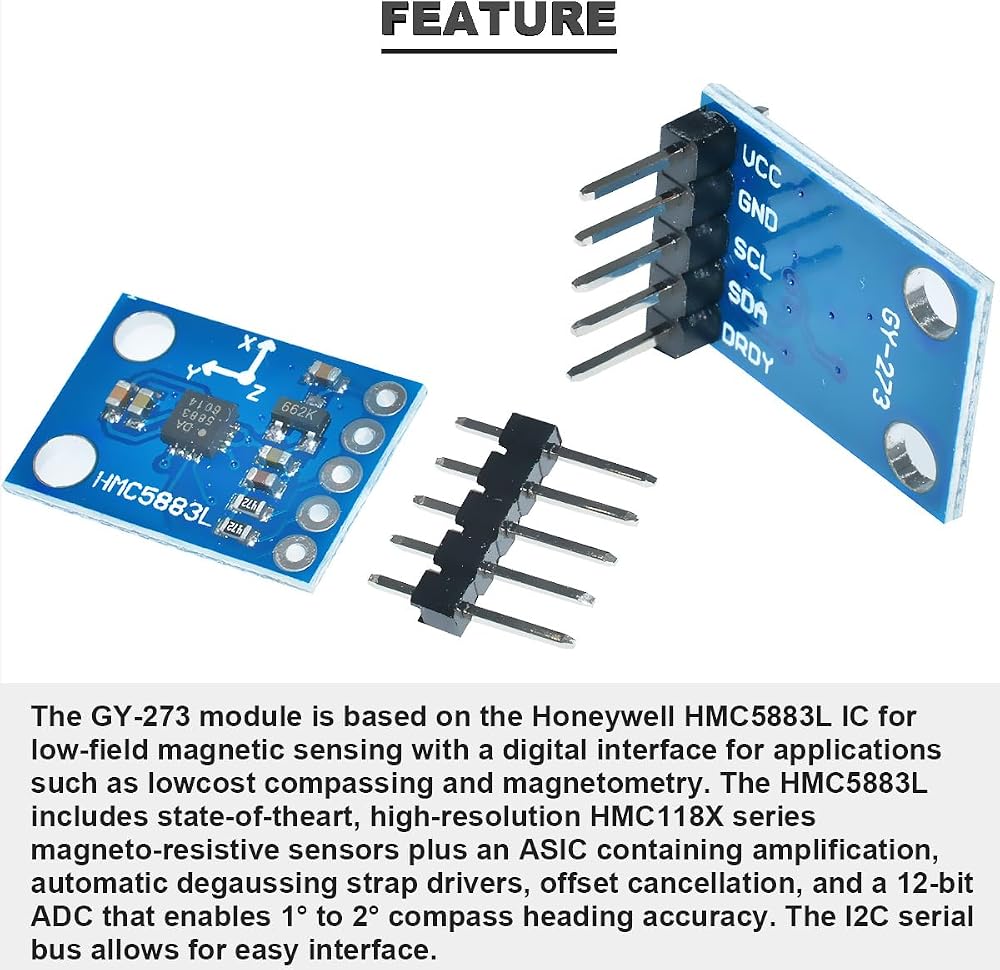

The GY-273 module is based on the HMC5883L IC for low-field magnetic sensing with a digital interface for applications such as lowcost compassing and magnetometry. The HMC5883L includes state-of-theart, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy. The I2C serial bus allows for easy interface.

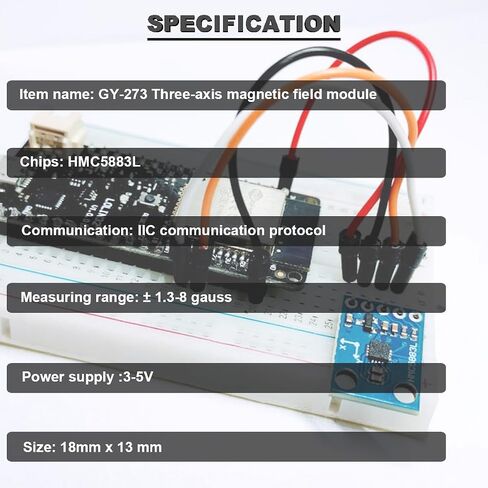

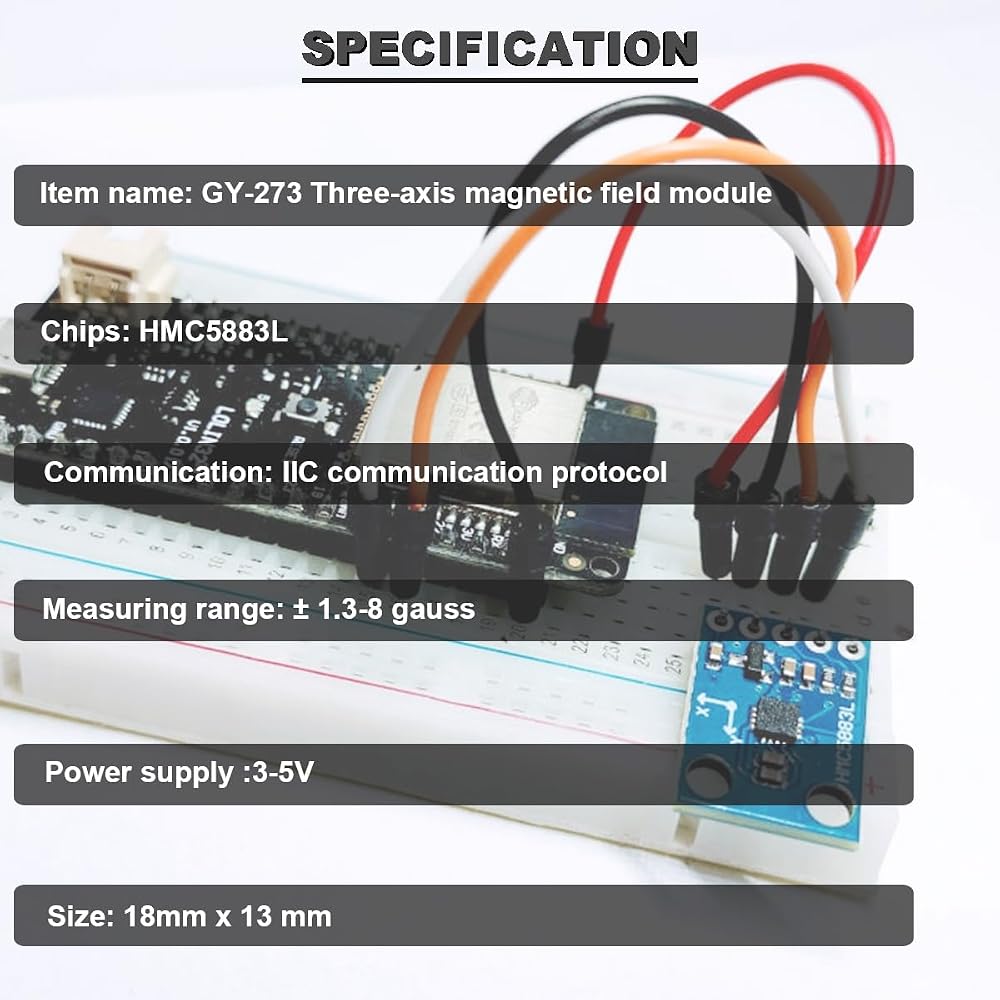

Specification:
Item name: Three-axis magnetic field module
Model: GY-273
Chips: HMC5883L
Communication: IIC communication protocol
Measuring range: ± 1.3-8 gauss
Power supply :3-5V

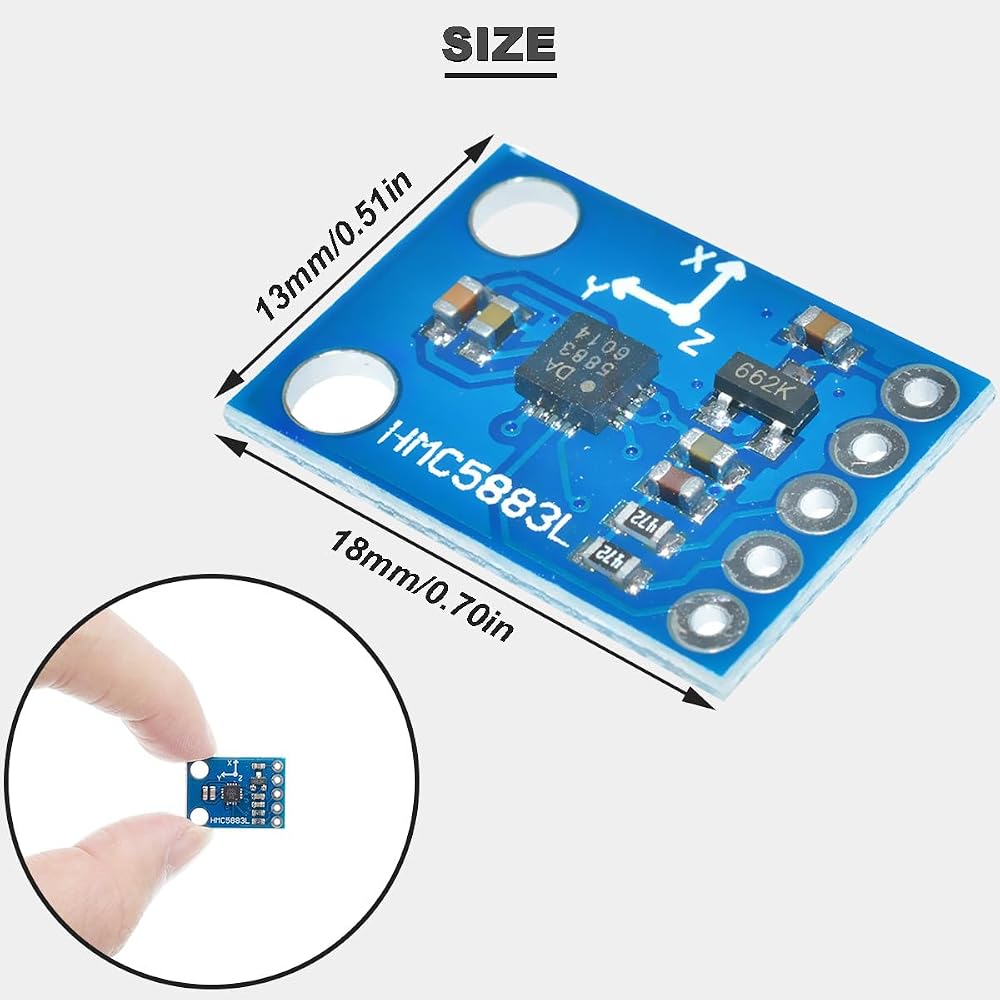

Size: 18mm x 13 mm

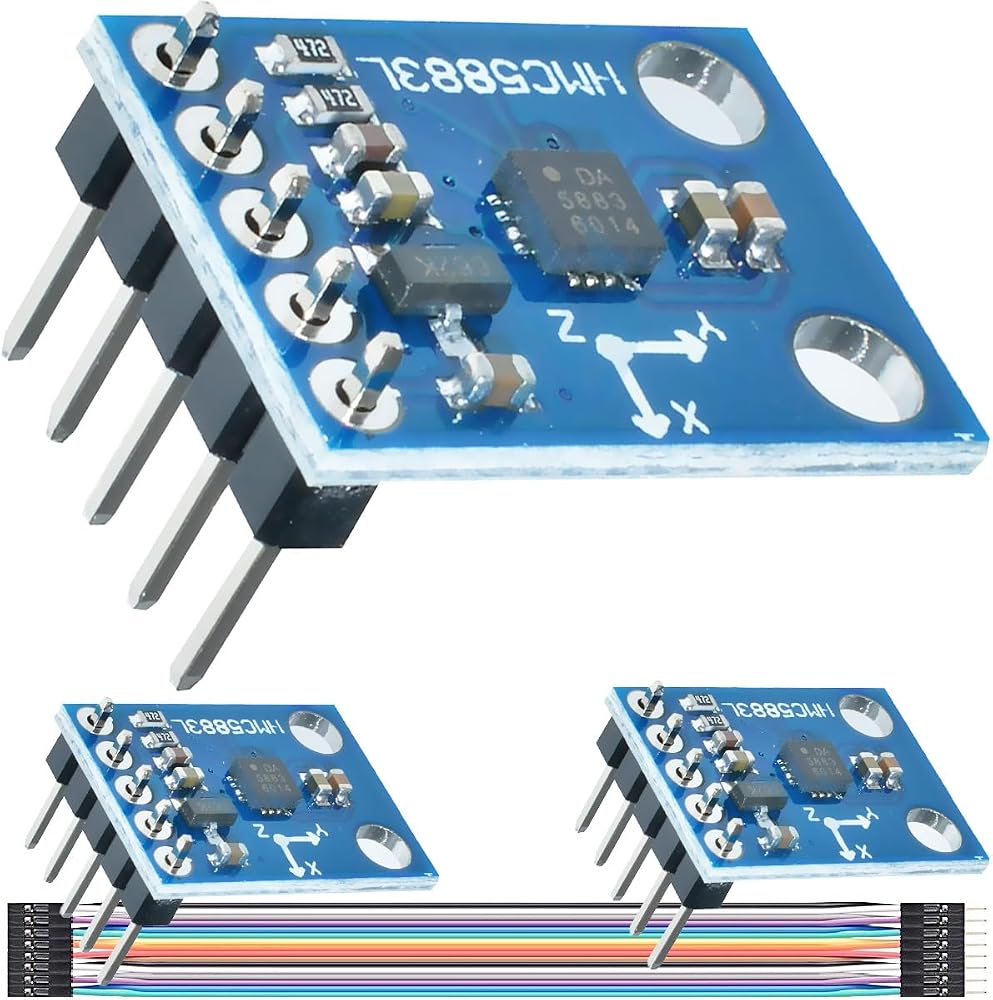

Package Includes:
3 x Three-axis magnetic sensor
3 x 5-pin header
15 x Male to female cable
