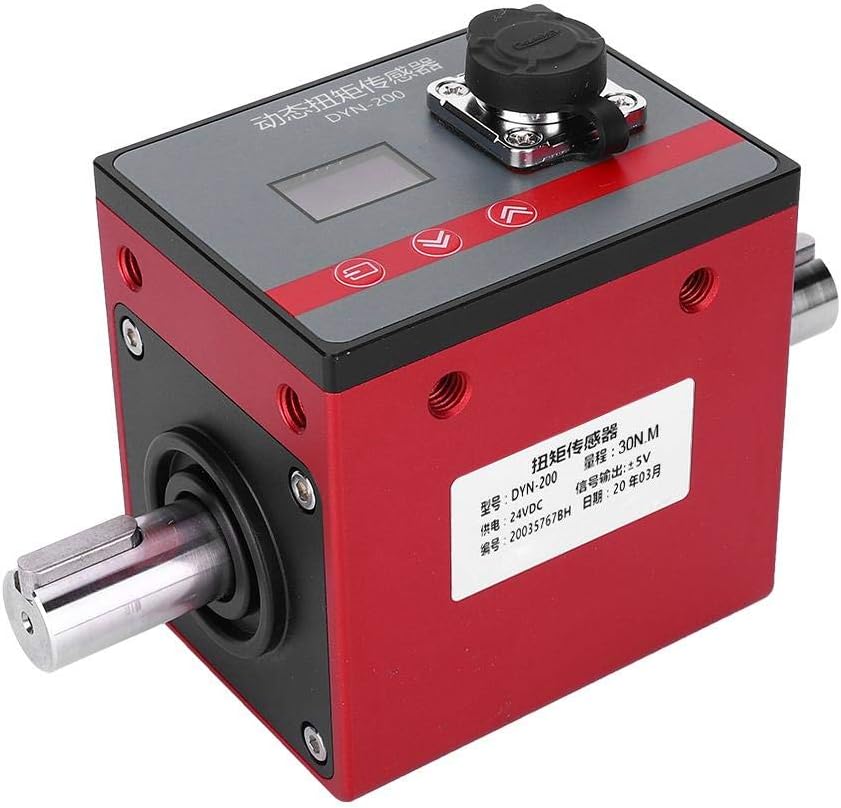

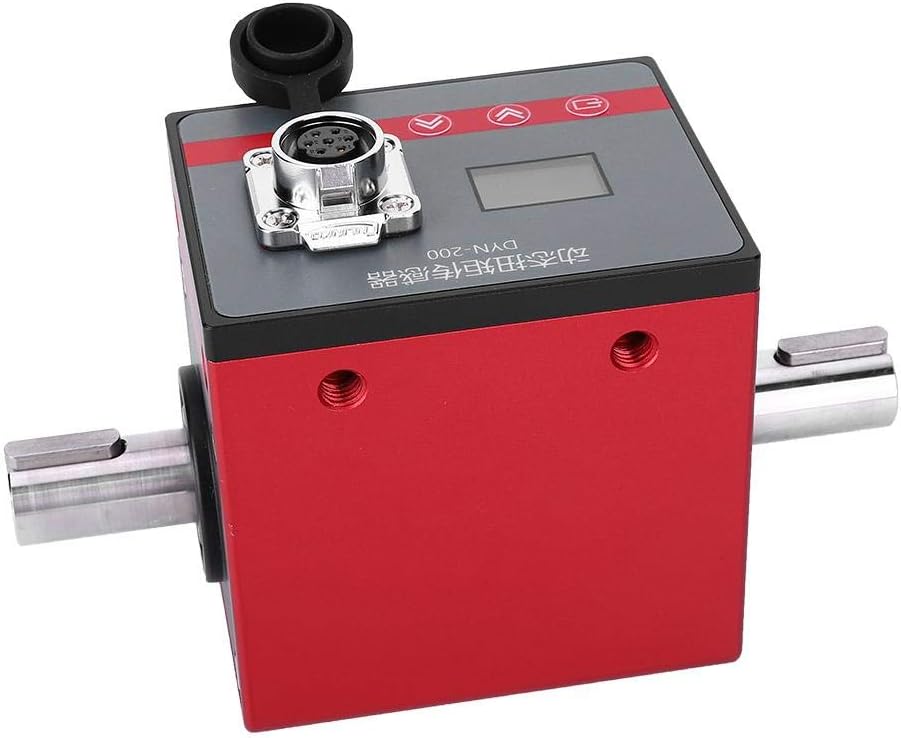

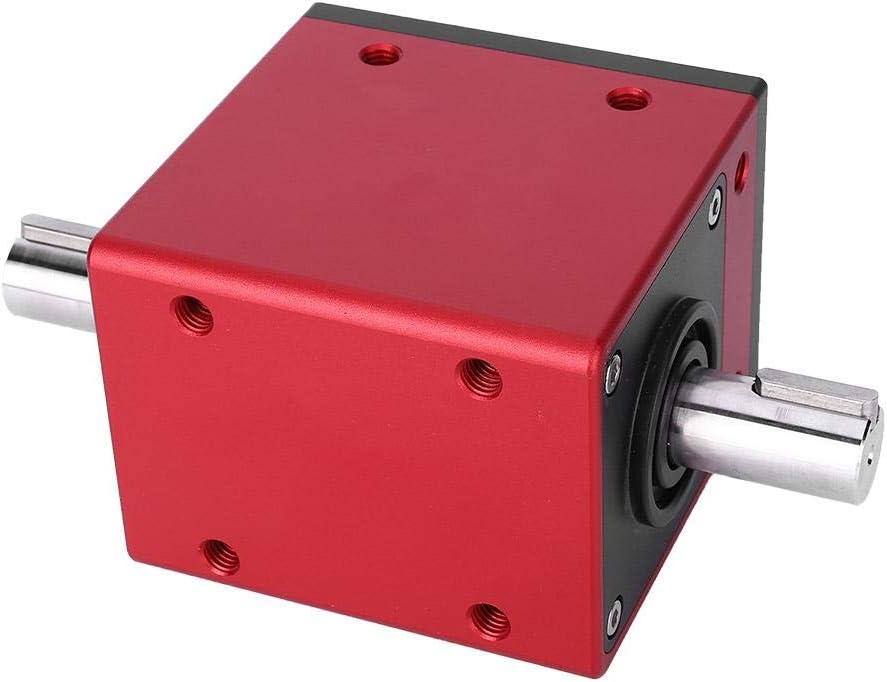

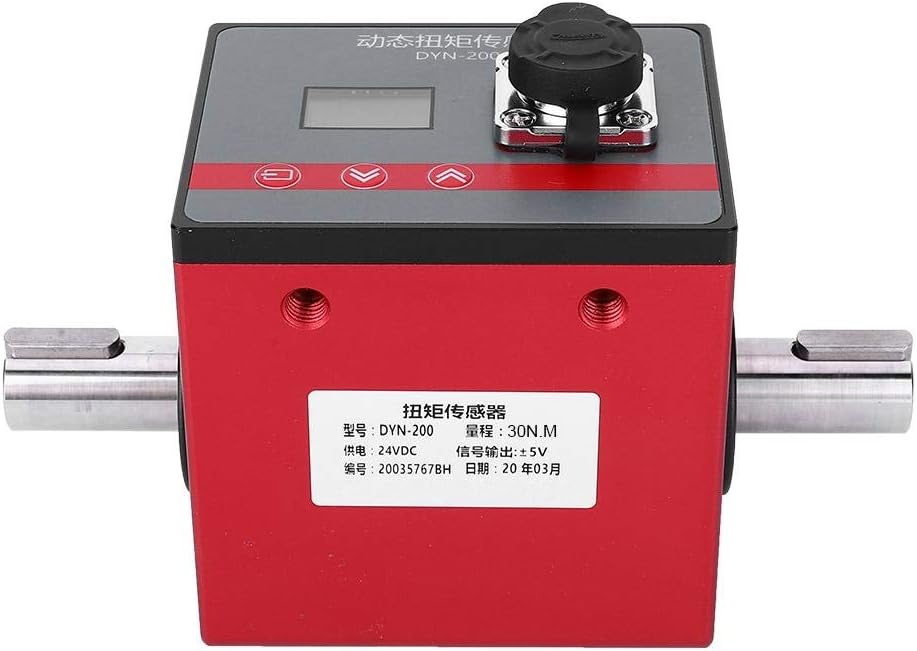

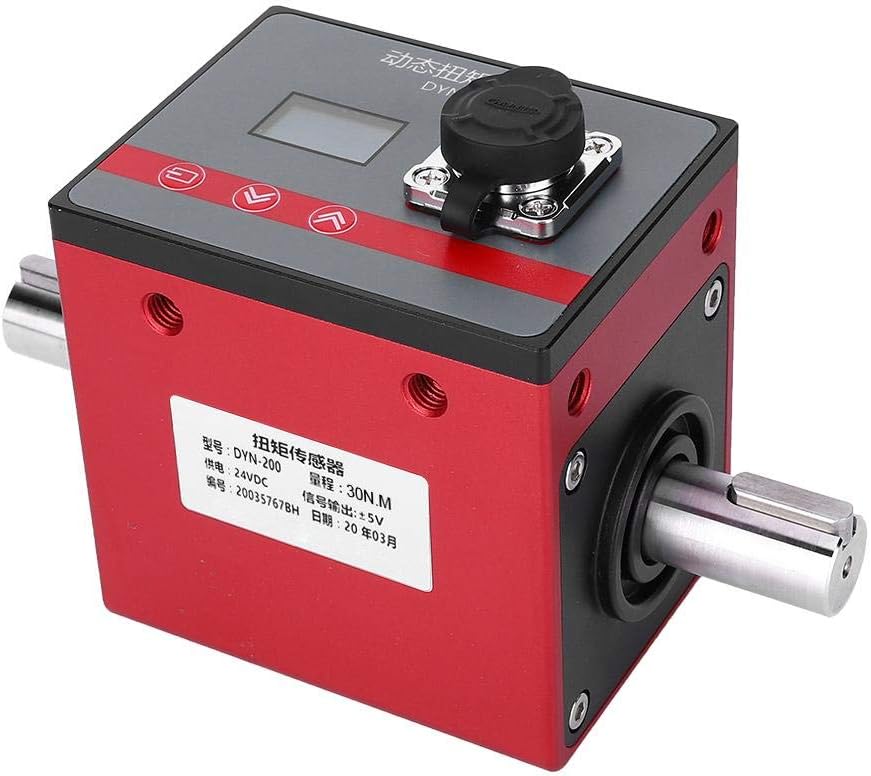

Dynamic Torsion Sensor, DC24V 30N. Torsion Speed Power Measuring Meter,with Display,for Speed Power Tester

SAR 2,473
Brand
Jectse
– 1 +

Special Features

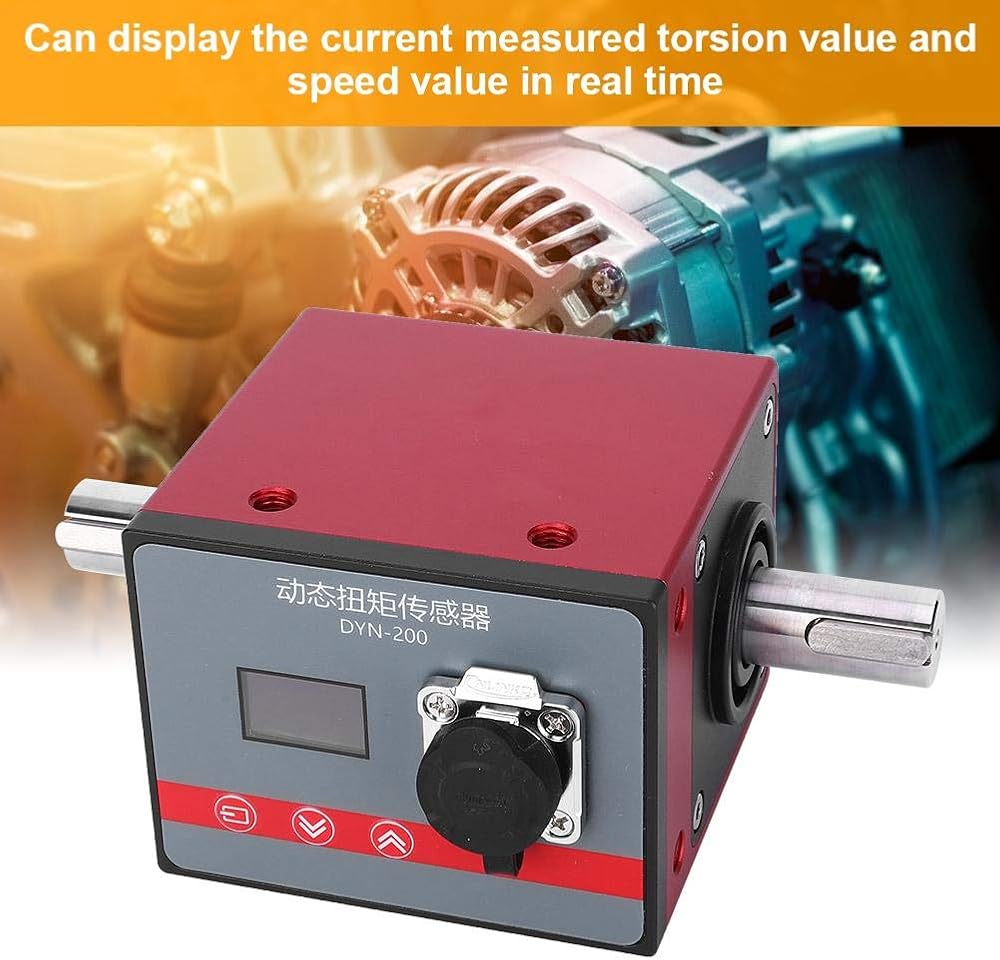

  • Can display the current measured torsion value and speed value in real time.Can directly calculate the current power value
  • Accuracy achieves more than 1/1000 accuracy, excellent zero point stability
  • Support simultaneous output of transmission current and transmission voltage. Support RS485 communication, support active upload protocol, communication rate up to 500 times per second

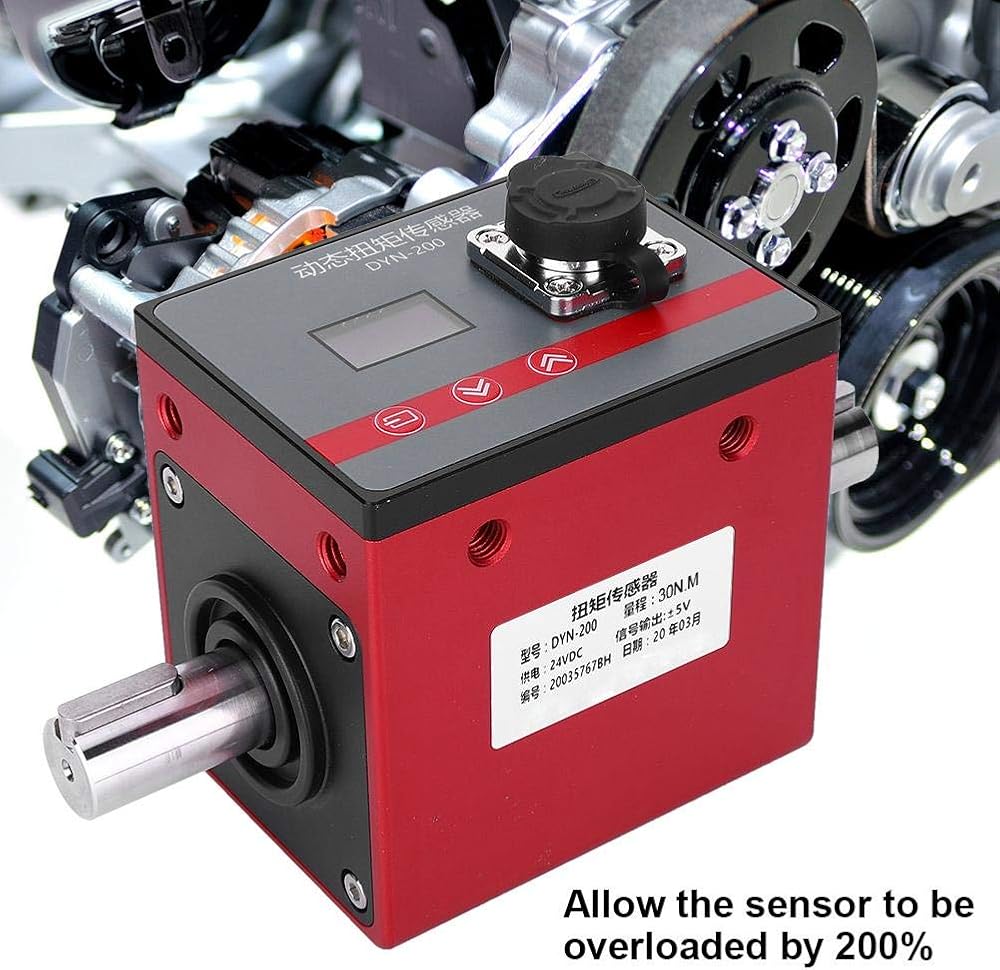

  • Can perform simple calibration, clearing, filtering and other operations.Allow the sensor to be overloaded by 200%
  • The sensor comes with display with a resolution of 128x64.9. Non-contact, no maintenance, no wearing parts, no life limit

Description

Specification:
Item Type: Dynamic Torsion Sensor
Rated Capacity: ± 30N.m
Power Input: DC24V
Current Consumption: Below 150mA
Torsion Output: ± 5VDC; 0-10V; 4-20mA
Speed Output: 60 pulses /
Response Performance: 1kHz
Load Resistance: 2kΩ or more
Delay: 0.6ms (50% response)
Allow Overload: 200% FS
Operating Temperature Range: -10 ~ + 50 ℃
Non-linearity: 0.1% FS
Repeatability: 0.03% FS
Lag: 0.03%
Temperature Effect Of Zero Point: 0.01% FS / C
Temperature Effect Of Output: 0.01% FS / C
Rated Speed: 10000rpm
The Fastest Rotation Speed: 15000rpm
Maximum Twisted Angle: 2.60 × 10rad (0.149 °)
Moment Of Inertia: 0.38kgcm
Vibration Frequency (rotor Part): 19.4kHz
Torsion Constant: 3.85 × 10Nm / rad

Package List:

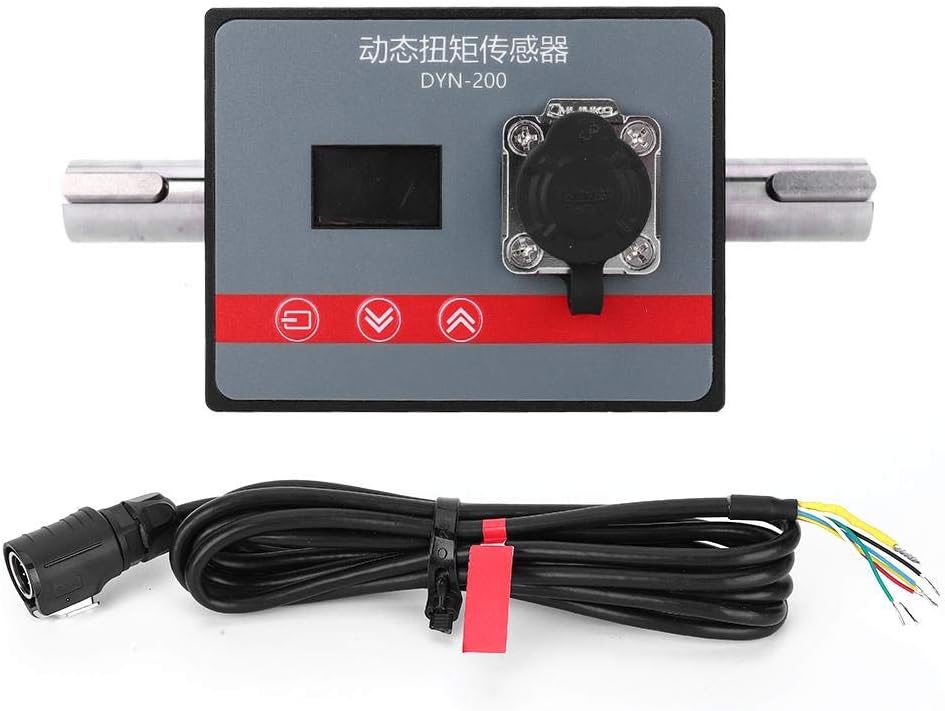

1 x Sensor 1 x Line
