Jrelecs Newset 2838 3800KV 4P Sensorless Brushless Motor & All Waterproof 45A Brushless ESC Electronic Speed Controller for 1/12 1/14 1/16 1/18 RC Car

SAR 222
Brand
jrelecs
Weight
182 g
– 1 +

Special Features

  • 4 Pole 12 slot hi-torque motor design. High purity copper windings maximizes efficiency
  • CNC machined 6061 T6 billet aluminum heatsink can. High RPM ABEC5 oversized bearings
  • Precision engineered for maximum energy conversion. Short stator, less wire, lower resistance, more power
  • Precision balanced rotor,smoothness for best reliability and maximum RPM
  • Suit for 1/14 1/16 1/18 brushless cars-multi-mounting system for M2.5 screws

Description

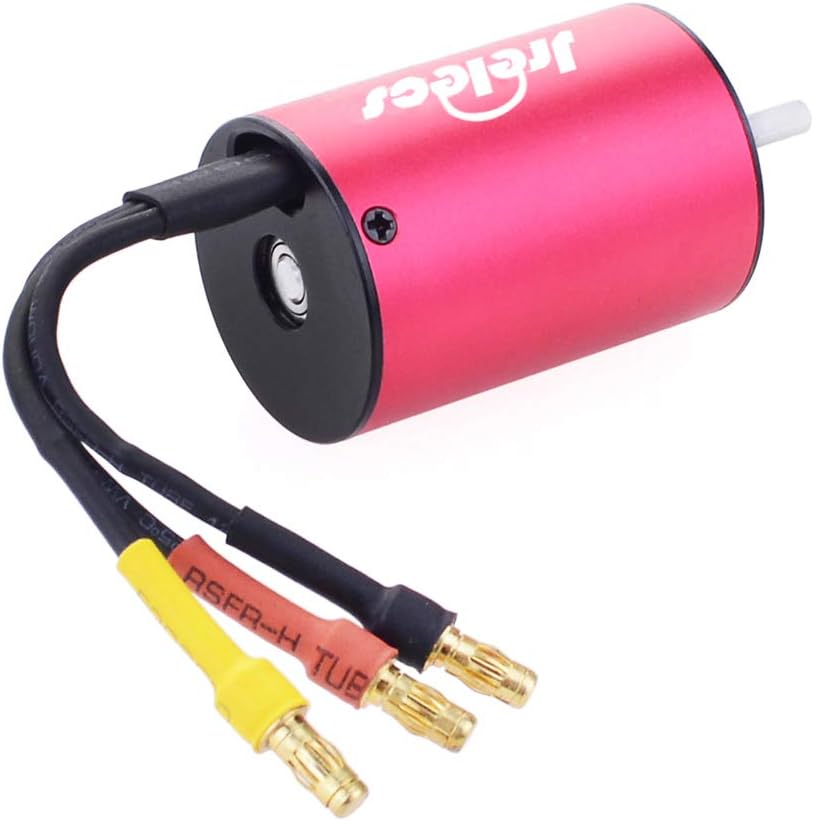

Specifications:
Brand:Jrelecs

KV(RPM/Volt): 3800KV
Max current: 57A
Max watts: 800W
Max voltage: IO: 2.2A
Rotor poles: 4
Resistance: 0.0213
Diameter: 28mm
Length: 38mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Weight: 116g
Sensored: No

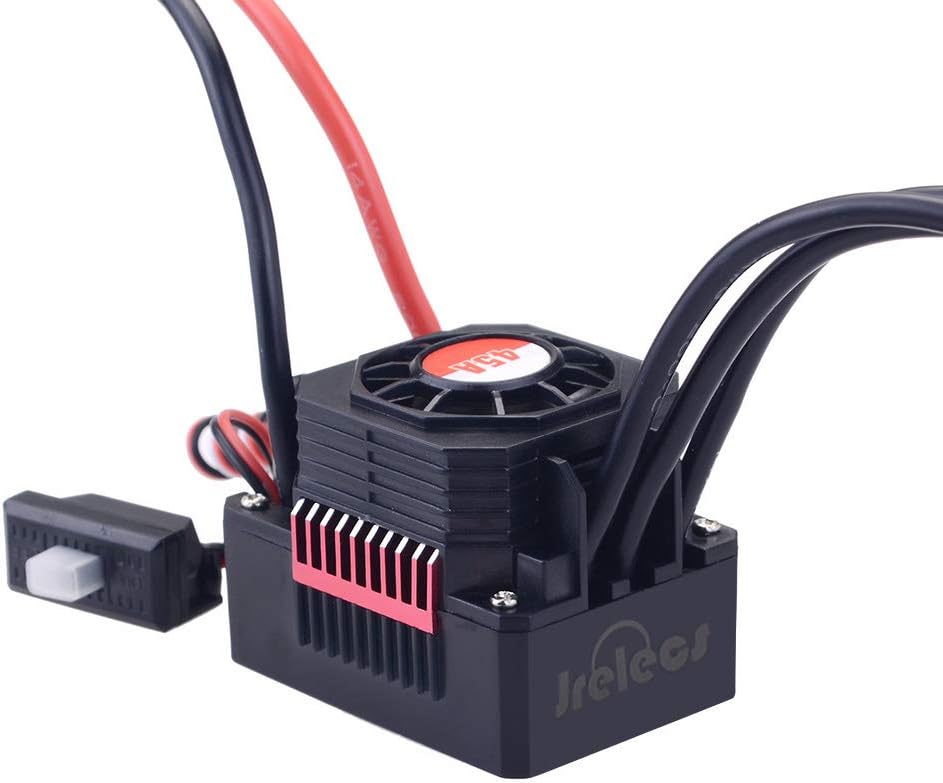

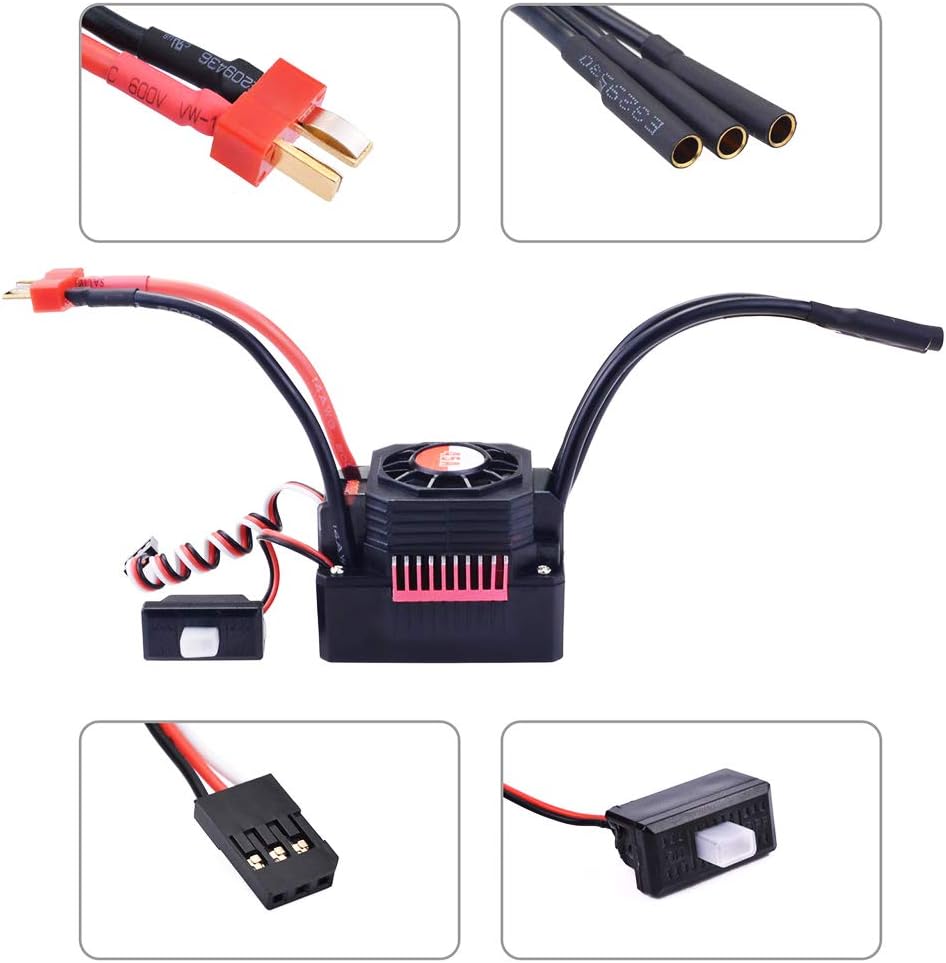

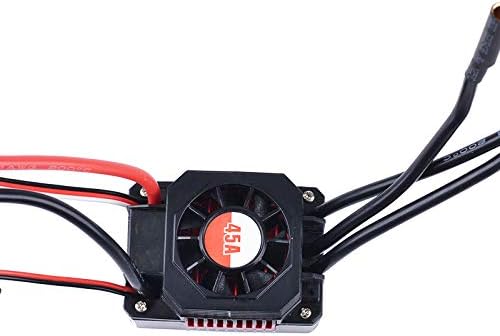

Electronic Speed Controller
Constant Current: 45A
Burst Current: 240A
Power Supply: 2-3S LiPo Battery / 4-9S NiMh/Ni-Cd
BEC Output: 5.8V / 3A
Power Supply Plug: T Plug Male
Size: 52 * 39 * 39mm / 2.0 * 1.5 * 1.5inch

Features of Waterproof ESC:
1. Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2.Specially designed for RC car with excellent start-up, acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/ Over-heat protection/ Throttle signal loss protection/ Motor blocked protection/
6. Easily programmed and compatible with pocket-sized program card.

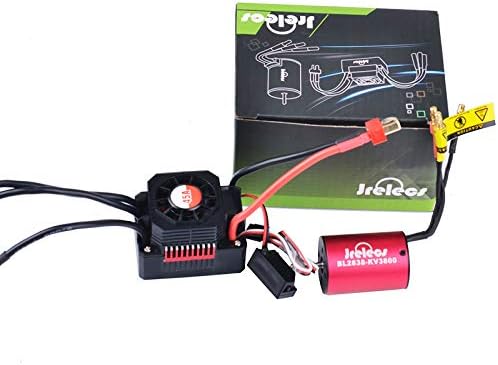

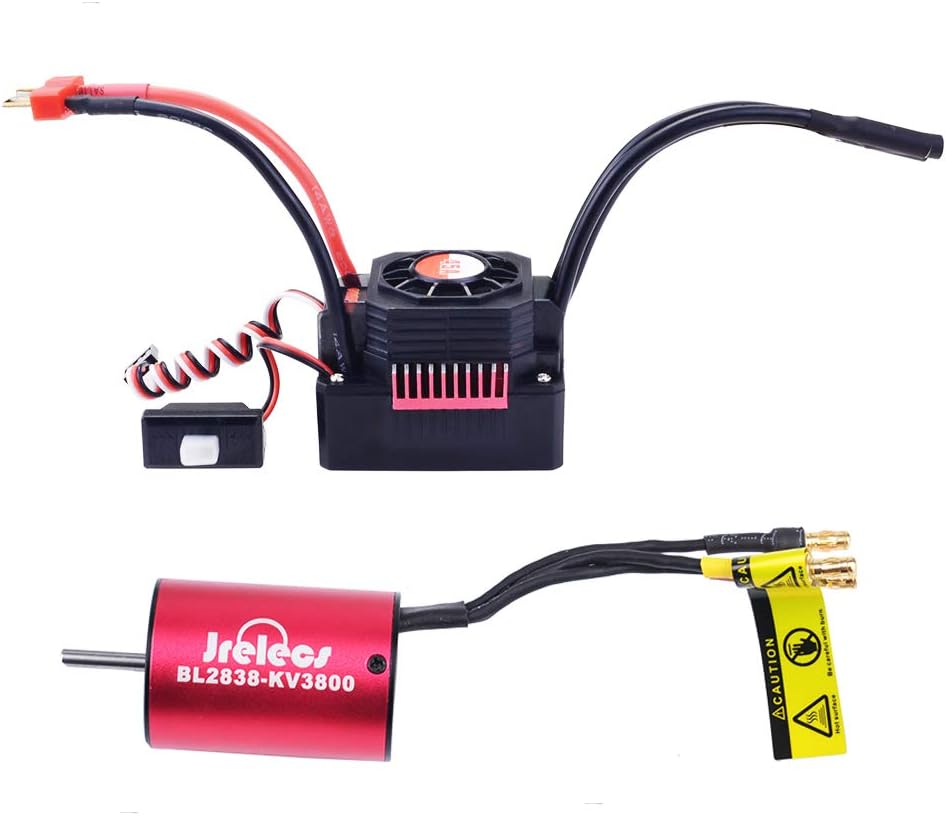

Package List: 1 * Jrelecs 3930KV 4P Sensorless Brushless Motor 1 * Jrelecs All Waterproof 45A Brushless ESC
