Description
For hydraulic, oil pressure, water pressure, air pressure measuring, for media which is not corrosive to stainless steel wetted parts

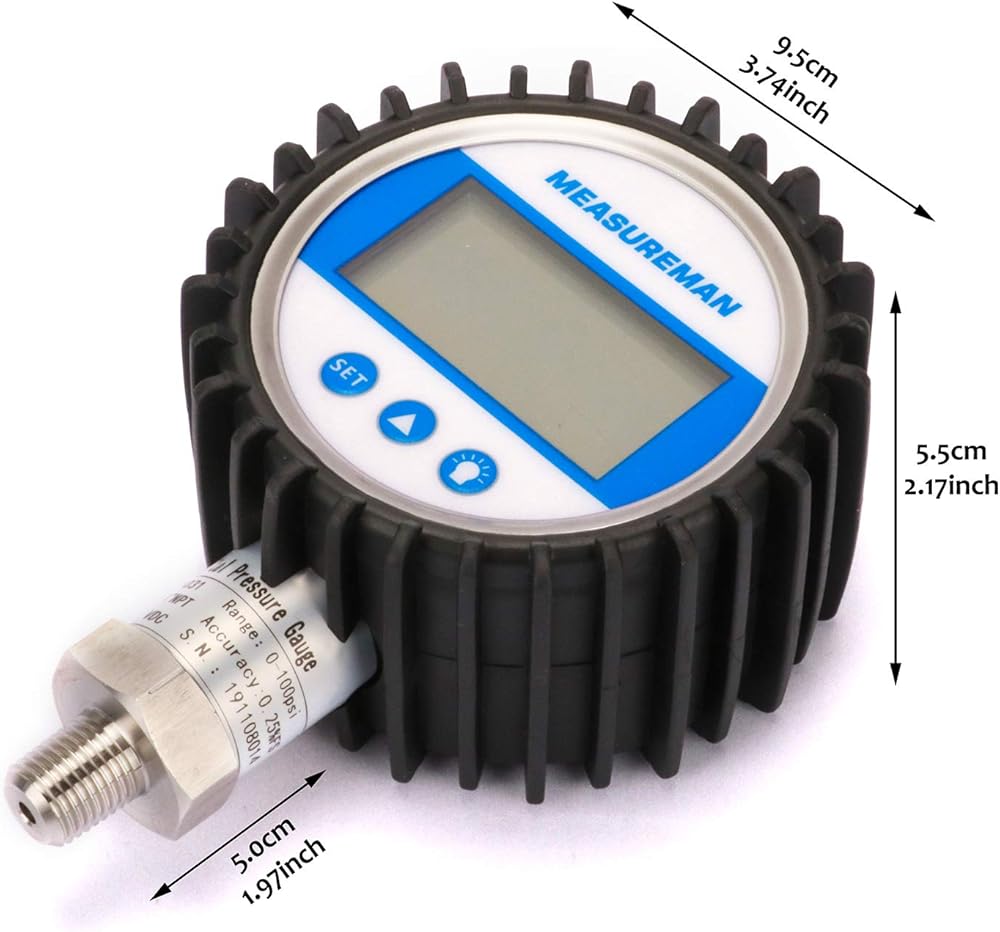

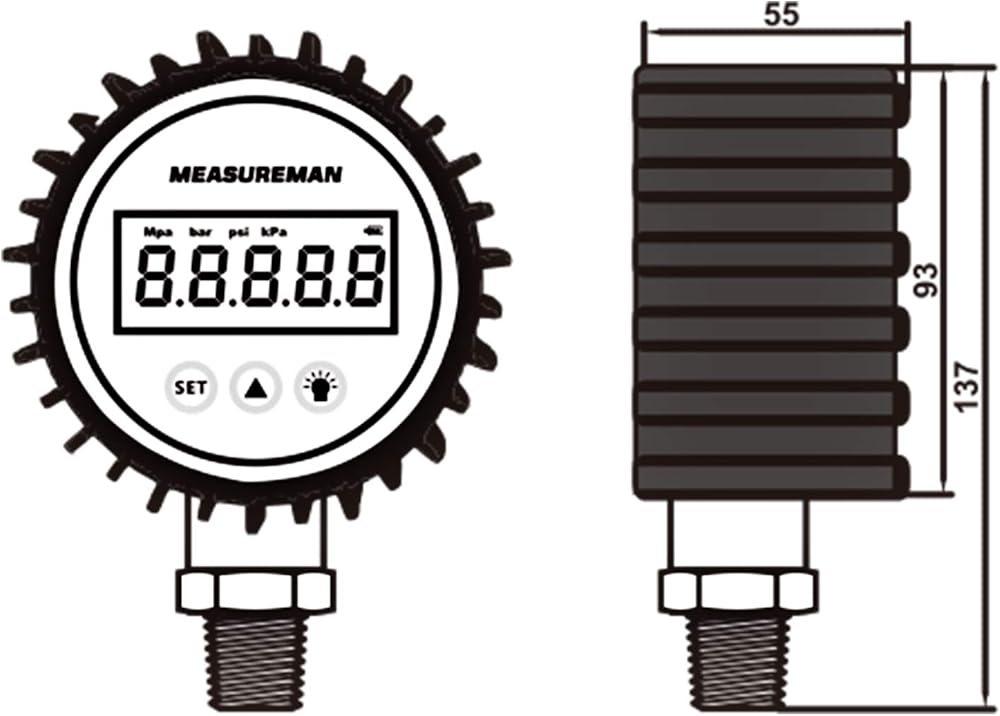

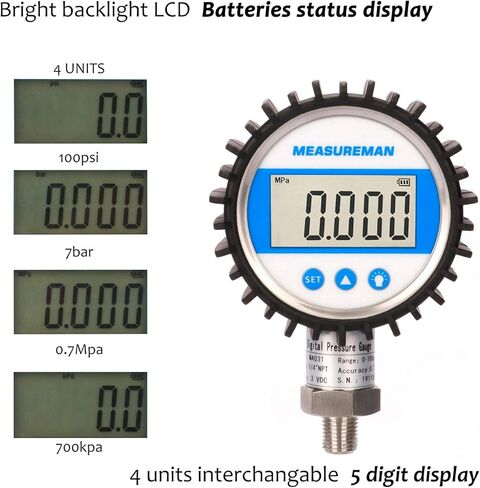

Dial size : 3-1/8"

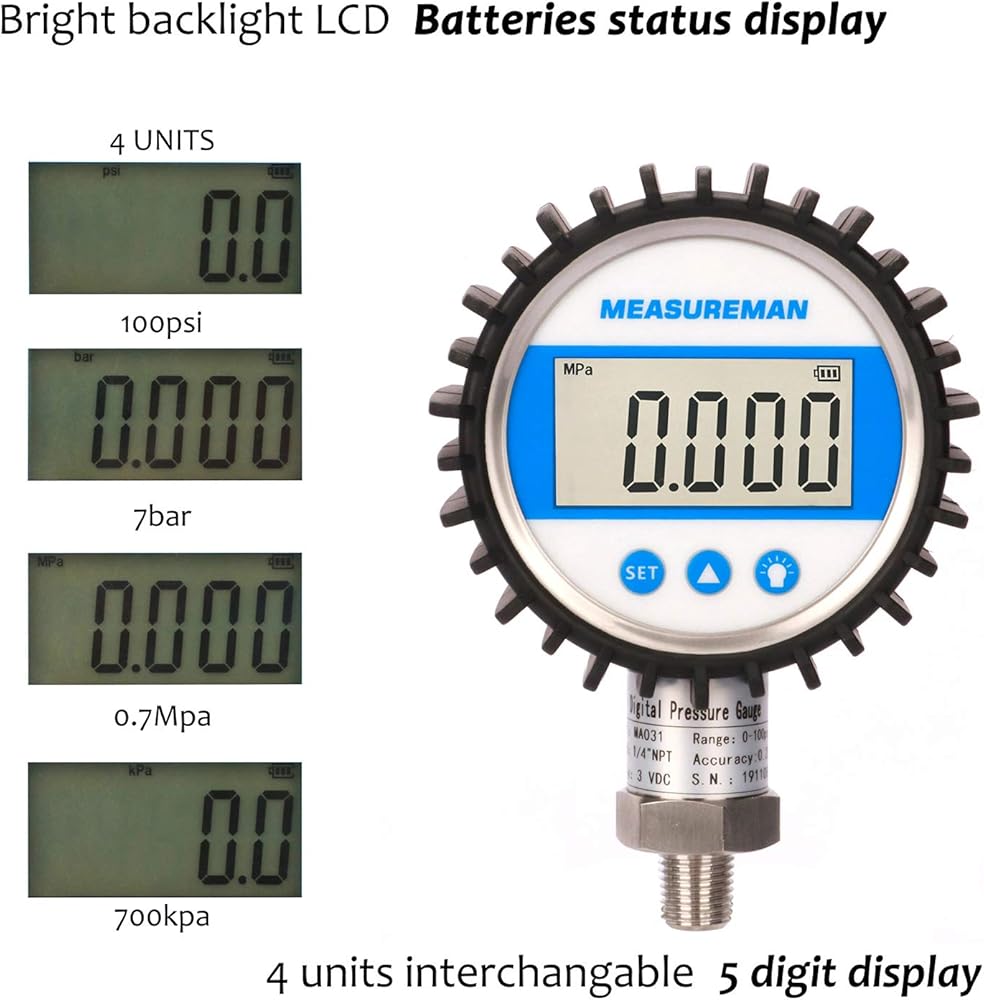

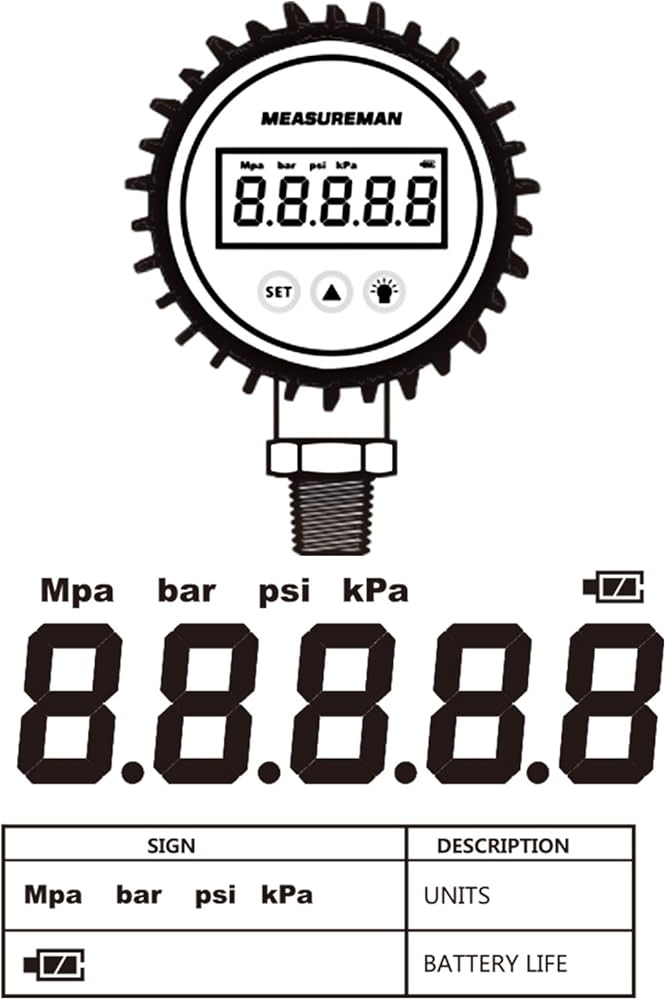

Pressure Range : 0-10000psi, bar, Mpa, 5 digit display, 3 units, 0-10000psi, bar, Mpa, 150% over load
Batteries status display

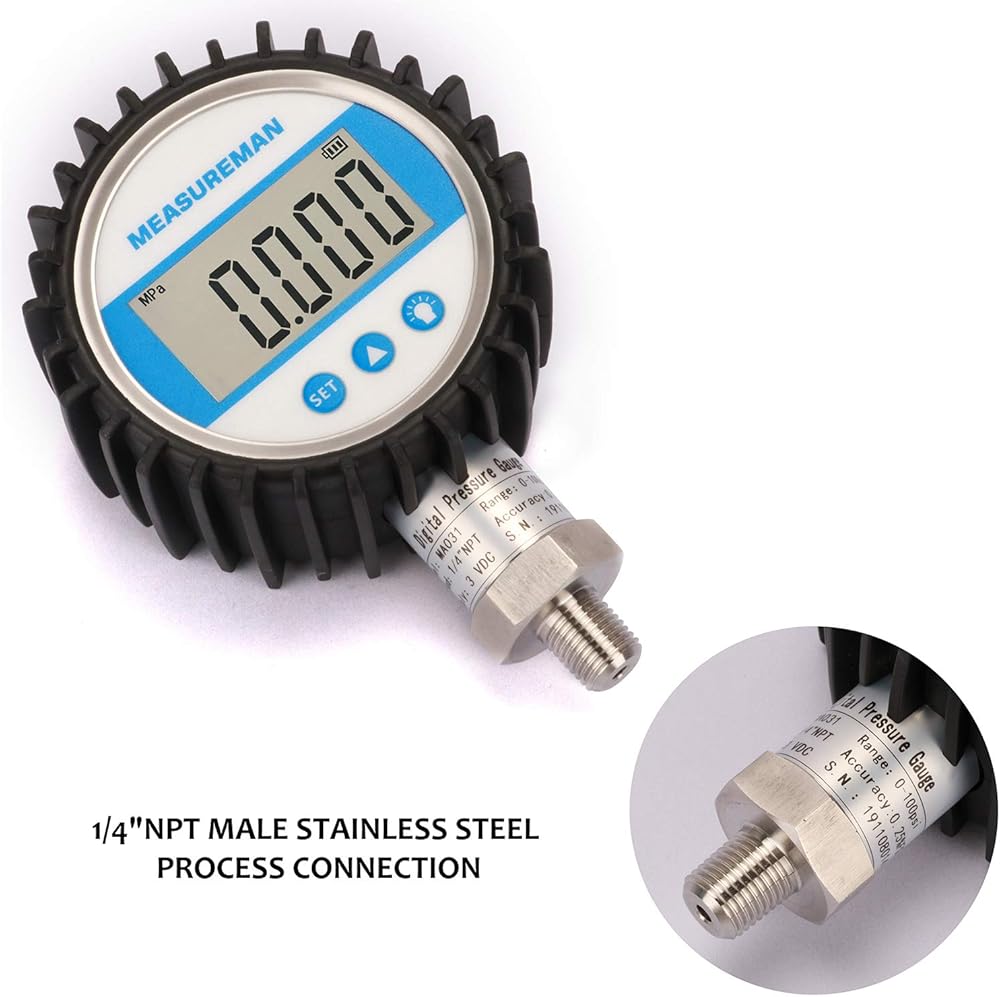

Process connection : 1/4"NPT male, lower mount
Overload Capacity : 150%

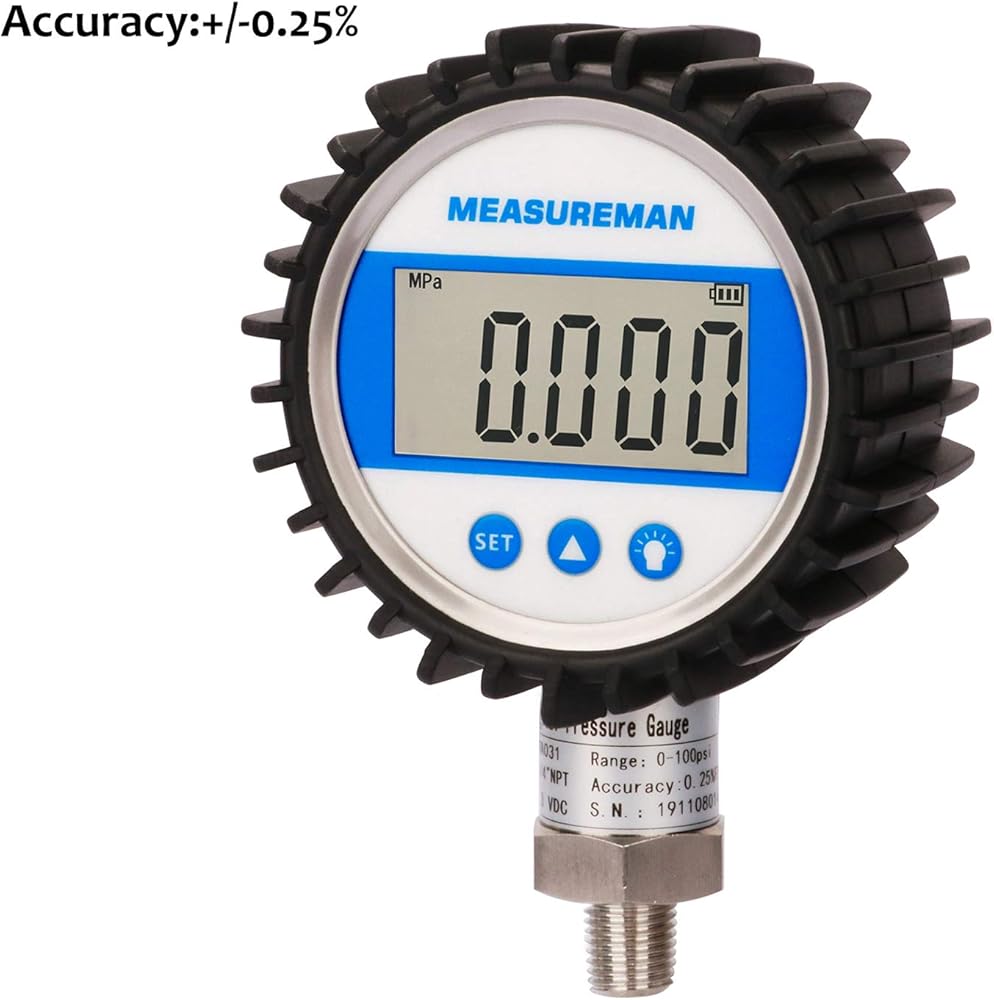

Accuracy : 0.25%

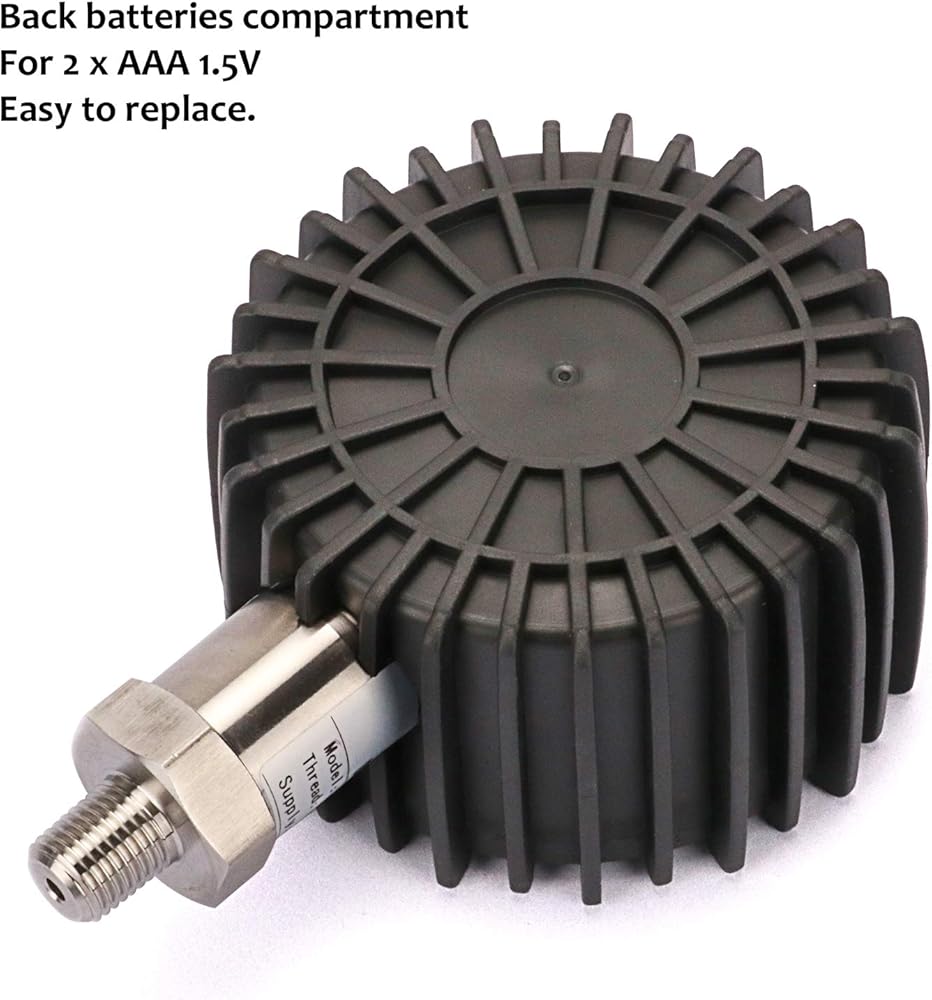

Input Voltage : 3.0V (two 1.5V AAA batteries)
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Case : 304 stainless steel
Wetted parts : 316 stainless steel
IP Class : IP54

How to operate :

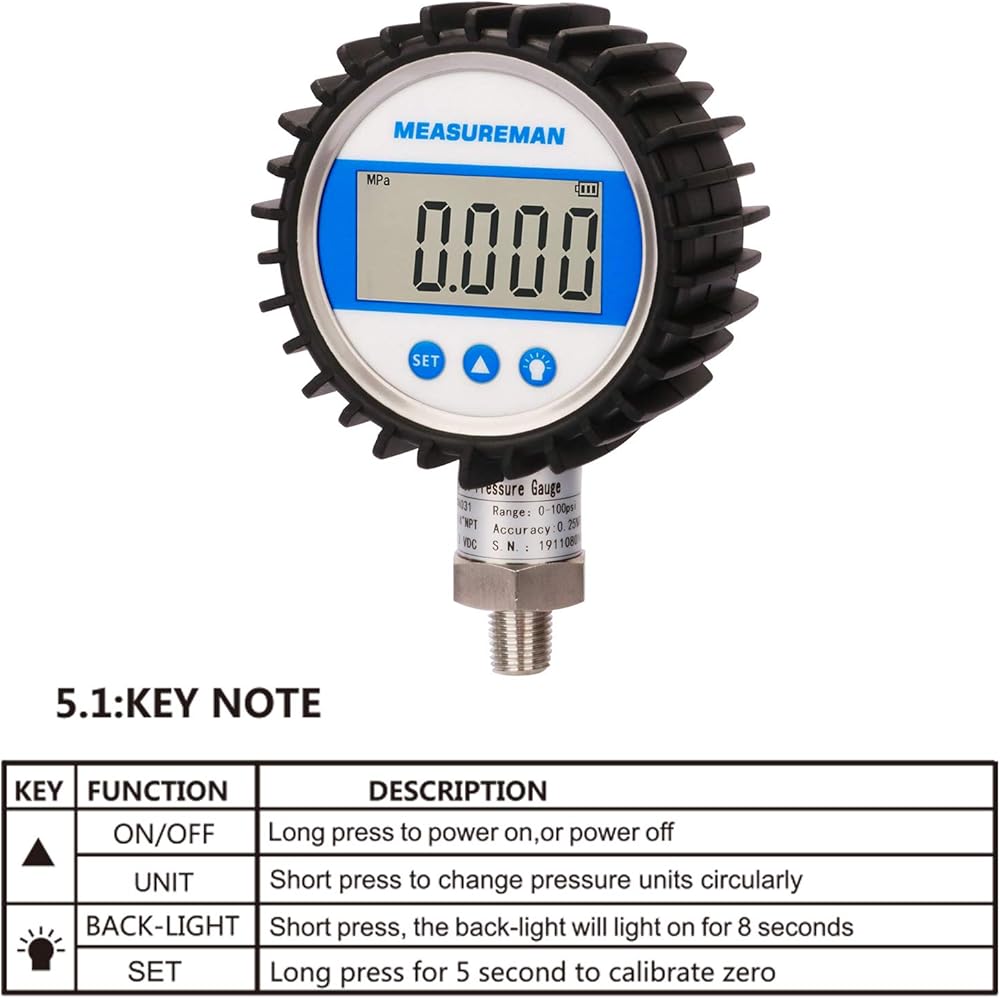

Button Description :
Power button : Long Press to Start up/Shut down
UNIT button : Short Press the button, cyclic switching the pressure unit
ZERO button : Press Zero button for 5 seconds, Calibration zero
LIGHT button : Press Light button start up/shut down backlight

Package Content:
1 x Digital Pressure Gauge,
1 x Operation Manual.
