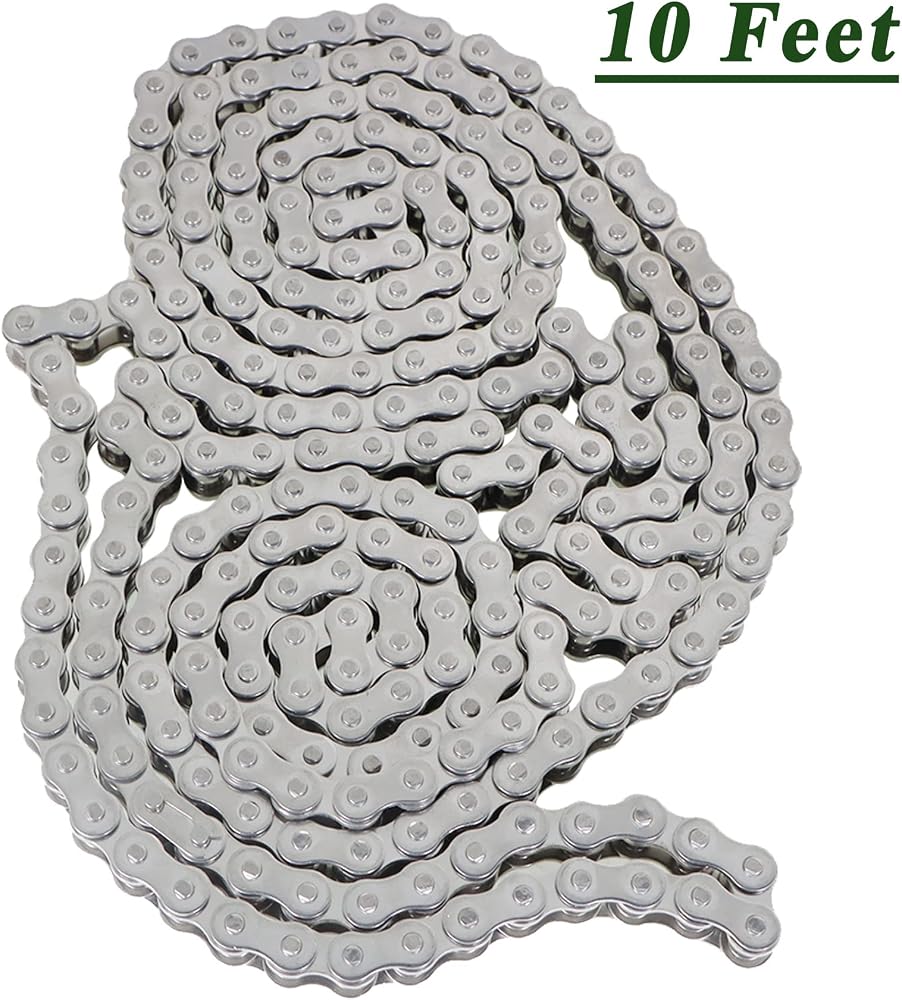

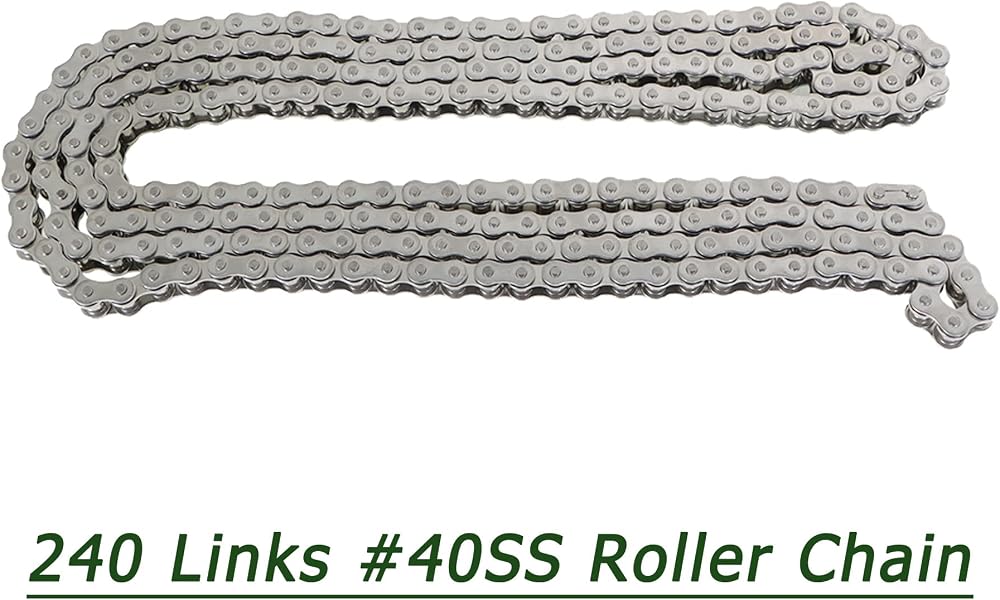

40SS 10 Feet Stainless Steel Roller Chain 240 Links + 1 Connecting Links

Specification:
ANSI Chain No.: 40
Material: Stainless Steel
Pitch (P): 0.5 Inch (12.7 mm)
Weight: 0.417 Lb/ft (0.62 kg/m)
Breaking Load: 9.6 KN (2182 lbs)
Pin Lenght (L max): 0.654 Inch (16.60 mm)
Pin Lenght (Lc max): 0.701 Inch (17.80 mm)
Pin Diameter (d2 max): 0.156 Inch (3.96 mm)
Plate Thickness (T max): 0.059 Inch (1.50 mm)
Roller Diameter (d1 max): 0.313 Inch (7.95 mm)
Inner Plate Depth (h2 max): 0.472 Inch (12.0 mm)
Width Between Inner Plates (b1 min): 0.310 Inch (7.85 mm)

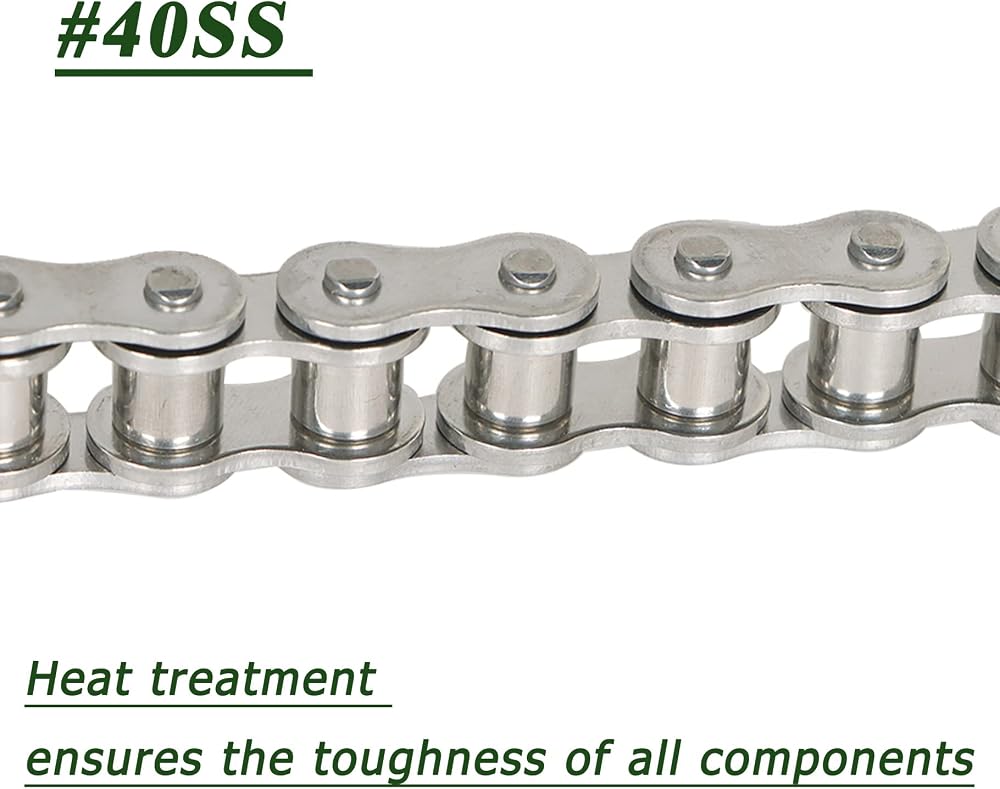

Features: Stainless steel chain with water, rust, corrosion ability, high toughness characteristics.

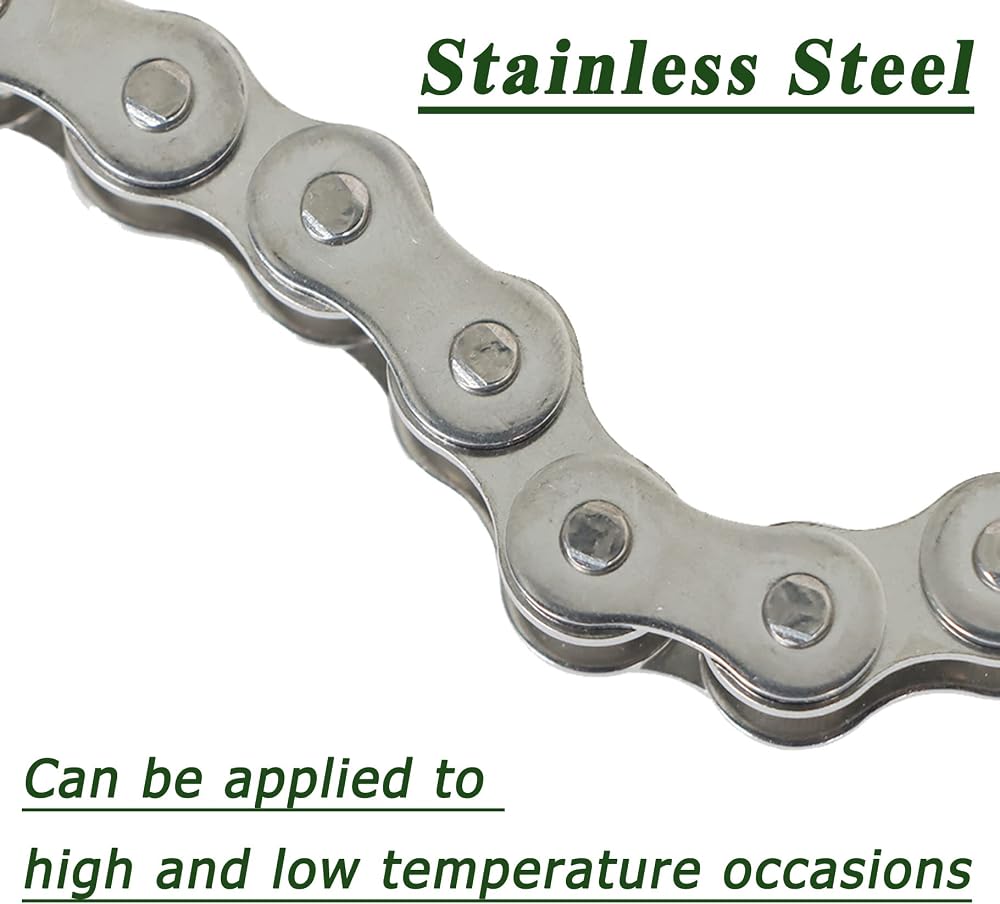

Inclusivity: Can be applied to high and low temperature occasions, in humid and other harsh environments are available.

Technical Support: Prestressed operation firmly fastens chain components, evenly distributes workload, accurately determines chain length, and prevents rapid elongation during initial running-in.

Package Includes:

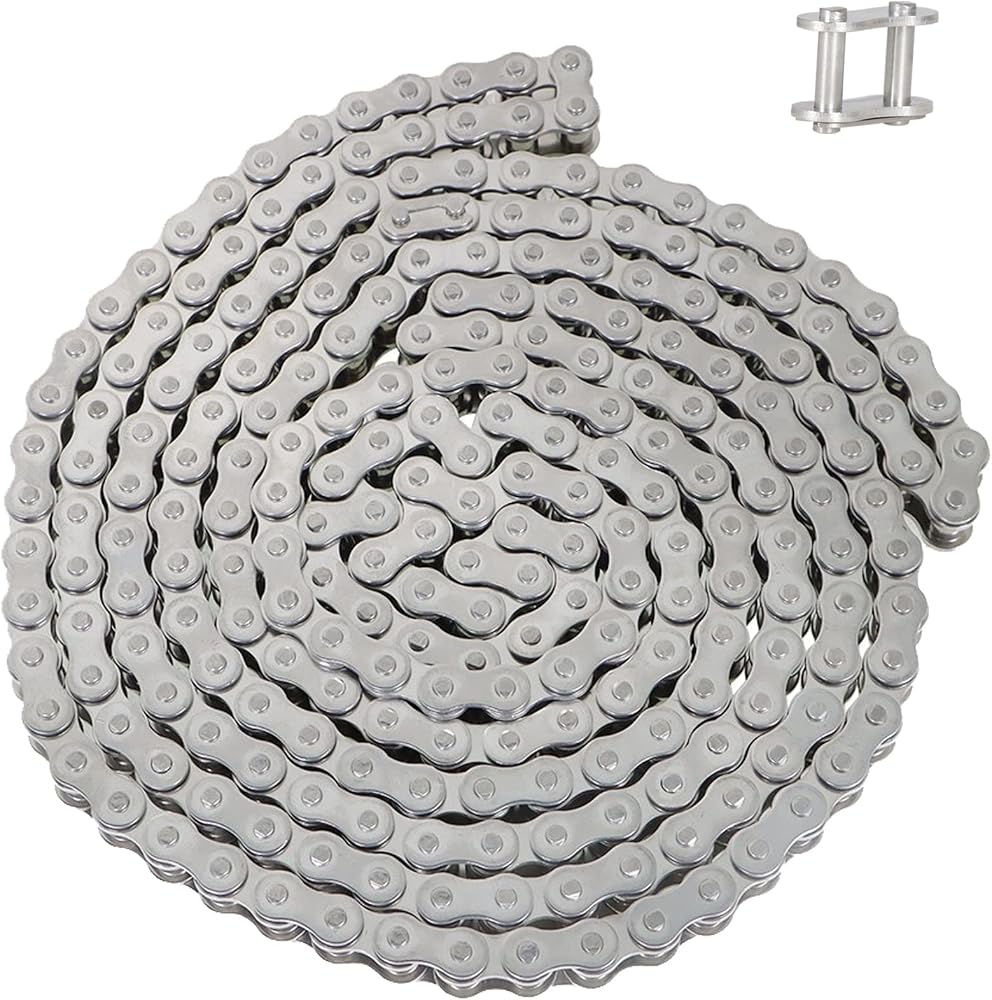

1 x 40SS Stainless Steel Roller Chain

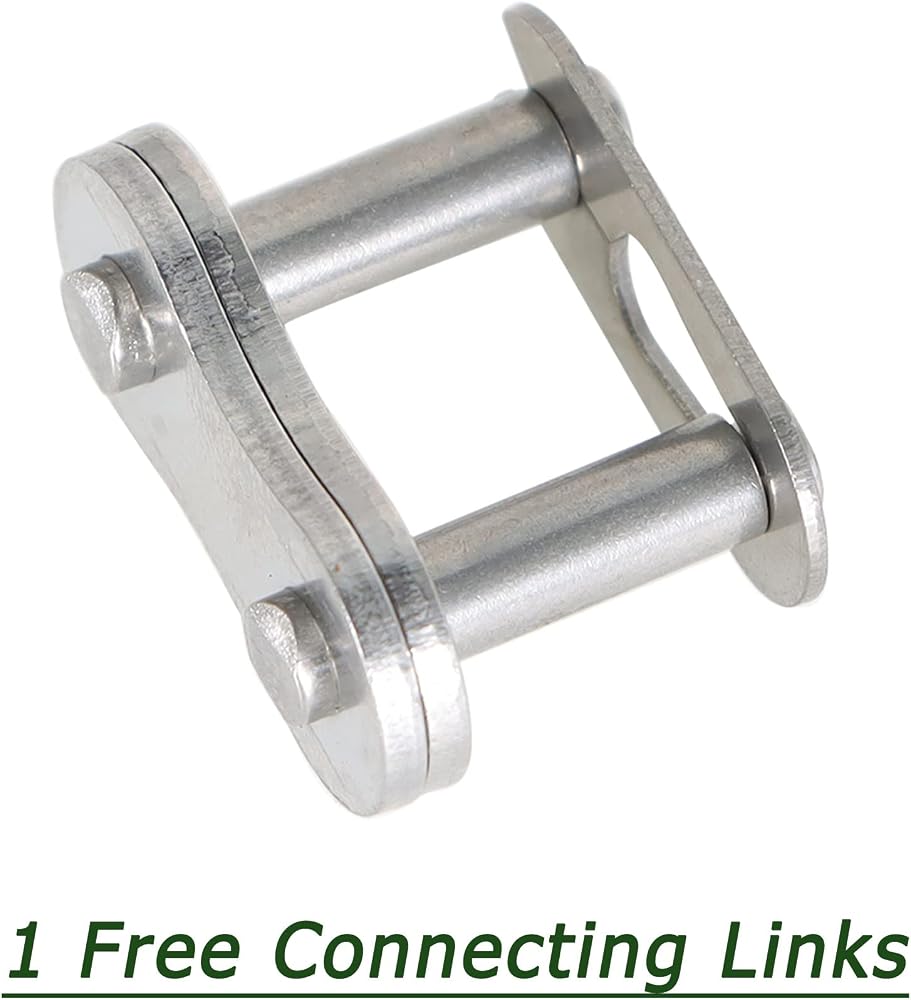

1 x Connecting Links
