Description:
1.SW-520D is a ball type tilting vibration sensing unidirectional trigger switch. The appearance is sealed with heat-shrinkable tube to protect against dust and moisture.
2.This switch is suitable for touching off the small current circuit not suitable for acting as the mains switching. Applied to the eletronic , small household appliance, sports equipmens and anti-theft devices.
3.Made of metal, the electrical characteristics are similar to the switch, but it is not as dangerous as the switch and has environmental problems. It has a single-passing characteristic when shaking, and it is more convenient and safe to assemble.

Working Characteristics:
When the product tilt to Conductive terminal more than 15℃, is open circuit OFF-state,when trigger end (gold-plated pin end ) below the horizontal gradient greater than 15℃ angle, is closed circuit ON-state.
In horizontal position, shaking easy to trigger, while the golden feet up, shaking is not easy to trigger.

Specification:
Product Name: Vibration Switch

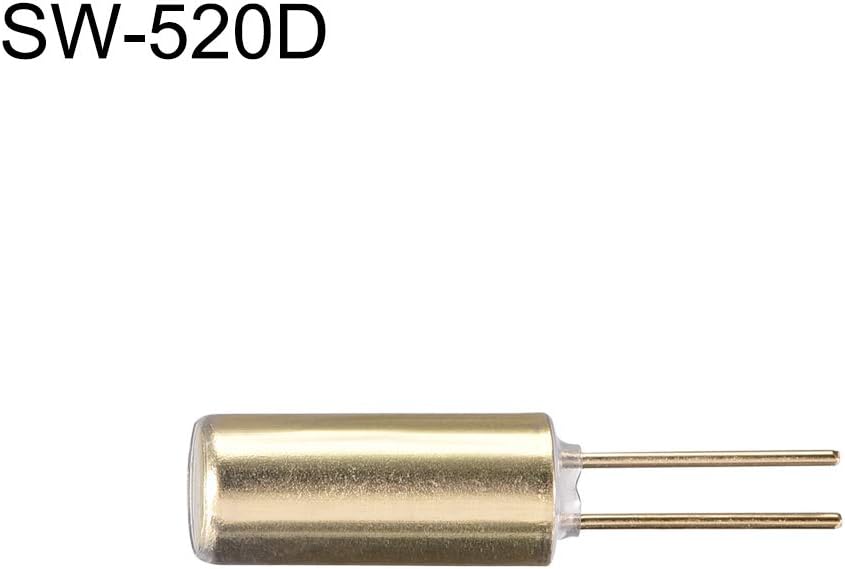

Model Number: SW-520D
Conduction Time: 20MS
Max.Voltage: 12V
Rated Thermal Current: 20mA
Insulation Resistance: 10M ohm
Max.Temperature Resisting: 100℃
Pin Size: 10mm x 0.6mm(L*D)
Body Dimension: 13mm x 5.5mm(L*D)

Package Content:

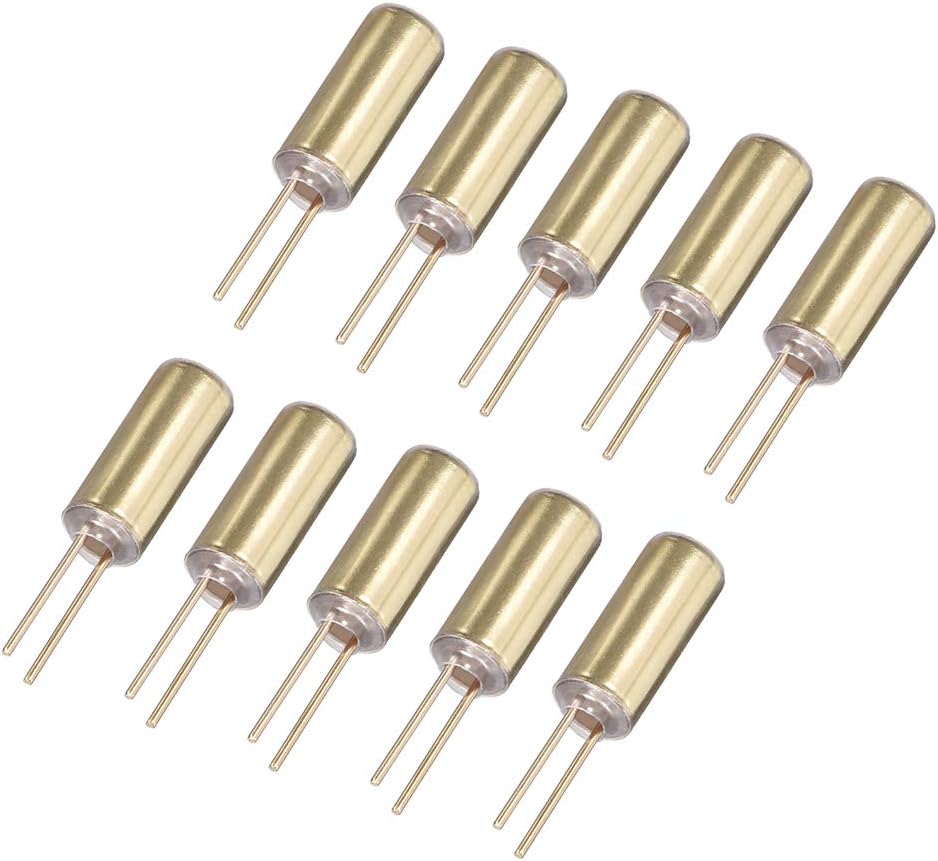

10 x Vibration Switch
