Geekstory BS-708 G-Mouse USB GPS Dongle Navigation Module G7020-KT Chip External GPS Antenna with 4M Flash USB GPS Receiver for Raspberry Pi Linux Windows 7 8 10 in Saudi Arabia Geekstory BS-708 G-Mouse USB GPS Dongle Navigation Module G7020-KT Chip External GPS Antenna with 4M Flash USB GPS Receiver for Raspberry Pi Linux Windows 7 8 10 in Saudi Arabia Geekstory BS-708 G-Mouse USB GPS Dongle Navigation Module G7020-KT Chip External GPS Antenna with 4M Flash USB GPS Receiver for Raspberry Pi Linux Windows 7 8 10 in Saudi Arabia Geekstory BS-708 G-Mouse USB GPS Dongle Navigation Module G7020-KT Chip External GPS Antenna with 4M Flash USB GPS Receiver for Raspberry Pi Linux Windows 7 8 10 in Saudi Arabia Geekstory BS-708 G-Mouse USB GPS Dongle Navigation Module G7020-KT Chip External GPS Antenna with 4M Flash USB GPS Receiver for Raspberry Pi Linux Windows 7 8 10 in Saudi Arabia

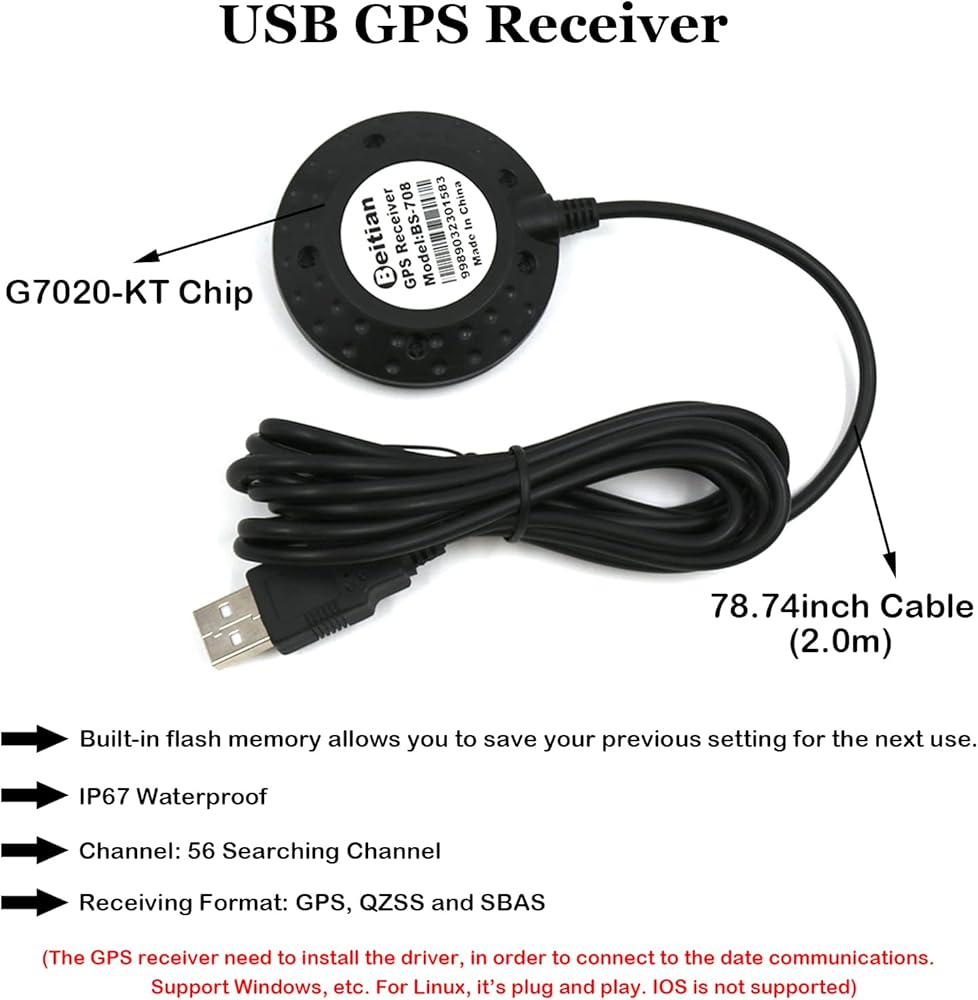

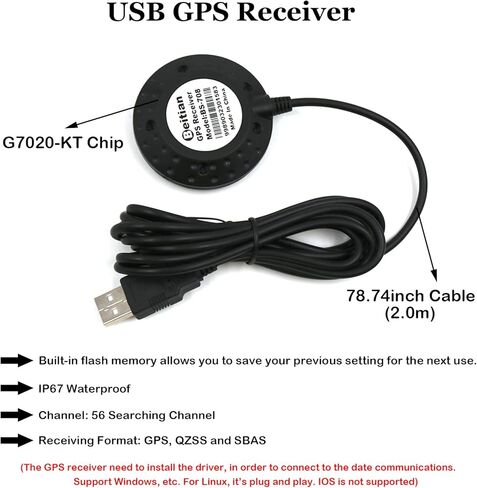

BS-708 G-Mouse USB GPS Dongle Navigation Module G7020-KT Chip External GPS Antenna with 4M Flash USB GPS Receiver for Raspberry Pi Linux Windows 7 8 10

SAR 152
Brand
Geekstory
Weight
74 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • BS-708 USB GPS Module support windows and linux system, not for android and IOS system
  • BS-708's chip is G7020-KT. The Receiving Format: GPS,QZSS and SBAS, and have 56 Searching Channel; Data Level: Default USB level; Data Protocol: USB, TTL or RS232, Default NMEA-0183
  • You need to install the driver to use BS-708 USB GPS Module on Windows system, but it is plug and play on Linux system
  • This usb GPS receiver has a cable length of 2 meters, BS-708 USB GPS Module has 4M flash to save the configuration. So you don't need to reset the data when you use it next time
  • The product documentation link cannot be displayed. If you need technical documentation, please click “Geekstory”(you can find "Sold by Geekstory" under Buy Now button), in the new page, click “Ask a question”
  • Documentation you can find at the bottom of the details page - Product guides and documents: (User Manual (PDF), which contains details on how to use and links to the drivers.

Description

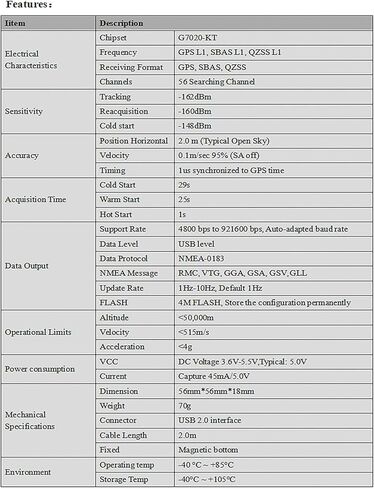

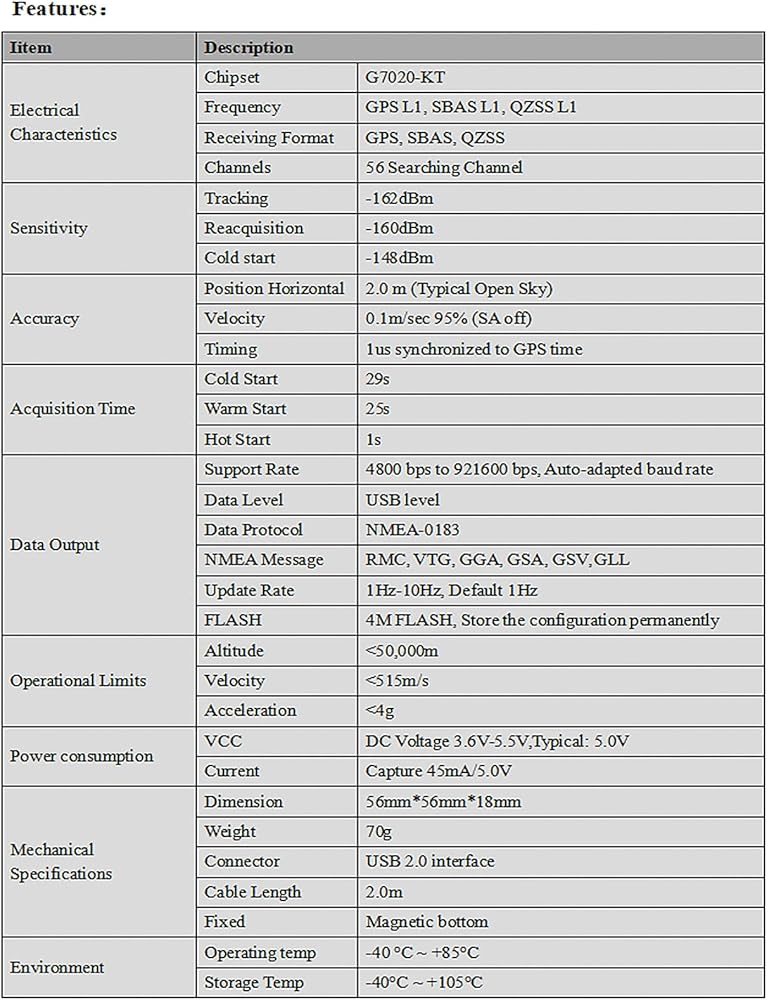

Feature:
Chipset: G7020-KT
Receiving Format: GPS, QZSS and SBAS
Frequency: GPS L1, SBAS L1
Channels: 56 Searching Channel
Tracking: -162dBm
Reacquisition: -160dBm
Cold start: -148dBm
Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity: 0.1m/sec 95% (SA off)
Timing: 1us synchronized to GPS time
Cold Start: 29S
Warm Start: 25S
Hot Start: 1S
Support Rate: 4800bps to 921600bps,Default 9600bps
Data Level: Default USB level
Data Protocol: USB, TTL or RS232, Default NMEA-0183
Concurrent GNSS: 1Hz-10Hz,Default 1Hz
Altitude: 50,000m Max
Velocity: 515m/s Max
Acceleration: Less than 4g
VCC: DC Voltage 3.6V-5.5V, Typical: 5.0V
Current: Capture [email protected]
Dimension: ΦO=56mm*18mm
Connector: USB 2.0 interface
Cable Length: 2.0m
Operating temp: -40 °C ~ +85°C
Storage Temp: -40°C ~ +105°C

Package Includes:
1 X USB GPS Module
