Specification:

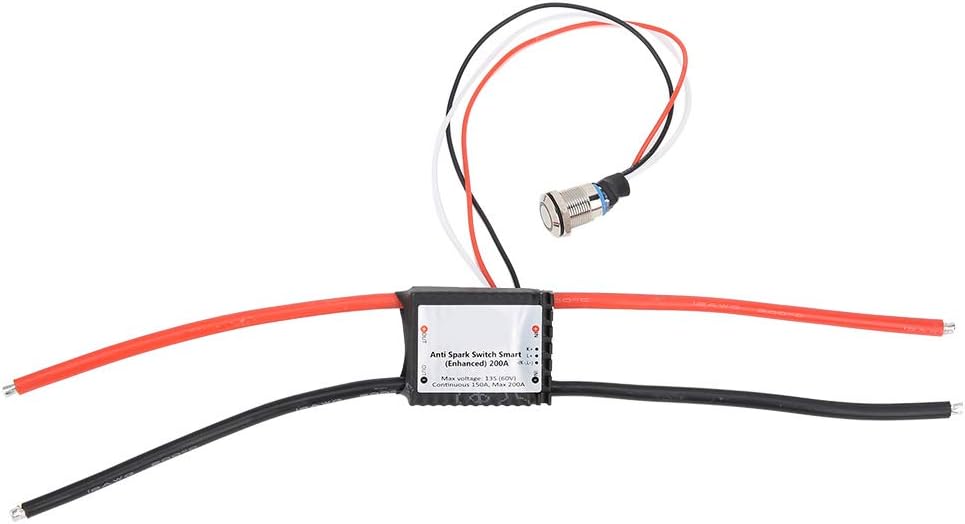

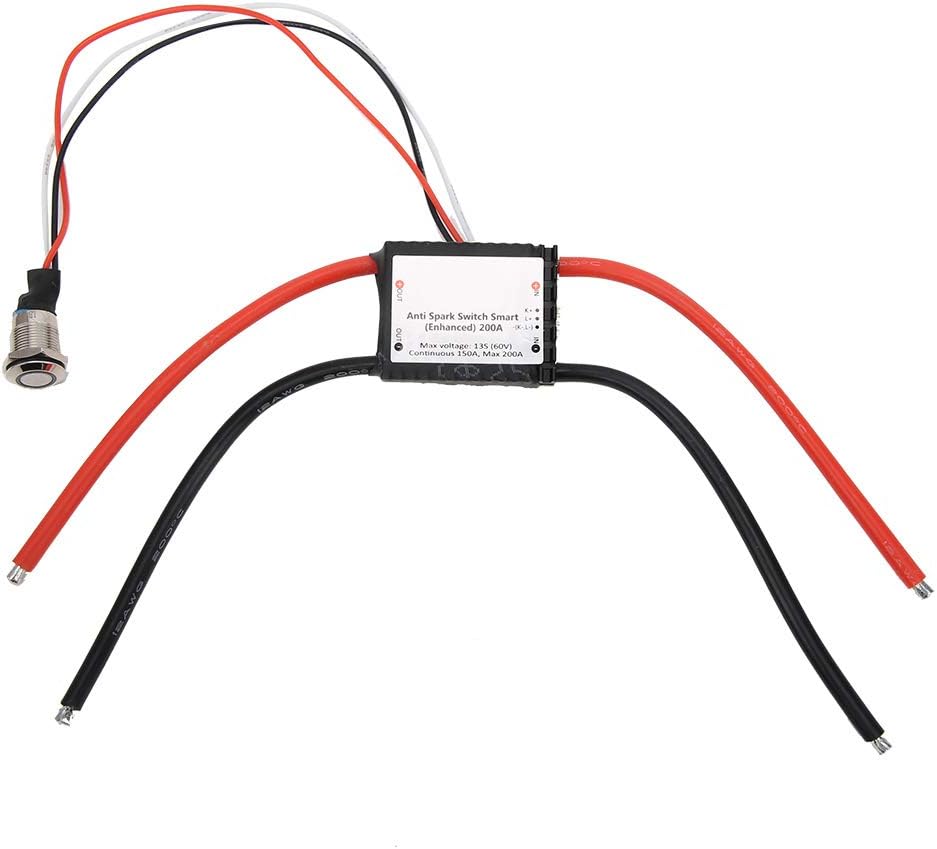

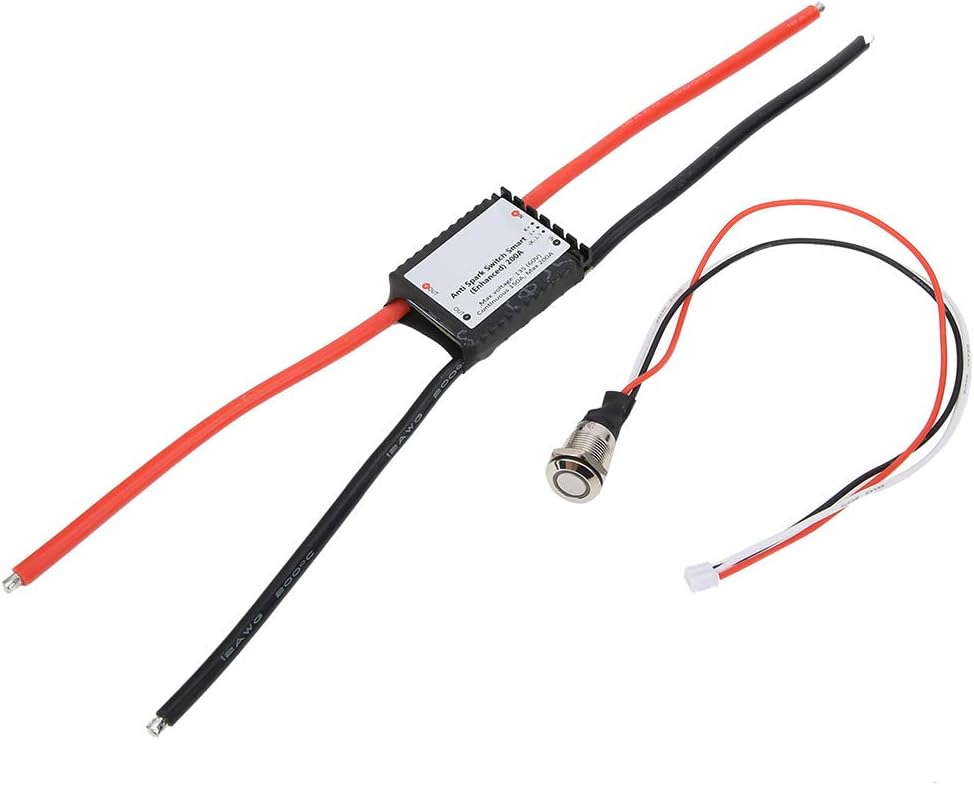

Item Type: Anti Spark Switch

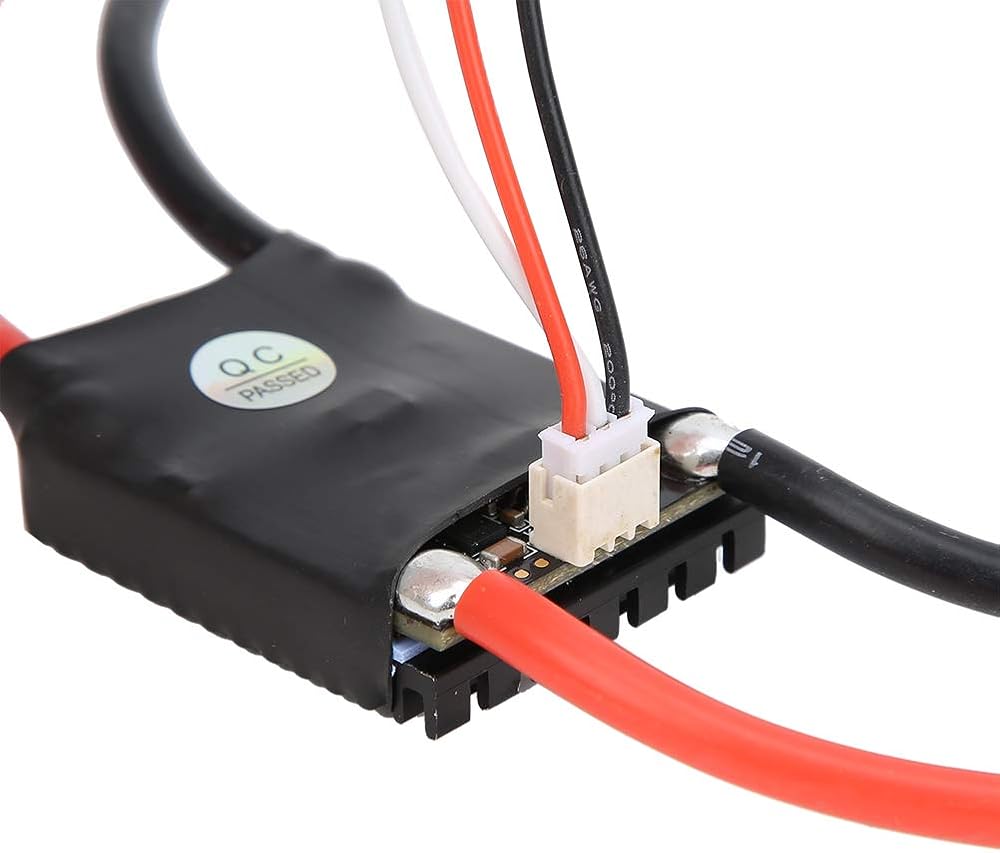

Material: PCB board + aviation aluminum alloy heat sink + thermal
Model: Anti spark switch intelligent version 200A
Hardware: V2.2
Maximum Voltage: 13S (60V)
Continuous Current: 150A
Maximum Current: 200A
Mosfet: NVMFS5C628NLs
LED Button Diameter: Approx. 12mm / 0.5in
Cable Length: Approx. 250mm / 9.8in
PCB Thickness: 4 layers x 3oz copper = 12oz copper
PCB Size: Approx. 40 x 32mm / 1.6 x 1.3in

Enhanced Functions:

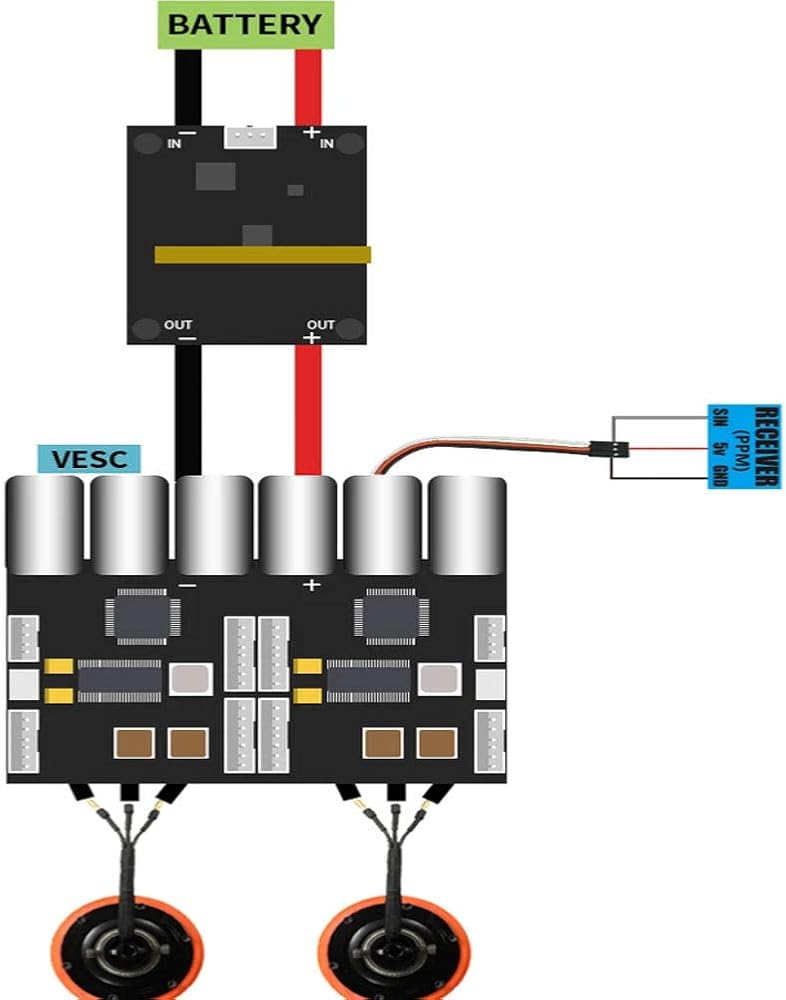

1. High-side switch ?It is safer when used with multiple ESCs and other devices.
2. current limit. The RC delay network limits the inrush current to a safe level.
dV/dt is ~100V/s (for power electronic equipment, this is very slow, fast is 50,000,000V/s). With an output capacitance of 6,000 uF, this is an inrush current of 600 mA.
3. Smart power on/off
Start from scratch. It has a blanking timer of 12 seconds after closing. During this period, it can still be opened by a switch.
Turn off automatically. It will automatically turn off after 20 minutes. The output voltage must change at least 500mV in any three-second interval to reset the shutdown timer.
4. Support momentary button. Hold down for 0.3s to open, 1s to close. Press and hold it to cycle on and then off.
5. High power, 150A continuous.
Very low idle power consumption (about 300uA) will last for months of battery life

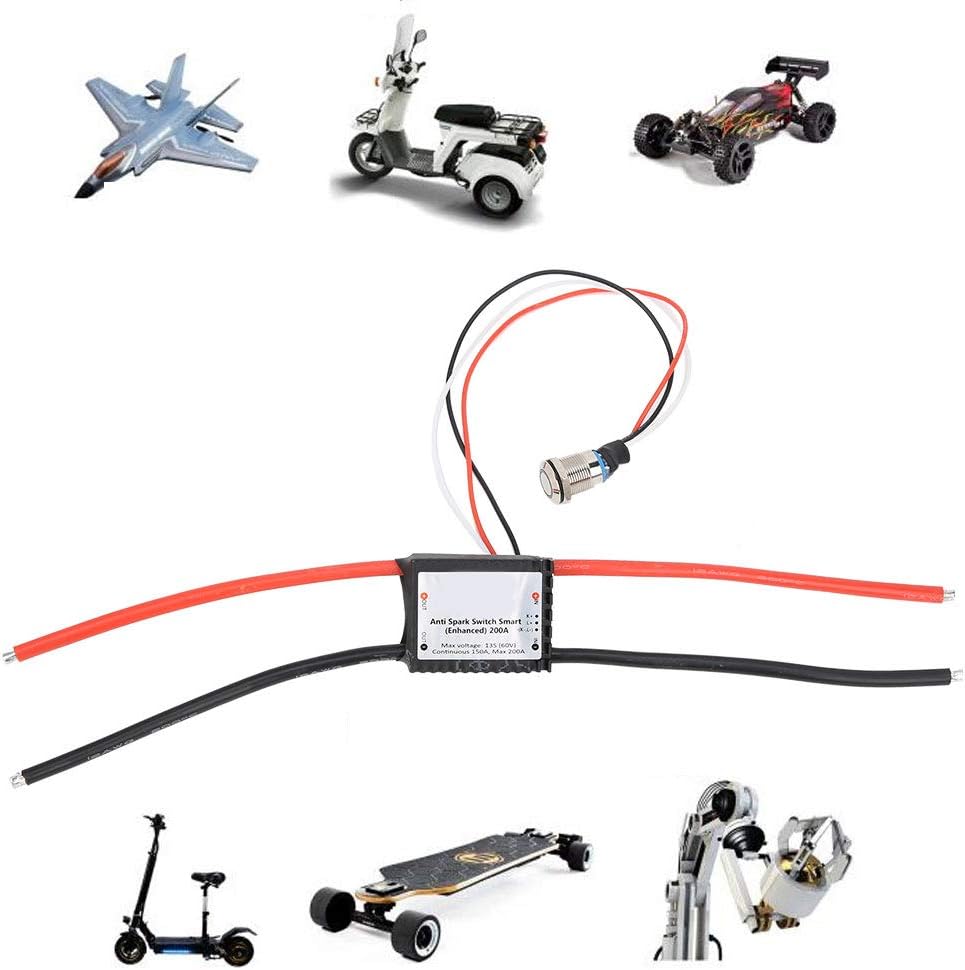

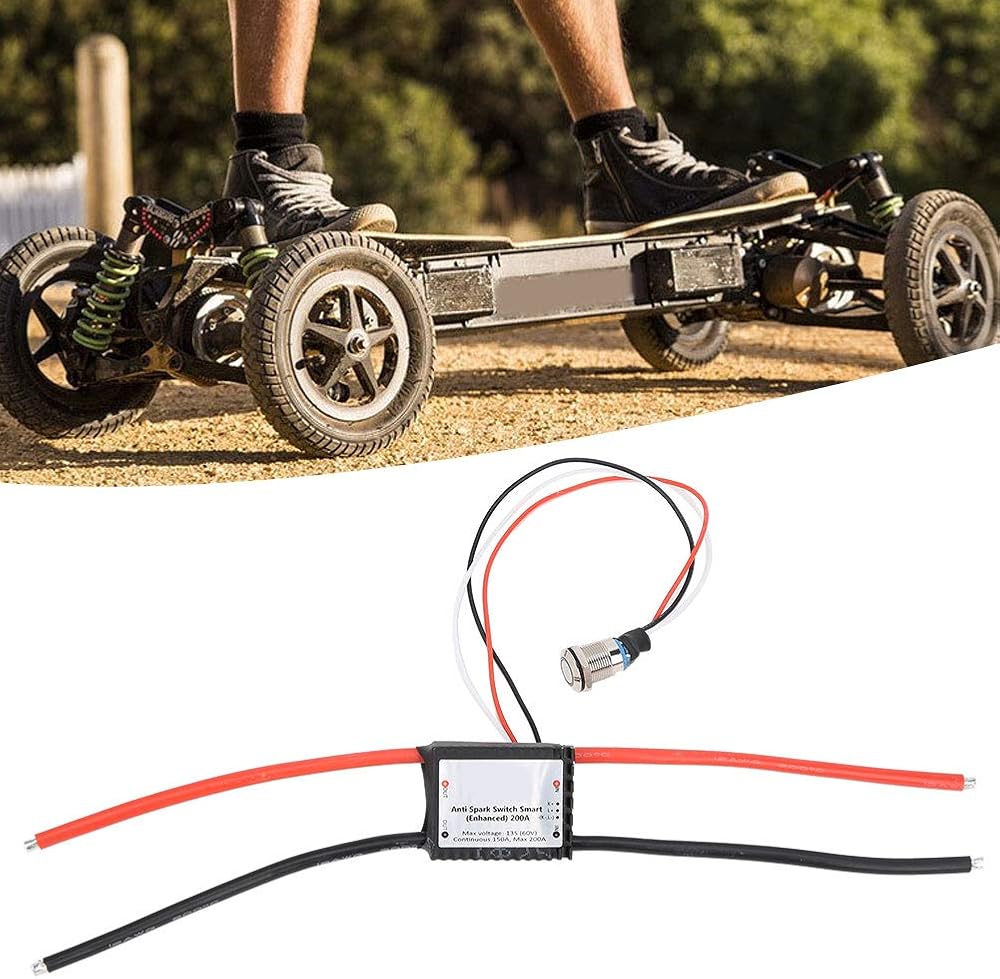

6. Applicable: RC Car, UAV, model airplane, ship model, car model high-current products, DIY anti spark switch, high-power type electric vehicles, industrial DC high-power contact products, frequent high-power power supply products, etc.

Package List:

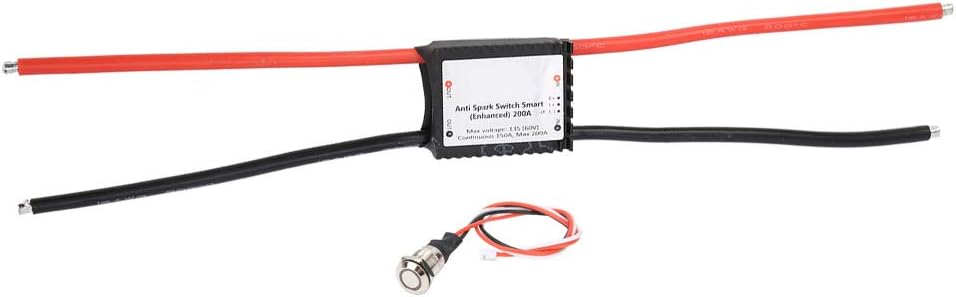

1 x Anti Spark Switch

Note:
1. Prevent small sparks from causing explosions in certain spark?sensitive areas.
2. Add copper bars to achieve better heat dissipation and overc
