Description:

Specifications:

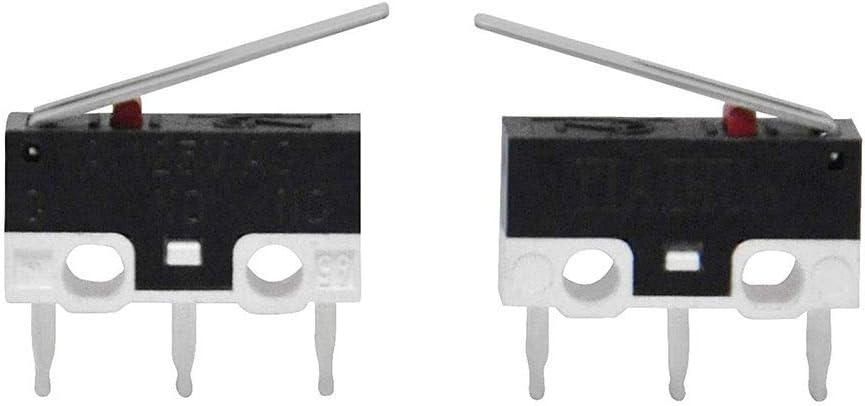

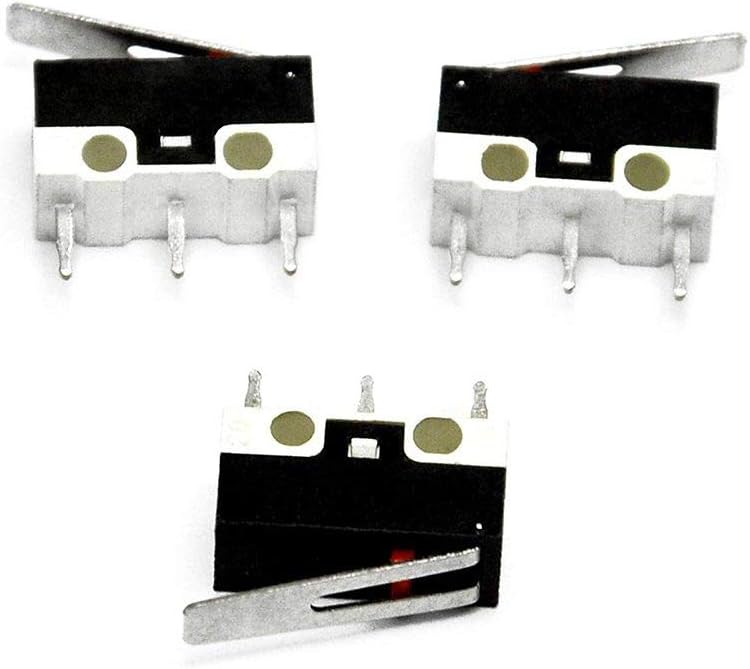

Product Name: Micro Limit Switch
Model No.: JL012-13.5-2
Contact Type: 3 Pins 1 NC 1 NO
Product Certification: ROHS

Electrical Characteristics:
Insulation Resistance:≥500MΩ（Test between adjacent legs, pins and insulation resistance between the shell.）
Voltage Tester:There is no insulation damage, and abnormal are (Input voltage AC300V(50Hz-60Hz) 1 minute, leakage current of 2mA,the test between the neighboring side.)
Mechanical properties:
Operating Force:70±20gf（Operation at the beginning of the vertical keys, the gradual application of force, surveying trip switch to reach all of the work required when the maximum operating efforts.）
Itinerary:0.3±0.1mm（Operation at the beginning of the vertical keys, the volume of the top switch turn-on when the mobile distance or maximum distance.）
Terminal Strength: Terminal without falling, fracture, loosening, such as abnormal（Terminals is any direction at the beginning of the force imposed by 0.5kg,duration 1 minute.）
Reliability Test:
Solder ability: Wetting pin area more than 95%
Life expectancy: More than 500000
Welding heat-resistant test: Terminal part of invasive tin welding furnace, tin furnace temperature of 260±5℃, soldering time 2±1 seconds. Ontology without deformation, to meet in the machinery, electrical performance

Package included:

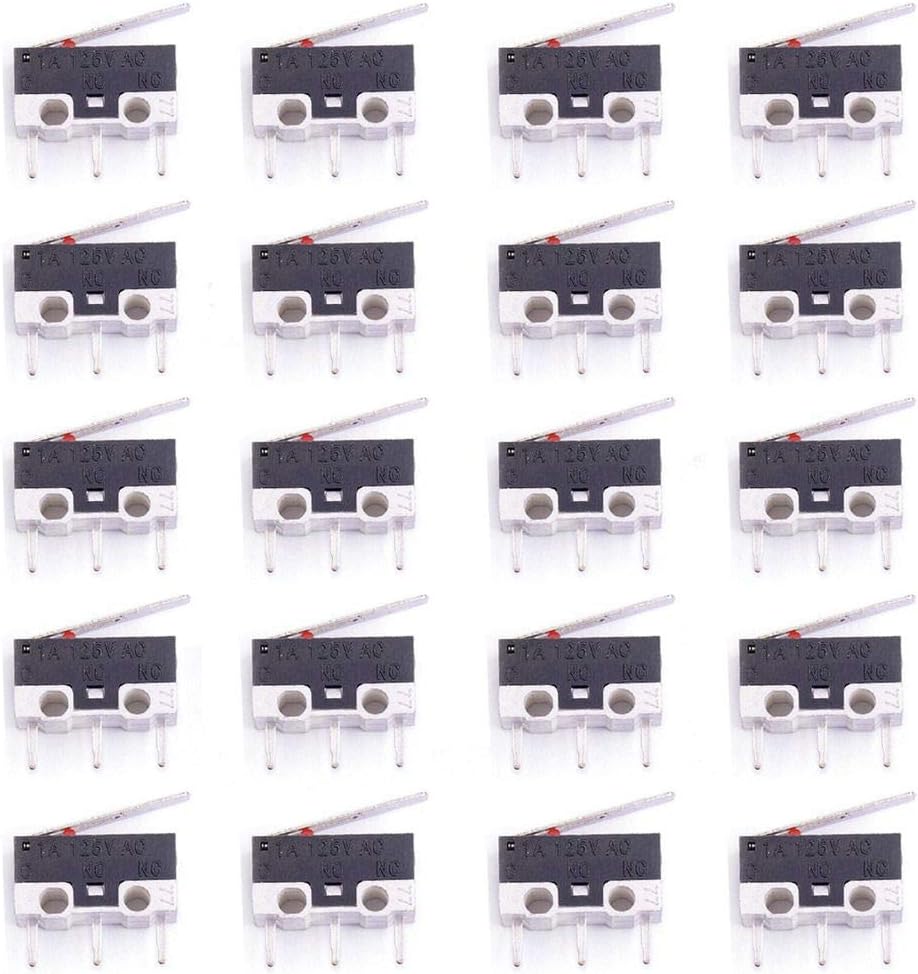

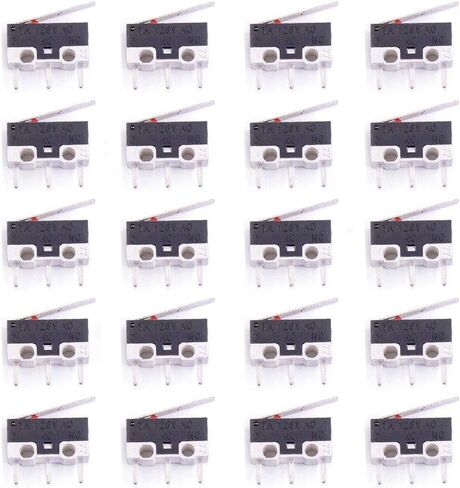

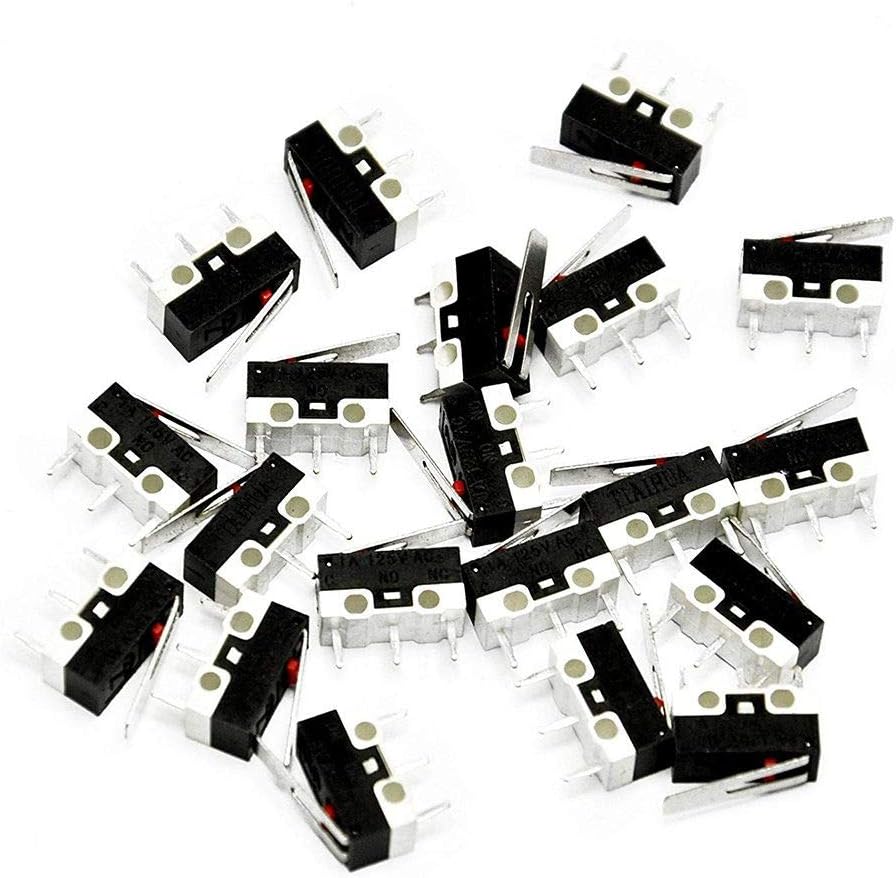

20 x Micro Limit Switch AC 125V 1A 3 Pin
